Dune::DefaultCoordFunction< HostGrid > Class Template Reference

#include <dune/grid/geometrygrid/grid.hh>

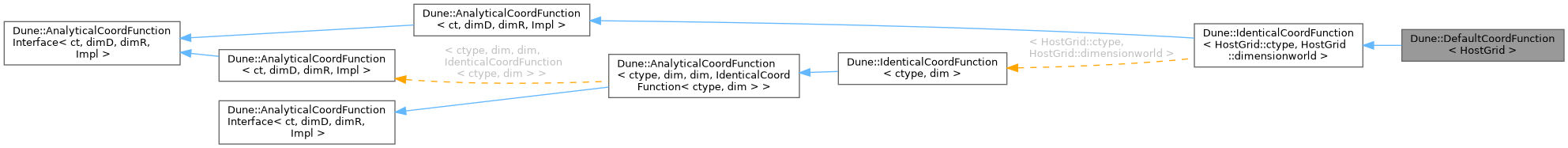

Inheritance diagram for Dune::DefaultCoordFunction< HostGrid >:

Public Types
typedef Base::DomainVector	DomainVector
typedef Base::RangeVector	RangeVector
typedef This	Interface
typedef Impl	Implementation
typedef ct	ctype
	field type of the coordinate vector

Public Member Functions
RangeVector	operator() (const DomainVector &x) const
void	evaluate (const DomainVector &x, RangeVector &y) const
	evaluate method for global mapping

Static Public Attributes
static const unsigned int	dimDomain = dimD
	dimension of the range vector (dimensionworld of host grid)
static const unsigned int	dimRange = dimR
	dimension of the range vector

Protected Member Functions
const Implementation &	asImp () const
Implementation &	asImp ()

Member Typedef Documentation

ctype

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

typedef ct Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::ctype

inherited

field type of the coordinate vector

DomainVector

typedef Base::DomainVector Dune::IdenticalCoordFunction< HostGrid::ctype , dim >::DomainVector

inherited

Implementation

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

typedef Impl Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::Implementation

inherited

Interface

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

typedef This Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::Interface

inherited

RangeVector

typedef Base::RangeVector Dune::IdenticalCoordFunction< HostGrid::ctype , dim >::RangeVector

inherited

Member Function Documentation

asImp() [1/2]

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

Implementation & Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::asImp ( )

inlineprotectedinherited

asImp() [2/2]

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

const Implementation & Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::asImp ( ) const

inlineprotectedinherited

evaluate()

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

void Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::evaluate ( const DomainVector &  x, RangeVector &  y  ) const

inherited

evaluate method for global mapping

operator()()

RangeVector Dune::IdenticalCoordFunction< HostGrid::ctype , dim >::operator() ( const DomainVector &  x ) const

inlineinherited

Member Data Documentation

dimDomain

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

const unsigned int Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::dimDomain = dimD

staticinherited

dimension of the range vector (dimensionworld of host grid)

dimRange

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

const unsigned int Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::dimRange = dimR

staticinherited

dimension of the range vector

---

The documentation for this class was generated from the following file:

• geometrygrid/grid.hh
