Dune::AnalyticalCoordFunction< ct, dimD, dimR, Impl > Class Template Reference

Derive an implementation of an analytical coordinate function from this class. More...

#include <dune/grid/geometrygrid/coordfunction.hh>

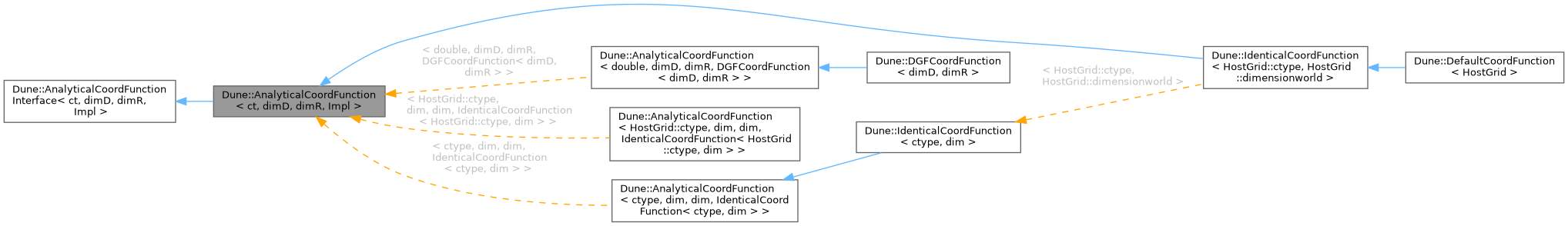

Inheritance diagram for Dune::AnalyticalCoordFunction< ct, dimD, dimR, Impl >:

Public Types
typedef Base::DomainVector	DomainVector
typedef Base::RangeVector	RangeVector
typedef This	Interface
typedef Impl	Implementation
typedef ct	ctype
	field type of the coordinate vector

Public Member Functions
void	evaluate (const DomainVector &x, RangeVector &y) const
	evaluate method for global mapping

Static Public Attributes
static const unsigned int	dimDomain = dimD
	dimension of the range vector (dimensionworld of host grid)
static const unsigned int	dimRange = dimR
	dimension of the range vector

Protected Member Functions
	AnalyticalCoordFunction ()=default
	AnalyticalCoordFunction (const This &)=default
	AnalyticalCoordFunction (This &&)=default
	~AnalyticalCoordFunction ()=default
This &	operator= (const This &)=default
This &	operator= (This &&)=default
const Implementation &	asImp () const
Implementation &	asImp ()

Detailed Description

template<class ct, unsigned int dimD, unsigned int dimR, class Impl>
class Dune::AnalyticalCoordFunction< ct, dimD, dimR, Impl >

Derive an implementation of an analytical coordinate function from this class.

Member Typedef Documentation

ctype

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

typedef ct Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::ctype

inherited

field type of the coordinate vector

DomainVector

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

typedef Base::DomainVector Dune::AnalyticalCoordFunction< ct, dimD, dimR, Impl >::DomainVector

Implementation

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

typedef Impl Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::Implementation

inherited

Interface

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

typedef This Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::Interface

inherited

RangeVector

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

typedef Base::RangeVector Dune::AnalyticalCoordFunction< ct, dimD, dimR, Impl >::RangeVector

Constructor & Destructor Documentation

AnalyticalCoordFunction() [1/3]

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

Dune::AnalyticalCoordFunction< ct, dimD, dimR, Impl >::AnalyticalCoordFunction ( )

protecteddefault

AnalyticalCoordFunction() [2/3]

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

Dune::AnalyticalCoordFunction< ct, dimD, dimR, Impl >::AnalyticalCoordFunction ( const This &  )

protecteddefault

AnalyticalCoordFunction() [3/3]

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

Dune::AnalyticalCoordFunction< ct, dimD, dimR, Impl >::AnalyticalCoordFunction ( This &&  )

protecteddefault

~AnalyticalCoordFunction()

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

Dune::AnalyticalCoordFunction< ct, dimD, dimR, Impl >::~AnalyticalCoordFunction ( )

protecteddefault

Member Function Documentation

asImp() [1/2]

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

Implementation & Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::asImp ( )

inlineprotectedinherited

asImp() [2/2]

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

const Implementation & Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::asImp ( ) const

inlineprotectedinherited

evaluate()

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

void Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::evaluate ( const DomainVector &  x, RangeVector &  y  ) const

inherited

evaluate method for global mapping

operator=() [1/2]

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

This & Dune::AnalyticalCoordFunction< ct, dimD, dimR, Impl >::operator= ( const This &  )

protecteddefault

operator=() [2/2]

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

This & Dune::AnalyticalCoordFunction< ct, dimD, dimR, Impl >::operator= ( This &&  )

protecteddefault

Member Data Documentation

dimDomain

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

const unsigned int Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::dimDomain = dimD

staticinherited

dimension of the range vector (dimensionworld of host grid)

dimRange

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

const unsigned int Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::dimRange = dimR

staticinherited

dimension of the range vector

---

The documentation for this class was generated from the following file:

• coordfunction.hh
