Dune::Vtk::UnstructuredGridWriter< GridView, DataCollector > Class Template Reference

File-Writer for VTK .vtu files. More...

#include <dune/vtk/writers/unstructuredgridwriter.hh>

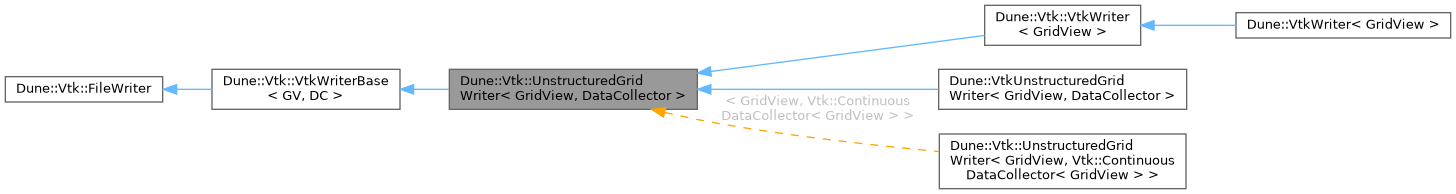

Inheritance diagram for Dune::Vtk::UnstructuredGridWriter< GridView, DataCollector >:

Public Types
using	GridView = GV
using	DataCollector = DC

Public Member Functions
virtual std::string	write (std::string const &fn, std::optional< std::string > dir={}) const override
	Write the attached data to the file.
template<class Function >
VtkWriterBase &	addPointData (Function &&fct, const Vtk::FieldInfo &info)
	Attach point data to the writer.
template<class Function , class R = RangeType<ResolveRef_t<Function>,Domain>>
VtkWriterBase &	addPointData (Function &&fct, std::string name, int size=dimRange< R >())
VtkWriterBase &	addPointData (const std::shared_ptr< VTKFunction< GridView > const > &fct)
VtkWriterBase &	addPointData (const Vtk::GridFunction< GridView > &fct)
template<class Function >
VtkWriterBase &	addCellData (Function &&fct, const Vtk::FieldInfo &info)
	Attach cell data to the writer.
template<class Function , class R = RangeType<ResolveRef_t<Function>,Domain>>
VtkWriterBase &	addCellData (Function &&fct, std::string name, int size=dimRange< R >())
VtkWriterBase &	addCellData (const std::shared_ptr< VTKFunction< GridView > const > &fct)
VtkWriterBase &	addCellData (const Vtk::GridFunction< GridView > &fct)
void	setFormat (Vtk::FormatTypes format)
void	setDatatype (Vtk::DataTypes datatype)
	Sets the global datatype used for coordinates and other global float values.
void	setHeadertype (Vtk::DataTypes datatype)
	Sets the integer type used in binary data headers.
void	setCompressor (Vtk::CompressorTypes compressor, int level=-1)

Protected Types
enum	PositionTypes { POINT_DATA , CELL_DATA }
using	VtkFunction = Dune::Vtk::GridFunction< GridView >
using	Domain = typename GridView::template Codim< 0 >::Entity::Geometry::GlobalCoordinate

Protected Member Functions
void	writeData (std::ofstream &out, std::vector< pos_type > &offsets, VtkFunction const &fct, PositionTypes type, std::optional< std::size_t > timestep={}) const
void	writeDataAppended (std::ofstream &out, std::vector< std::uint64_t > &blocks) const
void	writePoints (std::ofstream &out, std::vector< pos_type > &offsets, std::optional< std::size_t > timestep={}) const
void	writeAppended (std::ofstream &out, std::vector< pos_type > const &offsets) const
template<class HeaderType , class FloatType >
std::uint64_t	writeValuesAppended (std::ofstream &out, std::vector< FloatType > const &values) const
template<class T >
void	writeValuesAscii (std::ofstream &out, std::vector< T > const &values) const
void	writeHeader (std::ofstream &out, std::string const &type) const
std::string	getNames (std::vector< VtkFunction > const &data) const
	Return PointData/CellData attributes for the name of the first scalar/vector/tensor DataArray.
std::string	getEndian () const
std::string	getFileExtension () const
Vtk::FormatTypes	getFormat () const
Vtk::DataTypes	getDatatype () const
auto	comm () const

Protected Attributes
Vtk::CompressorTypes	compressor_ = Vtk::CompressorTypes::NONE
std::size_t const	block_size = 1024*32
int	compression_level = -1

Friends
template<class >
class	TimeseriesWriter

Detailed Description

template<class GridView, class DataCollector = ContinuousDataCollector<GridView>>
class Dune::Vtk::UnstructuredGridWriter< GridView, DataCollector >

File-Writer for VTK .vtu files.

Requirement:

• DataCollector must be a model of DataCollector

Member Typedef Documentation

DataCollector

template<class GV , class DC >

using Dune::Vtk::VtkWriterBase< GV, DC >::DataCollector = DC

inherited

Domain

template<class GV , class DC >

using Dune::Vtk::VtkWriterBase< GV, DC >::Domain = typename GridView::template Codim<0>::Entity::Geometry::GlobalCoordinate

protectedinherited

GridView

template<class GV , class DC >

using Dune::Vtk::VtkWriterBase< GV, DC >::GridView = GV

inherited

VtkFunction

template<class GV , class DC >

using Dune::Vtk::VtkWriterBase< GV, DC >::VtkFunction = Dune::Vtk::GridFunction<GridView>

protectedinherited

Member Enumeration Documentation

PositionTypes

template<class GV , class DC >

enum Dune::Vtk::VtkWriterBase::PositionTypes

protectedinherited

Enumerator
POINT_DATA
CELL_DATA

Member Function Documentation

addCellData() [1/4]

template<class GV , class DC >

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addCellData ( const std::shared_ptr< VTKFunction< GridView > const > &  fct )

inlineinherited

addCellData() [2/4]

template<class GV , class DC >

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addCellData ( const Vtk::GridFunction< GridView > &  fct )

inlineinherited

addCellData() [3/4]

template<class GV , class DC >

template<class Function >

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addCellData ( Function &&  fct, const Vtk::FieldInfo &  info  )

inlineinherited

Attach cell data to the writer.

Attach a global function to the writer that will be evaluated at cell centers. The global function must be assignable to the function wrapper Vtk::GridFunction. Additional argument for output datatype and number of components can be passed. See Vtk::GridFunction Constructor for possible arguments.

Parameters

fct	A GridFunction or Dune::VTKFunction
info	Additional arguments, like name, numComponents, dataType or rangeType

addCellData() [4/4]

template<class GV , class DC >

template<class Function , class R = RangeType<ResolveRef_t<Function>,Domain>>

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addCellData ( Function &&  fct, std::string  name, int  size = dimRange<R>()  )

inlineinherited

addPointData() [1/4]

template<class GV , class DC >

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addPointData ( const std::shared_ptr< VTKFunction< GridView > const > &  fct )

inlineinherited

addPointData() [2/4]

template<class GV , class DC >

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addPointData ( const Vtk::GridFunction< GridView > &  fct )

inlineinherited

addPointData() [3/4]

template<class GV , class DC >

template<class Function >

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addPointData ( Function &&  fct, const Vtk::FieldInfo &  info  )

inlineinherited

Attach point data to the writer.

Attach a global function to the writer that will be evaluated at grid points (vertices and higher order points). The global function must be assignable to the function wrapper Vtk::GridFunction. Additional argument for output datatype and number of components can be passed. See Vtk::GridFunction Constructor for possible arguments.

Parameters

fct	A GridFunction or Dune::VTKFunction
inf	Additional arguments, like name, numComponents, dataType or rangeType

addPointData() [4/4]

template<class GV , class DC >

template<class Function , class R = RangeType<ResolveRef_t<Function>,Domain>>

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addPointData ( Function &&  fct, std::string  name, int  size = dimRange<R>()  )

inlineinherited

comm()

template<class GV , class DC >

auto Dune::Vtk::VtkWriterBase< GV, DC >::comm ( ) const

inlineprotectedinherited

getDatatype()

template<class GV , class DC >

Vtk::DataTypes Dune::Vtk::VtkWriterBase< GV, DC >::getDatatype ( ) const

inlineprotectedinherited

getEndian()

template<class GV , class DC >

std::string Dune::Vtk::VtkWriterBase< GV, DC >::getEndian ( ) const

inlineprotectedinherited

getFileExtension()

template<class GV , class DC >

std::string Dune::Vtk::VtkWriterBase< GV, DC >::getFileExtension ( ) const

inlineprotectedinherited

getFormat()

template<class GV , class DC >

Vtk::FormatTypes Dune::Vtk::VtkWriterBase< GV, DC >::getFormat ( ) const

inlineprotectedinherited

getNames()

template<class GV , class DC >

std::string Dune::Vtk::VtkWriterBase< GV, DC >::getNames ( std::vector< VtkFunction > const &  data ) const

protectedinherited

Return PointData/CellData attributes for the name of the first scalar/vector/tensor DataArray.

setCompressor()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::setCompressor ( Vtk::CompressorTypes  compressor, int  level = -1  )

inlineinherited

Sets the compressor type used in binary data headers, Additionally a compression level can be passed with level = -1 means: default compression level. Level must be in [0-9]

setDatatype()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::setDatatype ( Vtk::DataTypes  datatype )

inlineinherited

Sets the global datatype used for coordinates and other global float values.

setFormat()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::setFormat ( Vtk::FormatTypes  format )

inlineinherited

setHeadertype()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::setHeadertype ( Vtk::DataTypes  datatype )

inlineinherited

Sets the integer type used in binary data headers.

write()

template<class GV , class DC >

std::string Dune::Vtk::VtkWriterBase< GV, DC >::write ( std::string const &  fn, std::optional< std::string >  dir = {}  ) const

overridevirtualinherited

Write the attached data to the file.

Parameters

fn	Filename of the VTK file. May contain a directory and any file extension.
dir	The optional parameter specifies the directory of the partition files for parallel writes.

Returns

File name that is actually written.

Implements Dune::Vtk::FileWriter.

writeAppended()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::writeAppended ( std::ofstream &  out, std::vector< pos_type > const &  offsets  ) const

protectedinherited

writeData()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::writeData ( std::ofstream &  out, std::vector< pos_type > &  offsets, VtkFunction const &  fct, PositionTypes  type, std::optional< std::size_t >  timestep = {}  ) const

protectedinherited

writeDataAppended()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::writeDataAppended ( std::ofstream &  out, std::vector< std::uint64_t > &  blocks  ) const

protectedinherited

writeHeader()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::writeHeader ( std::ofstream &  out, std::string const &  type  ) const

protectedinherited

writePoints()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::writePoints ( std::ofstream &  out, std::vector< pos_type > &  offsets, std::optional< std::size_t >  timestep = {}  ) const

protectedinherited

writeValuesAppended()

template<class GV , class DC >

template<class HeaderType , class FloatType >

std::uint64_t Dune::Vtk::VtkWriterBase< GV, DC >::writeValuesAppended ( std::ofstream &  out, std::vector< FloatType > const &  values  ) const

protectedinherited

writeValuesAscii()

template<class GV , class DC >

template<class T >

void Dune::Vtk::VtkWriterBase< GV, DC >::writeValuesAscii ( std::ofstream &  out, std::vector< T > const &  values  ) const

protectedinherited

Friends And Related Symbol Documentation

TimeseriesWriter

template<class GridView , class DataCollector = ContinuousDataCollector<GridView>>

template<class >

friend class TimeseriesWriter

friend

Member Data Documentation

block_size

template<class GV , class DC >

std::size_t const Dune::Vtk::VtkWriterBase< GV, DC >::block_size = 1024*32

protectedinherited

compression_level

template<class GV , class DC >

int Dune::Vtk::VtkWriterBase< GV, DC >::compression_level = -1

protectedinherited

compressor_

template<class GV , class DC >

Vtk::CompressorTypes Dune::Vtk::VtkWriterBase< GV, DC >::compressor_ = Vtk::CompressorTypes::NONE

protectedinherited

---

The documentation for this class was generated from the following files:

• unstructuredgridwriter.hh
• unstructuredgridwriter.impl.hh
