Dune::Vtk::VtkWriterBase< GV, DC > Class Template Reference

Base class for file writers for the Vtk XML file formats. More...

#include <dune/vtk/vtkwriterbase.hh>

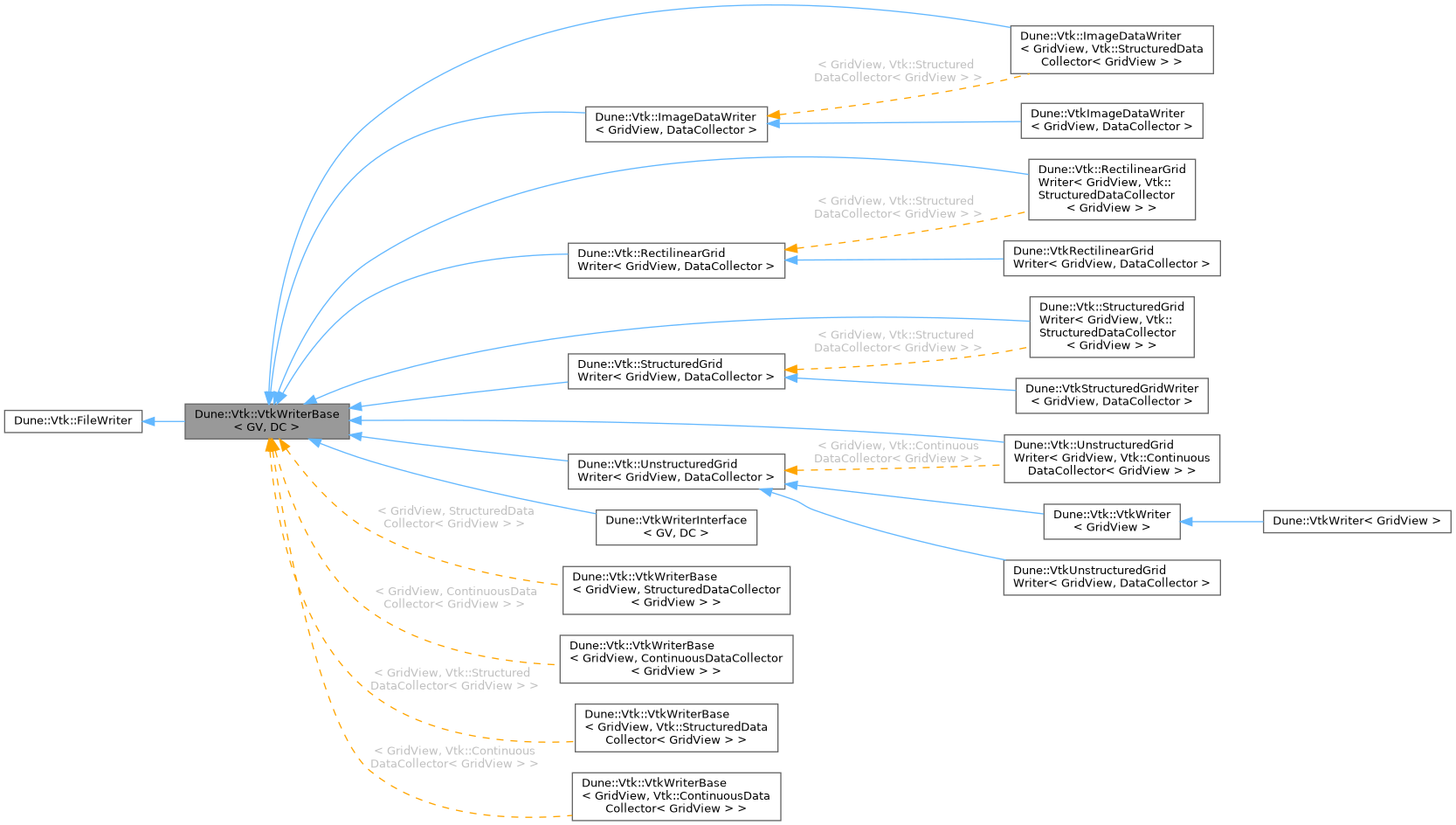

Inheritance diagram for Dune::Vtk::VtkWriterBase< GV, DC >:

Public Types
using	GridView = GV
using	DataCollector = DC

Public Member Functions
	VtkWriterBase (GridView const &gridView, Vtk::FormatTypes format=Vtk::FormatTypes::BINARY, Vtk::DataTypes datatype=Vtk::DataTypes::FLOAT32, Vtk::DataTypes headertype=Vtk::DataTypes::UINT32)
	Constructor, passes the gridView to the DataCollector.
	VtkWriterBase (DataCollector &dataCollector, Vtk::FormatTypes format=Vtk::FormatTypes::BINARY, Vtk::DataTypes datatype=Vtk::DataTypes::FLOAT32, Vtk::DataTypes headertype=Vtk::DataTypes::UINT32)
	Constructor, wraps the passed DataCollector in a non-destroying shared_ptr.
	VtkWriterBase (DataCollector &&dataCollector, Vtk::FormatTypes format=Vtk::FormatTypes::BINARY, Vtk::DataTypes datatype=Vtk::DataTypes::FLOAT32, Vtk::DataTypes headertype=Vtk::DataTypes::UINT32)
	Constructor, stores the passed DataCollector.
	VtkWriterBase (std::shared_ptr< DataCollector > dataCollector, Vtk::FormatTypes format=Vtk::FormatTypes::BINARY, Vtk::DataTypes datatype=Vtk::DataTypes::FLOAT32, Vtk::DataTypes headertype=Vtk::DataTypes::UINT32)
	Constructor, stores the passed DataCollector.
virtual std::string	write (std::string const &fn, std::optional< std::string > dir={}) const override
	Write the attached data to the file.
template<class Function >
VtkWriterBase &	addPointData (Function &&fct, const Vtk::FieldInfo &info)
	Attach point data to the writer.
template<class Function , class R = RangeType<ResolveRef_t<Function>,Domain>>
VtkWriterBase &	addPointData (Function &&fct, std::string name, int size=dimRange< R >())
VtkWriterBase &	addPointData (const std::shared_ptr< VTKFunction< GridView > const > &fct)
VtkWriterBase &	addPointData (const Vtk::GridFunction< GridView > &fct)
template<class Function >
VtkWriterBase &	addCellData (Function &&fct, const Vtk::FieldInfo &info)
	Attach cell data to the writer.
template<class Function , class R = RangeType<ResolveRef_t<Function>,Domain>>
VtkWriterBase &	addCellData (Function &&fct, std::string name, int size=dimRange< R >())
VtkWriterBase &	addCellData (const std::shared_ptr< VTKFunction< GridView > const > &fct)
VtkWriterBase &	addCellData (const Vtk::GridFunction< GridView > &fct)
void	setFormat (Vtk::FormatTypes format)
void	setDatatype (Vtk::DataTypes datatype)
	Sets the global datatype used for coordinates and other global float values.
void	setHeadertype (Vtk::DataTypes datatype)
	Sets the integer type used in binary data headers.
void	setCompressor (Vtk::CompressorTypes compressor, int level=-1)

Protected Types
enum	PositionTypes { POINT_DATA , CELL_DATA }
using	VtkFunction = Dune::Vtk::GridFunction< GridView >
using	Domain = typename GridView::template Codim< 0 >::Entity::Geometry::GlobalCoordinate
using	pos_type = typename std::ostream::pos_type

Protected Member Functions
void	writeData (std::ofstream &out, std::vector< pos_type > &offsets, VtkFunction const &fct, PositionTypes type, std::optional< std::size_t > timestep={}) const
void	writeDataAppended (std::ofstream &out, std::vector< std::uint64_t > &blocks) const
void	writePoints (std::ofstream &out, std::vector< pos_type > &offsets, std::optional< std::size_t > timestep={}) const
void	writeAppended (std::ofstream &out, std::vector< pos_type > const &offsets) const
template<class HeaderType , class FloatType >
std::uint64_t	writeValuesAppended (std::ofstream &out, std::vector< FloatType > const &values) const
template<class T >
void	writeValuesAscii (std::ofstream &out, std::vector< T > const &values) const
void	writeHeader (std::ofstream &out, std::string const &type) const
std::string	getNames (std::vector< VtkFunction > const &data) const
	Return PointData/CellData attributes for the name of the first scalar/vector/tensor DataArray.
std::string	getEndian () const
std::string	getFileExtension () const
Vtk::FormatTypes	getFormat () const
Vtk::DataTypes	getDatatype () const
auto	comm () const

Protected Attributes
std::shared_ptr< DataCollector >	dataCollector_
Vtk::FormatTypes	format_
Vtk::DataTypes	datatype_
Vtk::DataTypes	headertype_
Vtk::CompressorTypes	compressor_ = Vtk::CompressorTypes::NONE
std::vector< VtkFunction >	pointData_
std::vector< VtkFunction >	cellData_
std::size_t const	block_size = 1024*32
int	compression_level = -1

Friends
template<class >
class	TimeseriesWriter
template<class >
class	PvdWriter

Detailed Description

template<class GV, class DC>
class Dune::Vtk::VtkWriterBase< GV, DC >

Base class for file writers for the Vtk XML file formats.

Template Parameters

GV	Model of Dune::GridView
DC	Model of DataCollectorInterface

Member Typedef Documentation

DataCollector

template<class GV , class DC >

using Dune::Vtk::VtkWriterBase< GV, DC >::DataCollector = DC

Domain

template<class GV , class DC >

using Dune::Vtk::VtkWriterBase< GV, DC >::Domain = typename GridView::template Codim<0>::Entity::Geometry::GlobalCoordinate

protected

GridView

template<class GV , class DC >

using Dune::Vtk::VtkWriterBase< GV, DC >::GridView = GV

pos_type

template<class GV , class DC >

using Dune::Vtk::VtkWriterBase< GV, DC >::pos_type = typename std::ostream::pos_type

protected

VtkFunction

template<class GV , class DC >

using Dune::Vtk::VtkWriterBase< GV, DC >::VtkFunction = Dune::Vtk::GridFunction<GridView>

protected

Member Enumeration Documentation

PositionTypes

template<class GV , class DC >

enum Dune::Vtk::VtkWriterBase::PositionTypes

protected

Enumerator
POINT_DATA
CELL_DATA

Constructor & Destructor Documentation

VtkWriterBase() [1/4]

template<class GV , class DC >

Dune::Vtk::VtkWriterBase< GV, DC >::VtkWriterBase ( GridView const &  gridView, Vtk::FormatTypes  format = Vtk::FormatTypes::BINARY, Vtk::DataTypes  datatype = Vtk::DataTypes::FLOAT32, Vtk::DataTypes  headertype = Vtk::DataTypes::UINT32  )

inline

Constructor, passes the gridView to the DataCollector.

Creates a new VtkWriterBase for the provided GridView. Initializes a DataCollector that is used to collect point coordinates, cell connectivity and data values.

This constructor assumes, that the DataCollector can be constructed from a single argument, the passed gridView.

Parameters

gridView	Implementation of Dune::GridView
format	Format of the VTK file, either Vtk::FormatTypes::BINARY, Vtk::FormatTypes::ASCII, or Vtk::COMPRESSED
datatype	Data type of a single component of the point coordinates [Vtk::DataTypes::FLOAT32]
headertype	Integer type used in binary data headers [Vtk::DataTypes::UINT32]

VtkWriterBase() [2/4]

template<class GV , class DC >

Dune::Vtk::VtkWriterBase< GV, DC >::VtkWriterBase ( DataCollector &  dataCollector, Vtk::FormatTypes  format = Vtk::FormatTypes::BINARY, Vtk::DataTypes  datatype = Vtk::DataTypes::FLOAT32, Vtk::DataTypes  headertype = Vtk::DataTypes::UINT32  )

inline

Constructor, wraps the passed DataCollector in a non-destroying shared_ptr.

VtkWriterBase() [3/4]

template<class GV , class DC >

Dune::Vtk::VtkWriterBase< GV, DC >::VtkWriterBase ( DataCollector &&  dataCollector, Vtk::FormatTypes  format = Vtk::FormatTypes::BINARY, Vtk::DataTypes  datatype = Vtk::DataTypes::FLOAT32, Vtk::DataTypes  headertype = Vtk::DataTypes::UINT32  )

inline

Constructor, stores the passed DataCollector.

VtkWriterBase() [4/4]

template<class GV , class DC >

Dune::Vtk::VtkWriterBase< GV, DC >::VtkWriterBase ( std::shared_ptr< DataCollector >  dataCollector, Vtk::FormatTypes  format = Vtk::FormatTypes::BINARY, Vtk::DataTypes  datatype = Vtk::DataTypes::FLOAT32, Vtk::DataTypes  headertype = Vtk::DataTypes::UINT32  )

inline

Constructor, stores the passed DataCollector.

Member Function Documentation

addCellData() [1/4]

template<class GV , class DC >

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addCellData ( const std::shared_ptr< VTKFunction< GridView > const > &  fct )

inline

addCellData() [2/4]

template<class GV , class DC >

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addCellData ( const Vtk::GridFunction< GridView > &  fct )

inline

addCellData() [3/4]

template<class GV , class DC >

template<class Function >

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addCellData ( Function &&  fct, const Vtk::FieldInfo &  info  )

inline

Attach cell data to the writer.

Attach a global function to the writer that will be evaluated at cell centers. The global function must be assignable to the function wrapper Vtk::GridFunction. Additional argument for output datatype and number of components can be passed. See Vtk::GridFunction Constructor for possible arguments.

Parameters

fct	A GridFunction or Dune::VTKFunction
info	Additional arguments, like name, numComponents, dataType or rangeType

addCellData() [4/4]

template<class GV , class DC >

template<class Function , class R = RangeType<ResolveRef_t<Function>,Domain>>

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addCellData ( Function &&  fct, std::string  name, int  size = dimRange<R>()  )

inline

addPointData() [1/4]

template<class GV , class DC >

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addPointData ( const std::shared_ptr< VTKFunction< GridView > const > &  fct )

inline

addPointData() [2/4]

template<class GV , class DC >

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addPointData ( const Vtk::GridFunction< GridView > &  fct )

inline

addPointData() [3/4]

template<class GV , class DC >

template<class Function >

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addPointData ( Function &&  fct, const Vtk::FieldInfo &  info  )

inline

Attach point data to the writer.

Attach a global function to the writer that will be evaluated at grid points (vertices and higher order points). The global function must be assignable to the function wrapper Vtk::GridFunction. Additional argument for output datatype and number of components can be passed. See Vtk::GridFunction Constructor for possible arguments.

Parameters

fct	A GridFunction or Dune::VTKFunction
inf	Additional arguments, like name, numComponents, dataType or rangeType

addPointData() [4/4]

template<class GV , class DC >

template<class Function , class R = RangeType<ResolveRef_t<Function>,Domain>>

VtkWriterBase & Dune::Vtk::VtkWriterBase< GV, DC >::addPointData ( Function &&  fct, std::string  name, int  size = dimRange<R>()  )

inline

comm()

template<class GV , class DC >

auto Dune::Vtk::VtkWriterBase< GV, DC >::comm ( ) const

inlineprotected

getDatatype()

template<class GV , class DC >

Vtk::DataTypes Dune::Vtk::VtkWriterBase< GV, DC >::getDatatype ( ) const

inlineprotected

getEndian()

template<class GV , class DC >

std::string Dune::Vtk::VtkWriterBase< GV, DC >::getEndian ( ) const

inlineprotected

getFileExtension()

template<class GV , class DC >

std::string Dune::Vtk::VtkWriterBase< GV, DC >::getFileExtension ( ) const

inlineprotected

getFormat()

template<class GV , class DC >

Vtk::FormatTypes Dune::Vtk::VtkWriterBase< GV, DC >::getFormat ( ) const

inlineprotected

getNames()

template<class GV , class DC >

std::string Dune::Vtk::VtkWriterBase< GV, DC >::getNames ( std::vector< VtkFunction > const &  data ) const

protected

Return PointData/CellData attributes for the name of the first scalar/vector/tensor DataArray.

setCompressor()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::setCompressor ( Vtk::CompressorTypes  compressor, int  level = -1  )

inline

Sets the compressor type used in binary data headers, Additionally a compression level can be passed with level = -1 means: default compression level. Level must be in [0-9]

setDatatype()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::setDatatype ( Vtk::DataTypes  datatype )

inline

Sets the global datatype used for coordinates and other global float values.

setFormat()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::setFormat ( Vtk::FormatTypes  format )

inline

setHeadertype()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::setHeadertype ( Vtk::DataTypes  datatype )

inline

Sets the integer type used in binary data headers.

write()

template<class GV , class DC >

std::string Dune::Vtk::VtkWriterBase< GV, DC >::write ( std::string const &  fn, std::optional< std::string >  dir = {}  ) const

overridevirtual

Write the attached data to the file.

Parameters

fn	Filename of the VTK file. May contain a directory and any file extension.
dir	The optional parameter specifies the directory of the partition files for parallel writes.

Returns

File name that is actually written.

Implements Dune::Vtk::FileWriter.

writeAppended()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::writeAppended ( std::ofstream &  out, std::vector< pos_type > const &  offsets  ) const

protected

writeData()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::writeData ( std::ofstream &  out, std::vector< pos_type > &  offsets, VtkFunction const &  fct, PositionTypes  type, std::optional< std::size_t >  timestep = {}  ) const

protected

writeDataAppended()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::writeDataAppended ( std::ofstream &  out, std::vector< std::uint64_t > &  blocks  ) const

protected

writeHeader()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::writeHeader ( std::ofstream &  out, std::string const &  type  ) const

protected

writePoints()

template<class GV , class DC >

void Dune::Vtk::VtkWriterBase< GV, DC >::writePoints ( std::ofstream &  out, std::vector< pos_type > &  offsets, std::optional< std::size_t >  timestep = {}  ) const

protected

writeValuesAppended()

template<class GV , class DC >

template<class HeaderType , class FloatType >

std::uint64_t Dune::Vtk::VtkWriterBase< GV, DC >::writeValuesAppended ( std::ofstream &  out, std::vector< FloatType > const &  values  ) const

protected

writeValuesAscii()

template<class GV , class DC >

template<class T >

void Dune::Vtk::VtkWriterBase< GV, DC >::writeValuesAscii ( std::ofstream &  out, std::vector< T > const &  values  ) const

protected

Friends And Related Symbol Documentation

PvdWriter

template<class GV , class DC >

template<class >

friend class PvdWriter

friend

TimeseriesWriter

template<class GV , class DC >

template<class >

friend class TimeseriesWriter

friend

Member Data Documentation

block_size

template<class GV , class DC >

std::size_t const Dune::Vtk::VtkWriterBase< GV, DC >::block_size = 1024*32

protected

cellData_

template<class GV , class DC >

std::vector<VtkFunction> Dune::Vtk::VtkWriterBase< GV, DC >::cellData_

protected

compression_level

template<class GV , class DC >

int Dune::Vtk::VtkWriterBase< GV, DC >::compression_level = -1

protected

compressor_

template<class GV , class DC >

Vtk::CompressorTypes Dune::Vtk::VtkWriterBase< GV, DC >::compressor_ = Vtk::CompressorTypes::NONE

protected

dataCollector_

template<class GV , class DC >

std::shared_ptr<DataCollector> Dune::Vtk::VtkWriterBase< GV, DC >::dataCollector_

protected

datatype_

template<class GV , class DC >

Vtk::DataTypes Dune::Vtk::VtkWriterBase< GV, DC >::datatype_

protected

format_

template<class GV , class DC >

Vtk::FormatTypes Dune::Vtk::VtkWriterBase< GV, DC >::format_

protected

headertype_

template<class GV , class DC >

Vtk::DataTypes Dune::Vtk::VtkWriterBase< GV, DC >::headertype_

protected

pointData_

template<class GV , class DC >

std::vector<VtkFunction> Dune::Vtk::VtkWriterBase< GV, DC >::pointData_

protected

---

The documentation for this class was generated from the following files:

• vtkwriterbase.hh
• vtkwriterbase.impl.hh
