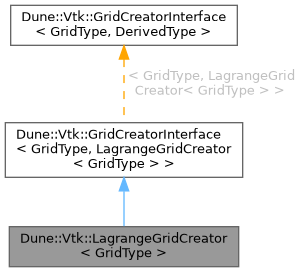

Inheritance diagram for Dune::Vtk::LagrangeGridCreator< GridType >:

Classes
struct	EntitySet

class	LocalFunction

class	LocalParametrization

Public Types
using	Grid = GridType

using	Element = typename Grid::template Codim< 0 >::Entity

using	GlobalCoordinate = typename Super::GlobalCoordinate

using	LocalCoordinate = typename Element::Geometry::LocalCoordinate

using	LocalGeometry = MultiLinearGeometry< typename Element::Geometry::ctype, Element::dimension, Element::dimension >

template<class F >
using	HasParametrizedElements = decltype(std::declval< F >().insertElement(std::declval< GeometryType >(), std::declval< std::vector< unsigned int > const & >(), std::declval< std::function< GlobalCoordinate(LocalCoordinate)> >()))

using	Derived = LagrangeGridCreator< GridType >

Public Member Functions
void	insertVerticesImpl (std::vector< GlobalCoordinate > const &points, std::vector< std::uint64_t > const &)
	Implementation of the interface function `insertVertices()`

void	insertElementsImpl (std::vector< std::uint8_t > const &types, std::vector< std::int64_t > const &offsets, std::vector< std::int64_t > const &connectivity)
	Implementation of the interface function `insertElements()`

LocalParametrization	localParametrization (unsigned int insertionIndex) const
	Construct an element parametrization.

LocalParametrization	localParametrization (Element const &element) const
	Construct an element parametrization.

LocalGeometry	localGeometry (Element const &element) const
	Construct a transformation of local element coordinates.

int	order (GeometryType type, std::size_t nNodes) const
	Determine lagrange order from number of points.

int	order (ElementParametrization const &localParam) const

int	order () const
	Determine lagrange order from number of points from the first element parametrization.

std::string	name () const

int	numComponents () const

Vtk::DataTypes	dataType () const

EntitySet	entitySet () const
	Dummy function returning a placeholder entityset.

GlobalCoordinate	operator() (GlobalCoordinate const &) const
	Dummy function returning a placeholder entityset.

GridFactory< Grid > &	factory ()
	Return the associated GridFactory.

GridFactory< Grid > const &	factory () const
	Return the associated (const) GridFactory.

void	insertVertices (std::vector< GlobalCoordinate > const &points, std::vector< std::uint64_t > const &point_ids)
	Insert all points as vertices into the factory.

void	insertElements (std::vector< std::uint8_t > const &types, std::vector< std::int64_t > const &offsets, std::vector< std::int64_t > const &connectivity)
	Create elements based on type and connectivity description.

void	insertPieces (std::vector< std::string > const &pieces)
	Insert part of a grid stored in file into factory.

std::unique_ptr< Grid >	createGrid () const
	Construct the actual grid using the GridFactory.

auto	comm () const
	Return the mpi collective communicator.

void	insertPiecesImpl (std::vector< std::string > const &)

Protected Member Functions
Derived &	asDerived ()

const Derived &	asDerived () const

Protected Attributes
std::shared_ptr< GridFactory< Grid > >	factory_

Friends
LocalFunction	localFunction (LagrangeGridCreator &gridCreator)
	Local function representing the parametrization of the grid.

LocalFunction	localFunction (LagrangeGridCreator const &gridCreator)

LocalFunction	localFunction (LagrangeGridCreator &&gridCreator)

Detailed Description

template<class GridType>
class Dune::Vtk::LagrangeGridCreator< GridType >

The grid is created from the first nodes of a cell parametrization, representing the corner vertices. Thus a piecewise "flat" grid is constructed. The parametrization is 1. passed as a local element parametrization to the insertElement() function of a gridFactory to allow the grid itself to handle the parametrization and 2. is stored internally that can be accessed by using this GridCreator object as a grid function, or by extracting locally the parametrization on each existing grid element after creation of the grid.

So, the LagrangeGridCreator models both, a GridCreator and a GridFunction.

Member Typedef Documentation

◆ Derived

using Dune::Vtk::GridCreatorInterface< GridType, LagrangeGridCreator< GridType > >::Derived = LagrangeGridCreator< GridType >

inherited

◆ Element

template<class GridType >

using Dune::Vtk::LagrangeGridCreator< GridType >::Element = typename Grid::template Codim<0>::Entity

◆ GlobalCoordinate

template<class GridType >

using Dune::Vtk::LagrangeGridCreator< GridType >::GlobalCoordinate = typename Super::GlobalCoordinate

◆ Grid

template<class GridType >

using Dune::Vtk::LagrangeGridCreator< GridType >::Grid = GridType

◆ HasParametrizedElements

template<class GridType >

template<class F >

using Dune::Vtk::LagrangeGridCreator< GridType >::HasParametrizedElements = decltype(std::declval<F>().insertElement(std::declval<GeometryType>(), std::declval<std::vector<unsigned int> const&>(), std::declval<std::function<GlobalCoordinate(LocalCoordinate)> >()))

◆ LocalCoordinate

template<class GridType >

using Dune::Vtk::LagrangeGridCreator< GridType >::LocalCoordinate = typename Element::Geometry::LocalCoordinate

◆ LocalGeometry

template<class GridType >

using Dune::Vtk::LagrangeGridCreator< GridType >::LocalGeometry = MultiLinearGeometry<typename Element::Geometry::ctype,Element::dimension,Element::dimension>

Member Function Documentation

◆ asDerived() [1/2]

Derived & Dune::Vtk::GridCreatorInterface< GridType, LagrangeGridCreator< GridType > >::asDerived ( )

inlineprotectedinherited

◆ asDerived() [2/2]

const Derived & Dune::Vtk::GridCreatorInterface< GridType, LagrangeGridCreator< GridType > >::asDerived ( ) const

inlineprotectedinherited

◆ comm()

auto Dune::Vtk::GridCreatorInterface< GridType, LagrangeGridCreator< GridType > >::comm ( ) const

inlineinherited

Return the mpi collective communicator.

◆ createGrid()

std::unique_ptr< Grid > Dune::Vtk::GridCreatorInterface< GridType, LagrangeGridCreator< GridType > >::createGrid ( ) const

inlineinherited

Construct the actual grid using the GridFactory.

◆ dataType()

template<class GridType >

Vtk::DataTypes Dune::Vtk::LagrangeGridCreator< GridType >::dataType ( ) const

inline

◆ entitySet()

template<class GridType >

EntitySet Dune::Vtk::LagrangeGridCreator< GridType >::entitySet ( ) const

inline

Dummy function returning a placeholder entityset.

◆ factory() [1/2]

template<class GridType >

GridFactory< Grid > & Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::factory ( )

inline

Return the associated GridFactory.

◆ factory() [2/2]

template<class GridType >

GridFactory< Grid > const & Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::factory ( ) const

inline

Return the associated (const) GridFactory.

◆ insertElements()

void Dune::Vtk::GridCreatorInterface< GridType, LagrangeGridCreator< GridType > >::insertElements	(	std::vector< std::uint8_t > const &	types,
		std::vector< std::int64_t > const &	offsets,
		std::vector< std::int64_t > const &	connectivity
	)

inlineinherited

Create elements based on type and connectivity description.

◆ insertElementsImpl()

template<class GridType >

void Dune::Vtk::LagrangeGridCreator< GridType >::insertElementsImpl	(	std::vector< std::uint8_t > const &	types,
		std::vector< std::int64_t > const &	offsets,
		std::vector< std::int64_t > const &	connectivity
	)

inline

Implementation of the interface function insertElements()

◆ insertPieces()

void Dune::Vtk::GridCreatorInterface< GridType, LagrangeGridCreator< GridType > >::insertPieces ( std::vector< std::string > const & pieces )

inlineinherited

Insert part of a grid stored in file into factory.

◆ insertPiecesImpl()

void Dune::Vtk::GridCreatorInterface< GridType, LagrangeGridCreator< GridType > >::insertPiecesImpl ( std::vector< std::string > const & )

inlineinherited

◆ insertVertices()

void Dune::Vtk::GridCreatorInterface< GridType, LagrangeGridCreator< GridType > >::insertVertices	(	std::vector< GlobalCoordinate > const &	points,
		std::vector< std::uint64_t > const &	point_ids
	)

inlineinherited

Insert all points as vertices into the factory.

◆ insertVerticesImpl()

template<class GridType >

void Dune::Vtk::LagrangeGridCreator< GridType >::insertVerticesImpl	(	std::vector< GlobalCoordinate > const &	points,
		std::vector< std::uint64_t > const &
	)

inline

Implementation of the interface function insertVertices()

◆ localGeometry()

template<class GridType >

LocalGeometry Dune::Vtk::LagrangeGridCreator< GridType >::localGeometry ( Element const & element ) const

inline

Construct a transformation of local element coordinates.

An element might have a different local coordinate system than the coordinate system used to defined the element parametrization. Thus coordinate transform of the local parametrization is needed for element-local evaluations. This local geometry transform is obtained by figuring out the permutation of corners in the element corresponding to the inserted corner vertices.

◆ localParametrization() [1/2]

template<class GridType >

LocalParametrization Dune::Vtk::LagrangeGridCreator< GridType >::localParametrization ( Element const & element ) const

inline

Construct an element parametrization.

The returned LocalParametrization is a mapping GlobalCoordinate(LocalCoordinate) where LocalCoordinate is w.r.t. the local coordinate system in the passed element andGlobalCoordinate` a world coordinate in the parametrized grid.

◆ localParametrization() [2/2]

template<class GridType >

LocalParametrization Dune::Vtk::LagrangeGridCreator< GridType >::localParametrization ( unsigned int insertionIndex ) const

inline

Construct an element parametrization.

The returned LocalParametrization is a mapping GlobalCoordinate(LocalCoordinate) where LocalCoordinate is w.r.t. the local coordinate system in an element with giveninsertionIndex<tt>(defined by the inserted corner vertices) and GlobalCoordinate` a world coordinate in the parametrized grid.

◆ name()

template<class GridType >

std::string Dune::Vtk::LagrangeGridCreator< GridType >::name ( ) const

inline

◆ numComponents()

template<class GridType >

int Dune::Vtk::LagrangeGridCreator< GridType >::numComponents ( ) const

inline

◆ operator()()

template<class GridType >

GlobalCoordinate Dune::Vtk::LagrangeGridCreator< GridType >::operator() ( GlobalCoordinate const & ) const

inline

Dummy function returning a placeholder entityset.

◆ order() [1/3]

template<class GridType >

int Dune::Vtk::LagrangeGridCreator< GridType >::order ( ) const

inline

Determine lagrange order from number of points from the first element parametrization.

◆ order() [2/3]

template<class GridType >

int Dune::Vtk::LagrangeGridCreator< GridType >::order ( ElementParametrization const & localParam ) const

inline

◆ order() [3/3]

template<class GridType >

int Dune::Vtk::LagrangeGridCreator< GridType >::order	(	GeometryType	type,
		std::size_t	nNodes
	)		const

inline

Determine lagrange order from number of points.

Friends And Related Symbol Documentation

◆ localFunction [1/3]

template<class GridType >

LocalFunction localFunction ( LagrangeGridCreator< GridType > && gridCreator )

friend

◆ localFunction [2/3]

template<class GridType >

LocalFunction localFunction ( LagrangeGridCreator< GridType > & gridCreator )

friend

Local function representing the parametrization of the grid.

The returned object models Functions::Concept::LocalFunction and can thus be bound to an element of the created grid and evaluated in the local coordinates of the bound element.

It is implemented in terms of the LocalParametrization function returned by the method localParametrization(element). See comments there for further details.

Note, this methods requires the GridCreator to be based by lvalue-reference. This is necessary, since we want to guarantee that all internal storage is preserved while evaluating the local function.

◆ localFunction [3/3]

template<class GridType >

LocalFunction localFunction ( LagrangeGridCreator< GridType > const & gridCreator )

friend

Member Data Documentation

◆ factory_

std::shared_ptr<GridFactory<Grid> > Dune::Vtk::GridCreatorInterface< GridType, LagrangeGridCreator< GridType > >::factory_

protectedinherited

The documentation for this class was generated from the following file:

lagrangegridcreator.hh
