Dune::Vtk::GridCreatorInterface< GridType, DerivedType > Class Template Reference

Base class for grid creators in a CRTP style. More...

#include <dune/vtk/gridcreatorinterface.hh>

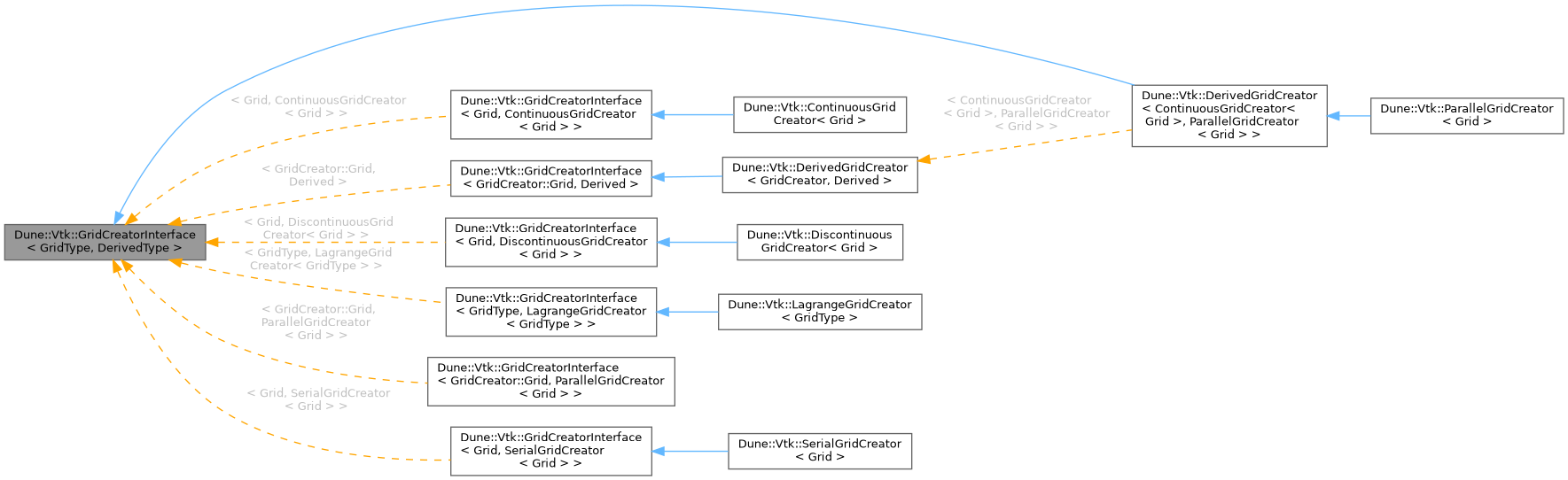

Inheritance diagram for Dune::Vtk::GridCreatorInterface< GridType, DerivedType >:

Public Types
using	Grid = GridType
using	GlobalCoordinate = typename Grid::template Codim< 0 >::Entity::Geometry::GlobalCoordinate
using	Derived = DerivedType

Public Member Functions
	GridCreatorInterface (GridFactory< Grid > &factory)
	Constructor. Stores a reference to the passed GridFactory.
	GridCreatorInterface (std::shared_ptr< GridFactory< Grid > > factory)
	Constructor. Store the shared_ptr to the GridFactory.
template<class... Args, std::enable_if_t< std::is_constructible< GridFactory< Grid >, Args... >::value, int > = 0>
	GridCreatorInterface (Args &&... args)
	Constructor. Construct a new GridFactory from the passed arguments.
void	insertVertices (std::vector< GlobalCoordinate > const &points, std::vector< std::uint64_t > const &point_ids)
	Insert all points as vertices into the factory.
void	insertElements (std::vector< std::uint8_t > const &types, std::vector< std::int64_t > const &offsets, std::vector< std::int64_t > const &connectivity)
	Create elements based on type and connectivity description.
void	insertPieces (std::vector< std::string > const &pieces)
	Insert part of a grid stored in file into factory.
std::unique_ptr< Grid >	createGrid () const
	Construct the actual grid using the GridFactory.
GridFactory< Grid > &	factory ()
	Return the associated GridFactory.
GridFactory< Grid > const &	factory () const
	Return the associated (const) GridFactory.
auto	comm () const
	Return the mpi collective communicator.
void	insertVerticesImpl (std::vector< GlobalCoordinate > const &, std::vector< std::uint64_t > const &)
void	insertElementsImpl (std::vector< std::uint8_t > const &, std::vector< std::int64_t > const &, std::vector< std::int64_t > const &)
void	insertPiecesImpl (std::vector< std::string > const &)

Protected Member Functions
Derived &	asDerived ()
const Derived &	asDerived () const

Protected Attributes
std::shared_ptr< GridFactory< Grid > >	factory_

Detailed Description

template<class GridType, class DerivedType>
class Dune::Vtk::GridCreatorInterface< GridType, DerivedType >

Base class for grid creators in a CRTP style.

Construct a grid from data read from VTK files.

Template Parameters

GridType	Model of Dune::Grid
GlobalCoordType	Type of the global coordinates.
DerivedType	Implementation of a concrete GridCreator.

Member Typedef Documentation

Derived

template<class GridType , class DerivedType >

using Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::Derived = DerivedType

GlobalCoordinate

template<class GridType , class DerivedType >

using Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::GlobalCoordinate = typename Grid::template Codim<0>::Entity::Geometry::GlobalCoordinate

Grid

template<class GridType , class DerivedType >

using Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::Grid = GridType

Constructor & Destructor Documentation

GridCreatorInterface() [1/3]

template<class GridType , class DerivedType >

Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::GridCreatorInterface ( GridFactory< Grid > &  factory )

inline

Constructor. Stores a reference to the passed GridFactory.

GridCreatorInterface() [2/3]

template<class GridType , class DerivedType >

Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::GridCreatorInterface ( std::shared_ptr< GridFactory< Grid > >  factory )

inline

Constructor. Store the shared_ptr to the GridFactory.

GridCreatorInterface() [3/3]

template<class GridType , class DerivedType >

template<class... Args, std::enable_if_t< std::is_constructible< GridFactory< Grid >, Args... >::value, int > = 0>

Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::GridCreatorInterface ( Args &&...  args )

inline

Constructor. Construct a new GridFactory from the passed arguments.

Member Function Documentation

asDerived() [1/2]

template<class GridType , class DerivedType >

Derived & Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::asDerived ( )

inlineprotected

asDerived() [2/2]

template<class GridType , class DerivedType >

const Derived & Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::asDerived ( ) const

inlineprotected

comm()

template<class GridType , class DerivedType >

auto Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::comm ( ) const

inline

Return the mpi collective communicator.

createGrid()

template<class GridType , class DerivedType >

std::unique_ptr< Grid > Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::createGrid ( ) const

inline

Construct the actual grid using the GridFactory.

factory() [1/2]

template<class GridType , class DerivedType >

GridFactory< Grid > & Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::factory ( )

inline

Return the associated GridFactory.

factory() [2/2]

template<class GridType , class DerivedType >

GridFactory< Grid > const & Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::factory ( ) const

inline

Return the associated (const) GridFactory.

insertElements()

template<class GridType , class DerivedType >

void Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::insertElements ( std::vector< std::uint8_t > const &  types, std::vector< std::int64_t > const &  offsets, std::vector< std::int64_t > const &  connectivity  )

inline

Create elements based on type and connectivity description.

insertElementsImpl()

template<class GridType , class DerivedType >

void Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::insertElementsImpl ( std::vector< std::uint8_t > const &  , std::vector< std::int64_t > const &  , std::vector< std::int64_t > const &    )

inline

insertPieces()

template<class GridType , class DerivedType >

void Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::insertPieces ( std::vector< std::string > const &  pieces )

inline

Insert part of a grid stored in file into factory.

insertPiecesImpl()

template<class GridType , class DerivedType >

void Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::insertPiecesImpl ( std::vector< std::string > const &  )

inline

insertVertices()

template<class GridType , class DerivedType >

void Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::insertVertices ( std::vector< GlobalCoordinate > const &  points, std::vector< std::uint64_t > const &  point_ids  )

inline

Insert all points as vertices into the factory.

insertVerticesImpl()

template<class GridType , class DerivedType >

void Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::insertVerticesImpl ( std::vector< GlobalCoordinate > const &  , std::vector< std::uint64_t > const &    )

inline

Member Data Documentation

factory_

template<class GridType , class DerivedType >

std::shared_ptr<GridFactory<Grid> > Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::factory_

protected

---

The documentation for this class was generated from the following file:

• gridcreatorinterface.hh
