Dune::Vtk::ContinuousGridCreator< Grid > Struct Template Reference

#include <dune/vtk/gridcreators/continuousgridcreator.hh>

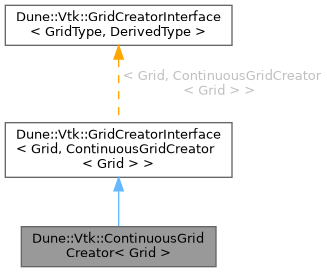

Inheritance diagram for Dune::Vtk::ContinuousGridCreator< Grid >:

Public Types
using	Self = ContinuousGridCreator
using	Super = GridCreatorInterface< Grid, ContinuousGridCreator >
using	GlobalCoordinate = typename Super::GlobalCoordinate
using	Grid = Grid
using	Derived = ContinuousGridCreator< Grid >

Public Member Functions
void	insertVerticesImpl (std::vector< GlobalCoordinate > const &points, std::vector< std::uint64_t > const &)
void	insertElementsImpl (std::vector< std::uint8_t > const &types, std::vector< std::int64_t > const &offsets, std::vector< std::int64_t > const &connectivity)
GridFactory< Grid > &	factory ()
	Return the associated GridFactory.
GridFactory< Grid > const &	factory () const
	Return the associated (const) GridFactory.
void	insertVertices (std::vector< GlobalCoordinate > const &points, std::vector< std::uint64_t > const &point_ids)
	Insert all points as vertices into the factory.
void	insertElements (std::vector< std::uint8_t > const &types, std::vector< std::int64_t > const &offsets, std::vector< std::int64_t > const &connectivity)
	Create elements based on type and connectivity description.
void	insertPieces (std::vector< std::string > const &pieces)
	Insert part of a grid stored in file into factory.
std::unique_ptr< Grid >	createGrid () const
	Construct the actual grid using the GridFactory.
auto	comm () const
	Return the mpi collective communicator.
void	insertPiecesImpl (std::vector< std::string > const &)

Protected Member Functions
Derived &	asDerived ()
const Derived &	asDerived () const

Protected Attributes
std::shared_ptr< GridFactory< Grid > >	factory_

Member Typedef Documentation

Derived

using Dune::Vtk::GridCreatorInterface< Grid , ContinuousGridCreator< Grid > >::Derived = ContinuousGridCreator< Grid >

inherited

GlobalCoordinate

template<class Grid >

using Dune::Vtk::ContinuousGridCreator< Grid >::GlobalCoordinate = typename Super::GlobalCoordinate

Grid

using Dune::Vtk::GridCreatorInterface< Grid , ContinuousGridCreator< Grid > >::Grid = Grid

inherited

Self

template<class Grid >

using Dune::Vtk::ContinuousGridCreator< Grid >::Self = ContinuousGridCreator

Super

template<class Grid >

using Dune::Vtk::ContinuousGridCreator< Grid >::Super = GridCreatorInterface<Grid, ContinuousGridCreator>

Member Function Documentation

asDerived() [1/2]

Derived & Dune::Vtk::GridCreatorInterface< Grid , ContinuousGridCreator< Grid > >::asDerived ( )

inlineprotectedinherited

asDerived() [2/2]

const Derived & Dune::Vtk::GridCreatorInterface< Grid , ContinuousGridCreator< Grid > >::asDerived ( ) const

inlineprotectedinherited

comm()

auto Dune::Vtk::GridCreatorInterface< Grid , ContinuousGridCreator< Grid > >::comm ( ) const

inlineinherited

Return the mpi collective communicator.

createGrid()

std::unique_ptr< Grid > Dune::Vtk::GridCreatorInterface< Grid , ContinuousGridCreator< Grid > >::createGrid ( ) const

inlineinherited

Construct the actual grid using the GridFactory.

factory() [1/2]

template<class Grid >

GridFactory< Grid > & Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::factory ( )

inline

Return the associated GridFactory.

factory() [2/2]

template<class Grid >

GridFactory< Grid > const & Dune::Vtk::GridCreatorInterface< GridType, DerivedType >::factory ( ) const

inline

Return the associated (const) GridFactory.

insertElements()

void Dune::Vtk::GridCreatorInterface< Grid , ContinuousGridCreator< Grid > >::insertElements ( std::vector< std::uint8_t > const &  types, std::vector< std::int64_t > const &  offsets, std::vector< std::int64_t > const &  connectivity  )

inlineinherited

Create elements based on type and connectivity description.

insertElementsImpl()

template<class Grid >

void Dune::Vtk::ContinuousGridCreator< Grid >::insertElementsImpl ( std::vector< std::uint8_t > const &  types, std::vector< std::int64_t > const &  offsets, std::vector< std::int64_t > const &  connectivity  )

inline

insertPieces()

void Dune::Vtk::GridCreatorInterface< Grid , ContinuousGridCreator< Grid > >::insertPieces ( std::vector< std::string > const &  pieces )

inlineinherited

Insert part of a grid stored in file into factory.

insertPiecesImpl()

void Dune::Vtk::GridCreatorInterface< Grid , ContinuousGridCreator< Grid > >::insertPiecesImpl ( std::vector< std::string > const &  )

inlineinherited

insertVertices()

void Dune::Vtk::GridCreatorInterface< Grid , ContinuousGridCreator< Grid > >::insertVertices ( std::vector< GlobalCoordinate > const &  points, std::vector< std::uint64_t > const &  point_ids  )

inlineinherited

Insert all points as vertices into the factory.

insertVerticesImpl()

template<class Grid >

void Dune::Vtk::ContinuousGridCreator< Grid >::insertVerticesImpl ( std::vector< GlobalCoordinate > const &  points, std::vector< std::uint64_t > const &    )

inline

Member Data Documentation

factory_

std::shared_ptr<GridFactory<Grid> > Dune::Vtk::GridCreatorInterface< Grid , ContinuousGridCreator< Grid > >::factory_

protectedinherited

---

The documentation for this struct was generated from the following file:

• continuousgridcreator.hh
