Block compressed row storage matrix. More...

#include <dune/istl/experimental/bcrsmatrix.hh>

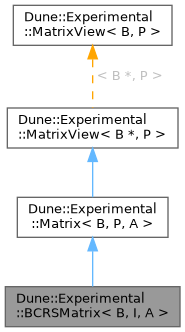

Inheritance diagram for Dune::Experimental::BCRSMatrix< B, I, A >:

Classes
struct	CompressionStatistics

class	CreateIterator
	Row-wise build API. More...

Public Types
enum	BuildMode : uint_least8_t { row_wise = 0 , random = 1 , implicit = 1 , unknown }
	Available matrix construction modes. More...

using	allocator_type = A
	Type of the allocator used for memory management.

using	block_iter_type = B
	The iterator type used to access the blocks of the matrix.

using	pattern_type = P
	The type used for the sparsity pattern.

using	row_index_range_type = std::ranges::range_value_t< pattern_type >
	The type used for the index set of rows.

using	block_type = std::iter_value_t< block_iter_type >
	The type of blocks in the matrix.

using	value_type = block_type
	The type of blocks in the matrix.

using	size_type = std::ranges::range_size_t< pattern_type >
	The type used to count elements in the row and column index sets.

using	field_type = typename FieldTraits< block_type >::field_type
	The type of the field.

using	row_type = VectorView< block_iter_type, row_index_range_type >
	The type representing a mutable matrix row.

using	const_row_type = VectorView< block_const_iter_type, row_index_range_type >
	The type representing a const matrix row.

using	iterator = Iterator
	The type of mutable matrix iterators over the rows.

using	const_iterator = ConstIterator
	The type of const matrix iterators over the rows.

using	RowIterator = Iterator
	The type of mutable matrix iterators over the rows.

using	ConstRowIterator = ConstIterator
	The type of const matrix iterators over the rows.

using	ColIterator = typename row_type::iterator
	The type of mutable row iterators over the column blocks.

using	ConstColIterator = typename const_row_type::const_iterator
	The type of const row iterators over the column blocks.

Public Member Functions
	BCRSMatrix (const Matrix< B, SparseIndexRanges< I >, A > &other, const allocator_type &allocator=allocator_type())
	Construct an BCRSMatrix from another Matrix.

	BCRSMatrix (Matrix< B, SparseIndexRanges< I >, A > &&other, const allocator_type &allocator=allocator_type())
	Move-construct an BCRSMatrix from another Matrix.

	BCRSMatrix (const BCRSMatrix &other, const allocator_type &allocator=allocator_type())
	Copy-construct an BCRSMatrix from another matrix.

	BCRSMatrix (BCRSMatrix &&other, const allocator_type &allocator=allocator_type())

BCRSMatrix< B, I, A > &	operator= (const BCRSMatrix &other)
	Copy-assign an BCRSMatrix from another matrix.

BCRSMatrix< B, I, A > &	operator= (BCRSMatrix &&other)
	Move-assign matrix storage while respecting allocator propagation rules.

	BCRSMatrix (size_type rows, size_type cols, BuildMode bm, const allocator_type &allocator=allocator_type())
	Construct a matrix with a pre-selected build mode and dimensions.

	BCRSMatrix (size_type rows, size_type cols, size_type nnz, BuildMode bm, const allocator_type &allocator=allocator_type())
	Construct a matrix with a pre-selected build mode, dimensions, and expected non-zero entries.

	BCRSMatrix (size_type rows, size_type cols, size_type avg, double overflowRatio, BuildMode bm, const allocator_type &allocator=allocator_type())
	Construct a matrix with a pre-selected build mode, dimensions, and expected non-zero entries.

void	swap (BCRSMatrix &other)
	Swap the contents of two matrices, respecting allocator propagation rules.

void	setBuildMode (BuildMode bm)
	Reset the matrix and select a new build mode.

BuildMode	buildMode () const
	Return the currently active build mode.

void	setSize (size_type rows, size_type cols, size_type nnz=0)
	Set the expected matrix dimensions for the currently selected build mode.

void	setrowsize (size_type row, size_type size)
	Random/implicit build API, mirroring the historic BCRSMatrix interface.

void	incrementrowsize (size_type row, size_type increment=1)
	Increment the expected number of non-zero entries in a row for random/implicit build.

void	endrowsizes ()
	Finalize the row-size declaration phase.

void	addindex (size_type row, size_type col)
	Insert the col index into a sparse row during implicit/random build.

void	endindices ()
	Finalize the sparsity pattern and make the matrix ready for value access.

template<typename It >
void	setIndicesNoSort (size_type row, It begin, It end)
	Set all column indices for row from the given iterator range on row-wise build mode.

template<typename It >
void	setIndices (size_type row, It begin, It end)
	Set all column indices for row from the given iterator range row-wise build mode.

CreateIterator	createbegin ()
	Begin row-wise construction.

SequencedPatternBuilder::EndSentinel	createend ()
	End sentinel for row-wise construction.

DefaultBlockAssgnment	entry (size_type row, size_type col)
	Insert an index in implicit/random build mode.

CompressionStatistics	compress ()
	Finalize implicit/random build and return compression statistics.

allocator_type	get_allocator () const
	Return the allocator currently associated with this matrix.

void	swap (Matrix &other)
	Swap contents of this matrix with `other`, honoring allocator swap propagation traits.

std::shared_ptr< const pattern_type >	patternStorage () const
	Get shared storage of the pattern.

template<class Alloc , class ConstructFn >
auto	allocateData (const Alloc &alloc, size_type count, ConstructFn &&construct_fn) -> block_iter_type

template<class Alloc , class ConstructFn , class RestoreFn >
auto	allocateData (const Alloc &alloc, size_type count, ConstructFn &&construct_fn, RestoreFn &&restore_fn) -> block_iter_type

row_type	operator[] (size_type i)
	Return a mutable view of row `i`.

const_row_type	operator[] (size_type i) const
	Return a const view of row `i`.

Iterator	begin ()
	Return iterator to the first row.

ConstIterator	begin () const
	Return const iterator to the first row.

Iterator	end ()
	Return iterator one past the last row.

ConstIterator	end () const
	Return const iterator one past the last row.

ConstIterator	cbegin () const
	Return const iterator to the first row.

ConstIterator	cend () const
	Return const iterator one past the last row.

MatrixView &	axpy (field_type alpha, const MatrixView< OtherB, OtherI > &b)
	Compute \(this \leftarrow this + \alpha b\).

MatrixView< B, I > &	axpy (field_type alpha, const MatrixView< OtherB, OtherI > &b)

void	mv (const X &x, Y &y) const
	Compute \(y = Ax\).

void	umv (const X &x, Y &y) const
	Compute \(y \mathrel{+}= Ax\).

void	mmv (const X &x, Y &y) const
	Compute \(y \mathrel{-}= Ax\).

void	usmv (const field_type &alpha, const X &x, Y &y) const
	Compute \(y \mathrel{+}= \alpha Ax\).

void	mtv (const X &x, Y &y) const
	Compute \(y = A^T x\).

void	umtv (const X &x, Y &y) const
	Compute \(y \mathrel{+}= A^T x\).

void	mmtv (const X &x, Y &y) const
	Compute \(y \mathrel{-}= A^T x\).

void	usmtv (const field_type &alpha, const X &x, Y &y) const
	Compute \(y \mathrel{+}= \alpha A^T x\).

void	umhv (const X &x, Y &y) const
	Compute \(y \mathrel{+}= A^H x\) (Hermitian transpose).

void	mmhv (const X &x, Y &y) const
	Compute \(y \mathrel{-}= A^H x\) (Hermitian transpose).

void	usmhv (const field_type &alpha, const X &x, Y &y) const
	Compute \(y \mathrel{+}= \alpha A^H x\) (Hermitian transpose).

FieldTraits< field_type >::real_type	frobenius_norm2 () const
	Return \(\\|A\\|_F^2\) (sum of squared block Frobenius norms).

FieldTraits< field_type >::real_type	frobenius_norm () const
	Return the Frobenius norm \(\\|A\\|_F\).

FieldTraits< field_type >::real_type	infinity_norm () const
	Return the block-aware infinity norm.

FieldTraits< field_type >::real_type	infinity_norm_real () const
	Return simplified infinity norm (Manhattan norm for complex values).

bool	exists (size_type i, size_type j) const DUNE_ISTL_WITH_CHECKING_NOEXCEPT
	Test whether position \((i,j)\) is present in the sparsity pattern.

size_type	N () const
	Number of block rows.

size_type	M () const
	Number of block columns.

size_type	nonzeroes () const
	Number of stored block entries.

MatrixView &	operator*= (const field_type &k)
	Scale all stored blocks by `k`.

MatrixView &	operator/= (const field_type &k)
	Divide all stored blocks by `k`.

MatrixView &	operator+= (const MatrixView< OtherB, OtherI > &b)
	Add another matrix view to this one.

MatrixView< B, I > &	operator+= (const MatrixView< OtherB, OtherI > &b)

MatrixView &	operator-= (const MatrixView< OtherB, OtherI > &b)
	Subtract another matrix view from this one.

MatrixView< B, I > &	operator-= (const MatrixView< OtherB, OtherI > &b)

const pattern_type &	pattern () const

Protected Member Functions
void	resetView (block_iter_type block_iter, pattern_type const *pattern_ptr)
	Reset the view to point to `block_iter` and `pattern_ptr`.

block_iter_type	blockIter ()
	Return the underlying block iterator.

block_const_iter_type	blockIter () const
	Return the underlying block iterator as a const iterator.

pattern_type const *	patternPtr () const
	Return the underlying pattern pointer.

Friends
void	swap (BCRSMatrix &lhs, BCRSMatrix &rhs)
	Swap the contents of two matrices, respecting allocator propagation rules.

Detailed Description

template<class B, class I = uint_least32_t, class A = std::allocator>
class Dune::Experimental::BCRSMatrix< B, I, A >

Block compressed row storage matrix.

BCRSMatrix is an sparse matrix inheriting from the Matrix class explicitly instantiated with SparseIndexRanges as the pattern type. It is designed to be a modernized, allocator-aware replacement for BCRSMatrix that preserves the familiar matrix interface and build workflow while improving performance and control over construction and ownership.

What stays familiar compared to BCRSMatrix

Constructors with same syntax and similar semantics.
Row-wise and random/implicit build modes.
Matrix/vector vector operations are compatible with existing DUNE algorithms and tests.

What is different from BCRSMatrix

There is an extra template parameter for the index type used to store the column indices whose default type is uint_least32_t which saves around 25% of memory.
The matrix is an allocator aware container, usable with statefull allocators.
The matrix is now movable without copying internal data.
There is no build stage related structures or methods.
The rows are now proxy objects created on demand which means that mutable references to rows objects are not possible anymore.
Mutable and constant row iterators are now different.
The pattern is internally built with with the SparseIndexRanges builders. While it offers the same syntax, there are a few differences to be aware of:
- The build mode switches to unknown after the pattern construction is finalized. Thus, if the user needs to fill the matrix in multiple stages, they need to select the build mode again.
- Pattern is entirely decoupled from the matrix, allowing to share the pattern on other types, e.g., for a matrix in lower precision.
- The entire pattern, including sizes and row pointers, is shared when copying the matrix.
- Implicit and row-wise build modes are essentially the same under the hood.
- All build modes grow the pattern dynamically and are compressed once finalized.
- The implicit build mode does not support storing blocks during the pattern construction. In order to support the same syntax as the BCRSMatrix implicit build mode, the entry(i, j) method that only accepts assignment of values that equal to default constructed blocks.
- The setSize() method should be used after selecting the build mode and before the pattern construction is finalized.
- The N() and M() methods are not available during the pattern construction.
- The type of the createend() iterator is a sentinel comparable with the corresponding createbegin() iterator, but their type is not the same.

Build modes

BuildMode::row_wise: fill rows sequentially using createbegin()/createend().
BuildMode::random / BuildMode::implicit: insert indices in arbitrary order, optionally pre-declaring row sizes.
BuildMode::unknown: no build mode selected or construction has completed.

Todo:: Implement setIndicesNoSort and setIndicesSorted methods for row-wise build mode.

Member Typedef Documentation

◆ allocator_type

template<class B , class I = uint_least32_t, class A = std::allocator>

using Dune::Experimental::BCRSMatrix< B, I, A >::allocator_type = A

Type of the allocator used for memory management.

◆ block_iter_type

using Dune::Experimental::MatrixView< B, P >::block_iter_type = B

inherited

The iterator type used to access the blocks of the matrix.

◆ block_type

using Dune::Experimental::MatrixView< B, P >::block_type = std::iter_value_t<block_iter_type>

inherited

The type of blocks in the matrix.

◆ ColIterator

using Dune::Experimental::MatrixView< B, P >::ColIterator = typename row_type::iterator

inherited

The type of mutable row iterators over the column blocks.

◆ const_iterator

using Dune::Experimental::MatrixView< B, P >::const_iterator = ConstIterator

inherited

The type of const matrix iterators over the rows.

◆ const_row_type

using Dune::Experimental::MatrixView< B, P >::const_row_type = VectorView<block_const_iter_type, row_index_range_type>

inherited

The type representing a const matrix row.

◆ ConstColIterator

using Dune::Experimental::MatrixView< B, P >::ConstColIterator = typename const_row_type::const_iterator

inherited

The type of const row iterators over the column blocks.

◆ ConstRowIterator

using Dune::Experimental::MatrixView< B, P >::ConstRowIterator = ConstIterator

inherited

The type of const matrix iterators over the rows.

◆ field_type

using Dune::Experimental::MatrixView< B, P >::field_type = typename FieldTraits<block_type>::field_type

inherited

The type of the field.

◆ iterator

using Dune::Experimental::MatrixView< B, P >::iterator = Iterator

inherited

The type of mutable matrix iterators over the rows.

◆ pattern_type

using Dune::Experimental::MatrixView< B, P >::pattern_type = P

inherited

The type used for the sparsity pattern.

◆ row_index_range_type

using Dune::Experimental::MatrixView< B, P >::row_index_range_type = std::ranges::range_value_t<pattern_type>

inherited

The type used for the index set of rows.

◆ row_type

using Dune::Experimental::MatrixView< B, P >::row_type = VectorView<block_iter_type, row_index_range_type>

inherited

The type representing a mutable matrix row.

◆ RowIterator

using Dune::Experimental::MatrixView< B, P >::RowIterator = Iterator

inherited

The type of mutable matrix iterators over the rows.

◆ size_type

using Dune::Experimental::MatrixView< B, P >::size_type = std::ranges::range_size_t<pattern_type>

inherited

The type used to count elements in the row and column index sets.

◆ value_type

using Dune::Experimental::MatrixView< B, P >::value_type = block_type

inherited

The type of blocks in the matrix.

Member Enumeration Documentation

◆ BuildMode

template<class B , class I = uint_least32_t, class A = std::allocator>

enum Dune::Experimental::BCRSMatrix::BuildMode : uint_least8_t

Available matrix construction modes.

The values mirror the traditional BCRSMatrix build flow, but the semantics are implemented on top of SparseIndexRanges.

Enumerator
row_wise	Fill index sets sequentially, one row after another. It is a good fit when rows are naturally produced in order. Rows are initialized and then filled via `createbegin` and `createend`. The iterator returned by `createbegin` represents the current row and could be filled with column indices with the `insert` method. The iterator is incrementable to the next row until all rows are traversed, at which point comparing with the `createend` iterator returns true and the pattern is finalized.
random	Build entries in arbitrary order. In this mode, indices can be inserted in any order via the `addindex` or `entry` methods. If rows sizes are known previous to adding indices, it can be hited to the builders with the `setrowsize` and `incrementrowsize` methods. Pattern creation is finalized by calling either one of `endindices` or `compress`.
implicit	Build entries in arbitrary order. Same as random build mode. This is kept for legacy reasons.
unknown	No build mode selected, or matrix construction has finished.

Constructor & Destructor Documentation

◆ BCRSMatrix() [1/7]

template<class B , class I = uint_least32_t, class A = std::allocator>

Dune::Experimental::BCRSMatrix< B, I, A >::BCRSMatrix	(	const Matrix< B, SparseIndexRanges< I >, A > &	other,
		const allocator_type &	allocator = `allocator_type()`
	)

inline

Construct an BCRSMatrix from another Matrix.

◆ BCRSMatrix() [2/7]

template<class B , class I = uint_least32_t, class A = std::allocator>

Dune::Experimental::BCRSMatrix< B, I, A >::BCRSMatrix	(	Matrix< B, SparseIndexRanges< I >, A > &&	other,
		const allocator_type &	allocator = `allocator_type()`
	)

inline

Move-construct an BCRSMatrix from another Matrix.

◆ BCRSMatrix() [3/7]

template<class B , class I , class A >

Dune::Experimental::BCRSMatrix< B, I, A >::BCRSMatrix	(	const BCRSMatrix< B, I, A > &	other,
		const allocator_type &	allocator = `allocator_type()`
	)

Copy-construct an BCRSMatrix from another matrix.

Warning: Internal pattern builders are not copied, so the resulting matrix is not in a build stage even if the source matrix is.

Parameters

other	The matrix to copy from.
allocator	The allocator to use for memory management.

◆ BCRSMatrix() [4/7]

template<class B , class I , class A >

Dune::Experimental::BCRSMatrix< B, I, A >::BCRSMatrix	(	BCRSMatrix< B, I, A > &&	other,
		const allocator_type &	allocator = `allocator_type()`
	)

Move-construct a matrix, optionally rebinding it to a different allocator. If allocators differ, block values may be moved into fresh storage.

◆ BCRSMatrix() [5/7]

template<class B , class I , class A >

Dune::Experimental::BCRSMatrix< B, I, A >::BCRSMatrix	(	size_type	rows,
		size_type	cols,
		BuildMode	bm,
		const allocator_type &	allocator = `allocator_type()`
	)

Construct a matrix with a pre-selected build mode and dimensions.

Parameters

rows	Number of rows in the matrix.
cols	Number of columns in the matrix.
bm	Build mode of the pattern.

◆ BCRSMatrix() [6/7]

template<class B , class I , class A >

Dune::Experimental::BCRSMatrix< B, I, A >::BCRSMatrix	(	size_type	rows,
		size_type	cols,
		size_type	nnz,
		BuildMode	bm,
		const allocator_type &	allocator = `allocator_type()`
	)

Construct a matrix with a pre-selected build mode, dimensions, and expected non-zero entries.

Parameters

rows	Number of rows in the matrix.
cols	Number of columns in the matrix.
nnz	Expected number of non-zero entries in the matrix.
bm	Build mode of the pattern.

◆ BCRSMatrix() [7/7]

template<class B , class I , class A >

Dune::Experimental::BCRSMatrix< B, I, A >::BCRSMatrix	(	size_type	rows,
		size_type	cols,
		size_type	avg,
		double	overflowRatio,
		BuildMode	bm,
		const allocator_type &	allocator = `allocator_type()`
	)

Construct a matrix with a pre-selected build mode, dimensions, and expected non-zero entries.

Parameters

rows	Number of rows in the matrix.
cols	Number of columns in the matrix.
avg	Expected average number of non-zero entries per row.
overflowRatio	Expected ratio of overflow entries to total entries during construction.
bm	Build mode of the pattern.

Member Function Documentation

◆ addindex()

template<class B , class I , class A >

void Dune::Experimental::BCRSMatrix< B, I, A >::addindex	(	size_type	row,
		size_type	col
	)

Insert the col index into a sparse row during implicit/random build.

◆ allocateData() [1/2]

template<class B , class P , class A = std::allocator>

template<class Alloc , class ConstructFn >

auto Dune::Experimental::Matrix< B, P, A >::allocateData	(	const Alloc &	alloc,
		size_type	count,
		ConstructFn &&	construct_fn
	)		-> block_iter_type

inherited

◆ allocateData() [2/2]

template<class B , class P , class A = std::allocator>

template<class Alloc , class ConstructFn , class RestoreFn >

auto Dune::Experimental::Matrix< B, P, A >::allocateData	(	const Alloc &	alloc,
		size_type	count,
		ConstructFn &&	construct_fn,
		RestoreFn &&	restore_fn
	)		-> block_iter_type

inherited

◆ axpy() [1/2]

MatrixView & Dune::Experimental::MatrixView< B, P >::axpy	(	field_type	alpha,
		const MatrixView< OtherB, OtherI > &	b
	)

inherited

Compute \(this \leftarrow this + \alpha b\).

◆ axpy() [2/2]

MatrixView< B, I > & Dune::Experimental::MatrixView< B, P >::axpy	(	field_type	alpha,
		const MatrixView< OtherB, OtherI > &	b
	)

inherited

◆ begin() [1/2]

Iterator Dune::Experimental::MatrixView< B, P >::begin ( )

inlineinherited

Return iterator to the first row.

◆ begin() [2/2]

ConstIterator Dune::Experimental::MatrixView< B, P >::begin ( ) const

inlineinherited

Return const iterator to the first row.

◆ blockIter() [1/2]

block_iter_type Dune::Experimental::MatrixView< B, P >::blockIter ( )

inlineprotectedinherited

Return the underlying block iterator.

◆ blockIter() [2/2]

block_const_iter_type Dune::Experimental::MatrixView< B, P >::blockIter ( ) const

inlineprotectedinherited

Return the underlying block iterator as a const iterator.

◆ buildMode()

template<class B , class I , class A >

auto Dune::Experimental::BCRSMatrix< B, I, A >::buildMode ( ) const

Return the currently active build mode.

◆ cbegin()

ConstIterator Dune::Experimental::MatrixView< B, P >::cbegin ( ) const

inlineinherited

Return const iterator to the first row.

◆ cend()

ConstIterator Dune::Experimental::MatrixView< B, P >::cend ( ) const

inlineinherited

Return const iterator one past the last row.

◆ compress()

template<class B , class I , class A >

auto Dune::Experimental::BCRSMatrix< B, I, A >::compress ( )

Finalize implicit/random build and return compression statistics.

◆ createbegin()

template<class B , class I , class A >

auto Dune::Experimental::BCRSMatrix< B, I, A >::createbegin ( )

Begin row-wise construction.

◆ createend()

template<class B , class I , class A >

auto Dune::Experimental::BCRSMatrix< B, I, A >::createend ( )

End sentinel for row-wise construction.

◆ end() [1/2]

Iterator Dune::Experimental::MatrixView< B, P >::end ( )

inlineinherited

Return iterator one past the last row.

◆ end() [2/2]

ConstIterator Dune::Experimental::MatrixView< B, P >::end ( ) const

inlineinherited

Return const iterator one past the last row.

◆ endindices()

template<class B , class I , class A >

void Dune::Experimental::BCRSMatrix< B, I, A >::endindices ( )

Finalize the sparsity pattern and make the matrix ready for value access.

◆ endrowsizes()

template<class B , class I = uint_least32_t, class A = std::allocator>

void Dune::Experimental::BCRSMatrix< B, I, A >::endrowsizes ( )

inline

Finalize the row-size declaration phase.

◆ entry()

template<class B , class I , class A >

auto Dune::Experimental::BCRSMatrix< B, I, A >::entry	(	size_type	row,
		size_type	col
	)

Insert an index in implicit/random build mode.

Warning: The object returned by this method allows assignment of block values due to legacy reasons, but it does not actually store any values. Only default constructed block values or field values are allowed to be assigned to it, otherwise, the assignment throws a RangeError exception.

Parameters

row	The zero-based index of the sparse row to insert the index into.
col	The column index to insert into the row.

Returns: A proxy object that allows a (default constructed) assignment of a block value.

◆ exists()

bool Dune::Experimental::MatrixView< B, P >::exists	(	size_type	i,
		size_type	j
	)		const

inlineinherited

Test whether position \((i,j)\) is present in the sparsity pattern.

This checks structural existence only. It does not inspect value magnitude.

Exceptions

BCRSMatrixError if \(i\) or \(j\) is out of range if DUNE_ISTL_WITH_CHECKING is defined.

◆ frobenius_norm()

auto Dune::Experimental::MatrixView< B, I >::frobenius_norm ( ) const

inherited

Return the Frobenius norm \(\|A\|_F\).

◆ frobenius_norm2()

auto Dune::Experimental::MatrixView< B, I >::frobenius_norm2 ( ) const

inherited

Return \(\|A\|_F^2\) (sum of squared block Frobenius norms).

◆ get_allocator()

template<class B , class P , class A >

auto Dune::Experimental::Matrix< B, P, A >::get_allocator ( ) const

inherited

Return the allocator currently associated with this matrix.

◆ incrementrowsize()

template<class B , class I , class A >

void Dune::Experimental::BCRSMatrix< B, I, A >::incrementrowsize	(	size_type	row,
		size_type	increment = `1`
	)

Increment the expected number of non-zero entries in a row for random/implicit build.

Warning: Use this before inserting indices to the pattern.

Parameters

row	The zero-based index of the row to increment the size for.
increment	The amount to increment the expected number of non-zero entries in the row by (default is 1).

◆ infinity_norm()

auto Dune::Experimental::MatrixView< B, I >::infinity_norm ( ) const

inherited

Return the block-aware infinity norm.

◆ infinity_norm_real()

auto Dune::Experimental::MatrixView< B, I >::infinity_norm_real ( ) const

inherited

Return simplified infinity norm (Manhattan norm for complex values).

infinity norm (maximum of absolute values of entries)

◆ M()

size_type Dune::Experimental::MatrixView< B, P >::M ( ) const

inlineinherited

Number of block columns.

◆ mmhv()

void Dune::Experimental::MatrixView< B, I >::mmhv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{-}= A^H x\) (Hermitian transpose).

◆ mmtv()

void Dune::Experimental::MatrixView< B, I >::mmtv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{-}= A^T x\).

◆ mmv()

void Dune::Experimental::MatrixView< B, I >::mmv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{-}= Ax\).

◆ mtv()

void Dune::Experimental::MatrixView< B, I >::mtv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y = A^T x\).

◆ mv()

void Dune::Experimental::MatrixView< B, I >::mv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y = Ax\).

◆ N()

size_type Dune::Experimental::MatrixView< B, P >::N ( ) const

inlineinherited

Number of block rows.

◆ nonzeroes()

size_type Dune::Experimental::MatrixView< B, P >::nonzeroes ( ) const

inlineinherited

Number of stored block entries.

This is the number of structurally present entries, i.e., entries that may be nonzero.

◆ operator*=()

MatrixView< B, I > & Dune::Experimental::MatrixView< B, I >::operator*= ( const field_type & k )

inherited

Scale all stored blocks by k.

◆ operator+=() [1/2]

MatrixView & Dune::Experimental::MatrixView< B, P >::operator+= ( const MatrixView< OtherB, OtherI > & b )

inherited

Add another matrix view to this one.

Parameters

b	The matrix to add to this one. Its sparsity pattern has to be subset of the sparsity pattern of this matrix.

◆ operator+=() [2/2]

MatrixView< B, I > & Dune::Experimental::MatrixView< B, P >::operator+= ( const MatrixView< OtherB, OtherI > & b )

inherited

◆ operator-=() [1/2]

MatrixView & Dune::Experimental::MatrixView< B, P >::operator-= ( const MatrixView< OtherB, OtherI > & b )

inherited

Subtract another matrix view from this one.

Parameters

b	The matrix to subtract from this one. Its sparsity pattern has to be subset of the sparsity pattern of this matrix.

◆ operator-=() [2/2]

MatrixView< B, I > & Dune::Experimental::MatrixView< B, P >::operator-= ( const MatrixView< OtherB, OtherI > & b )

inherited

◆ operator/=()

MatrixView< B, I > & Dune::Experimental::MatrixView< B, I >::operator/= ( const field_type & k )

inherited

Divide all stored blocks by k.

◆ operator=() [1/2]

template<class B , class I , class A >

BCRSMatrix< B, I, A > & Dune::Experimental::BCRSMatrix< B, I, A >::operator= ( BCRSMatrix< B, I, A > && other )

Move-assign matrix storage while respecting allocator propagation rules.

◆ operator=() [2/2]

template<class B , class I , class A >

BCRSMatrix< B, I, A > & Dune::Experimental::BCRSMatrix< B, I, A >::operator= ( const BCRSMatrix< B, I, A > & other )

Copy-assign an BCRSMatrix from another matrix.

Warning: Internal pattern builders are not copied, so the resulting matrix is not in a build stage even if the source matrix is.

Parameters

other	The matrix to copy from.
allocator	The allocator to use for memory management.

◆ operator[]() [1/2]

row_type Dune::Experimental::MatrixView< B, P >::operator[] ( size_type i )

inlineinherited

Return a mutable view of row i.

◆ operator[]() [2/2]

const_row_type Dune::Experimental::MatrixView< B, P >::operator[] ( size_type i ) const

inlineinherited

Return a const view of row i.

◆ pattern()

const pattern_type & Dune::Experimental::MatrixView< B, P >::pattern ( ) const

inlineinherited

◆ patternPtr()

pattern_type const * Dune::Experimental::MatrixView< B, P >::patternPtr ( ) const

inlineprotectedinherited

Return the underlying pattern pointer.

◆ patternStorage()

template<class B , class P , class A = std::allocator>

std::shared_ptr< const pattern_type > Dune::Experimental::Matrix< B, P, A >::patternStorage ( ) const

inlineinherited

Get shared storage of the pattern.

◆ resetView()

void Dune::Experimental::MatrixView< B, P >::resetView	(	block_iter_type	block_iter,
		pattern_type const *	pattern_ptr
	)

inlineprotectedinherited

Reset the view to point to block_iter and pattern_ptr.

◆ setBuildMode()

template<class B , class I , class A >

void Dune::Experimental::BCRSMatrix< B, I, A >::setBuildMode ( BuildMode bm )

Reset the matrix and select a new build mode.

Warning: This clears the current matrix storage.

Parameters

bm	The new build mode.

◆ setIndices()

template<class B , class I = uint_least32_t, class A = std::allocator>

template<typename It >

void Dune::Experimental::BCRSMatrix< B, I, A >::setIndices	(	size_type	row,
		It	begin,
		It	end
	)

inline

Set all column indices for row from the given iterator range row-wise build mode.

The iterator range has to be of the same length as the previously set row size. The entries in the iterator range do not have to be in any particular order, but must not contain duplicate values. This method will insert the indices and sort them afterwards.

Warning: Calling this method overwrites any previously set column indices!

◆ setIndicesNoSort()

template<class B , class I = uint_least32_t, class A = std::allocator>

template<typename It >

void Dune::Experimental::BCRSMatrix< B, I, A >::setIndicesNoSort	(	size_type	row,
		It	begin,
		It	end
	)

inline

Set all column indices for row from the given iterator range on row-wise build mode.

The iterator range has to be of the same length as the previously set row size. The entries in the iterator range must be sorted and must not contain duplicate values. This method will insert the indices in the given order.

Warning: Calling this method overwrites any previously set column indices!

◆ setrowsize()

template<class B , class I , class A >

void Dune::Experimental::BCRSMatrix< B, I, A >::setrowsize	(	size_type	row,
		size_type	size
	)

Random/implicit build API, mirroring the historic BCRSMatrix interface.

Set the expected number of non-zero entries in a row for random/implicit build.

Warning: Use this before inserting indices to the pattern.

Parameters

row	The zero-based index of the row to set the size for.
size	The expected number of non-zero entries in the row.

◆ setSize()

template<class B , class I , class A >

void Dune::Experimental::BCRSMatrix< B, I, A >::setSize	(	size_type	rows,
		size_type	cols,
		size_type	nnz = `0`
	)

Set the expected matrix dimensions for the currently selected build mode.

◆ swap() [1/2]

template<class B , class I = uint_least32_t, class A = std::allocator>

void Dune::Experimental::BCRSMatrix< B, I, A >::swap ( BCRSMatrix< B, I, A > & other )

inline

Swap the contents of two matrices, respecting allocator propagation rules.

◆ swap() [2/2]

template<class B , class P , class A >

void Dune::Experimental::Matrix< B, P, A >::swap ( Matrix< B, P, A > & other )

inherited

Swap contents of this matrix with other, honoring allocator swap propagation traits.

◆ umhv()

void Dune::Experimental::MatrixView< B, I >::umhv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{+}= A^H x\) (Hermitian transpose).

◆ umtv()

void Dune::Experimental::MatrixView< B, I >::umtv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{+}= A^T x\).

◆ umv()

void Dune::Experimental::MatrixView< B, I >::umv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{+}= Ax\).

◆ usmhv()

void Dune::Experimental::MatrixView< B, I >::usmhv	(	const field_type &	alpha,
		const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{+}= \alpha A^H x\) (Hermitian transpose).

◆ usmtv()

void Dune::Experimental::MatrixView< B, I >::usmtv	(	const field_type &	alpha,
		const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{+}= \alpha A^T x\).

◆ usmv()

void Dune::Experimental::MatrixView< B, I >::usmv	(	const field_type &	alpha,
		const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{+}= \alpha Ax\).

Friends And Related Symbol Documentation

◆ swap

template<class B , class I = uint_least32_t, class A = std::allocator>

void swap	(	BCRSMatrix< B, I, A > &	lhs,
		BCRSMatrix< B, I, A > &	rhs
	)

friend

Swap the contents of two matrices, respecting allocator propagation rules.

The documentation for this class was generated from the following file:

experimental/bcrsmatrix.hh

Classes

Public Types

Public Member Functions

Protected Member Functions

Friends

Detailed Description

Member Typedef Documentation

◆ allocator_type

◆ block_iter_type

◆ block_type

◆ ColIterator

◆ const_iterator

◆ const_row_type

◆ ConstColIterator

◆ ConstRowIterator

◆ field_type

◆ iterator

◆ pattern_type

◆ row_index_range_type

◆ row_type

◆ RowIterator

◆ size_type

◆ value_type

Member Enumeration Documentation

◆ BuildMode

Constructor & Destructor Documentation

◆ BCRSMatrix() [1/7]

◆ BCRSMatrix() [2/7]

◆ BCRSMatrix() [3/7]

◆ BCRSMatrix() [4/7]

◆ BCRSMatrix() [5/7]

◆ BCRSMatrix() [6/7]

◆ BCRSMatrix() [7/7]

Member Function Documentation

◆ addindex()

◆ allocateData() [1/2]

◆ allocateData() [2/2]

◆ axpy() [1/2]

◆ axpy() [2/2]

◆ begin() [1/2]

◆ begin() [2/2]

◆ blockIter() [1/2]

◆ blockIter() [2/2]

◆ buildMode()

◆ cbegin()

◆ cend()

◆ compress()

◆ createbegin()

◆ createend()

◆ end() [1/2]

◆ end() [2/2]

◆ endindices()

◆ endrowsizes()

◆ entry()

◆ exists()

◆ frobenius_norm()

◆ frobenius_norm2()

◆ get_allocator()

◆ incrementrowsize()

◆ infinity_norm()

◆ infinity_norm_real()

◆ M()

◆ mmhv()

◆ mmtv()

◆ mmv()

◆ mtv()

◆ mv()

◆ N()

◆ nonzeroes()

◆ operator*=()

◆ operator+=() [1/2]

◆ operator+=() [2/2]

◆ operator-=() [1/2]

◆ operator-=() [2/2]

◆ operator/=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ pattern()
