Owning matrix container built on top of MatrixView. More...

#include <dune/istl/experimental/matrix.hh>

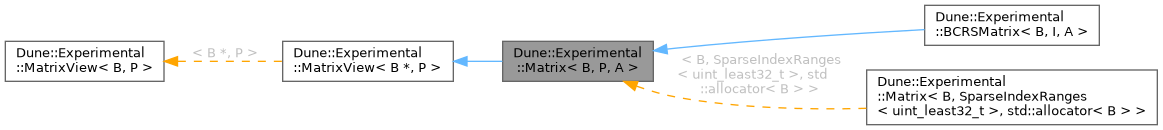

Inheritance diagram for Dune::Experimental::Matrix< B, P, A >:

Public Types
using	allocator_type = A
	Allocator type used by this container.

using	block_iter_type = B
	The iterator type used to access the blocks of the matrix.

using	pattern_type = P
	The type used for the sparsity pattern.

using	row_index_range_type = std::ranges::range_value_t< pattern_type >
	The type used for the index set of rows.

using	block_type = std::iter_value_t< block_iter_type >
	The type of blocks in the matrix.

using	value_type = block_type
	The type of blocks in the matrix.

using	size_type = std::ranges::range_size_t< pattern_type >
	The type used to count elements in the row and column index sets.

using	field_type = typename FieldTraits< block_type >::field_type
	The type of the field.

using	row_type = VectorView< block_iter_type, row_index_range_type >
	The type representing a mutable matrix row.

using	const_row_type = VectorView< block_const_iter_type, row_index_range_type >
	The type representing a const matrix row.

using	iterator = Iterator
	The type of mutable matrix iterators over the rows.

using	const_iterator = ConstIterator
	The type of const matrix iterators over the rows.

using	RowIterator = Iterator
	The type of mutable matrix iterators over the rows.

using	ConstRowIterator = ConstIterator
	The type of const matrix iterators over the rows.

using	ColIterator = typename row_type::iterator
	The type of mutable row iterators over the column blocks.

using	ConstColIterator = typename const_row_type::const_iterator
	The type of const row iterators over the column blocks.

Public Member Functions
	Matrix (const allocator_type &allocator=allocator_type())
	Construct an empty matrix with allocator `allocator`.

	Matrix (std::shared_ptr< const pattern_type > pattern, const allocator_type &allocator=allocator_type())
	Construct from a shared pattern.

	Matrix (pattern_type &&pattern, const allocator_type &allocator=allocator_type())
	Construct from an rvalue pattern.

	Matrix (const Matrix &other)
	Copy constructor.

	Matrix (const Matrix &other, const allocator_type &allocator)
	Copy constructor.

Matrix &	operator= (const Matrix &other)
	Copy assignment.

	Matrix (Matrix &&other)
	Move constructor.

Matrix &	operator= (Matrix &&other)
	Move assignment.

	Matrix (Matrix &&other, const allocator_type &allocator)
	Move construct with explicit allocator.

	~Matrix ()
	Destructor releases owned block storage.

allocator_type	get_allocator () const
	Return the allocator currently associated with this matrix.

void	swap (Matrix &other)
	Swap contents of this matrix with `other`, honoring allocator swap propagation traits.

std::shared_ptr< const pattern_type >	patternStorage () const
	Get shared storage of the pattern.

template<class Alloc , class ConstructFn >
auto	allocateData (const Alloc &alloc, size_type count, ConstructFn &&construct_fn) -> block_iter_type

template<class Alloc , class ConstructFn , class RestoreFn >
auto	allocateData (const Alloc &alloc, size_type count, ConstructFn &&construct_fn, RestoreFn &&restore_fn) -> block_iter_type

row_type	operator[] (size_type i)
	Return a mutable view of row `i`.

const_row_type	operator[] (size_type i) const
	Return a const view of row `i`.

Iterator	begin ()
	Return iterator to the first row.

ConstIterator	begin () const
	Return const iterator to the first row.

Iterator	end ()
	Return iterator one past the last row.

ConstIterator	end () const
	Return const iterator one past the last row.

ConstIterator	cbegin () const
	Return const iterator to the first row.

ConstIterator	cend () const
	Return const iterator one past the last row.

MatrixView &	axpy (field_type alpha, const MatrixView< OtherB, OtherI > &b)
	Compute \(this \leftarrow this + \alpha b\).

MatrixView< B, I > &	axpy (field_type alpha, const MatrixView< OtherB, OtherI > &b)

void	mv (const X &x, Y &y) const
	Compute \(y = Ax\).

void	umv (const X &x, Y &y) const
	Compute \(y \mathrel{+}= Ax\).

void	mmv (const X &x, Y &y) const
	Compute \(y \mathrel{-}= Ax\).

void	usmv (const field_type &alpha, const X &x, Y &y) const
	Compute \(y \mathrel{+}= \alpha Ax\).

void	mtv (const X &x, Y &y) const
	Compute \(y = A^T x\).

void	umtv (const X &x, Y &y) const
	Compute \(y \mathrel{+}= A^T x\).

void	mmtv (const X &x, Y &y) const
	Compute \(y \mathrel{-}= A^T x\).

void	usmtv (const field_type &alpha, const X &x, Y &y) const
	Compute \(y \mathrel{+}= \alpha A^T x\).

void	umhv (const X &x, Y &y) const
	Compute \(y \mathrel{+}= A^H x\) (Hermitian transpose).

void	mmhv (const X &x, Y &y) const
	Compute \(y \mathrel{-}= A^H x\) (Hermitian transpose).

void	usmhv (const field_type &alpha, const X &x, Y &y) const
	Compute \(y \mathrel{+}= \alpha A^H x\) (Hermitian transpose).

FieldTraits< field_type >::real_type	frobenius_norm2 () const
	Return \(\\|A\\|_F^2\) (sum of squared block Frobenius norms).

FieldTraits< field_type >::real_type	frobenius_norm () const
	Return the Frobenius norm \(\\|A\\|_F\).

FieldTraits< field_type >::real_type	infinity_norm () const
	Return the block-aware infinity norm.

FieldTraits< field_type >::real_type	infinity_norm_real () const
	Return simplified infinity norm (Manhattan norm for complex values).

bool	exists (size_type i, size_type j) const DUNE_ISTL_WITH_CHECKING_NOEXCEPT
	Test whether position \((i,j)\) is present in the sparsity pattern.

size_type	N () const
	Number of block rows.

size_type	M () const
	Number of block columns.

size_type	nonzeroes () const
	Number of stored block entries.

MatrixView &	operator*= (const field_type &k)
	Scale all stored blocks by `k`.

MatrixView &	operator/= (const field_type &k)
	Divide all stored blocks by `k`.

MatrixView &	operator+= (const MatrixView< OtherB, OtherI > &b)
	Add another matrix view to this one.

MatrixView< B, I > &	operator+= (const MatrixView< OtherB, OtherI > &b)

MatrixView &	operator-= (const MatrixView< OtherB, OtherI > &b)
	Subtract another matrix view from this one.

MatrixView< B, I > &	operator-= (const MatrixView< OtherB, OtherI > &b)

const pattern_type &	pattern () const

Protected Member Functions
void	resetView (block_iter_type block_iter, pattern_type const *pattern_ptr)
	Reset the view to point to `block_iter` and `pattern_ptr`.

block_iter_type	blockIter ()
	Return the underlying block iterator.

block_const_iter_type	blockIter () const
	Return the underlying block iterator as a const iterator.

pattern_type const *	patternPtr () const
	Return the underlying pattern pointer.

Friends
void	swap (Matrix &lhs, Matrix &rhs)
	Swap contents of `lhs` and `rhs`, honoring allocator swap propagation traits.

Detailed Description

template<class B, class P, class A = std::allocator>
class Dune::Experimental::Matrix< B, P, A >

Owning matrix container built on top of MatrixView.

Matrix stores block values and owns a pattern while exposing the matrix interface from MatrixView.

In contrast to MatrixView, this class owns both resources:

block storage for all structurally present entries,
a shared pointer to the immutable sparsity pattern.

Template Parameters

B	Block value type.
P	Pattern type (See MatrixView).
A	Allocator type used for block and pattern storage.

Member Typedef Documentation

◆ allocator_type

template<class B , class P , class A = std::allocator>

using Dune::Experimental::Matrix< B, P, A >::allocator_type = A

Allocator type used by this container.

◆ block_iter_type

using Dune::Experimental::MatrixView< B, P >::block_iter_type = B

inherited

The iterator type used to access the blocks of the matrix.

◆ block_type

using Dune::Experimental::MatrixView< B, P >::block_type = std::iter_value_t<block_iter_type>

inherited

The type of blocks in the matrix.

◆ ColIterator

using Dune::Experimental::MatrixView< B, P >::ColIterator = typename row_type::iterator

inherited

The type of mutable row iterators over the column blocks.

◆ const_iterator

using Dune::Experimental::MatrixView< B, P >::const_iterator = ConstIterator

inherited

The type of const matrix iterators over the rows.

◆ const_row_type

using Dune::Experimental::MatrixView< B, P >::const_row_type = VectorView<block_const_iter_type, row_index_range_type>

inherited

The type representing a const matrix row.

◆ ConstColIterator

using Dune::Experimental::MatrixView< B, P >::ConstColIterator = typename const_row_type::const_iterator

inherited

The type of const row iterators over the column blocks.

◆ ConstRowIterator

using Dune::Experimental::MatrixView< B, P >::ConstRowIterator = ConstIterator

inherited

The type of const matrix iterators over the rows.

◆ field_type

using Dune::Experimental::MatrixView< B, P >::field_type = typename FieldTraits<block_type>::field_type

inherited

The type of the field.

◆ iterator

using Dune::Experimental::MatrixView< B, P >::iterator = Iterator

inherited

The type of mutable matrix iterators over the rows.

◆ pattern_type

using Dune::Experimental::MatrixView< B, P >::pattern_type = P

inherited

The type used for the sparsity pattern.

◆ row_index_range_type

using Dune::Experimental::MatrixView< B, P >::row_index_range_type = std::ranges::range_value_t<pattern_type>

inherited

The type used for the index set of rows.

◆ row_type

using Dune::Experimental::MatrixView< B, P >::row_type = VectorView<block_iter_type, row_index_range_type>

inherited

The type representing a mutable matrix row.

◆ RowIterator

using Dune::Experimental::MatrixView< B, P >::RowIterator = Iterator

inherited

The type of mutable matrix iterators over the rows.

◆ size_type

using Dune::Experimental::MatrixView< B, P >::size_type = std::ranges::range_size_t<pattern_type>

inherited

The type used to count elements in the row and column index sets.

◆ value_type

using Dune::Experimental::MatrixView< B, P >::value_type = block_type

inherited

The type of blocks in the matrix.

Constructor & Destructor Documentation

◆ Matrix() [1/7]

template<class B , class P , class A >

Dune::Experimental::Matrix< B, P, A >::Matrix ( const allocator_type & allocator = allocator_type() )

Construct an empty matrix with allocator allocator.

The resulting matrix has no pattern and no allocated block storage.

◆ Matrix() [2/7]

template<class B , class P , class A >

Dune::Experimental::Matrix< B, P, A >::Matrix	(	std::shared_ptr< const pattern_type >	pattern,
		const allocator_type &	allocator = `allocator_type()`
	)

Construct from a shared pattern.

If pattern is non-null, block storage is allocated and value-initialized for pattern->count() entries.

◆ Matrix() [3/7]

template<class B , class P , class A >

Dune::Experimental::Matrix< B, P, A >::Matrix	(	pattern_type &&	pattern,
		const allocator_type &	allocator = `allocator_type()`
	)

Construct from an rvalue pattern.

The pattern is moved into shared owned storage and corresponding block storage is allocated and value-initialized.

◆ Matrix() [4/7]

template<class B , class P , class A >

Dune::Experimental::Matrix< B, P, A >::Matrix ( const Matrix< B, P, A > & other )

Copy constructor.

Shares the sparsity pattern and deep-copies block values.

◆ Matrix() [5/7]

template<class B , class P , class A >

Dune::Experimental::Matrix< B, P, A >::Matrix	(	const Matrix< B, P, A > &	other,
		const allocator_type &	allocator
	)

Copy constructor.

Shares the pattern and deep-copies block values.

◆ Matrix() [6/7]

template<class B , class P , class A >

Dune::Experimental::Matrix< B, P, A >::Matrix ( Matrix< B, P, A > && other )

Move constructor.

Transfers owned resources from other.

◆ Matrix() [7/7]

template<class B , class P , class A >

Dune::Experimental::Matrix< B, P, A >::Matrix	(	Matrix< B, P, A > &&	other,
		const allocator_type &	allocator
	)

Move construct with explicit allocator.

If allocators compare equal, resources are stolen. Otherwise, pattern is shared and block values are moved into newly allocated storage.

◆ ~Matrix()

template<class B , class P , class A >

Dune::Experimental::Matrix< B, P, A >::~Matrix ( )

Destructor releases owned block storage.

Member Function Documentation

◆ allocateData() [1/2]

template<class B , class P , class A = std::allocator>

template<class Alloc , class ConstructFn >

auto Dune::Experimental::Matrix< B, P, A >::allocateData	(	const Alloc &	alloc,
		size_type	count,
		ConstructFn &&	construct_fn
	)		-> block_iter_type

◆ allocateData() [2/2]

template<class B , class P , class A = std::allocator>

template<class Alloc , class ConstructFn , class RestoreFn >

auto Dune::Experimental::Matrix< B, P, A >::allocateData	(	const Alloc &	alloc,
		size_type	count,
		ConstructFn &&	construct_fn,
		RestoreFn &&	restore_fn
	)		-> block_iter_type

◆ axpy() [1/2]

MatrixView & Dune::Experimental::MatrixView< B, P >::axpy	(	field_type	alpha,
		const MatrixView< OtherB, OtherI > &	b
	)

inherited

Compute \(this \leftarrow this + \alpha b\).

◆ axpy() [2/2]

MatrixView< B, I > & Dune::Experimental::MatrixView< B, P >::axpy	(	field_type	alpha,
		const MatrixView< OtherB, OtherI > &	b
	)

inherited

◆ begin() [1/2]

Iterator Dune::Experimental::MatrixView< B, P >::begin ( )

inlineinherited

Return iterator to the first row.

◆ begin() [2/2]

ConstIterator Dune::Experimental::MatrixView< B, P >::begin ( ) const

inlineinherited

Return const iterator to the first row.

◆ blockIter() [1/2]

block_iter_type Dune::Experimental::MatrixView< B, P >::blockIter ( )

inlineprotectedinherited

Return the underlying block iterator.

◆ blockIter() [2/2]

block_const_iter_type Dune::Experimental::MatrixView< B, P >::blockIter ( ) const

inlineprotectedinherited

Return the underlying block iterator as a const iterator.

◆ cbegin()

ConstIterator Dune::Experimental::MatrixView< B, P >::cbegin ( ) const

inlineinherited

Return const iterator to the first row.

◆ cend()

ConstIterator Dune::Experimental::MatrixView< B, P >::cend ( ) const

inlineinherited

Return const iterator one past the last row.

◆ end() [1/2]

Iterator Dune::Experimental::MatrixView< B, P >::end ( )

inlineinherited

Return iterator one past the last row.

◆ end() [2/2]

ConstIterator Dune::Experimental::MatrixView< B, P >::end ( ) const

inlineinherited

Return const iterator one past the last row.

◆ exists()

bool Dune::Experimental::MatrixView< B, P >::exists	(	size_type	i,
		size_type	j
	)		const

inlineinherited

Test whether position \((i,j)\) is present in the sparsity pattern.

This checks structural existence only. It does not inspect value magnitude.

Exceptions

BCRSMatrixError if \(i\) or \(j\) is out of range if DUNE_ISTL_WITH_CHECKING is defined.

◆ frobenius_norm()

auto Dune::Experimental::MatrixView< B, I >::frobenius_norm ( ) const

inherited

Return the Frobenius norm \(\|A\|_F\).

◆ frobenius_norm2()

auto Dune::Experimental::MatrixView< B, I >::frobenius_norm2 ( ) const

inherited

Return \(\|A\|_F^2\) (sum of squared block Frobenius norms).

◆ get_allocator()

template<class B , class P , class A >

auto Dune::Experimental::Matrix< B, P, A >::get_allocator ( ) const

Return the allocator currently associated with this matrix.

◆ infinity_norm()

auto Dune::Experimental::MatrixView< B, I >::infinity_norm ( ) const

inherited

Return the block-aware infinity norm.

◆ infinity_norm_real()

auto Dune::Experimental::MatrixView< B, I >::infinity_norm_real ( ) const

inherited

Return simplified infinity norm (Manhattan norm for complex values).

infinity norm (maximum of absolute values of entries)

◆ M()

size_type Dune::Experimental::MatrixView< B, P >::M ( ) const

inlineinherited

Number of block columns.

◆ mmhv()

void Dune::Experimental::MatrixView< B, I >::mmhv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{-}= A^H x\) (Hermitian transpose).

◆ mmtv()

void Dune::Experimental::MatrixView< B, I >::mmtv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{-}= A^T x\).

◆ mmv()

void Dune::Experimental::MatrixView< B, I >::mmv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{-}= Ax\).

◆ mtv()

void Dune::Experimental::MatrixView< B, I >::mtv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y = A^T x\).

◆ mv()

void Dune::Experimental::MatrixView< B, I >::mv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y = Ax\).

◆ N()

size_type Dune::Experimental::MatrixView< B, P >::N ( ) const

inlineinherited

Number of block rows.

◆ nonzeroes()

size_type Dune::Experimental::MatrixView< B, P >::nonzeroes ( ) const

inlineinherited

Number of stored block entries.

This is the number of structurally present entries, i.e., entries that may be nonzero.

◆ operator*=()

MatrixView< B, I > & Dune::Experimental::MatrixView< B, I >::operator*= ( const field_type & k )

inherited

Scale all stored blocks by k.

◆ operator+=() [1/2]

MatrixView & Dune::Experimental::MatrixView< B, P >::operator+= ( const MatrixView< OtherB, OtherI > & b )

inherited

Add another matrix view to this one.

Parameters

b	The matrix to add to this one. Its sparsity pattern has to be subset of the sparsity pattern of this matrix.

◆ operator+=() [2/2]

MatrixView< B, I > & Dune::Experimental::MatrixView< B, P >::operator+= ( const MatrixView< OtherB, OtherI > & b )

inherited

◆ operator-=() [1/2]

MatrixView & Dune::Experimental::MatrixView< B, P >::operator-= ( const MatrixView< OtherB, OtherI > & b )

inherited

Subtract another matrix view from this one.

Parameters

b	The matrix to subtract from this one. Its sparsity pattern has to be subset of the sparsity pattern of this matrix.

◆ operator-=() [2/2]

MatrixView< B, I > & Dune::Experimental::MatrixView< B, P >::operator-= ( const MatrixView< OtherB, OtherI > & b )

inherited

◆ operator/=()

MatrixView< B, I > & Dune::Experimental::MatrixView< B, I >::operator/= ( const field_type & k )

inherited

Divide all stored blocks by k.

◆ operator=() [1/2]

template<class B , class P , class A >

Matrix< B, P, A > & Dune::Experimental::Matrix< B, P, A >::operator= ( const Matrix< B, P, A > & other )

Copy assignment.

Provides strong exception safety for block storage replacement.

◆ operator=() [2/2]

template<class B , class P , class A >

Matrix< B, P, A > & Dune::Experimental::Matrix< B, P, A >::operator= ( Matrix< B, P, A > && other )

Move assignment.

Transfers owned resources from other according to allocator propagation rules.

◆ operator[]() [1/2]

row_type Dune::Experimental::MatrixView< B, P >::operator[] ( size_type i )

inlineinherited

Return a mutable view of row i.

◆ operator[]() [2/2]

const_row_type Dune::Experimental::MatrixView< B, P >::operator[] ( size_type i ) const

inlineinherited

Return a const view of row i.

◆ pattern()

const pattern_type & Dune::Experimental::MatrixView< B, P >::pattern ( ) const

inlineinherited

◆ patternPtr()

pattern_type const * Dune::Experimental::MatrixView< B, P >::patternPtr ( ) const

inlineprotectedinherited

Return the underlying pattern pointer.

◆ patternStorage()

template<class B , class P , class A = std::allocator>

std::shared_ptr< const pattern_type > Dune::Experimental::Matrix< B, P, A >::patternStorage ( ) const

inline

Get shared storage of the pattern.

◆ resetView()

void Dune::Experimental::MatrixView< B, P >::resetView	(	block_iter_type	block_iter,
		pattern_type const *	pattern_ptr
	)

inlineprotectedinherited

Reset the view to point to block_iter and pattern_ptr.

◆ swap()

template<class B , class P , class A >

void Dune::Experimental::Matrix< B, P, A >::swap ( Matrix< B, P, A > & other )

Swap contents of this matrix with other, honoring allocator swap propagation traits.

◆ umhv()

void Dune::Experimental::MatrixView< B, I >::umhv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{+}= A^H x\) (Hermitian transpose).

◆ umtv()

void Dune::Experimental::MatrixView< B, I >::umtv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{+}= A^T x\).

◆ umv()

void Dune::Experimental::MatrixView< B, I >::umv	(	const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{+}= Ax\).

◆ usmhv()

void Dune::Experimental::MatrixView< B, I >::usmhv	(	const field_type &	alpha,
		const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{+}= \alpha A^H x\) (Hermitian transpose).

◆ usmtv()

void Dune::Experimental::MatrixView< B, I >::usmtv	(	const field_type &	alpha,
		const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{+}= \alpha A^T x\).

◆ usmv()

void Dune::Experimental::MatrixView< B, I >::usmv	(	const field_type &	alpha,
		const X &	x,
		Y &	y
	)		const

inherited

Compute \(y \mathrel{+}= \alpha Ax\).

Friends And Related Symbol Documentation

◆ swap

template<class B , class P , class A = std::allocator>

void swap	(	Matrix< B, P, A > &	lhs,
		Matrix< B, P, A > &	rhs
	)

friend

Swap contents of lhs and rhs, honoring allocator swap propagation traits.

The documentation for this class was generated from the following file:

experimental/matrix.hh

Public Types

Public Member Functions

Protected Member Functions

Friends

Detailed Description

Member Typedef Documentation

◆ allocator_type

◆ block_iter_type

◆ block_type

◆ ColIterator

◆ const_iterator

◆ const_row_type

◆ ConstColIterator

◆ ConstRowIterator

◆ field_type

◆ iterator

◆ pattern_type

◆ row_index_range_type

◆ row_type

◆ RowIterator

◆ size_type

◆ value_type

Constructor & Destructor Documentation

◆ Matrix() [1/7]

◆ Matrix() [2/7]

◆ Matrix() [3/7]

◆ Matrix() [4/7]

◆ Matrix() [5/7]

◆ Matrix() [6/7]

◆ Matrix() [7/7]

◆ ~Matrix()

Member Function Documentation

◆ allocateData() [1/2]

◆ allocateData() [2/2]

◆ axpy() [1/2]

◆ axpy() [2/2]

◆ begin() [1/2]

◆ begin() [2/2]

◆ blockIter() [1/2]

◆ blockIter() [2/2]

◆ cbegin()

◆ cend()

◆ end() [1/2]

◆ end() [2/2]

◆ exists()

◆ frobenius_norm()

◆ frobenius_norm2()

◆ get_allocator()

◆ infinity_norm()

◆ infinity_norm_real()

◆ M()

◆ mmhv()

◆ mmtv()

◆ mmv()

◆ mtv()

◆ mv()

◆ N()

◆ nonzeroes()

◆ operator*=()

◆ operator+=() [1/2]

◆ operator+=() [2/2]

◆ operator-=() [1/2]

◆ operator-=() [2/2]

◆ operator/=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ pattern()

◆ patternPtr()

◆ patternStorage()

◆ resetView()

◆ swap()

◆ umhv()

◆ umtv()

◆ umv()

◆ usmhv()

◆ usmtv()

◆ usmv()

Friends And Related Symbol Documentation
