DeformationHierarchyFunction< GridView, CoefficientVectorType > Class Template Reference

Function that computes the deformed position from a given host gridview. This can be used inside of GeometryGrid. More...

#include <dune/fufem/functions/deformationfunction.hh>

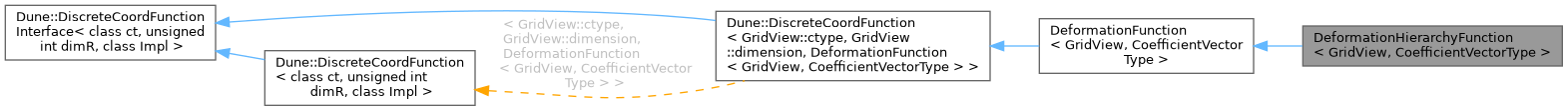

Inheritance diagram for DeformationHierarchyFunction< GridView, CoefficientVectorType >:

Public Types
typedef Base::RangeVector	RangeVector
typedef This	Interface
typedef Impl	Implementation

Public Member Functions
	DeformationHierarchyFunction (const GridView &gridView)
	DeformationHierarchyFunction (const GridView &gridView, const CoefficientVectorType &deformation)
virtual void	setGridView (const GridView &gridView)
void	evaluate (const typename GridView::template Codim< 0 >::Entity &hostEntity, unsigned int corner, typename Base::RangeVector &y) const
	Evaluate function at a corner of a host entity.
void	setDeformation (const CoefficientVectorType &deformation)
	Change the deformation vector.
virtual void	evaluate (const typename GridView::template Codim< dim >::Entity &hostVertex, unsigned int corner, Dune::FieldVector< ctype, dim > &y) const
	Evaluate function at a host vertex (corner param is redundant but prescribed by the interface...)
void	evaluate (const HostEntity &hostEntity, unsigned int corner, RangeVector &y) const
void	adapt ()
	Adapt to changes in the host grid.
const CoefficientVectorType &	getDeformation ()

Static Public Attributes
static const unsigned int	dimRange

Protected Member Functions
const Implementation &	asImp () const
Implementation &	asImp ()

Protected Attributes
std::unique_ptr< GridView >	gridView_
	The gridview of the undeformed grid.
CoefficientVectorType	deformation_
	The coefficient vector of the displacements of the vertices of the gridview.

Detailed Description

template<class GridView, class CoefficientVectorType>
class DeformationHierarchyFunction< GridView, CoefficientVectorType >

Function that computes the deformed position from a given host gridview. This can be used inside of GeometryGrid.

Template Parameters

GridView	- The grid view of the undeformed grid.
CoefficientVectorType	- The type the vertex coefficients are stored in.

Deprecated:

This class is deprecated and will be removed after 2.11. Use Dune::Fufen::Experimental::DeformationFunction instead.

Member Typedef Documentation

RangeVector

template<class GridView , class CoefficientVectorType >

typedef Base::RangeVector DeformationFunction< GridView, CoefficientVectorType >::RangeVector

inherited

Constructor & Destructor Documentation

DeformationHierarchyFunction() [1/2]

template<class GridView , class CoefficientVectorType >

DeformationHierarchyFunction< GridView, CoefficientVectorType >::DeformationHierarchyFunction ( const GridView &  gridView )

inline

DeformationHierarchyFunction() [2/2]

template<class GridView , class CoefficientVectorType >

DeformationHierarchyFunction< GridView, CoefficientVectorType >::DeformationHierarchyFunction ( const GridView &  gridView, const CoefficientVectorType &  deformation  )

inline

Member Function Documentation

adapt()

template<class GridView , class CoefficientVectorType >

void DeformationFunction< GridView, CoefficientVectorType >::adapt ( )

inlineinherited

Adapt to changes in the host grid.

evaluate() [1/2]

template<class GridView , class CoefficientVectorType >

void DeformationHierarchyFunction< GridView, CoefficientVectorType >::evaluate ( const typename GridView::template Codim< 0 >::Entity &  hostEntity, unsigned int  corner, typename Base::RangeVector &  y  ) const

inlinevirtual

Evaluate function at a corner of a host entity.

Reimplemented from DeformationFunction< GridView, CoefficientVectorType >.

evaluate() [2/2]

template<class GridView , class CoefficientVectorType >

virtual void DeformationFunction< GridView, CoefficientVectorType >::evaluate ( const typename GridView::template Codim< dim >::Entity &  hostVertex, unsigned int  corner, Dune::FieldVector< ctype, dim > &  y  ) const

inlinevirtualinherited

Evaluate function at a host vertex (corner param is redundant but prescribed by the interface...)

getDeformation()

template<class GridView , class CoefficientVectorType >

const CoefficientVectorType & DeformationFunction< GridView, CoefficientVectorType >::getDeformation ( )

inlineinherited

setDeformation()

template<class GridView , class CoefficientVectorType >

void DeformationFunction< GridView, CoefficientVectorType >::setDeformation ( const CoefficientVectorType &  deformation )

inlineinherited

Change the deformation vector.

setGridView()

template<class GridView , class CoefficientVectorType >

virtual void DeformationHierarchyFunction< GridView, CoefficientVectorType >::setGridView ( const GridView &  gridView )

inlinevirtual

Reimplemented from DeformationFunction< GridView, CoefficientVectorType >.

Member Data Documentation

deformation_

template<class GridView , class CoefficientVectorType >

CoefficientVectorType DeformationFunction< GridView, CoefficientVectorType >::deformation_

protectedinherited

The coefficient vector of the displacements of the vertices of the gridview.

gridView_

template<class GridView , class CoefficientVectorType >

std::unique_ptr<GridView> DeformationFunction< GridView, CoefficientVectorType >::gridView_

protectedinherited

The gridview of the undeformed grid.

---

The documentation for this class was generated from the following file:

• deformationfunction.hh
