DeformationFunction< GridView, CoefficientVectorType > Class Template Reference

Function that computes the deformed position from a given host gridview. This can be used inside of GeometryGrid. More...

#include <dune/fufem/functions/deformationfunction.hh>

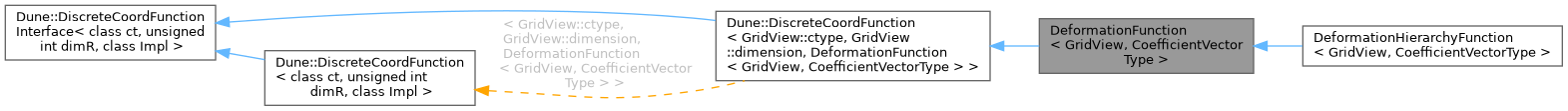

Inheritance diagram for DeformationFunction< GridView, CoefficientVectorType >:

Public Types
typedef Base::RangeVector	RangeVector
typedef This	Interface
typedef Impl	Implementation

Public Member Functions
	DeformationFunction (const GridView &gridView)
	DeformationFunction (const GridView &gridView, const CoefficientVectorType &deformation)
virtual	~DeformationFunction ()
virtual void	setGridView (const GridView &gridView)
void	setDeformation (const CoefficientVectorType &deformation)
	Change the deformation vector.
virtual void	evaluate (const typename GridView::template Codim< dim >::Entity &hostVertex, unsigned int corner, Dune::FieldVector< ctype, dim > &y) const
	Evaluate function at a host vertex (corner param is redundant but prescribed by the interface...)
virtual void	evaluate (const typename GridView::template Codim< 0 >::Entity &hostEntity, unsigned int corner, typename Base::RangeVector &y) const
	Evaluate function at a corner of a host entity.
void	adapt ()
	Adapt to changes in the host grid.
const CoefficientVectorType &	getDeformation ()
void	evaluate (const HostEntity &hostEntity, unsigned int corner, RangeVector &y) const

Static Public Attributes
static const unsigned int	dimRange

Protected Member Functions
const Implementation &	asImp () const
Implementation &	asImp ()

Protected Attributes
std::unique_ptr< GridView >	gridView_
	The gridview of the undeformed grid.
CoefficientVectorType	deformation_
	The coefficient vector of the displacements of the vertices of the gridview.

Detailed Description

template<class GridView, class CoefficientVectorType>
class DeformationFunction< GridView, CoefficientVectorType >

Function that computes the deformed position from a given host gridview. This can be used inside of GeometryGrid.

This function only works correctly if the evaluate function is only called for elements of the given GridView.

Template Parameters

GridView	- The grid view of the undeformed grid.
CoefficientVectorType	- The type the vertex coefficients are stored in.

Deprecated:

This class is deprecated and will be removed after 2.11. Use Dune::Fufen::Experimental::DeformationFunction instead.

Member Typedef Documentation

RangeVector

template<class GridView , class CoefficientVectorType >

typedef Base::RangeVector DeformationFunction< GridView, CoefficientVectorType >::RangeVector

Constructor & Destructor Documentation

DeformationFunction() [1/2]

template<class GridView , class CoefficientVectorType >

DeformationFunction< GridView, CoefficientVectorType >::DeformationFunction ( const GridView &  gridView )

inline

DeformationFunction() [2/2]

template<class GridView , class CoefficientVectorType >

DeformationFunction< GridView, CoefficientVectorType >::DeformationFunction ( const GridView &  gridView, const CoefficientVectorType &  deformation  )

inline

~DeformationFunction()

template<class GridView , class CoefficientVectorType >

virtual DeformationFunction< GridView, CoefficientVectorType >::~DeformationFunction ( )

inlinevirtual

Member Function Documentation

adapt()

template<class GridView , class CoefficientVectorType >

void DeformationFunction< GridView, CoefficientVectorType >::adapt ( )

inline

Adapt to changes in the host grid.

evaluate() [1/2]

template<class GridView , class CoefficientVectorType >

virtual void DeformationFunction< GridView, CoefficientVectorType >::evaluate ( const typename GridView::template Codim< 0 >::Entity &  hostEntity, unsigned int  corner, typename Base::RangeVector &  y  ) const

inlinevirtual

Evaluate function at a corner of a host entity.

Reimplemented in DeformationHierarchyFunction< GridView, CoefficientVectorType >.

evaluate() [2/2]

template<class GridView , class CoefficientVectorType >

virtual void DeformationFunction< GridView, CoefficientVectorType >::evaluate ( const typename GridView::template Codim< dim >::Entity &  hostVertex, unsigned int  corner, Dune::FieldVector< ctype, dim > &  y  ) const

inlinevirtual

Evaluate function at a host vertex (corner param is redundant but prescribed by the interface...)

getDeformation()

template<class GridView , class CoefficientVectorType >

const CoefficientVectorType & DeformationFunction< GridView, CoefficientVectorType >::getDeformation ( )

inline

setDeformation()

template<class GridView , class CoefficientVectorType >

void DeformationFunction< GridView, CoefficientVectorType >::setDeformation ( const CoefficientVectorType &  deformation )

inline

Change the deformation vector.

setGridView()

template<class GridView , class CoefficientVectorType >

virtual void DeformationFunction< GridView, CoefficientVectorType >::setGridView ( const GridView &  gridView )

inlinevirtual

Reimplemented in DeformationHierarchyFunction< GridView, CoefficientVectorType >.

Member Data Documentation

deformation_

template<class GridView , class CoefficientVectorType >

CoefficientVectorType DeformationFunction< GridView, CoefficientVectorType >::deformation_

protected

The coefficient vector of the displacements of the vertices of the gridview.

gridView_

template<class GridView , class CoefficientVectorType >

std::unique_ptr<GridView> DeformationFunction< GridView, CoefficientVectorType >::gridView_

protected

The gridview of the undeformed grid.

---

The documentation for this class was generated from the following file:

• deformationfunction.hh
