Dune::Fem::NewtonParameter< SolverParam > Struct Template Reference

#include <dune/fem/solver/newtoninverseoperator.hh>

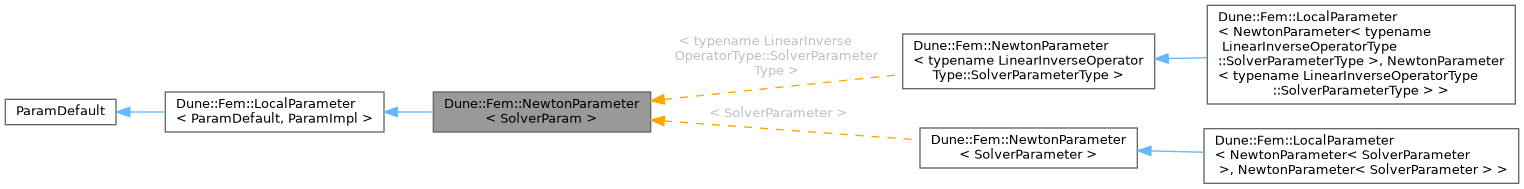

Inheritance diagram for Dune::Fem::NewtonParameter< SolverParam >:

Public Member Functions
	NewtonParameter (const SolverParam &baseParameter, const std::string keyPrefix="fem.solver.nonlinear.")
template<class Parameter , std::enable_if_t<!std::is_base_of< SolverParam, Parameter >::value &&!std::is_same< Parameter, ParameterReader >::value, int > i = 0>
	NewtonParameter (const Parameter &solverParameter, const std::string keyPrefix="fem.solver.nonlinear.")
template<class ParamReader , std::enable_if_t<!std::is_same< ParamReader, SolverParam >::value &&std::is_same< ParamReader, ParameterReader >::value, int > i = 0>
	NewtonParameter (const ParamReader &parameter, const std::string keyPrefix="fem.solver.nonlinear.")
void	checkForcingErrorMeasure ()
const ParameterReader &	parameter () const
const SolverParam &	solverParameter () const
const SolverParam &	linear () const
virtual void	reset ()
virtual double	tolerance () const
virtual void	setTolerance (const double tol)
virtual bool	verbose () const
virtual void	setVerbose (bool verb)
virtual int	maxIterations () const
virtual void	setMaxIterations (const int maxIter)
virtual int	maxLinearIterations () const
	= max iterations of each linear solve
virtual void	setMaxLinearIterations (const int maxLinearIter)
virtual int	maxLineSearchIterations () const
virtual void	setMaxLineSearchIterations (const int maxLineSearchIter)
	LIST_OF_INT (LineSearchMethod, none=0, simple=1)
virtual int	lineSearch () const
virtual void	setLineSearch (const int method)
	LIST_OF_INT (Forcing, none=0, eisenstatwalker=1)
virtual int	forcing () const
virtual void	setForcing (const int strategy)
virtual double	eisenstatWalkerEtaMax () const
virtual void	setEisenstatWalkerEtaMax (const double etaMax)
virtual double	eisenstatWalkerGamma () const
virtual void	setEisenstatWalkerGamma (const double gamma)
virtual bool	simplified () const
	return true if simplified Newton is to be used
virtual bool	forceNonLinear () const
virtual ParamDefault *	clone () const

Protected Member Functions
void	checkDeprecatedParameters () const
std::string	replaceNonLinearWithLinear (const std::string &keyPrefix) const
const ParamImpl &	asImp () const

Protected Attributes
std::shared_ptr< SolverParam >	baseParam_
const std::string	keyPrefix_
ParameterReader	parameter_

Constructor & Destructor Documentation

NewtonParameter() [1/3]

template<class SolverParam = SolverParameter>

Dune::Fem::NewtonParameter< SolverParam >::NewtonParameter ( const SolverParam &  baseParameter, const std::string  keyPrefix = "fem.solver.nonlinear."  )

inline

NewtonParameter() [2/3]

template<class SolverParam = SolverParameter>

template<class Parameter , std::enable_if_t<!std::is_base_of< SolverParam, Parameter >::value &&!std::is_same< Parameter, ParameterReader >::value, int > i = 0>

Dune::Fem::NewtonParameter< SolverParam >::NewtonParameter ( const Parameter &  solverParameter, const std::string  keyPrefix = "fem.solver.nonlinear."  )

inline

NewtonParameter() [3/3]

template<class SolverParam = SolverParameter>

template<class ParamReader , std::enable_if_t<!std::is_same< ParamReader, SolverParam >::value &&std::is_same< ParamReader, ParameterReader >::value, int > i = 0>

Dune::Fem::NewtonParameter< SolverParam >::NewtonParameter ( const ParamReader &  parameter, const std::string  keyPrefix = "fem.solver.nonlinear."  )

inline

Member Function Documentation

asImp()

template<class ParamDefault , class ParamImpl >

const ParamImpl & Dune::Fem::LocalParameter< ParamDefault, ParamImpl >::asImp ( ) const

inlineprotectedinherited

checkDeprecatedParameters()

template<class SolverParam = SolverParameter>

void Dune::Fem::NewtonParameter< SolverParam >::checkDeprecatedParameters ( ) const

inlineprotected

checkForcingErrorMeasure()

template<class SolverParam = SolverParameter>

void Dune::Fem::NewtonParameter< SolverParam >::checkForcingErrorMeasure ( )

inline

clone()

template<class ParamDefault , class ParamImpl >

virtual ParamDefault * Dune::Fem::LocalParameter< ParamDefault, ParamImpl >::clone ( ) const

inlinevirtualinherited

Reimplemented in Dune::Fem::LocalParameter< NewtonParameter< SolverParameter >, NewtonParameter< SolverParameter > >, and Dune::Fem::LocalParameter< NewtonParameter< typename LinearInverseOperatorType::SolverParameterType >, NewtonParameter< typename LinearInverseOperatorType::SolverParameterType > >.

eisenstatWalkerEtaMax()

template<class SolverParam = SolverParameter>

virtual double Dune::Fem::NewtonParameter< SolverParam >::eisenstatWalkerEtaMax ( ) const

inlinevirtual

Maximum allowed forcing term eta for Eisenstat-Walker. Key: nonlinear.eisenstatwalker.etamax (default: 0.99) For degenerate problems reduce towards 0.1.

eisenstatWalkerGamma()

template<class SolverParam = SolverParameter>

virtual double Dune::Fem::NewtonParameter< SolverParam >::eisenstatWalkerGamma ( ) const

inlinevirtual

Safeguard/superlinear-convergence decay parameter for Eisenstat-Walker. Key: nonlinear.eisenstatwalker.gamma (default: 0.1) For degenerate problems increase towards 0.5-0.9.

forceNonLinear()

template<class SolverParam = SolverParameter>

virtual bool Dune::Fem::NewtonParameter< SolverParam >::forceNonLinear ( ) const

inlinevirtual

forcing()

template<class SolverParam = SolverParameter>

virtual int Dune::Fem::NewtonParameter< SolverParam >::forcing ( ) const

inlinevirtual

linear()

template<class SolverParam = SolverParameter>

const SolverParam & Dune::Fem::NewtonParameter< SolverParam >::linear ( ) const

inline

lineSearch()

template<class SolverParam = SolverParameter>

virtual int Dune::Fem::NewtonParameter< SolverParam >::lineSearch ( ) const

inlinevirtual

LIST_OF_INT() [1/2]

template<class SolverParam = SolverParameter>

Dune::Fem::NewtonParameter< SolverParam >::LIST_OF_INT	(	Forcing	,
		none	= 0,
		eisenstatwalker	= 1
	)

LIST_OF_INT() [2/2]

template<class SolverParam = SolverParameter>

Dune::Fem::NewtonParameter< SolverParam >::LIST_OF_INT	(	LineSearchMethod	,
		none	= 0,
		simple	= 1
	)

maxIterations()

template<class SolverParam = SolverParameter>

virtual int Dune::Fem::NewtonParameter< SolverParam >::maxIterations ( ) const

inlinevirtual

maxLinearIterations()

template<class SolverParam = SolverParameter>

virtual int Dune::Fem::NewtonParameter< SolverParam >::maxLinearIterations ( ) const

inlinevirtual

= max iterations of each linear solve

maxLineSearchIterations()

template<class SolverParam = SolverParameter>

virtual int Dune::Fem::NewtonParameter< SolverParam >::maxLineSearchIterations ( ) const

inlinevirtual

parameter()

template<class SolverParam = SolverParameter>

const ParameterReader & Dune::Fem::NewtonParameter< SolverParam >::parameter ( ) const

inline

replaceNonLinearWithLinear()

template<class SolverParam = SolverParameter>

std::string Dune::Fem::NewtonParameter< SolverParam >::replaceNonLinearWithLinear ( const std::string &  keyPrefix ) const

inlineprotected

reset()

template<class SolverParam = SolverParameter>

virtual void Dune::Fem::NewtonParameter< SolverParam >::reset ( )

inlinevirtual

setEisenstatWalkerEtaMax()

template<class SolverParam = SolverParameter>

virtual void Dune::Fem::NewtonParameter< SolverParam >::setEisenstatWalkerEtaMax ( const double  etaMax )

inlinevirtual

setEisenstatWalkerGamma()

template<class SolverParam = SolverParameter>

virtual void Dune::Fem::NewtonParameter< SolverParam >::setEisenstatWalkerGamma ( const double  gamma )

inlinevirtual

setForcing()

template<class SolverParam = SolverParameter>

virtual void Dune::Fem::NewtonParameter< SolverParam >::setForcing ( const int  strategy )

inlinevirtual

setLineSearch()

template<class SolverParam = SolverParameter>

virtual void Dune::Fem::NewtonParameter< SolverParam >::setLineSearch ( const int  method )

inlinevirtual

setMaxIterations()

template<class SolverParam = SolverParameter>

virtual void Dune::Fem::NewtonParameter< SolverParam >::setMaxIterations ( const int  maxIter )

inlinevirtual

setMaxLinearIterations()

template<class SolverParam = SolverParameter>

virtual void Dune::Fem::NewtonParameter< SolverParam >::setMaxLinearIterations ( const int  maxLinearIter )

inlinevirtual

setMaxLineSearchIterations()

template<class SolverParam = SolverParameter>

virtual void Dune::Fem::NewtonParameter< SolverParam >::setMaxLineSearchIterations ( const int  maxLineSearchIter )

inlinevirtual

setTolerance()

template<class SolverParam = SolverParameter>

virtual void Dune::Fem::NewtonParameter< SolverParam >::setTolerance ( const double  tol )

inlinevirtual

setVerbose()

template<class SolverParam = SolverParameter>

virtual void Dune::Fem::NewtonParameter< SolverParam >::setVerbose ( bool  verb )

inlinevirtual

simplified()

template<class SolverParam = SolverParameter>

virtual bool Dune::Fem::NewtonParameter< SolverParam >::simplified ( ) const

inlinevirtual

return true if simplified Newton is to be used

solverParameter()

template<class SolverParam = SolverParameter>

const SolverParam & Dune::Fem::NewtonParameter< SolverParam >::solverParameter ( ) const

inline

tolerance()

template<class SolverParam = SolverParameter>

virtual double Dune::Fem::NewtonParameter< SolverParam >::tolerance ( ) const

inlinevirtual

verbose()

template<class SolverParam = SolverParameter>

virtual bool Dune::Fem::NewtonParameter< SolverParam >::verbose ( ) const

inlinevirtual

Member Data Documentation

baseParam_

template<class SolverParam = SolverParameter>

std::shared_ptr<SolverParam> Dune::Fem::NewtonParameter< SolverParam >::baseParam_

protected

keyPrefix_

template<class SolverParam = SolverParameter>

const std::string Dune::Fem::NewtonParameter< SolverParam >::keyPrefix_

protected

parameter_

template<class SolverParam = SolverParameter>

ParameterReader Dune::Fem::NewtonParameter< SolverParam >::parameter_

protected

---

The documentation for this struct was generated from the following file:

• newtoninverseoperator.hh
