Dune::Fem::InverseOperatorInterface< Traits > Class Template Reference

#include <dune/fem/solver/inverseoperatorinterface.hh>

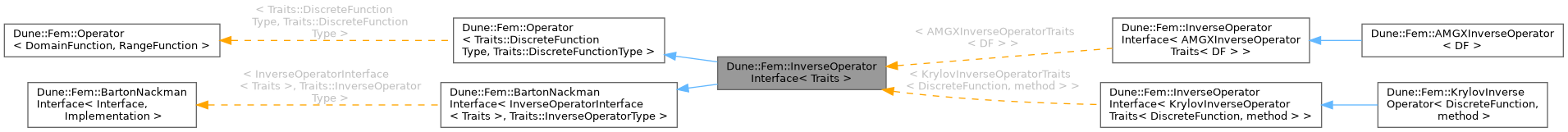

Inheritance diagram for Dune::Fem::InverseOperatorInterface< Traits >:

Public Types
typedef BaseType::DomainFunctionType	DomainFunctionType
typedef BaseType::RangeFunctionType	RangeFunctionType
typedef Traits::SolverDiscreteFunctionType	SolverDiscreteFunctionType
typedef Traits::OperatorType	OperatorType
typedef Traits::AssembledOperatorType	AssembledOperatorType
typedef Traits::PreconditionerType	PreconditionerType
typedef Traits::SolverParameterType	SolverParameterType
typedef Impl::SolverInfo	SolverInfoType
typedef std::function< bool(const RangeFunctionType &w, const RangeFunctionType &dw, double residualNorm) >	ErrorMeasureType
	type of error measure (used by NewtonInverseOperator primnarily)
typedef DomainFunction::RangeFieldType	DomainFieldType
	field type of the operator's domain
typedef RangeFunction::RangeFieldType	RangeFieldType
	field type of the operator's range

Public Member Functions
	InverseOperatorInterface (const SolverParameterType &parameter)
	default constructor
virtual void	operator() (const DomainFunctionType &u, RangeFunctionType &w) const
	application of operator to compute
template<class DImpl , class RImpl >
void	operator() (const DiscreteFunctionInterface< DImpl > &u, DiscreteFunctionInterface< RImpl > &w) const
	application of operator to compute
void	bind (const OperatorType &op)
	store pointer to linear operator
void	bind (const OperatorType &op, const PreconditionerType &preconditioner)
	store pointer to linear operator and preconditioner
void	unbind ()
	reset all pointers and internal temporary memory
int	iterations () const
	return number of iterations used in previous call of application operator
virtual SolverInfoType	info () const
	Return performance info about last solver call.
virtual void	setMaxLinearIterations (const int iter)
	set number of max linear iterations to be used before an exception is thrown
virtual void	setMaxIterations (const int iter)
void	setParameters (const SolverParameterType &newParams)
	set complete set of linear inverse operator parameters
SolverParameterType &	parameter () const
bool	verbose () const
double	averageCommTime () const
	return accumulated communication time
	InverseOperatorInterface (const InverseOperatorInterface &other)
	copy constructor setting defaults
virtual void	operator() (const DomainFunctionType &u, RangeFunctionType &w) const=0
	application operator
virtual void	finalize ()
	finalization of operator
virtual bool	nonlinear () const

Static Public Attributes
static const bool	preconditioningAvailable = true
	true if a preconditioner type is exported and can be set using bind( op, p )

Protected Types
typedef Traits::OperatorType	BaseType
typedef BartonNackmanInterface< InverseOperatorInterface< Traits >, typename Traits::InverseOperatorType >	Base2Type
typedef Traits::InverseOperatorType	InverseOperatorType

Protected Member Functions
void	opApply (const SolverDiscreteFunctionType &u, SolverDiscreteFunctionType &w) const
template<class DImpl , class RImpl >
void	opApply (const DiscreteFunctionInterface< DImpl > &u, DiscreteFunctionInterface< RImpl > &w) const
const Traits::InverseOperatorType &	asImp () const
Traits::InverseOperatorType &	asImp ()

Static Protected Member Functions
static const Traits::InverseOperatorType &	asImp (const ThisType &other)
static Traits::InverseOperatorType &	asImp (ThisType &other)

Protected Attributes
std::shared_ptr< SolverParameterType >	parameter_
const OperatorType *	operator_ = nullptr
const AssembledOperatorType *	assembledOperator_ = nullptr
const PreconditionerType *	preconditioner_ = nullptr
std::unique_ptr< SolverDiscreteFunctionType >	rhs_
std::unique_ptr< SolverDiscreteFunctionType >	x_
int	iterations_ = -1
bool	rightHandSideCopied_ = false
bool	verbose_

Member Typedef Documentation

AssembledOperatorType

template<class Traits >

typedef Traits::AssembledOperatorType Dune::Fem::InverseOperatorInterface< Traits >::AssembledOperatorType

Base2Type

template<class Traits >

typedef BartonNackmanInterface< InverseOperatorInterface< Traits >, typename Traits::InverseOperatorType > Dune::Fem::InverseOperatorInterface< Traits >::Base2Type

protected

BaseType

template<class Traits >

typedef Traits::OperatorType Dune::Fem::InverseOperatorInterface< Traits >::BaseType

protected

DomainFieldType

typedef DomainFunction::RangeFieldType Dune::Fem::Operator< Traits::DiscreteFunctionType , Traits::DiscreteFunctionType >::DomainFieldType

inherited

field type of the operator's domain

DomainFunctionType

template<class Traits >

typedef BaseType::DomainFunctionType Dune::Fem::InverseOperatorInterface< Traits >::DomainFunctionType

ErrorMeasureType

template<class Traits >

typedef std::function< bool ( const RangeFunctionType &w, const RangeFunctionType &dw, double residualNorm ) > Dune::Fem::InverseOperatorInterface< Traits >::ErrorMeasureType

type of error measure (used by NewtonInverseOperator primnarily)

InverseOperatorType

template<class Traits >

typedef Traits::InverseOperatorType Dune::Fem::InverseOperatorInterface< Traits >::InverseOperatorType

protected

OperatorType

template<class Traits >

typedef Traits::OperatorType Dune::Fem::InverseOperatorInterface< Traits >::OperatorType

PreconditionerType

template<class Traits >

typedef Traits::PreconditionerType Dune::Fem::InverseOperatorInterface< Traits >::PreconditionerType

RangeFieldType

typedef RangeFunction::RangeFieldType Dune::Fem::Operator< Traits::DiscreteFunctionType , Traits::DiscreteFunctionType >::RangeFieldType

inherited

field type of the operator's range

RangeFunctionType

template<class Traits >

typedef BaseType::RangeFunctionType Dune::Fem::InverseOperatorInterface< Traits >::RangeFunctionType

SolverDiscreteFunctionType

template<class Traits >

typedef Traits::SolverDiscreteFunctionType Dune::Fem::InverseOperatorInterface< Traits >::SolverDiscreteFunctionType

SolverInfoType

template<class Traits >

typedef Impl::SolverInfo Dune::Fem::InverseOperatorInterface< Traits >::SolverInfoType

SolverParameterType

template<class Traits >

typedef Traits::SolverParameterType Dune::Fem::InverseOperatorInterface< Traits >::SolverParameterType

Constructor & Destructor Documentation

InverseOperatorInterface() [1/2]

template<class Traits >

Dune::Fem::InverseOperatorInterface< Traits >::InverseOperatorInterface ( const SolverParameterType &  parameter )

inline

default constructor

Note

parameter SolverParameter object to steer the linear solvers

InverseOperatorInterface() [2/2]

template<class Traits >

Dune::Fem::InverseOperatorInterface< Traits >::InverseOperatorInterface ( const InverseOperatorInterface< Traits > &  other )

inline

copy constructor setting defaults

Member Function Documentation

asImp() [1/4]

Traits::InverseOperatorType & Dune::Fem::BartonNackmanInterface< InverseOperatorInterface< Traits > , Traits::InverseOperatorType >::asImp ( )

inlineprotectedinherited

asImp() [2/4]

const Traits::InverseOperatorType & Dune::Fem::BartonNackmanInterface< InverseOperatorInterface< Traits > , Traits::InverseOperatorType >::asImp ( ) const

inlineprotectedinherited

asImp() [3/4]

static const Traits::InverseOperatorType & Dune::Fem::BartonNackmanInterface< InverseOperatorInterface< Traits > , Traits::InverseOperatorType >::asImp ( const ThisType &  other )

inlinestaticprotectedinherited

asImp() [4/4]

static Traits::InverseOperatorType & Dune::Fem::BartonNackmanInterface< InverseOperatorInterface< Traits > , Traits::InverseOperatorType >::asImp ( ThisType &  other )

inlinestaticprotectedinherited

averageCommTime()

template<class Traits >

double Dune::Fem::InverseOperatorInterface< Traits >::averageCommTime ( ) const

inline

return accumulated communication time

bind() [1/2]

template<class Traits >

void Dune::Fem::InverseOperatorInterface< Traits >::bind ( const OperatorType &  op )

inline

store pointer to linear operator

Parameters

op	linear operator following the Dune::Fem:Operator interface

Note

A dynamic cast to AssembledOperatorType is carried out. For some solvers this is necessary.

bind() [2/2]

template<class Traits >

void Dune::Fem::InverseOperatorInterface< Traits >::bind ( const OperatorType &  op, const PreconditionerType &  preconditioner  )

inline

store pointer to linear operator and preconditioner

Parameters

op	linear operator following the Dune::Fem:Operator interface
preconditioner	precondition operator

Note

A dynamic cast to AssembledOperatorType is carried out. For some solvers this is necessary.

finalize()

virtual void Dune::Fem::Operator< Traits::DiscreteFunctionType , Traits::DiscreteFunctionType >::finalize ( )

inlinevirtualinherited

finalization of operator

Note

The default implementation is empty.

info()

template<class Traits >

virtual SolverInfoType Dune::Fem::InverseOperatorInterface< Traits >::info ( ) const

inlinevirtual

Return performance info about last solver call.

iterations()

template<class Traits >

int Dune::Fem::InverseOperatorInterface< Traits >::iterations ( ) const

inline

return number of iterations used in previous call of application operator

nonlinear()

virtual bool Dune::Fem::Operator< Traits::DiscreteFunctionType , Traits::DiscreteFunctionType >::nonlinear ( ) const

inlinevirtualinherited

Return true if the Operator is nonlinear and false otherwise (default is true).

opApply() [1/2]

template<class Traits >

template<class DImpl , class RImpl >

void Dune::Fem::InverseOperatorInterface< Traits >::opApply ( const DiscreteFunctionInterface< DImpl > &  u, DiscreteFunctionInterface< RImpl > &  w  ) const

inlineprotected

opApply() [2/2]

template<class Traits >

void Dune::Fem::InverseOperatorInterface< Traits >::opApply ( const SolverDiscreteFunctionType &  u, SolverDiscreteFunctionType &  w  ) const

inlineprotected

operator()() [1/3]

template<class Traits >

template<class DImpl , class RImpl >

void Dune::Fem::InverseOperatorInterface< Traits >::operator() ( const DiscreteFunctionInterface< DImpl > &  u, DiscreteFunctionInterface< RImpl > &  w  ) const

inline

application of operator to compute

\[ w = op^-1( u ) \]

.

Parameters

u	parameter right hand side of linear problem
w	initial guess for linear solver

Note

Calling the inverse operator for arbitrary discrete functions a copy to solver compatible discrete function is made.

operator()() [2/3]

template<class Traits >

virtual void Dune::Fem::InverseOperatorInterface< Traits >::operator() ( const DomainFunctionType &  u, RangeFunctionType &  w  ) const

inlinevirtual

application of operator to compute

\[ w = op^-1( u ) \]

.

Parameters

u	parameter right hand side of linear problem
w	initial guess for linear solver

operator()() [3/3]

virtual void Dune::Fem::Operator< Traits::DiscreteFunctionType , Traits::DiscreteFunctionType >::operator() ( const DomainFunctionType &  u, RangeFunctionType &  w  ) const

pure virtualinherited

application operator

Parameters

[in]	u	argument discrete function
[out]	w	destination discrete function

Note

This method has to be implemented by all derived classes.

parameter()

template<class Traits >

SolverParameterType & Dune::Fem::InverseOperatorInterface< Traits >::parameter ( ) const

inline

setMaxIterations()

template<class Traits >

virtual void Dune::Fem::InverseOperatorInterface< Traits >::setMaxIterations ( const int  iter )

inlinevirtual

setMaxLinearIterations()

template<class Traits >

virtual void Dune::Fem::InverseOperatorInterface< Traits >::setMaxLinearIterations ( const int  iter )

inlinevirtual

set number of max linear iterations to be used before an exception is thrown

Parameters

iter	number of max linear iterations

setParameters()

template<class Traits >

void Dune::Fem::InverseOperatorInterface< Traits >::setParameters ( const SolverParameterType &  newParams )

inline

set complete set of linear inverse operator parameters

Note

newParams set of new parameters

unbind()

template<class Traits >

void Dune::Fem::InverseOperatorInterface< Traits >::unbind ( )

inline

reset all pointers and internal temporary memory

verbose()

template<class Traits >

bool Dune::Fem::InverseOperatorInterface< Traits >::verbose ( ) const

inline

Member Data Documentation

assembledOperator_

template<class Traits >

const AssembledOperatorType* Dune::Fem::InverseOperatorInterface< Traits >::assembledOperator_ = nullptr

protected

iterations_

template<class Traits >

int Dune::Fem::InverseOperatorInterface< Traits >::iterations_ = -1

mutableprotected

operator_

template<class Traits >

const OperatorType* Dune::Fem::InverseOperatorInterface< Traits >::operator_ = nullptr

protected

parameter_

template<class Traits >

std::shared_ptr<SolverParameterType> Dune::Fem::InverseOperatorInterface< Traits >::parameter_

protected

preconditioner_

template<class Traits >

const PreconditionerType* Dune::Fem::InverseOperatorInterface< Traits >::preconditioner_ = nullptr

protected

preconditioningAvailable

template<class Traits >

const bool Dune::Fem::InverseOperatorInterface< Traits >::preconditioningAvailable = true

static

true if a preconditioner type is exported and can be set using bind( op, p )

rhs_

template<class Traits >

std::unique_ptr< SolverDiscreteFunctionType > Dune::Fem::InverseOperatorInterface< Traits >::rhs_

mutableprotected

rightHandSideCopied_

template<class Traits >

bool Dune::Fem::InverseOperatorInterface< Traits >::rightHandSideCopied_ = false

mutableprotected

verbose_

template<class Traits >

bool Dune::Fem::InverseOperatorInterface< Traits >::verbose_

mutableprotected

x_

template<class Traits >

std::unique_ptr< SolverDiscreteFunctionType > Dune::Fem::InverseOperatorInterface< Traits >::x_

mutableprotected

---

The documentation for this class was generated from the following file:

• inverseoperatorinterface.hh
