Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet > Class Template Reference

#include <dune/fem/space/basisfunctionset/default.hh>

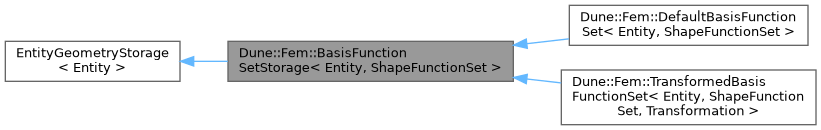

Inheritance diagram for Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet >:

Public Types
typedef BaseType::EntityType	EntityType
	entity type
typedef BaseType::Geometry	Geometry
	type of geometry
typedef ShapeFunctionSet	ShapeFunctionSetType
	shape function set type
typedef Geometry::ctype	ctype
	type of coordinate field
typedef std::decay_t< decltype(Dune::ReferenceElements< ctype, Geometry::coorddimension >::general(std::declval< const Dune::GeometryType & >())) >	ReferenceElementType
	type of reference element

Public Member Functions
	BasisFunctionSetStorage ()
	constructor
	BasisFunctionSetStorage (const EntityType &entity, const ShapeFunctionSet &shapeFunctionSet=ShapeFunctionSet())
	constructor
	BasisFunctionSetStorage (const BasisFunctionSetStorage &other)
BasisFunctionSetStorage &	operator= (const BasisFunctionSetStorage &other)
const ShapeFunctionSetType &	shapeFunctionSet () const
	return shape function set
int	order () const
	return order of basis function set
std::size_t	size () const
	return size of basis function set
const Entity &	entity () const
	return entity
bool	valid () const
	return true if entity pointer is set
const Geometry &	geometry () const
	return geometry
Dune::GeometryType	type () const
	return geometry type
const ReferenceElementType &	referenceElement () const
	return reference element
void	bind (const EntityType &entity)
	set new entity object and geometry if enabled
void	unbind ()
	release entity and geometry object

Static Public Attributes
static constexpr bool	codegenShapeFunctionSet = detail::IsCodegenShapeFunctionSet< ShapeFunctionSetType >::value
static const int	pointSetId = detail::SelectPointSetId< ShapeFunctionSetType >::value

Protected Types
typedef std::optional< EntityType >	EntityStorageType
typedef std::conditional< storeGeometry, std::optional< Geometry >, Empty >::type	GeometryStorageType

Protected Member Functions
void	copyGeometry (const EntityGeometryStorageImpl &other)

Protected Attributes
ShapeFunctionSetType	shapeFunctionSet_
EntityStorageType	entity_
GeometryStorageType	geometry_

Member Typedef Documentation

ctype

template<class Entity , bool storeGeometry = true>

typedef Geometry::ctype Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::ctype

inherited

type of coordinate field

EntityStorageType

template<class Entity , bool storeGeometry = true>

typedef std::optional< EntityType > Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::EntityStorageType

protectedinherited

EntityType

template<class Entity , class ShapeFunctionSet >

typedef BaseType::EntityType Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet >::EntityType

entity type

Geometry

template<class Entity , class ShapeFunctionSet >

typedef BaseType::Geometry Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet >::Geometry

type of geometry

GeometryStorageType

template<class Entity , bool storeGeometry = true>

typedef std::conditional<storeGeometry,std::optional<Geometry>,Empty>::type Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::GeometryStorageType

protectedinherited

ReferenceElementType

template<class Entity , bool storeGeometry = true>

typedef std::decay_t< decltype( Dune::ReferenceElements< ctype, Geometry::coorddimension >:: general( std::declval< const Dune::GeometryType & >() ) ) > Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::ReferenceElementType

inherited

type of reference element

ShapeFunctionSetType

template<class Entity , class ShapeFunctionSet >

typedef ShapeFunctionSet Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet >::ShapeFunctionSetType

shape function set type

Constructor & Destructor Documentation

BasisFunctionSetStorage() [1/3]

template<class Entity , class ShapeFunctionSet >

Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet >::BasisFunctionSetStorage ( )

inline

constructor

BasisFunctionSetStorage() [2/3]

template<class Entity , class ShapeFunctionSet >

Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet >::BasisFunctionSetStorage ( const EntityType &  entity, const ShapeFunctionSet &  shapeFunctionSet = ShapeFunctionSet()  )

inlineexplicit

constructor

BasisFunctionSetStorage() [3/3]

template<class Entity , class ShapeFunctionSet >

Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet >::BasisFunctionSetStorage ( const BasisFunctionSetStorage< Entity, ShapeFunctionSet > &  other )

inline

Member Function Documentation

bind()

template<class Entity , bool storeGeometry = true>

void Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::bind ( const EntityType &  entity )

inlineinherited

set new entity object and geometry if enabled

copyGeometry()

template<class Entity , bool storeGeometry = true>

void Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::copyGeometry ( const EntityGeometryStorageImpl< Entity, storeGeometry > &  other )

inlineprotectedinherited

entity()

template<class Entity , bool storeGeometry = true>

const Entity & Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::entity ( ) const

inlineinherited

return entity

geometry()

template<class Entity , bool storeGeometry = true>

const Geometry & Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::geometry ( ) const

inlineinherited

return geometry

operator=()

template<class Entity , class ShapeFunctionSet >

BasisFunctionSetStorage & Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet >::operator= ( const BasisFunctionSetStorage< Entity, ShapeFunctionSet > &  other )

inline

order()

template<class Entity , class ShapeFunctionSet >

int Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet >::order ( ) const

inline

return order of basis function set

referenceElement()

template<class Entity , bool storeGeometry = true>

const ReferenceElementType & Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::referenceElement ( ) const

inlineinherited

return reference element

shapeFunctionSet()

template<class Entity , class ShapeFunctionSet >

const ShapeFunctionSetType & Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet >::shapeFunctionSet ( ) const

inline

return shape function set

size()

template<class Entity , class ShapeFunctionSet >

std::size_t Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet >::size ( ) const

inline

return size of basis function set

type()

template<class Entity , bool storeGeometry = true>

Dune::GeometryType Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::type ( ) const

inlineinherited

return geometry type

unbind()

template<class Entity , bool storeGeometry = true>

void Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::unbind ( )

inlineinherited

release entity and geometry object

valid()

template<class Entity , bool storeGeometry = true>

bool Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::valid ( ) const

inlineinherited

return true if entity pointer is set

Member Data Documentation

codegenShapeFunctionSet

template<class Entity , class ShapeFunctionSet >

constexpr bool Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet >::codegenShapeFunctionSet = detail::IsCodegenShapeFunctionSet< ShapeFunctionSetType >::value

staticconstexpr

entity_

template<class Entity , bool storeGeometry = true>

EntityStorageType Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::entity_

protectedinherited

geometry_

template<class Entity , bool storeGeometry = true>

GeometryStorageType Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::geometry_

protectedinherited

pointSetId

template<class Entity , class ShapeFunctionSet >

const int Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet >::pointSetId = detail::SelectPointSetId< ShapeFunctionSetType >::value

static

shapeFunctionSet_

template<class Entity , class ShapeFunctionSet >

ShapeFunctionSetType Dune::Fem::BasisFunctionSetStorage< Entity, ShapeFunctionSet >::shapeFunctionSet_

protected

---

The documentation for this class was generated from the following file:

• space/basisfunctionset/default.hh
