A view on a subtree of a multi-component ordering. More...

#include <dune/pdelab/ordering/subordering.hh>

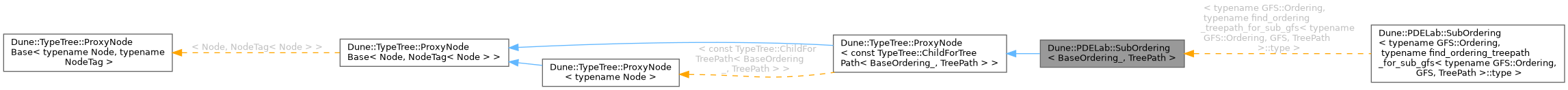

Inheritance diagram for Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >:

Public Types
typedef BaseOrdering_	BaseOrdering
	The type of the BaseOrdering for which to represent a SubOrdering view.

using	TargetOrdering = TypeTree::ChildForTreePath< BaseOrdering, TreePath >
	The target ordering that makes up the root of this SubOrdering view.

typedef BaseOrdering::Traits	Traits
	Forwarded Ordering traits from BaseOrdering.

typedef BaseOrdering::ContainerAllocationTag	ContainerAllocationTag
	Forwarded tag from BaseOrdering, required by PDELab internals.

typedef BaseOrdering::CacheTag	CacheTag
	Forwarded tag from BaseOrdering, required by PDELab internals.

typedef Node	ProxiedNode

typedef Dune::TypeTree::NodeTag< Node >	NodeTag

Public Member Functions
	SubOrdering (std::shared_ptr< const BaseOrdering > base_ordering)
	Constructs a SubOrdering for base_ordering.

void	update ()
	Updates this SubOrdering.

template<typename ItIn , typename ItOut >
void	map_lfs_indices (ItIn begin, const ItIn end, ItOut out) const

Traits::ContainerIndex	mapIndex (const typename Traits::DOFIndex &di) const
	Maps di from the DOFIndex subtree to the ContainerIndex in the BaseOrdering.

void	mapIndex (typename Traits::DOFIndexView di, typename Traits::ContainerIndex &ci) const
	Maps di from the DOFIndex subtree to the ContainerIndex in the BaseOrdering - inplace version.

Traits::SizeType	size () const
	Returns the size of the BaseOrdering.

Traits::SizeType	size (const typename Traits::ContainerIndex &suffix) const

Traits::SizeType	blockCount () const
	Returns the block count of the BaseOrdering.

Traits::SizeType	maxLocalSize () const
	Returns the maximum per-entity size of the TargetOrdering.

bool	contains (typename Traits::SizeType codim) const
	Returns whether the TargetOrdering has DOFs attached to entities of codimension codim.

bool	fixedSize (typename Traits::SizeType codim) const
	Returns whether the TargetOrdering is of fixed size for entities of codimension codim.

const BaseOrdering &	baseOrdering () const
	Returns the BaseOrdering.

const TargetOrdering &	targetOrdering () const
	Returns the TargetOrdering.

auto	degree () const

Static Public Member Functions
static constexpr auto	degree ()

Static Public Attributes
static const bool	has_dynamic_ordering_children = TargetOrdering::has_dynamic_ordering_children
	Forwarded ordering property from TargetOrdering, required by PDELab internals.

static const bool	consume_tree_index = TargetOrdering::consume_tree_index
	Forwarded ordering property from TargetOrdering, required by PDELab internals.

static const bool	isLeaf

static const bool	isPower

static const bool	isComposite

static const std::size_t	CHILDREN

Protected Member Functions
std::enable_if< enabled, Node & >::type	proxiedNode ()

const Node &	proxiedNode () const

std::enable_if< enabled, Node & >::type	proxiedNode ()

const Node &	proxiedNode () const

std::enable_if< enabled, std::shared_ptr< Node > >::type	proxiedNodeStorage ()

std::shared_ptr< const Node >	proxiedNodeStorage () const

std::enable_if< enabled, std::shared_ptr< Node > >::type	proxiedNodeStorage ()

std::shared_ptr< const Node >	proxiedNodeStorage () const

Detailed Description

template<typename BaseOrdering_, typename TreePath>
class Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >

A view on a subtree of a multi-component ordering.

SubOrdering presents a read-only view on the components of BaseOrdering contained in the subtree pointed at by TreePath. The TreePath has to be an instantiation of Dune::TypeTree::TreePath and is interpreted from left to right, i.e. a TypeTree<3,1> means take the fourth child of BaseOrdering and continue to the second child of that ordering.

Note: SubOrdering is not (yet) as feature-complete as a regular ordering. The most important missing feature is support for per-entity indices.

Warning: SubOrdering does not support nesting! Trying to construct a Subordering with a SubOrdering as BaseOrdering will not work and might either just fail to compile or fail in subtle ways at runtime, so don't try it. SubOrdering is not really an ordering, but more of a view into a subset of a real Ordering. Overall, this restriction should not be problematic, as users will usually construct GridFunctionSubSpaces, which take care of avoiding this recursion.

Template Parameters

BaseOrdering_	The type of the underlying base ordering.
TreePath	The path to the subtree for which to provide a view.

Warning: This path will usually differ from the path into the GridFunctionSpace!

Member Typedef Documentation

◆ BaseOrdering

template<typename BaseOrdering_ , typename TreePath >

typedef BaseOrdering_ Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::BaseOrdering

The type of the BaseOrdering for which to represent a SubOrdering view.

◆ CacheTag

template<typename BaseOrdering_ , typename TreePath >

typedef BaseOrdering::CacheTag Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::CacheTag

Forwarded tag from BaseOrdering, required by PDELab internals.

◆ ContainerAllocationTag

template<typename BaseOrdering_ , typename TreePath >

typedef BaseOrdering::ContainerAllocationTag Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::ContainerAllocationTag

Forwarded tag from BaseOrdering, required by PDELab internals.

◆ TargetOrdering

template<typename BaseOrdering_ , typename TreePath >

using Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::TargetOrdering = TypeTree::ChildForTreePath<BaseOrdering,TreePath>

The target ordering that makes up the root of this SubOrdering view.

◆ Traits

template<typename BaseOrdering_ , typename TreePath >

typedef BaseOrdering::Traits Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::Traits

Forwarded Ordering traits from BaseOrdering.

Constructor & Destructor Documentation

◆ SubOrdering()

template<typename BaseOrdering_ , typename TreePath >

Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::SubOrdering ( std::shared_ptr< const BaseOrdering > base_ordering )

inlineexplicit

Constructs a SubOrdering for base_ordering.

Constructor for a subordering view of base_ordering rooted in the subtree pointed to by TreePath. The second parameter DOFIndexTreePath represents the subtree in the DOFIndex space, i.e. the path to append to passed-in DOFIndices to obtain valid DOFIndices that can be mapped using base_ordering (usually, this will be the TreePath of a GridFunctionSubSpace). This information has to be passed in separately, as the two paths will generally not be identical due to synthesized nodes in the ordering tree.

Parameters

base_ordering Storage pointer to the BaseOrdering.

Template Parameters

DOFIndexTreePath Instantiation of TypeTree::TreePath, representing the path from the root of the DOFIndex tree to the DOFIndices passed to this ordering.

Member Function Documentation

◆ baseOrdering()

template<typename BaseOrdering_ , typename TreePath >

const BaseOrdering & Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::baseOrdering ( ) const

inline

Returns the BaseOrdering.

◆ blockCount()

template<typename BaseOrdering_ , typename TreePath >

Traits::SizeType Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::blockCount ( ) const

inline

Returns the block count of the BaseOrdering.

◆ contains()

template<typename BaseOrdering_ , typename TreePath >

bool Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::contains ( typename Traits::SizeType codim ) const

inline

Returns whether the TargetOrdering has DOFs attached to entities of codimension codim.

◆ fixedSize()

template<typename BaseOrdering_ , typename TreePath >

bool Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::fixedSize ( typename Traits::SizeType codim ) const

inline

Returns whether the TargetOrdering is of fixed size for entities of codimension codim.

◆ map_lfs_indices()

template<typename BaseOrdering_ , typename TreePath >

template<typename ItIn , typename ItOut >

void Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::map_lfs_indices	(	ItIn	begin,
		const ItIn	end,
		ItOut	out
	)		const

inline

◆ mapIndex() [1/2]

template<typename BaseOrdering_ , typename TreePath >

Traits::ContainerIndex Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::mapIndex ( const typename Traits::DOFIndex & di ) const

inline

Maps di from the DOFIndex subtree to the ContainerIndex in the BaseOrdering.

◆ mapIndex() [2/2]

template<typename BaseOrdering_ , typename TreePath >

void Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::mapIndex	(	typename Traits::DOFIndexView	di,
		typename Traits::ContainerIndex &	ci
	)		const

inline

Maps di from the DOFIndex subtree to the ContainerIndex in the BaseOrdering - inplace version.

◆ maxLocalSize()

template<typename BaseOrdering_ , typename TreePath >

Traits::SizeType Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::maxLocalSize ( ) const

inline

Returns the maximum per-entity size of the TargetOrdering.

◆ size() [1/2]

template<typename BaseOrdering_ , typename TreePath >

Traits::SizeType Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::size ( ) const

inline

Returns the size of the BaseOrdering.

◆ size() [2/2]

template<typename BaseOrdering_ , typename TreePath >

Traits::SizeType Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::size ( const typename Traits::ContainerIndex & suffix ) const

inline

◆ targetOrdering()

template<typename BaseOrdering_ , typename TreePath >

const TargetOrdering & Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::targetOrdering ( ) const

inline

Returns the TargetOrdering.

◆ update()

template<typename BaseOrdering_ , typename TreePath >

void Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::update ( )

inline

Updates this SubOrdering.

Member Data Documentation

◆ consume_tree_index

template<typename BaseOrdering_ , typename TreePath >

const bool Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::consume_tree_index = TargetOrdering::consume_tree_index

static

Forwarded ordering property from TargetOrdering, required by PDELab internals.

◆ has_dynamic_ordering_children

template<typename BaseOrdering_ , typename TreePath >

const bool Dune::PDELab::SubOrdering< BaseOrdering_, TreePath >::has_dynamic_ordering_children = TargetOrdering::has_dynamic_ordering_children

static

Forwarded ordering property from TargetOrdering, required by PDELab internals.

The documentation for this class was generated from the following file:

subordering.hh
