Dune::PDELab::NumericalJacobianBoundary< Imp > Class Template Reference

Implement jacobian_boundary() based on alpha_boundary() More...

#include <dune/pdelab/localoperator/numericaljacobian.hh>

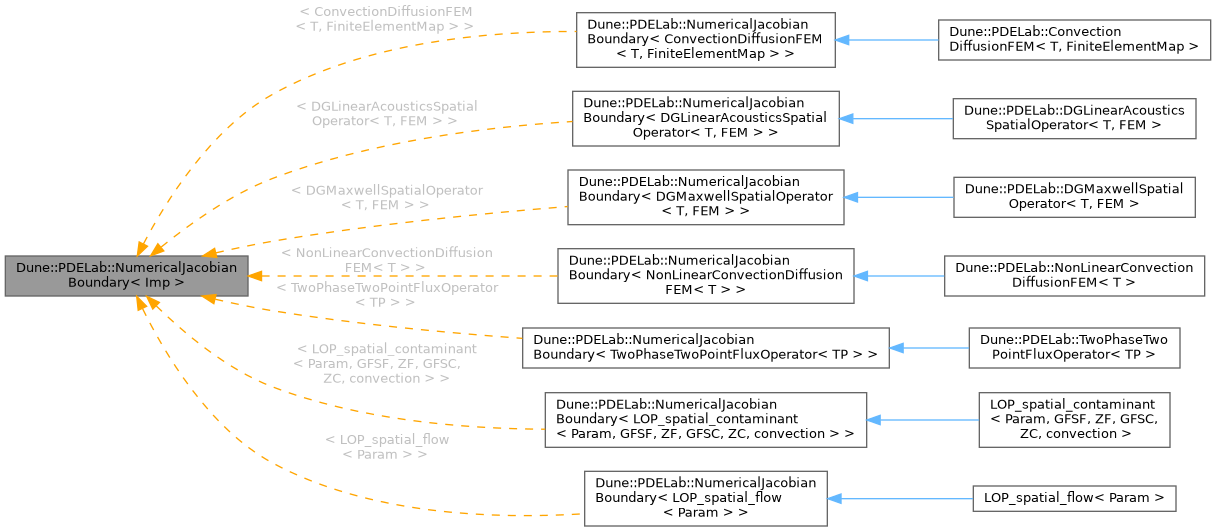

Inheritance diagram for Dune::PDELab::NumericalJacobianBoundary< Imp >:

Public Member Functions
	NumericalJacobianBoundary ()
	NumericalJacobianBoundary (double epsilon_)
template<typename IG , typename LFSU , typename X , typename LFSV , typename Jacobian >
void	jacobian_boundary (const IG &ig, const LFSU &lfsu_s, const X &x_s, const LFSV &lfsv_s, Jacobian &mat_ss) const
	compute local jacobian of the boundary term

Detailed Description

template<typename Imp>
class Dune::PDELab::NumericalJacobianBoundary< Imp >

Implement jacobian_boundary() based on alpha_boundary()

Derive from this class to add numerical jacobian for boundary. The derived class needs to implement alpha_boundary().

Template Parameters

Imp	Type of the derived class (CRTP-trick).

Examples

recipe-operator-splitting.cc.

Constructor & Destructor Documentation

NumericalJacobianBoundary() [1/2]

template<typename Imp >

Dune::PDELab::NumericalJacobianBoundary< Imp >::NumericalJacobianBoundary ( )

inline

NumericalJacobianBoundary() [2/2]

template<typename Imp >

Dune::PDELab::NumericalJacobianBoundary< Imp >::NumericalJacobianBoundary ( double  epsilon_ )

inline

Member Function Documentation

jacobian_boundary()

template<typename Imp >

template<typename IG , typename LFSU , typename X , typename LFSV , typename Jacobian >

void Dune::PDELab::NumericalJacobianBoundary< Imp >::jacobian_boundary ( const IG &  ig, const LFSU &  lfsu_s, const X &  x_s, const LFSV &  lfsv_s, Jacobian &  mat_ss  ) const

inline

compute local jacobian of the boundary term

---

The documentation for this class was generated from the following file:

• numericaljacobian.hh
