Dune::PDELab::PowerCompositeGridFunctionSpaceBase< GridFunctionSpace, GV, B, O, k > Class Template Reference

Mixin class providing common functionality of PowerGridFunctionSpace and CompositeGridFunctionSpace. More...

#include <dune/pdelab/gridfunctionspace/powercompositegridfunctionspacebase.hh>

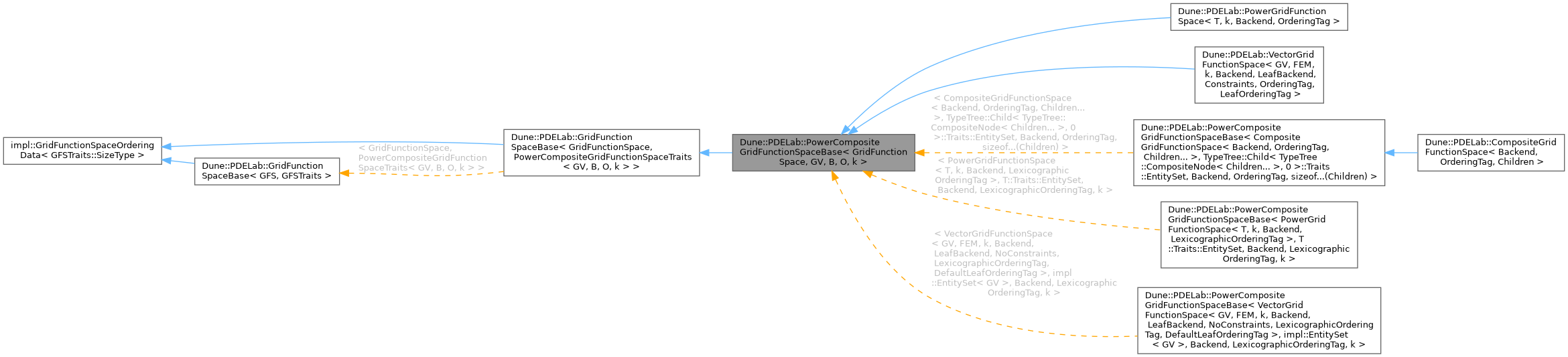

Inheritance diagram for Dune::PDELab::PowerCompositeGridFunctionSpaceBase< GridFunctionSpace, GV, B, O, k >:

Public Types
typedef PowerCompositeGridFunctionSpaceTraits< GV, B, O, k >	Traits
	export traits class
typedef O	OrderingTag

Public Member Functions
const Traits::EntitySet &	entitySet () const
	get grid view partition
Traits::EntitySet &	entitySet ()
	get grid view partition
	PowerCompositeGridFunctionSpaceBase (const B &backend, const OrderingTag &ordering_tag)
Traits::SizeType	size () const
Traits::SizeType	blockCount () const
Traits::SizeType	globalSize () const
Traits::SizeType	maxLocalSize () const
	get max dimension of shape function space
void	update (bool force=false)
	Update the indexing information of the GridFunctionSpace.
const std::string &	name () const
void	name (const std::string &name)
Traits::Backend &	backend ()
const Traits::Backend &	backend () const
const Traits::GridView &	gridView () const
	get grid view
Traits::OrderingTag &	orderingTag ()
const Traits::OrderingTag &	orderingTag () const
bool	isRootSpace () const

Protected Member Functions
void	update (Ordering &ordering) const
void	setEntitySet (typename Traits::EntitySet entity_set)
	Set the Entity Set object to this grid function space.

Protected Attributes
std::optional< typename Traits::EntitySet >	_entity_set

Detailed Description

template<typename GridFunctionSpace, typename GV, typename B, typename O, std::size_t k>
class Dune::PDELab::PowerCompositeGridFunctionSpaceBase< GridFunctionSpace, GV, B, O, k >

Mixin class providing common functionality of PowerGridFunctionSpace and CompositeGridFunctionSpace.

Member Function Documentation

backend() [1/2]

Traits::Backend & Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::backend ( )

inlineinherited

backend() [2/2]

const Traits::Backend & Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::backend ( ) const

inlineinherited

blockCount()

Traits::SizeType Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::blockCount ( ) const

inlineinherited

globalSize()

Traits::SizeType Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::globalSize ( ) const

inlineinherited

gridView()

const Traits::GridView & Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::gridView ( ) const

inlineinherited

get grid view

isRootSpace()

bool Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::isRootSpace ( ) const

inlineinherited

maxLocalSize()

Traits::SizeType Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::maxLocalSize ( ) const

inlineinherited

get max dimension of shape function space

name() [1/2]

const std::string & Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::name ( ) const

inlineinherited

name() [2/2]

void Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::name ( const std::string &  name )

inlineinherited

orderingTag() [1/2]

Traits::OrderingTag & Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::orderingTag ( )

inlineinherited

orderingTag() [2/2]

const Traits::OrderingTag & Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::orderingTag ( ) const

inlineinherited

setEntitySet()

void Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::setEntitySet ( typename Traits::EntitySet  entity_set )

inlineprotectedinherited

Set the Entity Set object to this grid function space.

The passed entity set will be stored and modified by the grid function space. In case of a tree, all entity sets below an entity blocking tag are expected to be the same, otherwise, the ordering will issue an exception. (e.g. compartments with different function spaces). Additionally, the root node in a grid function space tree may also contain a different partition which will be used in the assembly process (e.g. a union of all entity sets from leaf nodes). If no other entity set was given, the root node will usually take the first leaf node entity set.

Parameters

entity_set

An object of the type PartitionViewEntitySet

size()

Traits::SizeType Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::size ( ) const

inlineinherited

update() [1/2]

void Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::update ( bool  force = false )

inlineinherited

Update the indexing information of the GridFunctionSpace.

\ param force Set to true if the underlying grid has changed (e.g. due to adaptivity) to force an update of the embedded EntitySet.

update() [2/2]

void Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::update ( Ordering &  ordering ) const

inlineprotectedinherited

Member Data Documentation

_entity_set

std::optional<typename Traits::EntitySet> Dune::PDELab::GridFunctionSpaceBase< GridFunctionSpace , PowerCompositeGridFunctionSpaceTraits< GV, B, O, k > >::_entity_set

mutableprotectedinherited

---

The documentation for this class was generated from the following file:

• powercompositegridfunctionspacebase.hh
