Dune::PDELab::DiscreteGridFunctionGradient< T, X > Class Template Reference

convert a single component function space with a grid function representing the gradient More...

#include <dune/pdelab/gridfunctionspace/gridfunctionspaceutilities.hh>

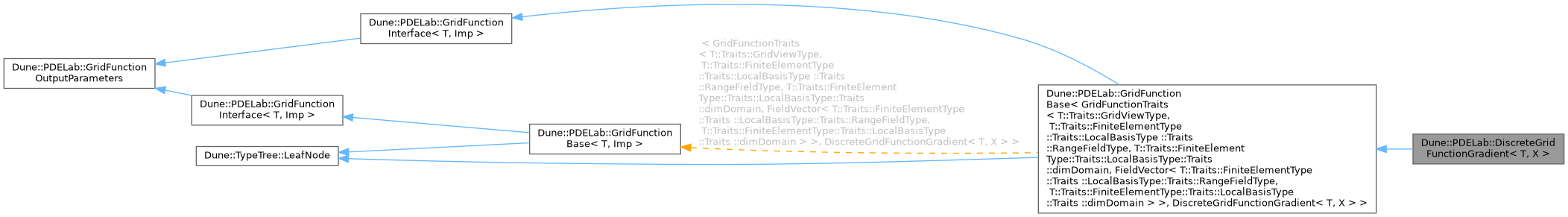

Inheritance diagram for Dune::PDELab::DiscreteGridFunctionGradient< T, X >:

Public Types
typedef GridFunctionTraits< typename GFS::Traits::GridViewType, typename LBTraits::RangeFieldType, LBTraits::dimDomain, FieldVector< typename LBTraits::RangeFieldType, LBTraits::dimDomain > >	Traits
typedef GridFunctionTag	ImplementationTag
typedef T::GridViewType	GridViewType
	Type of the GridView.
using	Output = typename Base::Output
typedef LeafNodeTag	NodeTag

Public Member Functions
	DiscreteGridFunctionGradient (const GFS &gfs, const X &x_)
	Construct a DiscreteGridFunctionGradient.
	DiscreteGridFunctionGradient (std::shared_ptr< const GFS > gfs, std::shared_ptr< const X > x_)
	Construct a DiscreteGridFunctionGradient.
void	evaluate (const typename Traits::ElementType &e, const typename Traits::DomainType &x, typename Traits::RangeType &y) const
const Traits::GridViewType &	getGridView () const
	get a reference to the GridView
void	evaluate (const typename Traits::ElementType &e, const typename Traits::DomainType &x, typename Traits::RangeType &y) const
	Evaluate the GridFunction at given position.
Output::DataSetType	dataSetType () const
	Return the data set type of this function.
void	setDataSetType (Output::DataSetType dataSetType)
	Set the data set type of this function.

Static Public Member Functions
static constexpr auto	degree ()

Static Public Attributes
static const bool	isLeaf
static const bool	isPower
static const bool	isComposite
static const std::size_t	CHILDREN

Detailed Description

template<typename T, typename X>
class Dune::PDELab::DiscreteGridFunctionGradient< T, X >

convert a single component function space with a grid function representing the gradient

The function values should be single-component vectors. The Gradien will be a dimDomain-component function.

Template Parameters

T	Type of GridFunctionSpace. The LocalBasis must provide the evaluateJacobian() method.
X	Type of coefficients vector

Member Typedef Documentation

GridViewType

typedef T::GridViewType Dune::PDELab::GridFunctionBase< GridFunctionTraits< T::Traits::GridViewType, T::Traits::FiniteElementType::Traits::LocalBasisType ::Traits::RangeFieldType, T::Traits::FiniteElementType::Traits::LocalBasisType::Traits ::dimDomain, FieldVector< T::Traits::FiniteElementType::Traits ::LocalBasisType::Traits::RangeFieldType, T::Traits::FiniteElementType::Traits::LocalBasisType::Traits ::dimDomain > > , DiscreteGridFunctionGradient< T, X > >::GridViewType

inherited

Type of the GridView.

ImplementationTag

typedef GridFunctionTag Dune::PDELab::GridFunctionBase< GridFunctionTraits< T::Traits::GridViewType, T::Traits::FiniteElementType::Traits::LocalBasisType ::Traits::RangeFieldType, T::Traits::FiniteElementType::Traits::LocalBasisType::Traits ::dimDomain, FieldVector< T::Traits::FiniteElementType::Traits ::LocalBasisType::Traits::RangeFieldType, T::Traits::FiniteElementType::Traits::LocalBasisType::Traits ::dimDomain > > , DiscreteGridFunctionGradient< T, X > >::ImplementationTag

inherited

Output

using Dune::PDELab::GridFunctionBase< GridFunctionTraits< T::Traits::GridViewType, T::Traits::FiniteElementType::Traits::LocalBasisType ::Traits::RangeFieldType, T::Traits::FiniteElementType::Traits::LocalBasisType::Traits ::dimDomain, FieldVector< T::Traits::FiniteElementType::Traits ::LocalBasisType::Traits::RangeFieldType, T::Traits::FiniteElementType::Traits::LocalBasisType::Traits ::dimDomain > > , DiscreteGridFunctionGradient< T, X > >::Output = typename Base::Output

inherited

Traits

template<typename T , typename X >

typedef GridFunctionTraits< typename GFS::Traits::GridViewType, typename LBTraits::RangeFieldType, LBTraits::dimDomain, FieldVector< typename LBTraits::RangeFieldType, LBTraits::dimDomain> > Dune::PDELab::DiscreteGridFunctionGradient< T, X >::Traits

Constructor & Destructor Documentation

DiscreteGridFunctionGradient() [1/2]

template<typename T , typename X >

Dune::PDELab::DiscreteGridFunctionGradient< T, X >::DiscreteGridFunctionGradient ( const GFS &  gfs, const X &  x_  )

inline

Construct a DiscreteGridFunctionGradient.

Parameters

gfs	The GridFunctionsSpace
x_	The coefficients vector

DiscreteGridFunctionGradient() [2/2]

template<typename T , typename X >

Dune::PDELab::DiscreteGridFunctionGradient< T, X >::DiscreteGridFunctionGradient ( std::shared_ptr< const GFS >  gfs, std::shared_ptr< const X >  x_  )

inline

Construct a DiscreteGridFunctionGradient.

Parameters

gfs	shared pointer to the GridFunctionsSpace
x_	shared pointer to the coefficients vector

Member Function Documentation

dataSetType()

Output::DataSetType Dune::PDELab::GridFunctionOutputParameters::dataSetType ( ) const

inlineinherited

Return the data set type of this function.

evaluate() [1/2]

template<class T , class Imp >

void Dune::PDELab::GridFunctionInterface< T, Imp >::evaluate ( const typename Traits::ElementType &  e, const typename Traits::DomainType &  x, typename Traits::RangeType &  y  ) const

inlineinherited

Evaluate the GridFunction at given position.

Evaluates components of the grid function at the given position and returns these values in a vector.

Parameters

[in]	e	The entity to evaluate on
[in]	x	The position in entity-local coordinates
[out]	y	The result of the evaluation

evaluate() [2/2]

template<typename T , typename X >

void Dune::PDELab::DiscreteGridFunctionGradient< T, X >::evaluate ( const typename Traits::ElementType &  e, const typename Traits::DomainType &  x, typename Traits::RangeType &  y  ) const

inline

getGridView()

template<typename T , typename X >

const Traits::GridViewType & Dune::PDELab::DiscreteGridFunctionGradient< T, X >::getGridView ( ) const

inline

get a reference to the GridView

setDataSetType()

void Dune::PDELab::GridFunctionOutputParameters::setDataSetType ( Output::DataSetType  dataSetType )

inlineinherited

Set the data set type of this function.

---

The documentation for this class was generated from the following file:

• gridfunctionspaceutilities.hh
