Dune::PDELab::DirichletConstraintsParameters Struct Reference

#include <dune/pdelab/constraints/common/constraintsparameters.hh>

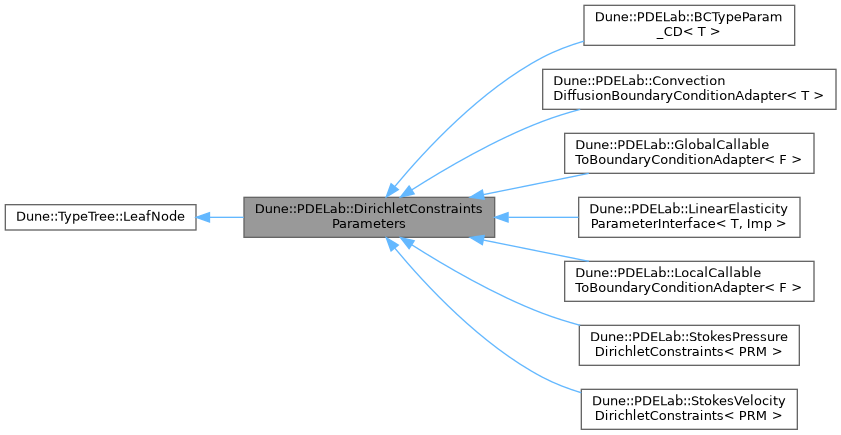

Inheritance diagram for Dune::PDELab::DirichletConstraintsParameters:

Public Types
typedef LeafNodeTag	NodeTag

Public Member Functions
template<typename I >
bool	isDirichlet (const I &intersection, const FieldVector< typename I::ctype, I::mydimension > &coord) const
template<typename I >
bool	isNeumann (const I &intersection, const FieldVector< typename I::ctype, I::mydimension > &coord) const
template<typename T >
void	setTime (const T &time)

Static Public Member Functions
static constexpr auto	degree ()

Static Public Attributes
static const bool	isLeaf
static const bool	isPower
static const bool	isComposite
static const std::size_t	CHILDREN

Detailed Description

Interface for the constraints parameters describing Dirichlet constraints.

Note

This class not only describes the required interface of the parameter class, but can also be used as a convenient standard implementation that will add Dirichlet constraints to all locations it is queried about.

Member Function Documentation

isDirichlet()

template<typename I >

bool Dune::PDELab::DirichletConstraintsParameters::isDirichlet ( const I &  intersection, const FieldVector< typename I::ctype, I::mydimension > &  coord  ) const

inline

Indicates whether the given position should be Dirichlet-constrained.

Parameters

intersection	The grid intersection containing the queried location.
coord	The position of the queried location in local coordinates of the intersection.

Returns

true iff the given location should have a Dirichlet constraint.

isNeumann()

template<typename I >

bool Dune::PDELab::DirichletConstraintsParameters::isNeumann ( const I &  intersection, const FieldVector< typename I::ctype, I::mydimension > &  coord  ) const

inline

Indicates whether the given position should be Neumann-constrained.

Most of the time, this method will be equivalent to !isDirichlet(...), but sometimes (in particular in multi-domain scenarios), both methods may return false.

Parameters

intersection	The grid intersection containing the queried location.
coord	The position of the queried location in local coordinates of the intersection.

Returns

true iff the given location should have a Neumann constraint.

setTime()

template<typename T >

void Dune::PDELab::DirichletConstraintsParameters::setTime ( const T &  time )

inline

Sets the current time (only required for instationary problems).

Note

This method only needs to be implement for instationary problems.

---

The documentation for this struct was generated from the following file:

• constraintsparameters.hh
