Dune::PDELab::PointwiseGridFunctionAdapter< Engine, F0, Functions > Class Template Reference

#include <dune/pdelab/common/functionwrappers.hh>

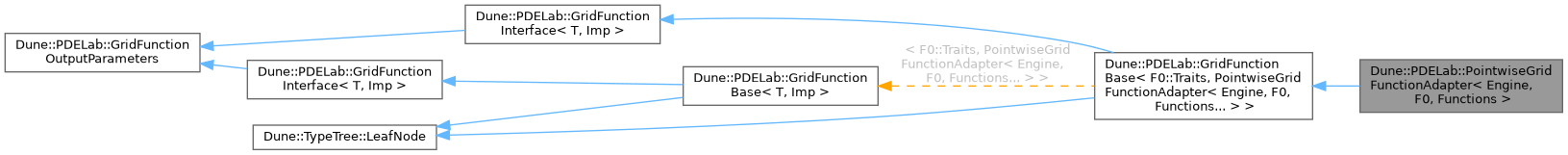

Inheritance diagram for Dune::PDELab::PointwiseGridFunctionAdapter< Engine, F0, Functions >:

Public Types
typedef F0::Traits	Traits
typedef GridFunctionTag	ImplementationTag
typedef T::GridViewType	GridViewType
	Type of the GridView.
using	Output = typename Base::Output
typedef LeafNodeTag	NodeTag

Public Member Functions
template<typename... F>
	PointwiseGridFunctionAdapter (const Engine &engine_, const F &... functions)
	construct a PointwiseGridFunctionAdapter
void	evaluate (const typename Traits::ElementType &e, const typename Traits::DomainType &x, typename Traits::RangeType &y) const
const Traits::GridViewType &	getGridView () const
Output::DataSetType	dataSetType () const
	Return the data set type of this function.
void	setDataSetType (Output::DataSetType dataSetType)
	Set the data set type of this function.

Static Public Member Functions
static constexpr auto	degree ()

Static Public Attributes
static const bool	isLeaf
static const bool	isPower
static const bool	isComposite
static const std::size_t	CHILDREN

Detailed Description

template<typename Engine, typename F0, typename... Functions>
class Dune::PDELab::PointwiseGridFunctionAdapter< Engine, F0, Functions >

A function wrapper which can map a set of gridfunctions through an PointwiseAdapterEngine

Template Parameters

Engine	The type of the engine
FN	The types of the functions. Currently, N up to 9 is supported.

Member Typedef Documentation

GridViewType

typedef T::GridViewType Dune::PDELab::GridFunctionBase< F0::Traits , PointwiseGridFunctionAdapter< Engine, F0, Functions... > >::GridViewType

inherited

Type of the GridView.

ImplementationTag

typedef GridFunctionTag Dune::PDELab::GridFunctionBase< F0::Traits , PointwiseGridFunctionAdapter< Engine, F0, Functions... > >::ImplementationTag

inherited

Output

using Dune::PDELab::GridFunctionBase< F0::Traits , PointwiseGridFunctionAdapter< Engine, F0, Functions... > >::Output = typename Base::Output

inherited

Traits

template<typename Engine , typename F0 , typename... Functions>

typedef F0::Traits Dune::PDELab::PointwiseGridFunctionAdapter< Engine, F0, Functions >::Traits

Constructor & Destructor Documentation

PointwiseGridFunctionAdapter()

template<typename Engine , typename F0 , typename... Functions>

template<typename... F>

Dune::PDELab::PointwiseGridFunctionAdapter< Engine, F0, Functions >::PointwiseGridFunctionAdapter ( const Engine &  engine_, const F &...  functions  )

inline

construct a PointwiseGridFunctionAdapter

Parameters

engine_	A reference to the engine. The referenced engine object must live at least as long as this adapter object is used for evaluation.
f0_	Reference to the first function.
...	References to the other functions. These referenced function objects must live at least as long as this adapter object is used for evaluation. Currently, up to 9 functions are supported.

Member Function Documentation

dataSetType()

Output::DataSetType Dune::PDELab::GridFunctionOutputParameters::dataSetType ( ) const

inlineinherited

Return the data set type of this function.

evaluate()

template<typename Engine , typename F0 , typename... Functions>

void Dune::PDELab::PointwiseGridFunctionAdapter< Engine, F0, Functions >::evaluate ( const typename Traits::ElementType &  e, const typename Traits::DomainType &  x, typename Traits::RangeType &  y  ) const

inline

getGridView()

template<typename Engine , typename F0 , typename... Functions>

const Traits::GridViewType & Dune::PDELab::PointwiseGridFunctionAdapter< Engine, F0, Functions >::getGridView ( ) const

inline

setDataSetType()

void Dune::PDELab::GridFunctionOutputParameters::setDataSetType ( Output::DataSetType  dataSetType )

inlineinherited

Set the data set type of this function.

---

The documentation for this class was generated from the following file:

• functionwrappers.hh
