Dune::mdgrid::subdomain::SubDomainGrid< MDGrid > Class Template Reference

#include <dune/grid/multidomaingrid/subdomaingrid/subdomaingrid.hh>

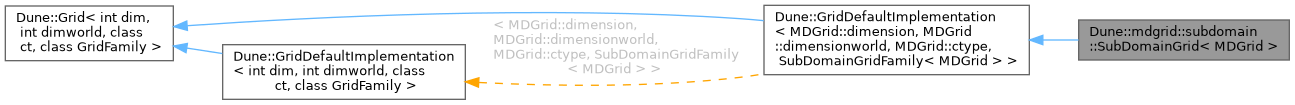

Inheritance diagram for Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >:

Public Types
enum	IntersectionType { neighbor , foreign , boundary , processor }
using	MultiDomainGrid = MDGrid
using	HostGrid = typename MDGrid::HostGrid
typedef SubDomainGridFamily< MDGrid >	GridFamily
typedef GridFamily::Traits	Traits
typedef MDGrid::ctype	ctype
	The type used for coordinates.
typedef MDGrid::SubDomainIndex	SubDomainIndex
	The type used for subdomain numbers.
typedef GridFamily::Traits::LeafGridView	LeafGridView
typedef GridFamily::Traits::LevelGridView	LevelGridView
typedef GridFamily::Traits::LeafIntersection	LeafIntersection
typedef GridFamily::Traits::LevelIntersection	LevelIntersection
typedef GridFamily::Traits::LeafIntersectionIterator	LeafIntersectionIterator
typedef GridFamily::Traits::LevelIntersectionIterator	LevelIntersectionIterator
typedef GridFamily::Traits::HierarchicIterator	HierarchicIterator
typedef GridFamily::Traits::LevelIndexSet	LevelIndexSet
typedef GridFamily::Traits::LeafIndexSet	LeafIndexSet
typedef GridFamily::Traits::GlobalIdSet	GlobalIdSet
typedef GridFamily::Traits::LocalIdSet	LocalIdSet
typedef detected_or_fallback_t< DeprecatedCollectiveCommunication_t, Communication_t, typename GridFamily::Traits >	Communication
typedef Communication	CollectiveCommunication

Public Member Functions
Traits::LevelGridView	levelGridView (int level) const
Traits::LeafGridView	leafGridView () const
bool	mark (int refCount, const typename Traits ::template Codim< 0 >::Entity &e)
bool	mark (int refCount, const typename Codim< 0 >::Entity &e)
int	getMark (const typename Traits::template Codim< 0 >::Entity &e) const
int	getMark (const typename Codim< 0 >::Entity &e) const
bool	loadBalance ()
bool	loadBalance (DataHandle &data)
Dune grid interface methods
template<typename EntitySeed >
Traits::template Codim< EntitySeed::codimension >::Entity	entity (const EntitySeed &entitySeed) const
int	maxLevel () const
template<int codim>
Traits::template Codim< codim >::LevelIterator	lbegin (int level) const
template<int codim>
Traits::template Codim< codim >::LevelIterator	lend (int level) const
template<int codim, PartitionIteratorType pitype>
Traits::template Codim< codim >::template Partition< pitype >::LevelIterator	lbegin (int level) const
template<int codim, PartitionIteratorType pitype>
Traits::template Codim< codim >::template Partition< pitype >::LevelIterator	lend (int level) const
template<int codim>
Traits::template Codim< codim >::LeafIterator	leafbegin () const
template<int codim>
Traits::template Codim< codim >::LeafIterator	leafend () const
template<int codim, PartitionIteratorType pitype>
Traits::template Codim< codim >::template Partition< pitype >::LeafIterator	leafbegin () const
template<int codim, PartitionIteratorType pitype>
Traits::template Codim< codim >::template Partition< pitype >::LeafIterator	leafend () const
int	size (int level, int codim) const
int	size (int codim) const
int	size (int level, GeometryType type) const
int	size (GeometryType type) const
const Traits::GlobalIdSet &	globalIdSet () const
const Traits::LocalIdSet &	localIdSet () const
const Traits::LevelIndexSet &	levelIndexSet (int level) const
const Traits::LeafIndexSet &	leafIndexSet () const
void	globalRefine (int refCount)
	Use MultiDomainGrid::globalRefine() instead of this method.
bool	mark (int refCount, const typename Traits::template Codim< 0 >::Entity &e)
	Mark the entity e for grid refinement across ALL subdomains.
int	getMark (const typename Traits::template Codim< 0 >::Entity &e)
	Retrieve the refinement mark of entity e.
bool	preAdapt ()
	Use MultiDomainGrid::preAdapt() instead of this method.
bool	adapt ()
	Use MultiDomainGrid::adapt() instead of this method.
void	postAdapt ()
	Use MultiDomainGrid::postAdapt() instead of this method.
int	overlapSize (int level, int codim) const
int	overlapSize (int codim) const
int	ghostSize (int level, int codim) const
int	ghostSize (int codim) const
const Traits::Communication &	comm () const
template<typename DataHandleImp , typename DataTypeImp >
void	communicate (CommDataHandleIF< DataHandleImp, DataTypeImp > &data, InterfaceType iftype, CommunicationDirection dir, int level) const
template<typename DataHandleImp , typename DataTypeImp >
void	communicate (CommDataHandleIF< DataHandleImp, DataTypeImp > &data, InterfaceType iftype, CommunicationDirection dir) const
size_t	numBoundarySegments () const
const MDGrid &	multiDomainGrid () const
	Get the MultiDomainGrid that we are part of.
SubDomainIndex	domain () const
	Return our subdomain number.
void	update ()
bool	operator== (const SubDomainGrid &rhs) const

Static Public Attributes
static constexpr int	dimension
static constexpr int	dimensionworld

Protected Types
typedef typename T::Communication	Communication_t
typedef typename T::CollectiveCommunication	DeprecatedCollectiveCommunication_t

Protected Member Functions
GridImp &	asImp ()
const GridImp &	asImp () const

Entity conversion methods
template<class EntityType , std::enable_if_t< std::is_same_v< typename MDGrid::Traits::template Codim< EntityType::codimension >::Entity, EntityType >, int > = 0>
Traits::template Codim< EntityType::codimension >::Entity	subDomainEntity (const EntityType &mdEntity) const
Traits::LeafIntersectionIterator	subDomainIntersectionIterator (const typename MDGrid::LeafSubDomainInterfaceIterator it) const
Traits::LevelIntersectionIterator	subDomainIntersectionIterator (const typename MDGrid::LevelSubDomainInterfaceIterator it) const
template<typename Intersection >
IntersectionType	intersectionType (const Intersection &intersection) const
template<class EntityType , std::enable_if_t< std::is_same_v< typename MDGrid::Traits::template Codim< EntityType::codimension >::Entity, EntityType >, int > = 0>
static const EntityType &	multiDomainEntity (const EntityType &e)
	specialization for -parent- multidomain entity
template<class EntityType , std::enable_if_t<!std::is_same_v< typename MDGrid::Traits::template Codim< EntityType::codimension >::Entity, EntityType >, int > = 0>
static const MDGrid::Traits::template Codim< EntityType::codimension >::Entity &	multiDomainEntity (const EntityType &e)
template<typename EntityType >
static const MDGrid::template HostEntity< EntityType >::type &	hostEntity (const EntityType &e)
static const auto &	multiDomainIntersection (const typename Traits::LeafIntersection &is)
static const auto &	multiDomainIntersection (const typename Traits::LevelIntersection &is)

Member Typedef Documentation

ctype

template<typename MDGrid >

typedef MDGrid::ctype Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::ctype

The type used for coordinates.

GridFamily

template<typename MDGrid >

typedef SubDomainGridFamily<MDGrid> Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::GridFamily

HostGrid

template<typename MDGrid >

using Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::HostGrid = typename MDGrid::HostGrid

MultiDomainGrid

template<typename MDGrid >

using Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::MultiDomainGrid = MDGrid

SubDomainIndex

template<typename MDGrid >

typedef MDGrid::SubDomainIndex Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::SubDomainIndex

The type used for subdomain numbers.

Traits

template<typename MDGrid >

typedef GridFamily::Traits Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::Traits

Member Enumeration Documentation

IntersectionType

template<typename MDGrid >

enum Dune::mdgrid::subdomain::SubDomainGrid::IntersectionType

Enumerator
neighbor
foreign
boundary
processor

Member Function Documentation

adapt()

template<typename MDGrid >

bool Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::adapt ( )

inline

Use MultiDomainGrid::adapt() instead of this method.

Like all grid modification methods, adapt() may ONLY be called on the underlying MultiDomainGrid.

Exceptions

NotImplemented

calling adapt() will always throw this exception.

comm()

template<typename MDGrid >

const Traits::Communication & Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::comm ( ) const

inline

communicate() [1/2]

template<typename MDGrid >

template<typename DataHandleImp , typename DataTypeImp >

void Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::communicate ( CommDataHandleIF< DataHandleImp, DataTypeImp > &  data, InterfaceType  iftype, CommunicationDirection  dir  ) const

inline

communicate() [2/2]

template<typename MDGrid >

template<typename DataHandleImp , typename DataTypeImp >

void Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::communicate ( CommDataHandleIF< DataHandleImp, DataTypeImp > &  data, InterfaceType  iftype, CommunicationDirection  dir, int  level  ) const

inline

domain()

template<typename MDGrid >

SubDomainIndex Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::domain ( ) const

inline

Return our subdomain number.

entity()

template<typename MDGrid >

template<typename EntitySeed >

Traits::template Codim< EntitySeed::codimension >::Entity Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::entity ( const EntitySeed &  entitySeed ) const

inline

getMark()

template<typename MDGrid >

int Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::getMark ( const typename Traits::template Codim< 0 >::Entity &  e )

inline

Retrieve the refinement mark of entity e.

 This method returns the refinement mark set on the entity by a call to mark(). As the
 mark might have been set on any subdomain containing e, the caller should not assume that
 entities always carry the mark assigned within the current subdomain.

Parameters

e	the entity for which to return the refinement mark.

ghostSize() [1/2]

template<typename MDGrid >

int Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::ghostSize ( int  codim ) const

inline

ghostSize() [2/2]

template<typename MDGrid >

int Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::ghostSize ( int  level, int  codim  ) const

inline

globalIdSet()

template<typename MDGrid >

const Traits::GlobalIdSet & Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::globalIdSet ( ) const

inline

globalRefine()

template<typename MDGrid >

void Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::globalRefine ( int  refCount )

inline

Use MultiDomainGrid::globalRefine() instead of this method.

Like all grid modification methods, globalRefine() may ONLY be called on the underlying MultiDomainGrid.

Exceptions

NotImplemented

calling globalRefine() will always throw this exception.

hostEntity()

template<typename MDGrid >

template<typename EntityType >

static const MDGrid::template HostEntity< EntityType >::type & Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::hostEntity ( const EntityType &  e )

inlinestatic

intersectionType()

template<typename MDGrid >

template<typename Intersection >

IntersectionType Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::intersectionType ( const Intersection &  intersection ) const

inline

lbegin() [1/2]

template<typename MDGrid >

template<int codim>

Traits::template Codim< codim >::LevelIterator Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::lbegin ( int  level ) const

inline

lbegin() [2/2]

template<typename MDGrid >

template<int codim, PartitionIteratorType pitype>

Traits::template Codim< codim >::template Partition< pitype >::LevelIterator Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::lbegin ( int  level ) const

inline

leafbegin() [1/2]

template<typename MDGrid >

template<int codim>

Traits::template Codim< codim >::LeafIterator Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::leafbegin ( ) const

inline

leafbegin() [2/2]

template<typename MDGrid >

template<int codim, PartitionIteratorType pitype>

Traits::template Codim< codim >::template Partition< pitype >::LeafIterator Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::leafbegin ( ) const

inline

leafend() [1/2]

template<typename MDGrid >

template<int codim>

Traits::template Codim< codim >::LeafIterator Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::leafend ( ) const

inline

leafend() [2/2]

template<typename MDGrid >

template<int codim, PartitionIteratorType pitype>

Traits::template Codim< codim >::template Partition< pitype >::LeafIterator Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::leafend ( ) const

inline

leafIndexSet()

template<typename MDGrid >

const Traits::LeafIndexSet & Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::leafIndexSet ( ) const

inline

lend() [1/2]

template<typename MDGrid >

template<int codim>

Traits::template Codim< codim >::LevelIterator Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::lend ( int  level ) const

inline

lend() [2/2]

template<typename MDGrid >

template<int codim, PartitionIteratorType pitype>

Traits::template Codim< codim >::template Partition< pitype >::LevelIterator Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::lend ( int  level ) const

inline

levelIndexSet()

template<typename MDGrid >

const Traits::LevelIndexSet & Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::levelIndexSet ( int  level ) const

inline

localIdSet()

template<typename MDGrid >

const Traits::LocalIdSet & Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::localIdSet ( ) const

inline

mark()

template<typename MDGrid >

bool Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::mark ( int  refCount, const typename Traits::template Codim< 0 >::Entity &  e  )

inline

Mark the entity e for grid refinement across ALL subdomains.

This method marks the passed entity for refinement on the underlying MultiDomainGrid. When using this method, keep in mind that a) this will have an effect across all subdomains and also on the MultiDomainGrid. b) the exact semantics of refinement depend on the host grid.

Parameters

refCount	the refinement mark to set, for exact semantics see the documentation of the host grid.
e	the entity to refine / coarsen.

maxLevel()

template<typename MDGrid >

int Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::maxLevel ( ) const

inline

multiDomainEntity() [1/2]

template<typename MDGrid >

template<class EntityType , std::enable_if_t< std::is_same_v< typename MDGrid::Traits::template Codim< EntityType::codimension >::Entity, EntityType >, int > = 0>

static const EntityType & Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::multiDomainEntity ( const EntityType &  e )

inlinestatic

specialization for -parent- multidomain entity

multiDomainEntity() [2/2]

template<typename MDGrid >

template<class EntityType , std::enable_if_t<!std::is_same_v< typename MDGrid::Traits::template Codim< EntityType::codimension >::Entity, EntityType >, int > = 0>

static const MDGrid::Traits::template Codim< EntityType::codimension >::Entity & Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::multiDomainEntity ( const EntityType &  e )

inlinestatic

multiDomainGrid()

template<typename MDGrid >

const MDGrid & Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::multiDomainGrid ( ) const

inline

Get the MultiDomainGrid that we are part of.

multiDomainIntersection() [1/2]

template<typename MDGrid >

static const auto & Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::multiDomainIntersection ( const typename Traits::LeafIntersection &  is )

inlinestatic

multiDomainIntersection() [2/2]

template<typename MDGrid >

static const auto & Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::multiDomainIntersection ( const typename Traits::LevelIntersection &  is )

inlinestatic

numBoundarySegments()

template<typename MDGrid >

size_t Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::numBoundarySegments ( ) const

inline

operator==()

template<typename MDGrid >

bool Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::operator== ( const SubDomainGrid< MDGrid > &  rhs ) const

inline

overlapSize() [1/2]

template<typename MDGrid >

int Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::overlapSize ( int  codim ) const

inline

overlapSize() [2/2]

template<typename MDGrid >

int Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::overlapSize ( int  level, int  codim  ) const

inline

postAdapt()

template<typename MDGrid >

void Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::postAdapt ( )

inline

Use MultiDomainGrid::postAdapt() instead of this method.

Like all grid modification methods, postAdapt() may ONLY be called on the underlying MultiDomainGrid.

Exceptions

NotImplemented

calling postAdapt() will always throw this exception.

preAdapt()

template<typename MDGrid >

bool Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::preAdapt ( )

inline

Use MultiDomainGrid::preAdapt() instead of this method.

Like all grid modification methods, preAdapt() may ONLY be called on the underlying MultiDomainGrid.

Exceptions

NotImplemented

calling preAdapt() will always throw this exception.

size() [1/4]

template<typename MDGrid >

int Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::size ( GeometryType  type ) const

inline

size() [2/4]

template<typename MDGrid >

int Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::size ( int  codim ) const

inline

size() [3/4]

template<typename MDGrid >

int Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::size ( int  level, GeometryType  type  ) const

inline

size() [4/4]

template<typename MDGrid >

int Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::size ( int  level, int  codim  ) const

inline

subDomainEntity()

template<typename MDGrid >

template<class EntityType , std::enable_if_t< std::is_same_v< typename MDGrid::Traits::template Codim< EntityType::codimension >::Entity, EntityType >, int > = 0>

Traits::template Codim< EntityType::codimension >::Entity Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::subDomainEntity ( const EntityType &  mdEntity ) const

inline

subDomainIntersectionIterator() [1/2]

template<typename MDGrid >

Traits::LeafIntersectionIterator Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::subDomainIntersectionIterator ( const typename MDGrid::LeafSubDomainInterfaceIterator  it ) const

inline

subDomainIntersectionIterator() [2/2]

template<typename MDGrid >

Traits::LevelIntersectionIterator Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::subDomainIntersectionIterator ( const typename MDGrid::LevelSubDomainInterfaceIterator  it ) const

inline

update()

template<typename MDGrid >

void Dune::mdgrid::subdomain::SubDomainGrid< MDGrid >::update ( )

inline

Member Data Documentation

dimension

template<typename MDGrid >

static constexpr int Dune::GridDefaultImplementation< int dim, int dimworld, class ct, class GridFamily >::dimension

static

dimensionworld

template<typename MDGrid >

static constexpr int Dune::GridDefaultImplementation< int dim, int dimworld, class ct, class GridFamily >::dimensionworld

static

---

The documentation for this class was generated from the following files:

• subdomaingrid/entity.hh
• subdomaingrid.hh
