Dune::LoopSolver< X > Class Template Reference

Preconditioned loop solver. More...

#include <dune/istl/solvers.hh>

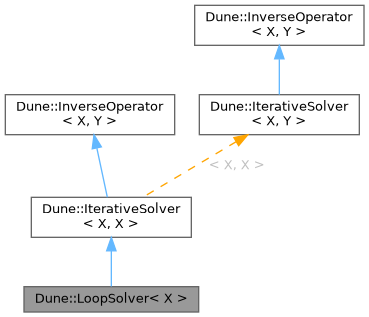

Inheritance diagram for Dune::LoopSolver< X >:

Public Types
typedef X	domain_type
	Type of the domain of the operator to be inverted.
typedef Y	range_type
	Type of the range of the operator to be inverted.
typedef X::field_type	field_type
	The field type of the operator.
typedef FieldTraits< field_type >::real_type	real_type
	The real type of the field type (is the same if using real numbers, but differs for std::complex)
typedef Simd::Scalar< real_type >	scalar_real_type
	scalar type underlying the field_type

Public Member Functions
virtual void	apply (X &x, X &b, InverseOperatorResult &res)
	Apply inverse operator,.
virtual void	apply (X &x, X &b, double reduction, InverseOperatorResult &res)
	Apply inverse operator with given reduction factor.
virtual void	apply (X &x, Y &b, InverseOperatorResult &res)=0
	Apply inverse operator,.
virtual void	apply (X &x, Y &b, double reduction, InverseOperatorResult &res)=0
	apply inverse operator, with given convergence criteria.
virtual SolverCategory::Category	category () const
	Category of the solver (see SolverCategory::Category)
std::string	name () const

Protected Types
using	Iteration = typename IterativeSolver< X, X >::template Iteration< unsigned int >
enum	{ iterationSpacing = 5 , normSpacing = 16 }

Protected Member Functions
void	printHeader (std::ostream &s) const
	helper function for printing header of solver output
template<typename CountType , typename DataType >
void	printOutput (std::ostream &s, const CountType &iter, const DataType &norm, const DataType &norm_old) const
	helper function for printing solver output
template<typename CountType , typename DataType >
void	printOutput (std::ostream &s, const CountType &iter, const DataType &norm) const
	helper function for printing solver output

Protected Attributes
std::shared_ptr< const LinearOperator< X, X > >	_op
std::shared_ptr< Preconditioner< X, X > >	_prec
std::shared_ptr< const ScalarProduct< X > >	_sp
scalar_real_type	_reduction
int	_maxit
int	_verbose
SolverCategory::Category	_category

Detailed Description

template<class X>
class Dune::LoopSolver< X >

Preconditioned loop solver.

Implements a preconditioned loop. Using this class every Preconditioner can be turned into a solver. The solver will apply one preconditioner step in each iteration loop.

Member Typedef Documentation

domain_type

template<class X , class Y >

typedef X Dune::InverseOperator< X, Y >::domain_type

inherited

Type of the domain of the operator to be inverted.

field_type

template<class X , class Y >

typedef X::field_type Dune::InverseOperator< X, Y >::field_type

inherited

The field type of the operator.

Iteration

template<class X >

using Dune::LoopSolver< X >::Iteration = typename IterativeSolver<X,X>::template Iteration<unsigned int>

protected

range_type

template<class X , class Y >

typedef Y Dune::InverseOperator< X, Y >::range_type

inherited

Type of the range of the operator to be inverted.

real_type

template<class X , class Y >

typedef FieldTraits<field_type>::real_type Dune::InverseOperator< X, Y >::real_type

inherited

The real type of the field type (is the same if using real numbers, but differs for std::complex)

scalar_real_type

template<class X , class Y >

typedef Simd::Scalar<real_type> Dune::InverseOperator< X, Y >::scalar_real_type

inherited

scalar type underlying the field_type

Member Enumeration Documentation

anonymous enum

template<class X , class Y >

anonymous enum

protectedinherited

Enumerator
iterationSpacing
normSpacing

Member Function Documentation

apply() [1/4]

virtual void Dune::IterativeSolver< X, X >::apply ( X &  x, X &  b, double  reduction, InverseOperatorResult &  res  )

inlinevirtualinherited

Apply inverse operator with given reduction factor.

apply inverse operator, with given convergence criteria.

Warning

Right hand side b may be overwritten!

Parameters

x	The left hand side to store the result in.
b	The right hand side
reduction	The minimum defect reduction to achieve.
res	Object to store the statistics about applying the operator.

Exceptions

SolverAbort

When the solver detects a problem and cannot continue

apply() [2/4]

template<class X >

virtual void Dune::LoopSolver< X >::apply ( X &  x, X &  b, InverseOperatorResult &  res  )

inlinevirtual

Apply inverse operator,.

Warning

Note: right hand side b may be overwritten!

Parameters

x	The left hand side to store the result in.
b	The right hand side
res	Object to store the statistics about applying the operator.

Exceptions

SolverAbort

When the solver detects a problem and cannot continue

apply() [3/4]

template<class X , class Y >

virtual void Dune::InverseOperator< X, Y >::apply ( X &  x, Y &  b, double  reduction, InverseOperatorResult &  res  )

pure virtualinherited

apply inverse operator, with given convergence criteria.

Warning

Right hand side b may be overwritten!

Parameters

x	The left hand side to store the result in.
b	The right hand side
reduction	The minimum defect reduction to achieve.
res	Object to store the statistics about applying the operator.

Exceptions

SolverAbort

When the solver detects a problem and cannot continue

Implemented in Dune::RestartedGMResSolver< X, Y, F >, and Dune::RestartedFlexibleGMResSolver< X, Y, F >.

apply() [4/4]

template<class X , class Y >

virtual void Dune::InverseOperator< X, Y >::apply ( X &  x, Y &  b, InverseOperatorResult &  res  )

pure virtualinherited

Apply inverse operator,.

Warning

Note: right hand side b may be overwritten!

Parameters

x	The left hand side to store the result in.
b	The right hand side
res	Object to store the statistics about applying the operator.

Exceptions

SolverAbort

When the solver detects a problem and cannot continue

Implemented in Dune::RestartedGMResSolver< X, Y, F >.

category()

virtual SolverCategory::Category Dune::IterativeSolver< X, X >::category ( ) const

inlinevirtualinherited

Category of the solver (see SolverCategory::Category)

Implements Dune::InverseOperator< X, Y >.

name()

std::string Dune::IterativeSolver< X, X >::name ( ) const

inlineinherited

printHeader()

template<class X , class Y >

void Dune::InverseOperator< X, Y >::printHeader ( std::ostream &  s ) const

inlineprotectedinherited

helper function for printing header of solver output

printOutput() [1/2]

template<class X , class Y >

template<typename CountType , typename DataType >

void Dune::InverseOperator< X, Y >::printOutput ( std::ostream &  s, const CountType &  iter, const DataType &  norm  ) const

inlineprotectedinherited

helper function for printing solver output

printOutput() [2/2]

template<class X , class Y >

template<typename CountType , typename DataType >

void Dune::InverseOperator< X, Y >::printOutput ( std::ostream &  s, const CountType &  iter, const DataType &  norm, const DataType &  norm_old  ) const

inlineprotectedinherited

helper function for printing solver output

Member Data Documentation

_category

SolverCategory::Category Dune::IterativeSolver< X, X >::_category

protectedinherited

_maxit

int Dune::IterativeSolver< X, X >::_maxit

protectedinherited

_op

std::shared_ptr<const LinearOperator<X,X > > Dune::IterativeSolver< X, X >::_op

protectedinherited

_prec

std::shared_ptr<Preconditioner<X,X > > Dune::IterativeSolver< X, X >::_prec

protectedinherited

_reduction

scalar_real_type Dune::IterativeSolver< X, X >::_reduction

protectedinherited

_sp

std::shared_ptr<const ScalarProduct<X> > Dune::IterativeSolver< X, X >::_sp

protectedinherited

_verbose

int Dune::IterativeSolver< X, X >::_verbose

protectedinherited

---

The documentation for this class was generated from the following file:

• solvers.hh
