Dune::VTK::BoundaryIterator< GV > Class Template Reference

iterate over the GridViews boundary intersections More...

#include <dune/grid/io/file/vtk/boundaryiterators.hh>

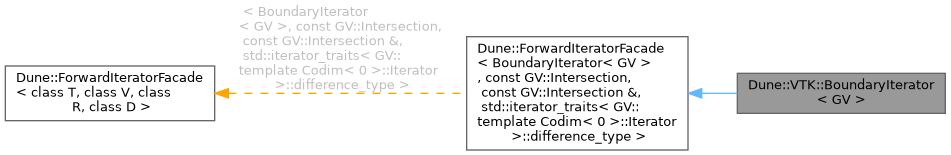

Inheritance diagram for Dune::VTK::BoundaryIterator< GV >:

Public Types
typedef BoundaryIterator< GV >	DerivedType
typedef const GV::Intersection	Value
typedef Value &	Reference
typedef GV::template Codim< 0 >::Iterator	ElementIterator
typedef GV::IntersectionIterator	IntersectionIterator
typedef std::iterator_traits< ElementIterator >::difference_type	DifferenceType
typedef std::forward_iterator_tag	iterator_category
typedef typename std::remove_const< V >::type	value_type
typedef D	difference_type
typedef V *	pointer
typedef R	reference
typedef V *	Pointer

Public Member Functions
Reference	dereference () const
bool	equals (const DerivedType &other) const
void	increment ()
	BoundaryIterator (const GV &gv_, const ElementIterator &eit_, const IntersectionIterator &iit_)
	construct a BoundaryIterator
	BoundaryIterator (const GV &gv_, const ElementIterator &eit_)
	construct a BoundaryIterator
	BoundaryIterator (const GV &gv_, bool end=false)
	construct a BoundaryIterator
Reference	operator* () const
Pointer	operator-> () const
DerivedType &	operator++ ()
DerivedType	operator++ (int)

Detailed Description

template<typename GV>
class Dune::VTK::BoundaryIterator< GV >

iterate over the GridViews boundary intersections

This will visit all intersections for which boundary() is true and neighbor() is false.

Member Typedef Documentation

DerivedType

template<typename GV >

typedef BoundaryIterator<GV> Dune::VTK::BoundaryIterator< GV >::DerivedType

DifferenceType

template<typename GV >

typedef std::iterator_traits<ElementIterator>::difference_type Dune::VTK::BoundaryIterator< GV >::DifferenceType

ElementIterator

template<typename GV >

typedef GV::template Codim<0>::Iterator Dune::VTK::BoundaryIterator< GV >::ElementIterator

IntersectionIterator

template<typename GV >

typedef GV::IntersectionIterator Dune::VTK::BoundaryIterator< GV >::IntersectionIterator

Reference

template<typename GV >

typedef Value& Dune::VTK::BoundaryIterator< GV >::Reference

Value

template<typename GV >

typedef const GV::Intersection Dune::VTK::BoundaryIterator< GV >::Value

Constructor & Destructor Documentation

BoundaryIterator() [1/3]

template<typename GV >

Dune::VTK::BoundaryIterator< GV >::BoundaryIterator ( const GV &  gv_, const ElementIterator &  eit_, const IntersectionIterator &  iit_  )

inline

construct a BoundaryIterator

The iterator will initially point to the intersection iit_. If that intersection is not valid, it will advance to the first valid one.

BoundaryIterator() [2/3]

template<typename GV >

Dune::VTK::BoundaryIterator< GV >::BoundaryIterator ( const GV &  gv_, const ElementIterator &  eit_  )

inline

construct a BoundaryIterator

The iterator will initially point to eit_'s first intersection. If that intersection is not valid, it will advance to the first valid one.

BoundaryIterator() [3/3]

template<typename GV >

Dune::VTK::BoundaryIterator< GV >::BoundaryIterator ( const GV &  gv_, bool  end = false  )

inline

construct a BoundaryIterator

If end == true, construct an end iterator for the given gridview. Otherwise, construct a begin iterator.

Member Function Documentation

dereference()

template<typename GV >

Reference Dune::VTK::BoundaryIterator< GV >::dereference ( ) const

inline

equals()

template<typename GV >

bool Dune::VTK::BoundaryIterator< GV >::equals ( const DerivedType &  other ) const

inline

increment()

template<typename GV >

void Dune::VTK::BoundaryIterator< GV >::increment ( )

inline

---

The documentation for this class was generated from the following file:

• boundaryiterators.hh
