Dune::dgf::GridParameterBlock Class Reference

Common Grid parameters. More...

#include <dune/grid/io/file/dgfparser/blocks/gridparameter.hh>

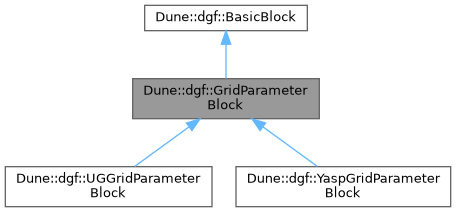

Inheritance diagram for Dune::dgf::GridParameterBlock:

Public Types
typedef unsigned int	Flags

Public Member Functions
	GridParameterBlock (std::istream &in)
	constructor: read commmon parameters
const std::string &	name (const std::string &defaultValue) const
	return the name of the grid
const std::string &	dumpFileName () const
bool	markLongestEdge () const
	returns true if longest edge should be marked for AlbertaGrid
bool	ok ()
bool	isactive ()
bool	isempty ()
int &	noflines ()
int	linenumber ()
const std::string &	id () const

Static Public Attributes
static const Flags	foundName = 1 << 0
static const Flags	foundDumpFileName = 1 << 1
static const Flags	foundLongestEdge = 1 << 5

Protected Member Functions
void	reset ()
bool	getnextline ()
template<class ENTRY >
bool	getnextentry (ENTRY &entry)
bool	gettokenparam (std ::string token, std ::string &entry)
bool	findtoken (std ::string token)

Protected Attributes
Flags	foundFlags_
std::string	name_
std::string	dumpFileName_
bool	markLongestEdge_
std::stringstream	line

Detailed Description

Common Grid parameters.

For each grid implementation there is a set of parameters that can be passed via the GridParameter block to the momment of grid construction. Currently implemented common parameters are:

1. name: The name of the grid ( later returned by the method grid.name() ).

2. refinementedge: parameter to specify the refinement edge in simplices. Valid values are arbitrary (which is the default value) and longest which marks the longest edge/face of each simplex to be the refinement edge.
   See also the examplegrid5.dgf file for examples.

Member Typedef Documentation

Flags

typedef unsigned int Dune::dgf::GridParameterBlock::Flags

Constructor & Destructor Documentation

GridParameterBlock()

Dune::dgf::GridParameterBlock::GridParameterBlock

(

std::istream &

in

)

constructor: read commmon parameters

Member Function Documentation

dumpFileName()

const std::string & Dune::dgf::GridParameterBlock::dumpFileName ( ) const

inline

findtoken()

bool Dune::dgf::BasicBlock::findtoken ( std ::string  token )

protectedinherited

getnextentry()

template<class ENTRY >

bool Dune::dgf::BasicBlock::getnextentry ( ENTRY &  entry )

inlineprotectedinherited

getnextline()

bool Dune::dgf::BasicBlock::getnextline ( )

protectedinherited

gettokenparam()

bool Dune::dgf::BasicBlock::gettokenparam ( std ::string  token, std ::string &  entry  )

protectedinherited

id()

const std::string & Dune::dgf::BasicBlock::id ( ) const

inlineinherited

isactive()

bool Dune::dgf::BasicBlock::isactive ( )

inlineinherited

isempty()

bool Dune::dgf::BasicBlock::isempty ( )

inlineinherited

linenumber()

int Dune::dgf::BasicBlock::linenumber ( )

inlineinherited

markLongestEdge()

bool Dune::dgf::GridParameterBlock::markLongestEdge ( ) const

inline

returns true if longest edge should be marked for AlbertaGrid

name()

const std::string & Dune::dgf::GridParameterBlock::name ( const std::string &  defaultValue ) const

inline

return the name of the grid

noflines()

int & Dune::dgf::BasicBlock::noflines ( )

inlineinherited

ok()

bool Dune::dgf::GridParameterBlock::ok ( )

inline

reset()

void Dune::dgf::BasicBlock::reset ( )

inlineprotectedinherited

Member Data Documentation

dumpFileName_

std::string Dune::dgf::GridParameterBlock::dumpFileName_

protected

foundDumpFileName

const Flags Dune::dgf::GridParameterBlock::foundDumpFileName = 1 << 1

static

foundFlags_

Flags Dune::dgf::GridParameterBlock::foundFlags_

protected

foundLongestEdge

const Flags Dune::dgf::GridParameterBlock::foundLongestEdge = 1 << 5

static

foundName

const Flags Dune::dgf::GridParameterBlock::foundName = 1 << 0

static

line

std::stringstream Dune::dgf::BasicBlock::line

protectedinherited

markLongestEdge_

bool Dune::dgf::GridParameterBlock::markLongestEdge_

protected

name_

std::string Dune::dgf::GridParameterBlock::name_

protected

---

The documentation for this class was generated from the following file:

• gridparameter.hh
