Dune::IdentityGridGlobalIdSet< GridImp > Class Template Reference

#include <dune/grid/identitygrid/identitygridindexsets.hh>

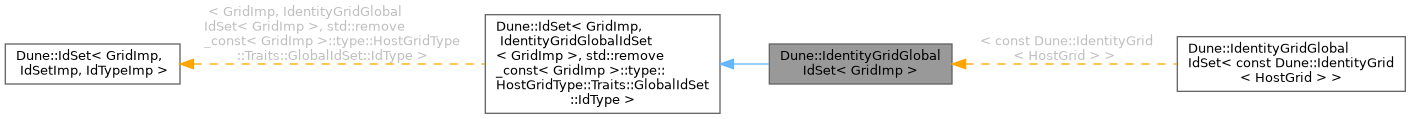

Inheritance diagram for Dune::IdentityGridGlobalIdSet< GridImp >:

Public Types
typedef HostGrid::Traits::GlobalIdSet::IdType	IdType
	define the type used for persistent indices

Public Member Functions
	IdentityGridGlobalIdSet (const GridImp &g)
	constructor stores reference to a grid
template<int cd>
IdType	id (const typename std::remove_const< GridImp >::type::Traits::template Codim< cd >::Entity &e) const
	get id of an entity
IdType	subId (const typename std::remove_const< GridImp >::type::Traits::template Codim< 0 >::Entity &e, int i, int codim) const
	get id of subEntity
void	update ()
IdType	id (const Entity &e) const
	Get id of an entity. This method is simpler to use than the one below.
IdType	id (const typename Codim< cc >::Entity &e) const
	Get id of an entity of codim cc. Unhandy because template parameter must be supplied explicitly.
IdType	subId (const typename Codim< 0 >::Entity &e, int i, unsigned int codim) const
	Get id of subentity i of co-dimension codim of a co-dimension 0 entity.

Public Attributes
const GridImp *	grid_

Static Public Attributes
static constexpr auto	dimension
	dimension of the grid (maximum allowed codimension)

Member Typedef Documentation

IdType

template<class GridImp >

typedef HostGrid::Traits::GlobalIdSet::IdType Dune::IdentityGridGlobalIdSet< GridImp >::IdType

define the type used for persistent indices

Constructor & Destructor Documentation

IdentityGridGlobalIdSet()

template<class GridImp >

Dune::IdentityGridGlobalIdSet< GridImp >::IdentityGridGlobalIdSet ( const GridImp &  g )

inline

constructor stores reference to a grid

Member Function Documentation

id() [1/3]

IdType Dune::IdSet< GridImp, IdentityGridGlobalIdSet< GridImp > , std::remove_const< GridImp >::type::HostGridType::Traits::GlobalIdSet::IdType >::id ( const Entity &  e ) const

inlineinherited

Get id of an entity. This method is simpler to use than the one below.

id() [2/3]

IdType Dune::IdSet< GridImp, IdentityGridGlobalIdSet< GridImp > , std::remove_const< GridImp >::type::HostGridType::Traits::GlobalIdSet::IdType >::id ( const typename Codim< cc >::Entity &  e ) const

inlineinherited

Get id of an entity of codim cc. Unhandy because template parameter must be supplied explicitly.

id() [3/3]

template<class GridImp >

template<int cd>

IdType Dune::IdentityGridGlobalIdSet< GridImp >::id ( const typename std::remove_const< GridImp >::type::Traits::template Codim< cd >::Entity &  e ) const

inline

get id of an entity

subId() [1/2]

IdType Dune::IdSet< GridImp, IdentityGridGlobalIdSet< GridImp > , std::remove_const< GridImp >::type::HostGridType::Traits::GlobalIdSet::IdType >::subId ( const typename Codim< 0 >::Entity &  e, int  i, unsigned int  codim  ) const

inlineinherited

Get id of subentity i of co-dimension codim of a co-dimension 0 entity.

subId() [2/2]

template<class GridImp >

IdType Dune::IdentityGridGlobalIdSet< GridImp >::subId ( const typename std::remove_const< GridImp >::type::Traits::template Codim< 0 >::Entity &  e, int  i, int  codim  ) const

inline

get id of subEntity

update()

template<class GridImp >

void Dune::IdentityGridGlobalIdSet< GridImp >::update ( )

inline

Todo:

Should be private

Member Data Documentation

dimension

constexpr auto Dune::IdSet< GridImp, IdentityGridGlobalIdSet< GridImp > , std::remove_const< GridImp >::type::HostGridType::Traits::GlobalIdSet::IdType >::dimension

staticconstexprinherited

dimension of the grid (maximum allowed codimension)

grid_

template<class GridImp >

const GridImp* Dune::IdentityGridGlobalIdSet< GridImp >::grid_

---

The documentation for this class was generated from the following file:

• identitygridindexsets.hh
