implements the Generalized Minimal Residual (GMRes) method More...

#include <dune/istl/solvers.hh>

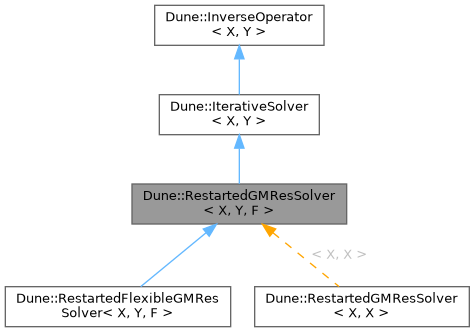

Inheritance diagram for Dune::RestartedGMResSolver< X, Y, F >:

Public Types
typedef X	domain_type
	Type of the domain of the operator to be inverted.

typedef Y	range_type
	Type of the range of the operator to be inverted.

typedef X::field_type	field_type
	The field type of the operator.

typedef FieldTraits< field_type >::real_type	real_type
	The real type of the field type (is the same if using real numbers, but differs for std::complex)

typedef Simd::Scalar< real_type >	scalar_real_type
	scalar type underlying the field_type

Public Member Functions
	RestartedGMResSolver (LinearOperator< X, Y > &op, Preconditioner< X, Y > &prec, scalar_real_type reduction, int restart, int maxit, int verbose)
	Set up RestartedGMResSolver solver.

	RestartedGMResSolver (LinearOperator< X, Y > &op, ScalarProduct< X > &sp, Preconditioner< X, Y > &prec, scalar_real_type reduction, int restart, int maxit, int verbose)
	Set up RestartedGMResSolver solver.

	RestartedGMResSolver (std::shared_ptr< LinearOperator< X, Y > > op, std::shared_ptr< Preconditioner< X, X > > prec, const ParameterTree &configuration)
	Constructor.

	RestartedGMResSolver (std::shared_ptr< LinearOperator< X, Y > > op, std::shared_ptr< ScalarProduct< X > > sp, std::shared_ptr< Preconditioner< X, X > > prec, const ParameterTree &configuration)

	RestartedGMResSolver (std::shared_ptr< LinearOperator< X, Y > > op, std::shared_ptr< ScalarProduct< X > > sp, std::shared_ptr< Preconditioner< X, Y > > prec, scalar_real_type reduction, int restart, int maxit, int verbose)
	Set up RestartedGMResSolver solver.

virtual void	apply (X &x, Y &b, InverseOperatorResult &res)
	Apply inverse operator.

virtual void	apply (X &x, Y &b, double reduction, InverseOperatorResult &res)
	Apply inverse operator.

virtual void	apply (X &x, X &b, double reduction, InverseOperatorResult &res)
	Apply inverse operator with given reduction factor.

virtual SolverCategory::Category	category () const
	Category of the solver (see SolverCategory::Category)

std::string	name () const

Protected Types
using	fAlloc = ReboundAllocatorType< X, field_type >
	field_type Allocator retrieved from domain type

using	rAlloc = ReboundAllocatorType< X, real_type >
	real_type Allocator retrieved from domain type

using	Iteration = typename IterativeSolver< X, X >::template Iteration< unsigned int >

enum	{ iterationSpacing = 5 , normSpacing = 16 }

Protected Member Functions
void	update (X &w, int i, const std::vector< std::vector< field_type, fAlloc > > &H, const std::vector< field_type, fAlloc > &s, const std::vector< X > &v)

template<typename T >
std::enable_if< std::is_same< field_type, real_type >::value, T >::type	conjugate (const T &t)

template<typename T >
std::enable_if<!std::is_same< field_type, real_type >::value, T >::type	conjugate (const T &t)

void	generatePlaneRotation (field_type &dx, field_type &dy, real_type &cs, field_type &sn)

void	applyPlaneRotation (field_type &dx, field_type &dy, real_type &cs, field_type &sn)

void	printHeader (std::ostream &s) const
	helper function for printing header of solver output

template<typename CountType , typename DataType >
void	printOutput (std::ostream &s, const CountType &iter, const DataType &norm, const DataType &norm_old) const
	helper function for printing solver output

template<typename CountType , typename DataType >
void	printOutput (std::ostream &s, const CountType &iter, const DataType &norm) const
	helper function for printing solver output

Protected Attributes
int	_restart

std::shared_ptr< LinearOperator< X, Y > >	_op

std::shared_ptr< Preconditioner< X, Y > >	_prec

std::shared_ptr< ScalarProduct< X > >	_sp

scalar_real_type	_reduction

int	_maxit

int	_verbose

SolverCategory::Category	_category

Detailed Description

template<class X, class Y = X, class F = Y>
class Dune::RestartedGMResSolver< X, Y, F >

implements the Generalized Minimal Residual (GMRes) method

GMRes solves the unsymmetric linear system Ax = b using the Generalized Minimal Residual method as described the SIAM Templates book (http://www.netlib.org/templates/templates.pdf).

Template Parameters

X	trial vector, vector type of the solution
Y	test vector, vector type of the RHS
F	vector type for orthonormal basis of Krylov space

Member Typedef Documentation

◆ domain_type

template<class X , class Y >

typedef X Dune::InverseOperator< X, Y >::domain_type

inherited

Type of the domain of the operator to be inverted.

◆ fAlloc

template<class X , class Y = X, class F = Y>

using Dune::RestartedGMResSolver< X, Y, F >::fAlloc = ReboundAllocatorType<X,field_type>

protected

field_type Allocator retrieved from domain type

◆ field_type

template<class X , class Y >

typedef X::field_type Dune::InverseOperator< X, Y >::field_type

inherited

The field type of the operator.

◆ Iteration

template<class X , class Y = X, class F = Y>

using Dune::RestartedGMResSolver< X, Y, F >::Iteration = typename IterativeSolver<X,X>::template Iteration<unsigned int>

protected

◆ rAlloc

template<class X , class Y = X, class F = Y>

using Dune::RestartedGMResSolver< X, Y, F >::rAlloc = ReboundAllocatorType<X,real_type>

protected

real_type Allocator retrieved from domain type

◆ range_type

template<class X , class Y >

typedef Y Dune::InverseOperator< X, Y >::range_type

inherited

Type of the range of the operator to be inverted.

◆ real_type

template<class X , class Y >

typedef FieldTraits<field_type>::real_type Dune::InverseOperator< X, Y >::real_type

inherited

The real type of the field type (is the same if using real numbers, but differs for std::complex)

◆ scalar_real_type

template<class X , class Y >

typedef Simd::Scalar<real_type> Dune::InverseOperator< X, Y >::scalar_real_type

inherited

scalar type underlying the field_type

Member Enumeration Documentation

◆ anonymous enum

template<class X , class Y >

anonymous enum

protectedinherited

Enumerator
iterationSpacing
normSpacing

Constructor & Destructor Documentation

◆ RestartedGMResSolver() [1/5]

template<class X , class Y = X, class F = Y>

Dune::RestartedGMResSolver< X, Y, F >::RestartedGMResSolver	(	LinearOperator< X, Y > &	op,
		Preconditioner< X, Y > &	prec,
		scalar_real_type	reduction,
		int	restart,
		int	maxit,
		int	verbose
	)

inline

Set up RestartedGMResSolver solver.

Parameters

restart number of GMRes cycles before restart

◆ RestartedGMResSolver() [2/5]

template<class X , class Y = X, class F = Y>

Dune::RestartedGMResSolver< X, Y, F >::RestartedGMResSolver	(	LinearOperator< X, Y > &	op,
		ScalarProduct< X > &	sp,
		Preconditioner< X, Y > &	prec,
		scalar_real_type	reduction,
		int	restart,
		int	maxit,
		int	verbose
	)

inline

Set up RestartedGMResSolver solver.

Parameters

restart number of GMRes cycles before restart

◆ RestartedGMResSolver() [3/5]

template<class X , class Y = X, class F = Y>

Dune::RestartedGMResSolver< X, Y, F >::RestartedGMResSolver	(	std::shared_ptr< LinearOperator< X, Y > >	op,
		std::shared_ptr< Preconditioner< X, X > >	prec,
		const ParameterTree &	configuration
	)

inline

Constructor.

Additional parameter:

ParameterTree Key	Meaning
restart	number of GMRes cycles before restart

See ISTL_Factory for the ParameterTree layout and examples.

◆ RestartedGMResSolver() [4/5]

template<class X , class Y = X, class F = Y>

Dune::RestartedGMResSolver< X, Y, F >::RestartedGMResSolver	(	std::shared_ptr< LinearOperator< X, Y > >	op,
		std::shared_ptr< ScalarProduct< X > >	sp,
		std::shared_ptr< Preconditioner< X, X > >	prec,
		const ParameterTree &	configuration
	)

inline

◆ RestartedGMResSolver() [5/5]

template<class X , class Y = X, class F = Y>

Dune::RestartedGMResSolver< X, Y, F >::RestartedGMResSolver	(	std::shared_ptr< LinearOperator< X, Y > >	op,
		std::shared_ptr< ScalarProduct< X > >	sp,
		std::shared_ptr< Preconditioner< X, Y > >	prec,
		scalar_real_type	reduction,
		int	restart,
		int	maxit,
		int	verbose
	)

inline

Set up RestartedGMResSolver solver.

Parameters

restart number of GMRes cycles before restart

Member Function Documentation

◆ apply() [1/3]

template<class X , class Y >

virtual void Dune::IterativeSolver< X, Y >::apply	(	X &	x,
		X &	b,
		double	reduction,
		InverseOperatorResult &	res
	)

inlinevirtualinherited

Apply inverse operator with given reduction factor.

apply inverse operator, with given convergence criteria.

Warning: Right hand side b may be overwritten!

Parameters

x	The left hand side to store the result in.
b	The right hand side
reduction	The minimum defect reduction to achieve.
res	Object to store the statistics about applying the operator.

Exceptions

SolverAbort When the solver detects a problem and cannot continue

Reimplemented in Dune::RestartedGMResSolver< X, X >.

◆ apply() [2/3]

template<class X , class Y = X, class F = Y>

virtual void Dune::RestartedGMResSolver< X, Y, F >::apply	(	X &	x,
		Y &	b,
		double	reduction,
		InverseOperatorResult &	res
	)

inlinevirtual

Apply inverse operator.

apply inverse operator, with given convergence criteria.

Warning: Right hand side b may be overwritten!

Parameters

x	The left hand side to store the result in.
b	The right hand side
reduction	The minimum defect reduction to achieve.
res	Object to store the statistics about applying the operator.

Exceptions

SolverAbort When the solver detects a problem and cannot continue

Note: Currently, the RestartedGMResSolver aborts when it detects a breakdown.

Implements Dune::InverseOperator< X, Y >.

Reimplemented in Dune::RestartedFlexibleGMResSolver< X, Y, F >.

◆ apply() [3/3]

template<class X , class Y = X, class F = Y>

virtual void Dune::RestartedGMResSolver< X, Y, F >::apply	(	X &	x,
		Y &	b,
		InverseOperatorResult &	res
	)

inlinevirtual

Apply inverse operator.

Apply inverse operator,.

Warning: Note: right hand side b may be overwritten!

Parameters

x	The left hand side to store the result in.
b	The right hand side
res	Object to store the statistics about applying the operator.

Exceptions

SolverAbort When the solver detects a problem and cannot continue

Note: Currently, the RestartedGMResSolver aborts when it detects a breakdown.

Implements Dune::InverseOperator< X, Y >.

◆ applyPlaneRotation()

template<class X , class Y = X, class F = Y>

void Dune::RestartedGMResSolver< X, Y, F >::applyPlaneRotation	(	field_type &	dx,
		field_type &	dy,
		real_type &	cs,
		field_type &	sn
	)

inlineprotected

◆ category()

template<class X , class Y >

virtual SolverCategory::Category Dune::IterativeSolver< X, Y >::category ( ) const

inlinevirtualinherited

Category of the solver (see SolverCategory::Category)

Implements Dune::InverseOperator< X, Y >.

◆ conjugate() [1/2]

template<class X , class Y = X, class F = Y>

template<typename T >

std::enable_if< std::is_same< field_type, real_type >::value, T >::type Dune::RestartedGMResSolver< X, Y, F >::conjugate ( const T & t )

inlineprotected

◆ conjugate() [2/2]

template<class X , class Y = X, class F = Y>

template<typename T >

std::enable_if<!std::is_same< field_type, real_type >::value, T >::type Dune::RestartedGMResSolver< X, Y, F >::conjugate ( const T & t )

inlineprotected

◆ generatePlaneRotation()

template<class X , class Y = X, class F = Y>

void Dune::RestartedGMResSolver< X, Y, F >::generatePlaneRotation	(	field_type &	dx,
		field_type &	dy,
		real_type &	cs,
		field_type &	sn
	)

inlineprotected

◆ name()

template<class X , class Y >

std::string Dune::IterativeSolver< X, Y >::name ( ) const

inlineinherited

◆ printHeader()

template<class X , class Y >

void Dune::InverseOperator< X, Y >::printHeader ( std::ostream & s ) const

inlineprotectedinherited

helper function for printing header of solver output

◆ printOutput() [1/2]

template<class X , class Y >

template<typename CountType , typename DataType >

void Dune::InverseOperator< X, Y >::printOutput	(	std::ostream &	s,
		const CountType &	iter,
		const DataType &	norm
	)		const

inlineprotectedinherited

helper function for printing solver output

◆ printOutput() [2/2]

template<class X , class Y >

template<typename CountType , typename DataType >

void Dune::InverseOperator< X, Y >::printOutput	(	std::ostream &	s,
		const CountType &	iter,
		const DataType &	norm,
		const DataType &	norm_old
	)		const

inlineprotectedinherited

helper function for printing solver output

◆ update()

template<class X , class Y = X, class F = Y>

void Dune::RestartedGMResSolver< X, Y, F >::update	(	X &	w,
		int	i,
		const std::vector< std::vector< field_type, fAlloc > > &	H,
		const std::vector< field_type, fAlloc > &	s,
		const std::vector< X > &	v
	)

inlineprotected

Member Data Documentation

◆ _category

template<class X , class Y >

SolverCategory::Category Dune::IterativeSolver< X, Y >::_category

protectedinherited

◆ _maxit

template<class X , class Y >

int Dune::IterativeSolver< X, Y >::_maxit

protectedinherited

◆ _op

template<class X , class Y >

std::shared_ptr<LinearOperator<X,Y> > Dune::IterativeSolver< X, Y >::_op

protectedinherited

◆ _prec

template<class X , class Y >

std::shared_ptr<Preconditioner<X,Y> > Dune::IterativeSolver< X, Y >::_prec

protectedinherited

◆ _reduction

template<class X , class Y >

scalar_real_type Dune::IterativeSolver< X, Y >::_reduction

protectedinherited

◆ _restart

template<class X , class Y = X, class F = Y>

int Dune::RestartedGMResSolver< X, Y, F >::_restart

protected

◆ _sp

template<class X , class Y >

std::shared_ptr<ScalarProduct<X> > Dune::IterativeSolver< X, Y >::_sp

protectedinherited

◆ _verbose

template<class X , class Y >

int Dune::IterativeSolver< X, Y >::_verbose

protectedinherited

The documentation for this class was generated from the following file:

solvers.hh

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ domain_type

◆ fAlloc

◆ field_type

◆ Iteration

◆ rAlloc

◆ range_type

◆ real_type

◆ scalar_real_type

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ RestartedGMResSolver() [1/5]

◆ RestartedGMResSolver() [2/5]

◆ RestartedGMResSolver() [3/5]

◆ RestartedGMResSolver() [4/5]

◆ RestartedGMResSolver() [5/5]

Member Function Documentation

◆ apply() [1/3]

◆ apply() [2/3]

◆ apply() [3/3]

◆ applyPlaneRotation()

◆ category()

◆ conjugate() [1/2]

◆ conjugate() [2/2]

◆ generatePlaneRotation()

◆ name()

◆ printHeader()

◆ printOutput() [1/2]

◆ printOutput() [2/2]

◆ update()

Member Data Documentation

◆ _category

◆ _maxit

◆ _op

◆ _prec

◆ _reduction

◆ _restart

◆ _sp

◆ _verbose
