Dune::AssembledLinearOperator< M, X, Y > Class Template Reference

A linear operator exporting itself in matrix form. More...

#include <dune/istl/operators.hh>

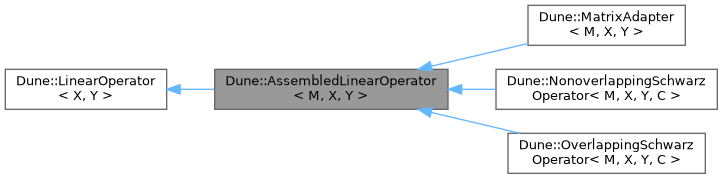

Inheritance diagram for Dune::AssembledLinearOperator< M, X, Y >:

Public Types
typedef M	matrix_type
	export types, usually they come from the derived class
typedef X	domain_type
typedef Y	range_type
typedef X::field_type	field_type

Public Member Functions
virtual const M &	getmat () const =0
	get matrix via *
virtual	~AssembledLinearOperator ()
	every abstract base class has a virtual destructor
virtual void	apply (const X &x, Y &y) const =0
	apply operator to x: \( y = A(x) \) The input vector is consistent and the output must also be consistent on the interior+border partition.
virtual void	applyscaleadd (field_type alpha, const X &x, Y &y) const =0
	apply operator to x, scale and add: \( y = y + \alpha A(x) \)
virtual SolverCategory::Category	category () const =0
	Category of the linear operator (see SolverCategory::Category)

Detailed Description

template<class M, class X, class Y>
class Dune::AssembledLinearOperator< M, X, Y >

A linear operator exporting itself in matrix form.

Linear Operator that exports the operator in matrix form. This is needed for certain solvers, such as LU decomposition, ILU preconditioners or BiCG-Stab (because of multiplication with A^T).

Member Typedef Documentation

domain_type

template<class M , class X , class Y >

typedef X Dune::AssembledLinearOperator< M, X, Y >::domain_type

field_type

template<class M , class X , class Y >

typedef X::field_type Dune::AssembledLinearOperator< M, X, Y >::field_type

matrix_type

template<class M , class X , class Y >

typedef M Dune::AssembledLinearOperator< M, X, Y >::matrix_type

export types, usually they come from the derived class

range_type

template<class M , class X , class Y >

typedef Y Dune::AssembledLinearOperator< M, X, Y >::range_type

Constructor & Destructor Documentation

~AssembledLinearOperator()

template<class M , class X , class Y >

virtual Dune::AssembledLinearOperator< M, X, Y >::~AssembledLinearOperator ( )

inlinevirtual

every abstract base class has a virtual destructor

Member Function Documentation

apply()

template<class X , class Y >

virtual void Dune::LinearOperator< X, Y >::apply ( const X &  x, Y &  y  ) const

pure virtualinherited

apply operator to x: \( y = A(x) \) The input vector is consistent and the output must also be consistent on the interior+border partition.

Implemented in Dune::NonoverlappingSchwarzOperator< M, X, Y, C >, Dune::OverlappingSchwarzOperator< M, X, Y, C >, and Dune::MatrixAdapter< M, X, Y >.

applyscaleadd()

template<class X , class Y >

virtual void Dune::LinearOperator< X, Y >::applyscaleadd ( field_type  alpha, const X &  x, Y &  y  ) const

pure virtualinherited

apply operator to x, scale and add: \( y = y + \alpha A(x) \)

Implemented in Dune::NonoverlappingSchwarzOperator< M, X, Y, C >, Dune::OverlappingSchwarzOperator< M, X, Y, C >, and Dune::MatrixAdapter< M, X, Y >.

category()

template<class X , class Y >

virtual SolverCategory::Category Dune::LinearOperator< X, Y >::category ( ) const

pure virtualinherited

Category of the linear operator (see SolverCategory::Category)

Implemented in Dune::NonoverlappingSchwarzOperator< M, X, Y, C >, Dune::OverlappingSchwarzOperator< M, X, Y, C >, and Dune::MatrixAdapter< M, X, Y >.

getmat()

template<class M , class X , class Y >

virtual const M & Dune::AssembledLinearOperator< M, X, Y >::getmat ( ) const

pure virtual

get matrix via *

Implemented in Dune::NonoverlappingSchwarzOperator< M, X, Y, C >, Dune::OverlappingSchwarzOperator< M, X, Y, C >, and Dune::MatrixAdapter< M, X, Y >.

---

The documentation for this class was generated from the following file:

• operators.hh
