Dune::ILUSubdomainSolver< M, X, Y > Class Template Reference

base class encapsulating common algorithms of ILU0SubdomainSolver and ILUNSubdomainSolver. More...

#include <dune/istl/ilusubdomainsolver.hh>

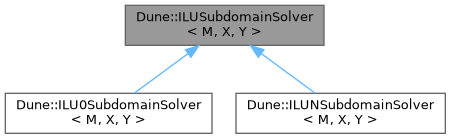

Inheritance diagram for Dune::ILUSubdomainSolver< M, X, Y >:

Public Types
typedef std::remove_const< M >::type	matrix_type
	The matrix type the preconditioner is for.
typedef X	domain_type
	The domain type of the preconditioner.
typedef Y	range_type
	The range type of the preconditioner.

Public Member Functions
virtual void	apply (X &v, const Y &d)=0
	Apply the subdomain solver.
virtual	~ILUSubdomainSolver ()

Protected Member Functions
template<class S >
std::size_t	copyToLocalMatrix (const M &A, S &rowset)
	Copy the local part of the global matrix to ILU.

Protected Attributes
matrix_type	ILU
	The ILU0 decomposition of the matrix, or the local matrix.

Detailed Description

template<class M, class X, class Y>
class Dune::ILUSubdomainSolver< M, X, Y >

base class encapsulating common algorithms of ILU0SubdomainSolver and ILUNSubdomainSolver.

Template Parameters

M	The type of the matrix.
X	The type of the vector for the domain.
X	The type of the vector for the range.

Member Typedef Documentation

domain_type

template<class M , class X , class Y >

typedef X Dune::ILUSubdomainSolver< M, X, Y >::domain_type

The domain type of the preconditioner.

matrix_type

template<class M , class X , class Y >

typedef std::remove_const<M>::type Dune::ILUSubdomainSolver< M, X, Y >::matrix_type

The matrix type the preconditioner is for.

range_type

template<class M , class X , class Y >

typedef Y Dune::ILUSubdomainSolver< M, X, Y >::range_type

The range type of the preconditioner.

Constructor & Destructor Documentation

~ILUSubdomainSolver()

template<class M , class X , class Y >

virtual Dune::ILUSubdomainSolver< M, X, Y >::~ILUSubdomainSolver ( )

inlinevirtual

Member Function Documentation

apply()

template<class M , class X , class Y >

virtual void Dune::ILUSubdomainSolver< M, X, Y >::apply ( X &  v, const Y &  d  )

pure virtual

Apply the subdomain solver.

On entry v=? and d=b-A(x) (although this might not be computed in that way. On exit v contains the update

Implemented in Dune::ILU0SubdomainSolver< M, X, Y >, and Dune::ILUNSubdomainSolver< M, X, Y >.

Member Data Documentation

ILU

template<class M , class X , class Y >

matrix_type Dune::ILUSubdomainSolver< M, X, Y >::ILU

protected

The ILU0 decomposition of the matrix, or the local matrix.

---

The documentation for this class was generated from the following file:

• ilusubdomainsolver.hh
