dune-grid: Dune::PersistentContainerVector< G, IndexSet, Vector > Class Template Reference

DUNE

dune-grid 2.8.0

Loading...

Searching...

No Matches

vector-based implementation of the PersistentContainer More...

#include <dune/grid/utility/persistentcontainervector.hh>

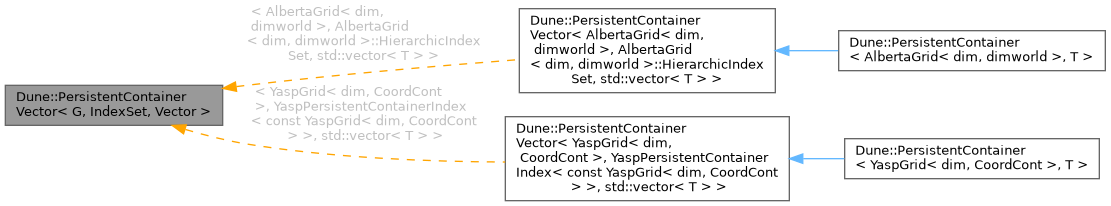

Inheritance diagram for Dune::PersistentContainerVector< G, IndexSet, Vector >:

Inheritance graph

Public Types
typedef G	Grid

typedef Vector::value_type	Value

typedef Vector::size_type	Size

typedef Vector::const_iterator	ConstIterator

typedef Vector::iterator	Iterator

typedef Vector::allocator_type	Allocator

Public Member Functions
	PersistentContainerVector (const IndexSet &indexSet, int codim, const Value &value, const Allocator &allocator=Allocator())

template<class Entity >
const Value &	operator[] (const Entity &entity) const

template<class Entity >
Value &	operator[] (const Entity &entity)

template<class Entity >
const Value &	operator() (const Entity &entity, int subEntity) const

template<class Entity >
Value &	operator() (const Entity &entity, int subEntity)

Size	size () const

void	resize (const Value &value=Value())

void	shrinkToFit ()

void	fill (const Value &value)

void	swap (This &other)

ConstIterator	begin () const

Iterator	begin ()

ConstIterator	end () const

Iterator	end ()

int	codimension () const

Protected Member Functions
const IndexSet &	indexSet () const

Protected Attributes
int	codim_

const IndexSet *	indexSet_

Vector	data_

Detailed Description

template<class G, class IndexSet, class Vector>
class Dune::PersistentContainerVector< G, IndexSet, Vector >

vector-based implementation of the PersistentContainer

Some grid implementations, like YaspGrid, can provide consecutive, zero-based, persistent indices for the entire grid hierarchy. This implementation of a PersistentContainer uses such an index set and a std::vector-like container to store user data in an efficient and persistent manner.

Note: The persistent index set is actually allowed to be non-consecutive, i.e., some indices might not be assigned to an entity. As the result of the size method on the index set is used to allocate storage for the vector, it must be larger than the largest used index.; It is sufficient if the index set provides indices to the codimension the persistent container is created for. Neither the method types() nor the method contains() need to be implemented.; The persistent container is currently restricted to index sets containing a single geometry type.

Actually, we use a mapper rather than an index set. This would automatically resolve two problems:

support multiple geometry types,
the requirement to store a reference to the index set .

Template Parameters

G	type of grid
IndexSet	type of persistent index set
Vector	type of vector to store the data in

Member Typedef Documentation

◆ Allocator

template<class G , class IndexSet , class Vector >

typedef Vector::allocator_type Dune::PersistentContainerVector< G, IndexSet, Vector >::Allocator

◆ ConstIterator

template<class G , class IndexSet , class Vector >

typedef Vector::const_iterator Dune::PersistentContainerVector< G, IndexSet, Vector >::ConstIterator

◆ Grid

template<class G , class IndexSet , class Vector >

typedef G Dune::PersistentContainerVector< G, IndexSet, Vector >::Grid

◆ Iterator

template<class G , class IndexSet , class Vector >

typedef Vector::iterator Dune::PersistentContainerVector< G, IndexSet, Vector >::Iterator

◆ Size

template<class G , class IndexSet , class Vector >

typedef Vector::size_type Dune::PersistentContainerVector< G, IndexSet, Vector >::Size

◆ Value

template<class G , class IndexSet , class Vector >

typedef Vector::value_type Dune::PersistentContainerVector< G, IndexSet, Vector >::Value

Constructor & Destructor Documentation

◆ PersistentContainerVector()

template<class G , class IndexSet , class Vector >

Dune::PersistentContainerVector< G, IndexSet, Vector >::PersistentContainerVector	(	const IndexSet &	indexSet,
		int	codim,
		const Value &	value,
		const Allocator &	allocator = `Allocator()`
	)

inline

Member Function Documentation

◆ begin() [1/2]

template<class G , class IndexSet , class Vector >

Iterator Dune::PersistentContainerVector< G, IndexSet, Vector >::begin ( )

inline

◆ begin() [2/2]

template<class G , class IndexSet , class Vector >

ConstIterator Dune::PersistentContainerVector< G, IndexSet, Vector >::begin ( ) const

inline

◆ codimension()

template<class G , class IndexSet , class Vector >

int Dune::PersistentContainerVector< G, IndexSet, Vector >::codimension ( ) const

inline

◆ end() [1/2]

template<class G , class IndexSet , class Vector >

Iterator Dune::PersistentContainerVector< G, IndexSet, Vector >::end ( )

inline

◆ end() [2/2]

template<class G , class IndexSet , class Vector >

ConstIterator Dune::PersistentContainerVector< G, IndexSet, Vector >::end ( ) const

inline

◆ fill()

template<class G , class IndexSet , class Vector >

void Dune::PersistentContainerVector< G, IndexSet, Vector >::fill ( const Value & value )

inline

◆ indexSet()

template<class G , class IndexSet , class Vector >

const IndexSet & Dune::PersistentContainerVector< G, IndexSet, Vector >::indexSet ( ) const

inlineprotected

◆ operator()() [1/2]

template<class G , class IndexSet , class Vector >

template<class Entity >

Value & Dune::PersistentContainerVector< G, IndexSet, Vector >::operator()	(	const Entity &	entity,
		int	subEntity
	)

inline

◆ operator()() [2/2]

template<class G , class IndexSet , class Vector >

template<class Entity >

const Value & Dune::PersistentContainerVector< G, IndexSet, Vector >::operator()	(	const Entity &	entity,
		int	subEntity
	)		const

inline

◆ operator[]() [1/2]

template<class G , class IndexSet , class Vector >

template<class Entity >

Value & Dune::PersistentContainerVector< G, IndexSet, Vector >::operator[] ( const Entity & entity )

inline

◆ operator[]() [2/2]

template<class G , class IndexSet , class Vector >

template<class Entity >

const Value & Dune::PersistentContainerVector< G, IndexSet, Vector >::operator[] ( const Entity & entity ) const

inline

◆ resize()

template<class G , class IndexSet , class Vector >

void Dune::PersistentContainerVector< G, IndexSet, Vector >::resize ( const Value & value = Value() )

inline

◆ shrinkToFit()

template<class G , class IndexSet , class Vector >

void Dune::PersistentContainerVector< G, IndexSet, Vector >::shrinkToFit ( )

inline

◆ size()

template<class G , class IndexSet , class Vector >

Size Dune::PersistentContainerVector< G, IndexSet, Vector >::size ( ) const

inline

◆ swap()

template<class G , class IndexSet , class Vector >

void Dune::PersistentContainerVector< G, IndexSet, Vector >::swap ( This & other )

inline

Member Data Documentation

◆ codim_

template<class G , class IndexSet , class Vector >

int Dune::PersistentContainerVector< G, IndexSet, Vector >::codim_

protected

◆ data_

template<class G , class IndexSet , class Vector >

Vector Dune::PersistentContainerVector< G, IndexSet, Vector >::data_

protected

◆ indexSet_

template<class G , class IndexSet , class Vector >

const IndexSet* Dune::PersistentContainerVector< G, IndexSet, Vector >::indexSet_

protected

The documentation for this class was generated from the following file:

persistentcontainervector.hh
