structure to hold information about a certain GridView. More...

#include <dune/grid/utility/gridinfo.hh>

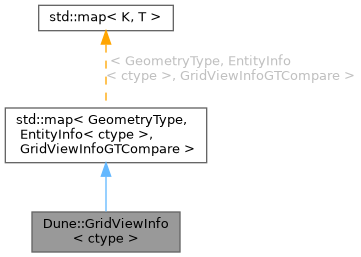

Inheritance diagram for Dune::GridViewInfo< ctype >:

Public Member Functions
void	print (std::ostream &stream, std::string prefix) const
	print the information contained in this object

EntityInfo< ctype >	at (EntityInfo< ctype > ... args)

EntityInfo< ctype >	begin (EntityInfo< ctype > ... args)

EntityInfo< ctype >	cbegin (EntityInfo< ctype > ... args)

EntityInfo< ctype >	cend (EntityInfo< ctype > ... args)

EntityInfo< ctype >	clear (EntityInfo< ctype > ... args)

EntityInfo< ctype >	contains (EntityInfo< ctype > ... args)

EntityInfo< ctype >	count (EntityInfo< ctype > ... args)

EntityInfo< ctype >	crbegin (EntityInfo< ctype > ... args)

EntityInfo< ctype >	crend (EntityInfo< ctype > ... args)

EntityInfo< ctype >	emplace (EntityInfo< ctype > ... args)

EntityInfo< ctype >	emplace_hint (EntityInfo< ctype > ... args)

EntityInfo< ctype >	empty (EntityInfo< ctype > ... args)

EntityInfo< ctype >	end (EntityInfo< ctype > ... args)

EntityInfo< ctype >	equal_range (EntityInfo< ctype > ... args)

EntityInfo< ctype >	erase (EntityInfo< ctype > ... args)

EntityInfo< ctype >	extract (EntityInfo< ctype > ... args)

EntityInfo< ctype >	find (EntityInfo< ctype > ... args)

EntityInfo< ctype >	get_allocator (EntityInfo< ctype > ... args)

EntityInfo< ctype >	insert (EntityInfo< ctype > ... args)

EntityInfo< ctype >	insert_or_assign (EntityInfo< ctype > ... args)

EntityInfo< ctype >	key_comp (EntityInfo< ctype > ... args)

EntityInfo< ctype >	lower_bound (EntityInfo< ctype > ... args)

EntityInfo< ctype >	max_size (EntityInfo< ctype > ... args)

EntityInfo< ctype >	merge (EntityInfo< ctype > ... args)

EntityInfo< ctype >	operator[] (EntityInfo< ctype > ... args)

EntityInfo< ctype >	rbegin (EntityInfo< ctype > ... args)

EntityInfo< ctype >	rend (EntityInfo< ctype > ... args)

EntityInfo< ctype >	size (EntityInfo< ctype > ... args)

EntityInfo< ctype >	swap (EntityInfo< ctype > ... args)

EntityInfo< ctype >	try_emplace (EntityInfo< ctype > ... args)

EntityInfo< ctype >	upper_bound (EntityInfo< ctype > ... args)

EntityInfo< ctype >	value_comp (EntityInfo< ctype > ... args)

Public Attributes
std::string	gridName
	name of the grid class this information was extracted from

std::string	gridViewName
	name of the class of the GridView this information was extracted from

std::string	partitionName
	name of the partition this information was extracted from

GeometryType	keys
	STL member.

EntityInfo< ctype >	elements
	STL member.

Related Symbols
(Note that these are not member symbols.)
template<class ctype >
std::ostream &	operator<< (std::ostream &stream, const GridViewInfo< ctype > &info)
	write a GridViewInfo object

Detailed Description

template<class ctype>
struct Dune::GridViewInfo< ctype >

structure to hold information about a certain GridView.

This is a map from GeometryType to EntityInfo structures. The entries in the map are sorted in dimension-first, isNone()-second, and topologyId-last order.

Member Function Documentation

◆ print()

template<class ctype >

void Dune::GridViewInfo< ctype >::print	(	std::ostream &	stream,
		std::string	prefix
	)		const

inline

print the information contained in this object

Parameters

stream	Stream object to print to.
prefix	Prefix to print in front of each line.

Sample output:

* prefix>
*

If gridName, gridViewName, or partitionName is emtpy, the corresponding line is not printed and no extra indentation is added for the subsequent lines.
