Dune::EntityDefaultImplementation< cd, dim, GridImp, EntityImp > Class Template Reference

Default Implementations for EntityImp. More...

#include <dune/grid/common/entity.hh>

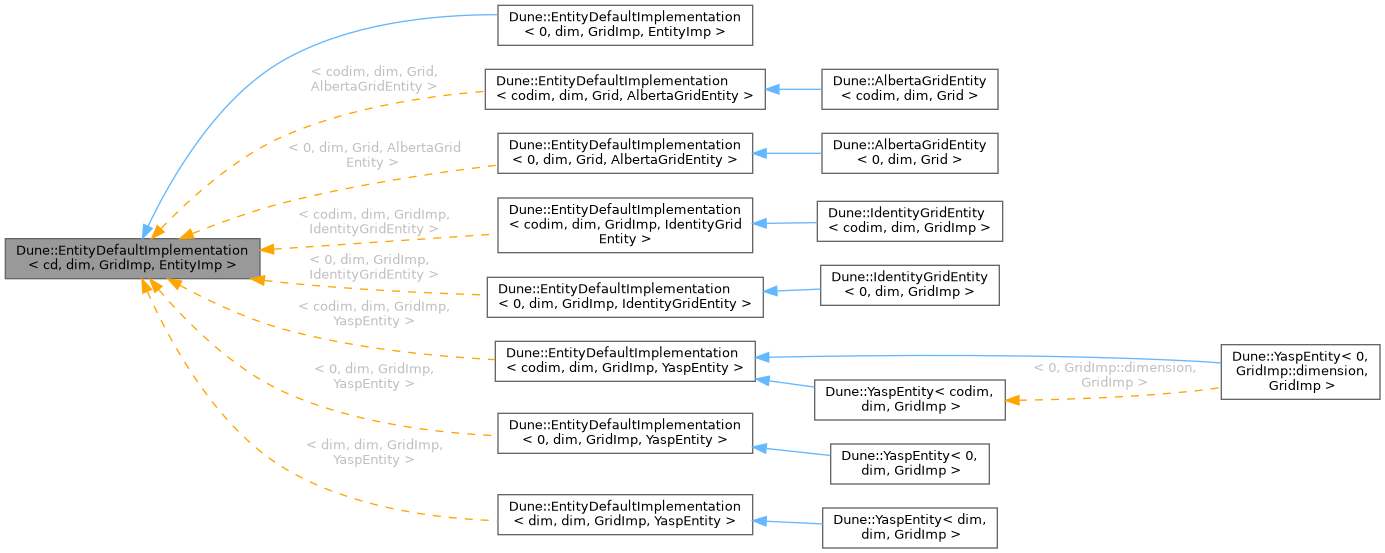

Inheritance diagram for Dune::EntityDefaultImplementation< cd, dim, GridImp, EntityImp >:

Public Types
enum	{ codimension =cd }
	know your own codimension More...
enum	{ dimension =dim }
	Dimension of the grid. More...
enum	{ mydimension =dim-cd }
	Know dimension of the entity. More...
typedef GridImp::template Codim< cd >::EntitySeed	EntitySeed
	The corresponding entity seed (for storage of entities)

Public Member Functions
unsigned int	subEntities (unsigned int codim) const
	Number of subentities for a given codimension.
GeometryType	type () const
	Return the name of the reference element. The type can be used to access the Dune::ReferenceElement.

Detailed Description

template<int cd, int dim, class GridImp, template< int, int, class > class EntityImp>
class Dune::EntityDefaultImplementation< cd, dim, GridImp, EntityImp >

Default Implementations for EntityImp.

EntityDefaultImplementation provides default implementations for Entity which uses the implemented interface which has to be done by the user.

Note

this is the general version, but there is a specialization for cd=0

Member Typedef Documentation

EntitySeed

template<int cd, int dim, class GridImp , template< int, int, class > class EntityImp>

typedef GridImp::template Codim<cd>::EntitySeed Dune::EntityDefaultImplementation< cd, dim, GridImp, EntityImp >::EntitySeed

The corresponding entity seed (for storage of entities)

Member Enumeration Documentation

anonymous enum

template<int cd, int dim, class GridImp , template< int, int, class > class EntityImp>

anonymous enum

know your own codimension

Enumerator
codimension

anonymous enum

template<int cd, int dim, class GridImp , template< int, int, class > class EntityImp>

anonymous enum

Dimension of the grid.

Enumerator
dimension

anonymous enum

template<int cd, int dim, class GridImp , template< int, int, class > class EntityImp>

anonymous enum

Know dimension of the entity.

Enumerator
mydimension

Member Function Documentation

subEntities()

template<int cd, int dim, class GridImp , template< int, int, class > class EntityImp>

unsigned int Dune::EntityDefaultImplementation< cd, dim, GridImp, EntityImp >::subEntities ( unsigned int  codim ) const

inline

Number of subentities for a given codimension.

Parameters

codim

codimension to obtain number of subentities for

Note

The codimension is specified with respect to the grid dimension.

Unless the geometry type is None, this method is redundant and the same information can be obtained from the corresponding reference element.

type()

template<int cd, int dim, class GridImp , template< int, int, class > class EntityImp>

GeometryType Dune::EntityDefaultImplementation< cd, dim, GridImp, EntityImp >::type ( ) const

inline

Return the name of the reference element. The type can be used to access the Dune::ReferenceElement.

---

The documentation for this class was generated from the following file:

• common/entity.hh
