Dune::BoundarySegmentWrapper< dim, dimworld > Class Template Reference

#include <dune/grid/common/boundaryprojection.hh>

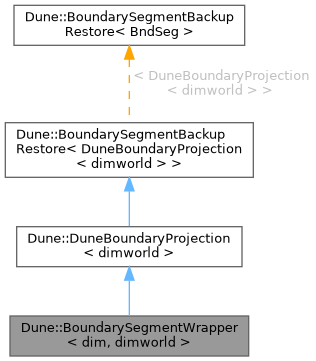

Inheritance diagram for Dune::BoundarySegmentWrapper< dim, dimworld >:

Public Types
typedef Base::CoordinateType	CoordinateType
typedef Dune::BoundarySegment< dim, dimworld >	BoundarySegment
typedef BoundarySegmentBackupRestore< DuneBoundaryProjection< dimworld > >	BaseType

Public Member Functions
	BoundarySegmentWrapper (const GeometryType &type, const std::vector< CoordinateType > &vertices, const std::shared_ptr< BoundarySegment > &boundarySegment)
	BoundarySegmentWrapper (ObjectStreamType &buffer)
CoordinateType	operator() (const CoordinateType &global) const
	projection operator projection a global coordinate
const BoundarySegment &	boundarySegment () const
void	backup (ObjectStreamType &buffer) const
	write DuneBoundaryProjection's data to stream buffer
template<class BufferImp >
void	toBuffer (BufferImp &buffer) const
template<class BufferImp >
void	toBuffer (MessageBufferIF< BufferImp > &buffer) const

Static Public Member Functions
static void	registerFactory ()
template<class BufferImp >
static std::unique_ptr< ThisType >	restoreFromBuffer (BufferImp &buffer)
template<class BufferImp >
static std::unique_ptr< ThisType >	restoreFromBuffer (MessageBufferIF< BufferImp > &buffer)

Protected Types
typedef Dune::ParameterizedObjectFactory< std::unique_ptr< BoundarySegment >(ObjectStreamType &), int >	FactoryType
	type of factory creating a unique_ptr from an ObjectStreamType

Protected Member Functions
FaceMapping	readFaceMapping (ObjectStreamType &buffer)

Static Protected Member Functions
static int &	key ()
static std::unique_ptr< BoundarySegment >	restore (ObjectStreamType &in)
	create an object of BoundarySegment type from a previously registered factory linked to key.

Detailed Description

template<int dim, int dimworld>
class Dune::BoundarySegmentWrapper< dim, dimworld >

Template Parameters

dim	Dimension of the grid

Member Typedef Documentation

BaseType

template<int dimworld>

typedef BoundarySegmentBackupRestore< DuneBoundaryProjection< dimworld > > Dune::DuneBoundaryProjection< dimworld >::BaseType

inherited

BoundarySegment

template<int dim, int dimworld>

typedef Dune::BoundarySegment< dim, dimworld > Dune::BoundarySegmentWrapper< dim, dimworld >::BoundarySegment

CoordinateType

template<int dim, int dimworld>

typedef Base::CoordinateType Dune::BoundarySegmentWrapper< dim, dimworld >::CoordinateType

FactoryType

typedef Dune::ParameterizedObjectFactory< std::unique_ptr< BoundarySegment >( ObjectStreamType& ), int > Dune::BoundarySegmentBackupRestore< DuneBoundaryProjection< dimworld > >::FactoryType

protectedinherited

type of factory creating a unique_ptr from an ObjectStreamType

Constructor & Destructor Documentation

BoundarySegmentWrapper() [1/2]

template<int dim, int dimworld>

Dune::BoundarySegmentWrapper< dim, dimworld >::BoundarySegmentWrapper ( const GeometryType &  type, const std::vector< CoordinateType > &  vertices, const std::shared_ptr< BoundarySegment > &  boundarySegment  )

inline

constructor

Parameters

[in]	type	geometry type of the boundary face
[in]	vertices	vertices of the boundary face
[in]	boundarySegment	geometric realization of the shaped boundary

Note

The BoundarySegmentWrapper takes control of the boundary segment.

BoundarySegmentWrapper() [2/2]

template<int dim, int dimworld>

Dune::BoundarySegmentWrapper< dim, dimworld >::BoundarySegmentWrapper ( ObjectStreamType &  buffer )

inline

Member Function Documentation

backup()

template<int dim, int dimworld>

void Dune::BoundarySegmentWrapper< dim, dimworld >::backup ( ObjectStreamType &  buffer ) const

inlinevirtual

write DuneBoundaryProjection's data to stream buffer

Parameters

buffer

buffer to store data

Reimplemented from Dune::DuneBoundaryProjection< dimworld >.

boundarySegment()

template<int dim, int dimworld>

const BoundarySegment & Dune::BoundarySegmentWrapper< dim, dimworld >::boundarySegment ( ) const

inline

key()

template<int dim, int dimworld>

static int & Dune::BoundarySegmentWrapper< dim, dimworld >::key ( )

inlinestaticprotected

operator()()

template<int dim, int dimworld>

CoordinateType Dune::BoundarySegmentWrapper< dim, dimworld >::operator() ( const CoordinateType &  global ) const

inlinevirtual

projection operator projection a global coordinate

Implements Dune::DuneBoundaryProjection< dimworld >.

readFaceMapping()

template<int dim, int dimworld>

FaceMapping Dune::BoundarySegmentWrapper< dim, dimworld >::readFaceMapping ( ObjectStreamType &  buffer )

inlineprotected

registerFactory()

template<int dim, int dimworld>

static void Dune::BoundarySegmentWrapper< dim, dimworld >::registerFactory ( )

inlinestatic

restore()

static std::unique_ptr< BoundarySegment > Dune::BoundarySegmentBackupRestore< DuneBoundaryProjection< dimworld > >::restore ( ObjectStreamType &  in )

inlinestaticprotectedinherited

create an object of BoundarySegment type from a previously registered factory linked to key.

Parameters

in	stream buffer previously written with backup containing key and object data

Returns

Object derived from BoundarySegment.

restoreFromBuffer() [1/2]

template<int dimworld>

template<class BufferImp >

static std::unique_ptr< ThisType > Dune::DuneBoundaryProjection< dimworld >::restoreFromBuffer ( BufferImp &  buffer )

inlinestaticinherited

restoreFromBuffer() [2/2]

template<int dimworld>

template<class BufferImp >

static std::unique_ptr< ThisType > Dune::DuneBoundaryProjection< dimworld >::restoreFromBuffer ( MessageBufferIF< BufferImp > &  buffer )

inlinestaticinherited

toBuffer() [1/2]

template<int dimworld>

template<class BufferImp >

void Dune::DuneBoundaryProjection< dimworld >::toBuffer ( BufferImp &  buffer ) const

inlineinherited

toBuffer() [2/2]

template<int dimworld>

template<class BufferImp >

void Dune::DuneBoundaryProjection< dimworld >::toBuffer ( MessageBufferIF< BufferImp > &  buffer ) const

inlineinherited

---

The documentation for this class was generated from the following file:

• boundaryprojection.hh
