Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl > Class Template Reference

Interface class for using a discrete function to define the geometry of a Dune::GeometryGrid. An implementation should be derived from Dune::DiscreteCoordinateFunction and the evaluate method taking an entity of the host grid together with the number of a vertex returns the coordinate in \( R^r \) of that corner. The user must ensure continuity of this mapping. In addition an adapt method is provided which is called whenever adapt() is called on the Dune::GeometryGrid. More...

#include <dune/grid/geometrygrid/coordfunction.hh>

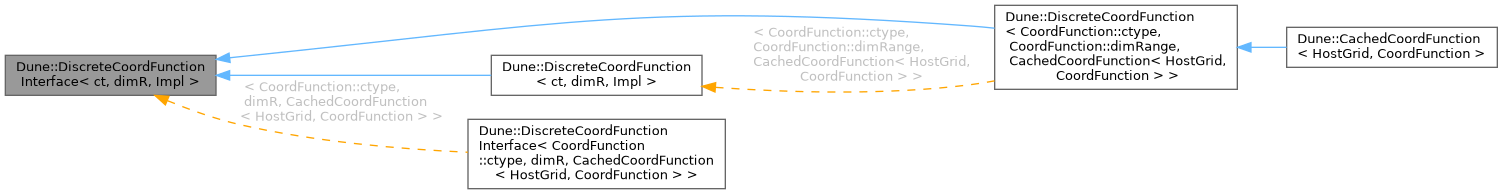

Inheritance diagram for Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >:

Public Types
typedef This	Interface
typedef Impl	Implementation
typedef ct	ctype
	field type of the coordinate vector
typedef FieldVector< ctype, dimRange >	RangeVector
	range vector for the evaluate method

Public Member Functions
template<class HostEntity >
void	evaluate (const HostEntity &hostEntity, unsigned int corner, RangeVector &y) const
	evaluate method
void	adapt ()
	method called from grid.adapt() method to allow adaptation of the discrete coordinate function

Static Public Attributes
static const unsigned int	dimRange = dimR
	dimension of the range vector

Protected Member Functions
const Implementation &	asImp () const
Implementation &	asImp ()

Detailed Description

template<class ct, unsigned int dimR, class Impl>
class Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >

Interface class for using a discrete function to define the geometry of a Dune::GeometryGrid. An implementation should be derived from Dune::DiscreteCoordinateFunction and the evaluate method taking an entity of the host grid together with the number of a vertex returns the coordinate in \( R^r \) of that corner. The user must ensure continuity of this mapping. In addition an adapt method is provided which is called whenever adapt() is called on the Dune::GeometryGrid.

Template Parameters

ct	coordinate field type (ct in Dune::GeometryGrid)
dimR	dimension of the range of the mapping (dimensionworld in Dune::GeometryGrid)
Impl	implementation class (BN trick)

Member Typedef Documentation

ctype

template<class ct , unsigned int dimR, class Impl >

typedef ct Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::ctype

field type of the coordinate vector

Implementation

template<class ct , unsigned int dimR, class Impl >

typedef Impl Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::Implementation

Interface

template<class ct , unsigned int dimR, class Impl >

typedef This Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::Interface

RangeVector

template<class ct , unsigned int dimR, class Impl >

typedef FieldVector< ctype, dimRange > Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::RangeVector

range vector for the evaluate method

Member Function Documentation

adapt()

template<class ct , unsigned int dimR, class Impl >

void Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::adapt ( )

inline

method called from grid.adapt() method to allow adaptation of the discrete coordinate function

asImp() [1/2]

template<class ct , unsigned int dimR, class Impl >

Implementation & Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::asImp ( )

inlineprotected

asImp() [2/2]

template<class ct , unsigned int dimR, class Impl >

const Implementation & Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::asImp ( ) const

inlineprotected

evaluate()

template<class ct , unsigned int dimR, class Impl >

template<class HostEntity >

void Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::evaluate ( const HostEntity &  hostEntity, unsigned int  corner, RangeVector &  y  ) const

inline

evaluate method

Parameters

hostEntity	an entity of the host grid
corner	the local number of the corner in the host entity
y	return value for the coordinate of this corner

Note

This method needs to work for entities of all codimensions, not just for elements!

Member Data Documentation

dimRange

template<class ct , unsigned int dimR, class Impl >

const unsigned int Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::dimRange = dimR

static

dimension of the range vector

---

The documentation for this class was generated from the following file:

• coordfunction.hh
