Dune::VTKWriter< GridView > Class Template Reference

Writer for the output of grid functions in the vtk format. More...

#include <dune/grid/io/file/vtk/vtkwriter.hh>

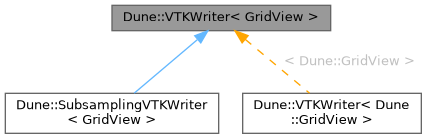

Inheritance diagram for Dune::VTKWriter< GridView >:

Classes
class	CellIterator
	Iterator over the grids elements. More...
class	CornerIterator
	Iterate over the elements' corners. More...
class	VertexIterator
	Iterate over the grid's vertices. More...
class	VTKLocalFunction
	Type erasure wrapper for VTK data sets. More...

Public Types
typedef Dune::VTKFunction< GridView >	VTKFunction

Public Member Functions
	VTKWriter (const GridView &gridView, VTK::DataMode dm=VTK::conforming, VTK::Precision coordPrecision=VTK::Precision::float32)
	Construct a VTKWriter working on a specific GridView.
void	addCellData (const std::shared_ptr< const VTKFunction > &p)
	Add a grid function that lives on the cells of the grid to the visualization.
template<typename F >
void	addCellData (F &&f, VTK::FieldInfo vtkFieldInfo)
	Add a function by sampling it on the element centers.
template<class Container >
void	addCellData (const Container &v, const std::string &name, int ncomps=1, VTK::Precision prec=VTK::Precision::float32)
	Add a grid function (represented by container) that lives on the cells of the grid to the visualization.
void	addVertexData (const std::shared_ptr< const VTKFunction > &p)
	Add a grid function that lives on the vertices of the grid to the visualization.
template<typename F >
void	addVertexData (F &&f, VTK::FieldInfo vtkFieldInfo)
	Add a function by sampling it on the grid vertices.
template<class Container >
void	addVertexData (const Container &v, const std::string &name, int ncomps=1, VTK::Precision prec=VTK::Precision::float32)
	Add a grid function (represented by container) that lives on the vertices of the grid to the visualization output.
void	clear ()
	clear list of registered functions
VTK::Precision	coordPrecision () const
	get the precision with which coordinates are written out
virtual	~VTKWriter ()
	destructor
std::string	write (const std::string &name, VTK::OutputType type=VTK::ascii)
	write output (interface might change later)
std::string	pwrite (const std::string &name, const std::string &path, const std::string &extendpath, VTK::OutputType type=VTK::ascii)
	write output (interface might change later)

Protected Types
typedef std::list< VTKLocalFunction >::const_iterator	FunctionIterator

Protected Member Functions
CellIterator	cellBegin () const
CellIterator	cellEnd () const
VertexIterator	vertexBegin () const
VertexIterator	vertexEnd () const
CornerIterator	cornerBegin () const
CornerIterator	cornerEnd () const
std::string	getParallelPieceName (const std::string &name, const std::string &path, int commRank, int commSize) const
	return name of a parallel piece file (or header name)
std::string	getParallelHeaderName (const std::string &name, const std::string &path, int commSize) const
	return name of a parallel header file
std::string	getSerialPieceName (const std::string &name, const std::string &path) const
	return name of a serial piece file
std::string	write (const std::string &name, VTK::OutputType type, const int commRank, const int commSize)
	write output (interface might change later)
std::string	pwrite (const std::string &name, const std::string &path, const std::string &extendpath, VTK::OutputType ot, const int commRank, const int commSize)
	write output; interface might change later
std::string	getFormatString () const
std::string	getTypeString () const
virtual void	countEntities (int &nvertices_, int &ncells_, int &ncorners_)
	count the vertices, cells and corners
template<typename T >
std::tuple< std::string, std::string >	getDataNames (const T &data) const
template<typename Data , typename Iterator >
void	writeData (VTK::VTUWriter &writer, const Data &data, const Iterator begin, const Iterator end, int nentries)
virtual void	writeCellData (VTK::VTUWriter &writer)
	write cell data
virtual void	writeVertexData (VTK::VTUWriter &writer)
	write vertex data
virtual void	writeGridPoints (VTK::VTUWriter &writer)
	write the positions of vertices
virtual void	writeGridCells (VTK::VTUWriter &writer)
	write the connectivity array
bool	checkForPolyhedralCells () const
virtual void	writeCellFaces (VTK::VTUWriter &writer)
	write the connectivity array
template<class CornerIterator , class IndexSet , class T >
void	fillFaceVertices (CornerIterator it, const CornerIterator end, const IndexSet &indexSet, std::vector< T > &faces, std::vector< T > &faceOffsets)

Static Protected Member Functions
template<class Entity , class IndexSet , class T >
static void	fillFacesForElement (const Entity &element, const IndexSet &indexSet, const std::vector< T > &vertices, T &offset, std::vector< T > &faces, std::vector< T > &faceOffsets)

Protected Attributes
std::list< VTKLocalFunction >	celldata
std::list< VTKLocalFunction >	vertexdata
GridView	gridView_
int	ncells
int	nvertices
int	ncorners
VTK::OutputType	outputtype

Detailed Description

template<class GridView>
class Dune::VTKWriter< GridView >

Writer for the output of grid functions in the vtk format.

Writes arbitrary grid functions (living on cells or vertices of a grid) to a file suitable for easy visualization with The Visualization Toolkit (VTK).

Member Typedef Documentation

FunctionIterator

template<class GridView >

typedef std::list<VTKLocalFunction>::const_iterator Dune::VTKWriter< GridView >::FunctionIterator

protected

VTKFunction

template<class GridView >

typedef Dune::VTKFunction< GridView > Dune::VTKWriter< GridView >::VTKFunction

Constructor & Destructor Documentation

VTKWriter()

template<class GridView >

Dune::VTKWriter< GridView >::VTKWriter ( const GridView &  gridView, VTK::DataMode  dm = VTK::conforming, VTK::Precision  coordPrecision = VTK::Precision::float32  )

inlineexplicit

Construct a VTKWriter working on a specific GridView.

Parameters

gridView	The gridView the grid functions live on. (E. g. a LevelGridView.)
dm	The data mode.
coordPrecision	the precision with which to write out the coordinates

~VTKWriter()

template<class GridView >

virtual Dune::VTKWriter< GridView >::~VTKWriter ( )

inlinevirtual

destructor

Member Function Documentation

addCellData() [1/3]

template<class GridView >

template<class Container >

void Dune::VTKWriter< GridView >::addCellData ( const Container &  v, const std::string &  name, int  ncomps = 1, VTK::Precision  prec = VTK::Precision::float32  )

inline

Add a grid function (represented by container) that lives on the cells of the grid to the visualization.

The container has to have random access via operator[] (e.g. std::vector). The value of the grid function for an arbitrary element will be accessed by calling operator[] with the index (corresponding to the index from the MGMC mapper on the grid view) of the element. For vector valued data all components for an element are assumed to be consecutive.

Parameters

v	The container with the values of the grid function for each cell.
name	A name to identify the grid function.
ncomps	Number of components (default is 1).

addCellData() [2/3]

template<class GridView >

void Dune::VTKWriter< GridView >::addCellData ( const std::shared_ptr< const VTKFunction > &  p )

inline

Add a grid function that lives on the cells of the grid to the visualization.

Parameters

p	std::shared_ptr to the function to visualize

addCellData() [3/3]

template<class GridView >

template<typename F >

void Dune::VTKWriter< GridView >::addCellData ( F &&  f, VTK::FieldInfo  vtkFieldInfo  )

inline

Add a function by sampling it on the element centers.

Parameters

f	The function to be written to the file

The object f can be one of several things. Depending on what it is exactly, its object life-time is influenced in different ways:

• If f has the method bind(), then a copy of f is stored, regardless of whether f is an l- or r-value.
• If f can be localized by calling localFunction(f), then a copy of localFunction(f) is stored, but f is never stored, regardless of whether f is an l- or r-value.
• If f supports neither bind() or localFunction(), then a copy of f is stored, regardless if f is an l- or r-value.

The previous paragraph actually refers to parts of the dune-functions interface, and you may want to read up on that if you want to write functions to VTK.

Deprecated:

f may also be a VTKFunction object, but you are strongly discouraged from using VTKFunctions.

addVertexData() [1/3]

template<class GridView >

template<class Container >

void Dune::VTKWriter< GridView >::addVertexData ( const Container &  v, const std::string &  name, int  ncomps = 1, VTK::Precision  prec = VTK::Precision::float32  )

inline

Add a grid function (represented by container) that lives on the vertices of the grid to the visualization output.

The container has to have random access via operator[] (e.g. std::vector). The value of the grid function for an arbitrary element will be accessed by calling operator[] with the index (corresponding to the index from the MGMC mapper on the grid view) of the vertex. For vector valued data all components for a vertex are assumed to be consecutive.

Parameters

v	The container with the values of the grid function for each vertex.
name	A name to identify the grid function.
ncomps	Number of components (default is 1).

addVertexData() [2/3]

template<class GridView >

void Dune::VTKWriter< GridView >::addVertexData ( const std::shared_ptr< const VTKFunction > &  p )

inline

Add a grid function that lives on the vertices of the grid to the visualization.

Parameters

p	std::shared_ptr to the function to visualize

addVertexData() [3/3]

template<class GridView >

template<typename F >

void Dune::VTKWriter< GridView >::addVertexData ( F &&  f, VTK::FieldInfo  vtkFieldInfo  )

inline

Add a function by sampling it on the grid vertices.

Parameters

f	The function to be written to the file

The object f can be one of several things. Depending on what it is exactly, its object life-time is influenced in different ways:

• If f has the method bind(), then a copy of f is stored, regardless of whether f is an l- or r-value.
• If f can be localized by calling localFunction(f), then a copy of localFunction(f) is stored, but f is never stored, regardless of whether f is an l- or r-value.
• If f supports neither bind() or localFunction(), then a copy of f is stored, regardless if f is an l- or r-value.

The previous paragraph actually refers to parts of the dune-functions interface, and you may want to read up on that if you want to write functions to VTK.

Deprecated:

f may also be a VTKFunction object, but you are strongly discouraged from using VTKFunctions.

cellBegin()

template<class GridView >

CellIterator Dune::VTKWriter< GridView >::cellBegin ( ) const

inlineprotected

cellEnd()

template<class GridView >

CellIterator Dune::VTKWriter< GridView >::cellEnd ( ) const

inlineprotected

checkForPolyhedralCells()

template<class GridView >

bool Dune::VTKWriter< GridView >::checkForPolyhedralCells ( ) const

inlineprotected

clear()

template<class GridView >

void Dune::VTKWriter< GridView >::clear ( )

inline

clear list of registered functions

coordPrecision()

template<class GridView >

VTK::Precision Dune::VTKWriter< GridView >::coordPrecision ( ) const

inline

get the precision with which coordinates are written out

cornerBegin()

template<class GridView >

CornerIterator Dune::VTKWriter< GridView >::cornerBegin ( ) const

inlineprotected

cornerEnd()

template<class GridView >

CornerIterator Dune::VTKWriter< GridView >::cornerEnd ( ) const

inlineprotected

countEntities()

template<class GridView >

virtual void Dune::VTKWriter< GridView >::countEntities ( int &  nvertices_, int &  ncells_, int &  ncorners_  )

inlineprotectedvirtual

count the vertices, cells and corners

Reimplemented in Dune::SubsamplingVTKWriter< GridView >.

fillFacesForElement()

template<class GridView >

template<class Entity , class IndexSet , class T >

static void Dune::VTKWriter< GridView >::fillFacesForElement ( const Entity &  element, const IndexSet &  indexSet, const std::vector< T > &  vertices, T &  offset, std::vector< T > &  faces, std::vector< T > &  faceOffsets  )

inlinestaticprotected

fillFaceVertices()

template<class GridView >

template<class CornerIterator , class IndexSet , class T >

void Dune::VTKWriter< GridView >::fillFaceVertices ( CornerIterator  it, const CornerIterator  end, const IndexSet &  indexSet, std::vector< T > &  faces, std::vector< T > &  faceOffsets  )

inlineprotected

getDataNames()

template<class GridView >

template<typename T >

std::tuple< std::string, std::string > Dune::VTKWriter< GridView >::getDataNames ( const T &  data ) const

inlineprotected

getFormatString()

template<class GridView >

std::string Dune::VTKWriter< GridView >::getFormatString ( ) const

inlineprotected

getParallelHeaderName()

template<class GridView >

std::string Dune::VTKWriter< GridView >::getParallelHeaderName ( const std::string &  name, const std::string &  path, int  commSize  ) const

inlineprotected

return name of a parallel header file

Parameters

name	Base name of the VTK output. This should be without any directory parts and without a filename extension.
path	Directory part of the resulting header name. May be empty, in which case the resulting name will not have a directory part. If non-empty, may or may not have a trailing '/'. If a trailing slash is missing, one is appended implicitly.
commSize	Number of processes writing a parallel vtk output.

getParallelPieceName()

template<class GridView >

std::string Dune::VTKWriter< GridView >::getParallelPieceName ( const std::string &  name, const std::string &  path, int  commRank, int  commSize  ) const

inlineprotected

return name of a parallel piece file (or header name)

Parameters

name	Base name of the VTK output. This should be without any directory parts and without a filename extension.
path	Directory part of the resulting piece name. May be empty, in which case the resulting name will not have a directory part. If non-empty, may or may not have a trailing '/'. If a trailing slash is missing, one is appended implicitly.
commRank	Rank of the process to generate a piece name for. if (-1) then the header is created.
commSize	Number of processes writing a parallel vtk output.

getSerialPieceName()

template<class GridView >

std::string Dune::VTKWriter< GridView >::getSerialPieceName ( const std::string &  name, const std::string &  path  ) const

inlineprotected

return name of a serial piece file

This is similar to getParallelPieceName, but skips the prefixes for commSize ("s####-") and commRank ("p####-").

Parameters

name	Base name of the VTK output. This should be without any directory parts and without a filename extension.
path	Directory part of the resulting piece name. May be empty, in which case the resulting name will not have a directory part. If non-empty, may or may not have a trailing '/'. If a trailing slash is missing, one is appended implicitly.

getTypeString()

template<class GridView >

std::string Dune::VTKWriter< GridView >::getTypeString ( ) const

inlineprotected

pwrite() [1/2]

template<class GridView >

std::string Dune::VTKWriter< GridView >::pwrite ( const std::string &  name, const std::string &  path, const std::string &  extendpath, VTK::OutputType  ot, const int  commRank, const int  commSize  )

inlineprotected

write output; interface might change later

Parameters

name	Base name of the output files. This should not contain any directory part and not filename extensions. It will be used both for each processes piece as well as the parallel collection file.
path	Directory where to put the parallel collection (.pvtu/.pvtp) file. If it is relative, it is taken relative to the current directory.
extendpath	Directory where to put the piece file (.vtu/.vtp) of this process. If it is relative, it is taken relative to the directory denoted by path.
ot	How to encode the data in the file.
commRank	Rank of the current process.
commSize	Number of processes taking part in this write operation.

Note

Currently, extendpath may not be absolute unless path is absolute, because that would require the value of the current directory.

Exceptions

NotImplemented	Extendpath is absolute but path is relative.
IOError	Failed to open a file.

pwrite() [2/2]

template<class GridView >

std::string Dune::VTKWriter< GridView >::pwrite ( const std::string &  name, const std::string &  path, const std::string &  extendpath, VTK::OutputType  type = VTK::ascii  )

inline

write output (interface might change later)

"pwrite" means "path write" (i.e. write somewhere else than the current directory). The "p" does not mean this method has a monopoly on parallel writing, the regular write(const std::string &, VTK::OutputType) method can do that just fine.

Parameters

name	Base name of the output files. This should not contain any directory part and not filename extensions. It will be used both for each processes piece as well as the parallel collection file.
path	Directory where to put the parallel collection (.pvtu/.pvtp) file. If it is relative, it is taken relative to the current directory.
extendpath	Directory where to put the piece file (.vtu/.vtp) of this process. If it is relative, it is taken relative to the directory denoted by path.
type	How to encode the data in the file.

Note

Currently, extendpath may not be absolute unless path is absolute, because that would require the value of the current directory.

Exceptions

NotImplemented	Extendpath is absolute but path is relative.
IOError	Failed to open a file.

vertexBegin()

template<class GridView >

VertexIterator Dune::VTKWriter< GridView >::vertexBegin ( ) const

inlineprotected

vertexEnd()

template<class GridView >

VertexIterator Dune::VTKWriter< GridView >::vertexEnd ( ) const

inlineprotected

write() [1/2]

template<class GridView >

std::string Dune::VTKWriter< GridView >::write ( const std::string &  name, VTK::OutputType  type, const int  commRank, const int  commSize  )

inlineprotected

write output (interface might change later)

This method can be used in parallel as well as in serial programs. For serial runs (commSize=1) it chooses other names without the "s####-p####-" prefix for the .vtu/.vtp files and omits writing of the .pvtu/pvtp file however. For parallel runs (commSize > 1) it is the same as a call to pwrite() with name and path constructed from a given filename possibly containing a path, and extendpath="".

Parameters

name	Base name of the output files. This should not contain any directory part and no filename extensions.
type	How to encode the data in the file.
commRank	Rank of the current process.
commSize	Number of processes taking part in this write operation.

write() [2/2]

template<class GridView >

std::string Dune::VTKWriter< GridView >::write ( const std::string &  name, VTK::OutputType  type = VTK::ascii  )

inline

write output (interface might change later)

This method can be used in parallel as well as in serial programs. For serial runs (commSize=1) it chooses other names without the "s####-p####-" prefix for the .vtu/.vtp files and omits writing of the .pvtu/pvtp file however. For parallel runs (commSize > 1) it is the same as a call to pwrite() with name and path constructed from a given filename possibly containing a path, and extendpath="".

Parameters

[in]	name	basic name to write (may not contain a path)
[in]	type	type of output (e.g,, ASCII) (optional)

writeCellData()

template<class GridView >

virtual void Dune::VTKWriter< GridView >::writeCellData ( VTK::VTUWriter &  writer )

inlineprotectedvirtual

write cell data

Reimplemented in Dune::SubsamplingVTKWriter< GridView >.

writeCellFaces()

template<class GridView >

virtual void Dune::VTKWriter< GridView >::writeCellFaces ( VTK::VTUWriter &  writer )

inlineprotectedvirtual

write the connectivity array

writeData()

template<class GridView >

template<typename Data , typename Iterator >

void Dune::VTKWriter< GridView >::writeData ( VTK::VTUWriter &  writer, const Data &  data, const Iterator  begin, const Iterator  end, int  nentries  )

inlineprotected

writeGridCells()

template<class GridView >

virtual void Dune::VTKWriter< GridView >::writeGridCells ( VTK::VTUWriter &  writer )

inlineprotectedvirtual

write the connectivity array

Reimplemented in Dune::SubsamplingVTKWriter< GridView >.

writeGridPoints()

template<class GridView >

virtual void Dune::VTKWriter< GridView >::writeGridPoints ( VTK::VTUWriter &  writer )

inlineprotectedvirtual

write the positions of vertices

Reimplemented in Dune::SubsamplingVTKWriter< GridView >.

writeVertexData()

template<class GridView >

virtual void Dune::VTKWriter< GridView >::writeVertexData ( VTK::VTUWriter &  writer )

inlineprotectedvirtual

write vertex data

Reimplemented in Dune::SubsamplingVTKWriter< GridView >.

Member Data Documentation

celldata

template<class GridView >

std::list<VTKLocalFunction> Dune::VTKWriter< GridView >::celldata

protected

gridView_

template<class GridView >

GridView Dune::VTKWriter< GridView >::gridView_

protected

ncells

template<class GridView >

int Dune::VTKWriter< GridView >::ncells

protected

ncorners

template<class GridView >

int Dune::VTKWriter< GridView >::ncorners

protected

nvertices

template<class GridView >

int Dune::VTKWriter< GridView >::nvertices

protected

outputtype

template<class GridView >

VTK::OutputType Dune::VTKWriter< GridView >::outputtype

protected

vertexdata

template<class GridView >

std::list<VTKLocalFunction> Dune::VTKWriter< GridView >::vertexdata

protected

---

The documentation for this class was generated from the following file:

• vtkwriter.hh
