Dune::Functions::RefinedLagrangeNode< GV, k, R > Class Template Reference

#include <dune/functions/functionspacebases/refinedlagrangebasis.hh>

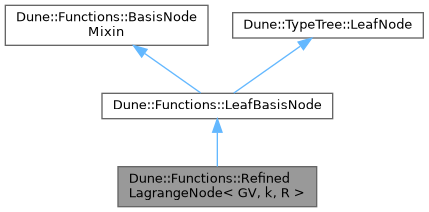

Inheritance diagram for Dune::Functions::RefinedLagrangeNode< GV, k, R >:

Public Types
using	Element = typename GV::template Codim< 0 >::Entity
	Type of the element in the GridView.
using	FiniteElement = std::conditional_t<(k==0), Dune::RefinedP0LocalFiniteElement< typename GV::ctype, R, dim >, Dune::RefinedP1LocalFiniteElement< typename GV::ctype, R, dim > >
	Type of the local finite-element.
using	size_type = std::size_t
typedef LeafNodeTag	NodeTag

Public Member Functions
	RefinedLagrangeNode ()
	The default constructor initializes all members to their default.
const Element &	element () const
	Return current element. The behavior is undefined if the node is not bound to any element.
const FiniteElement &	finiteElement () const
	Return the LocalFiniteElement for the element we are bound to.
void	bind (const Element &e)
	Bind the node to the element e.
size_type	localIndex (size_type i) const
size_type	size () const
size_type	treeIndex () const

Static Public Member Functions
static constexpr unsigned int	order ()
	Polynomial order used in the local Lagrange finite-elements in subdomains of the element.
static constexpr auto	degree ()

Static Public Attributes
static const bool	isLeaf
static const bool	isPower
static const bool	isComposite

Protected Member Functions
size_type	offset () const
void	setOffset (const size_type offset)
void	setSize (const size_type size)
void	setTreeIndex (size_type treeIndex)

Protected Attributes
const FiniteElement	finiteElement_
const Element *	element_

Member Typedef Documentation

Element

template<typename GV , int k, typename R >

using Dune::Functions::RefinedLagrangeNode< GV, k, R >::Element = typename GV::template Codim<0>::Entity

Type of the element in the GridView.

FiniteElement

template<typename GV , int k, typename R >

using Dune::Functions::RefinedLagrangeNode< GV, k, R >::FiniteElement = std::conditional_t<(k==0), Dune::RefinedP0LocalFiniteElement<typename GV::ctype,R,dim>, Dune::RefinedP1LocalFiniteElement<typename GV::ctype,R,dim> >

Type of the local finite-element.

size_type

using Dune::Functions::BasisNodeMixin::size_type = std::size_t

inherited

Constructor & Destructor Documentation

RefinedLagrangeNode()

template<typename GV , int k, typename R >

Dune::Functions::RefinedLagrangeNode< GV, k, R >::RefinedLagrangeNode ( )

inline

The default constructor initializes all members to their default.

The constructor default constructs the local finite-element and sets the element pointer to nullptr, meaning that the node is not bound to any element yet.

Note

Before the node can be used it needs to be bound to an element.

Member Function Documentation

bind()

template<typename GV , int k, typename R >

void Dune::Functions::RefinedLagrangeNode< GV, k, R >::bind ( const Element &  e )

inline

Bind the node to the element e.

element()

template<typename GV , int k, typename R >

const Element & Dune::Functions::RefinedLagrangeNode< GV, k, R >::element ( ) const

inline

Return current element. The behavior is undefined if the node is not bound to any element.

finiteElement()

template<typename GV , int k, typename R >

const FiniteElement & Dune::Functions::RefinedLagrangeNode< GV, k, R >::finiteElement ( ) const

inline

Return the LocalFiniteElement for the element we are bound to.

The LocalFiniteElement implements the corresponding interfaces of the dune-localfunctions module.

localIndex()

size_type Dune::Functions::BasisNodeMixin::localIndex ( size_type  i ) const

inlineinherited

offset()

size_type Dune::Functions::BasisNodeMixin::offset ( ) const

inlineprotectedinherited

order()

template<typename GV , int k, typename R >

static constexpr unsigned int Dune::Functions::RefinedLagrangeNode< GV, k, R >::order ( )

inlinestaticconstexpr

Polynomial order used in the local Lagrange finite-elements in subdomains of the element.

setOffset()

void Dune::Functions::BasisNodeMixin::setOffset ( const size_type  offset )

inlineprotectedinherited

setSize()

void Dune::Functions::BasisNodeMixin::setSize ( const size_type  size )

inlineprotectedinherited

setTreeIndex()

void Dune::Functions::BasisNodeMixin::setTreeIndex ( size_type  treeIndex )

inlineprotectedinherited

size()

size_type Dune::Functions::BasisNodeMixin::size ( ) const

inlineinherited

treeIndex()

size_type Dune::Functions::BasisNodeMixin::treeIndex ( ) const

inlineinherited

Member Data Documentation

element_

template<typename GV , int k, typename R >

const Element* Dune::Functions::RefinedLagrangeNode< GV, k, R >::element_

protected

finiteElement_

template<typename GV , int k, typename R >

const FiniteElement Dune::Functions::RefinedLagrangeNode< GV, k, R >::finiteElement_

protected

---

The documentation for this class was generated from the following file:

• refinedlagrangebasis.hh
