Dune::Functions::NedelecPreBasis< GV, Range, kind, order > Class Template Reference

#include <dune/functions/functionspacebases/nedelecbasis.hh>

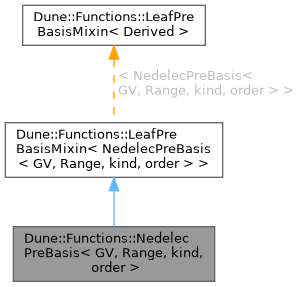

Inheritance diagram for Dune::Functions::NedelecPreBasis< GV, Range, kind, order >:

Public Types
using	GridView = GV
	The grid view that the FE space is defined on.
using	size_type = std::size_t
using	Node = NedelecNode< GV, Range, kind, order >

Public Member Functions
	NedelecPreBasis (const GridView &gv)
	Constructor for a given grid view object.
void	initializeIndices ()
const GridView &	gridView () const
	Obtain the grid view that the basis is defined on.
void	update (const GridView &gv)
Node	makeNode () const
	Create tree node.
size_type	dimension () const
size_type	maxNodeSize () const
template<typename It >
It	indices (const Node &node, It it) const
	Maps from subtree index set [0..size-1] to a globally unique multi index in global basis.
size_type	size (const SizePrefix &prefix) const
	Return number of possible values for next position in multi index.
size_type	size () const
	Get the total dimension of the space spanned by this basis.
auto	containerDescriptor () const
	Return a flat container-descriptor.

Static Public Attributes
static constexpr size_type	maxMultiIndexSize
	Maximal length of global multi-indices.
static constexpr size_type	minMultiIndexSize
	Minimal length of global multi-indices.
static constexpr size_type	multiIndexBufferSize
	Size required temporarily when constructing global multi-indices.

Protected Attributes
GridView	gridView_
FiniteElementMap	finiteElementMap_
Mapper	mapper_

Member Typedef Documentation

GridView

template<typename GV , typename Range , std::size_t kind, int order>

using Dune::Functions::NedelecPreBasis< GV, Range, kind, order >::GridView = GV

The grid view that the FE space is defined on.

Node

template<typename GV , typename Range , std::size_t kind, int order>

using Dune::Functions::NedelecPreBasis< GV, Range, kind, order >::Node = NedelecNode<GV, Range, kind, order>

size_type

template<typename GV , typename Range , std::size_t kind, int order>

using Dune::Functions::NedelecPreBasis< GV, Range, kind, order >::size_type = std::size_t

Constructor & Destructor Documentation

NedelecPreBasis()

template<typename GV , typename Range , std::size_t kind, int order>

Dune::Functions::NedelecPreBasis< GV, Range, kind, order >::NedelecPreBasis ( const GridView &  gv )

inline

Constructor for a given grid view object.

Member Function Documentation

containerDescriptor()

auto Dune::Functions::LeafPreBasisMixin< NedelecPreBasis< GV, Range, kind, order > >::containerDescriptor ( ) const

inlineinherited

Return a flat container-descriptor.

dimension()

template<typename GV , typename Range , std::size_t kind, int order>

size_type Dune::Functions::NedelecPreBasis< GV, Range, kind, order >::dimension ( ) const

inline

gridView()

template<typename GV , typename Range , std::size_t kind, int order>

const GridView & Dune::Functions::NedelecPreBasis< GV, Range, kind, order >::gridView ( ) const

inline

Obtain the grid view that the basis is defined on.

indices()

template<typename GV , typename Range , std::size_t kind, int order>

template<typename It >

It Dune::Functions::NedelecPreBasis< GV, Range, kind, order >::indices ( const Node &  node, It  it  ) const

inline

Maps from subtree index set [0..size-1] to a globally unique multi index in global basis.

initializeIndices()

template<typename GV , typename Range , std::size_t kind, int order>

void Dune::Functions::NedelecPreBasis< GV, Range, kind, order >::initializeIndices ( )

inline

makeNode()

template<typename GV , typename Range , std::size_t kind, int order>

Node Dune::Functions::NedelecPreBasis< GV, Range, kind, order >::makeNode ( ) const

inline

Create tree node.

maxNodeSize()

template<typename GV , typename Range , std::size_t kind, int order>

size_type Dune::Functions::NedelecPreBasis< GV, Range, kind, order >::maxNodeSize ( ) const

inline

size() [1/2]

size_type Dune::Functions::LeafPreBasisMixin< NedelecPreBasis< GV, Range, kind, order > >::size ( ) const

inlineinherited

Get the total dimension of the space spanned by this basis.

size() [2/2]

size_type Dune::Functions::LeafPreBasisMixin< NedelecPreBasis< GV, Range, kind, order > >::size ( const SizePrefix &  prefix ) const

inlineinherited

Return number of possible values for next position in multi index.

update()

template<typename GV , typename Range , std::size_t kind, int order>

void Dune::Functions::NedelecPreBasis< GV, Range, kind, order >::update ( const GridView &  gv )

inline

Member Data Documentation

finiteElementMap_

template<typename GV , typename Range , std::size_t kind, int order>

FiniteElementMap Dune::Functions::NedelecPreBasis< GV, Range, kind, order >::finiteElementMap_

protected

gridView_

template<typename GV , typename Range , std::size_t kind, int order>

GridView Dune::Functions::NedelecPreBasis< GV, Range, kind, order >::gridView_

protected

mapper_

template<typename GV , typename Range , std::size_t kind, int order>

Mapper Dune::Functions::NedelecPreBasis< GV, Range, kind, order >::mapper_

protected

maxMultiIndexSize

constexpr size_type Dune::Functions::LeafPreBasisMixin< NedelecPreBasis< GV, Range, kind, order > >::maxMultiIndexSize

staticconstexprinherited

Maximal length of global multi-indices.

minMultiIndexSize

constexpr size_type Dune::Functions::LeafPreBasisMixin< NedelecPreBasis< GV, Range, kind, order > >::minMultiIndexSize

staticconstexprinherited

Minimal length of global multi-indices.

multiIndexBufferSize

constexpr size_type Dune::Functions::LeafPreBasisMixin< NedelecPreBasis< GV, Range, kind, order > >::multiIndexBufferSize

staticconstexprinherited

Size required temporarily when constructing global multi-indices.

---

The documentation for this class was generated from the following file:

• nedelecbasis.hh
