Public Types | Public Member Functions | Public Attributes | Static Public Attributes | Protected Types | Protected Member Functions | Friends | List of all members
Dune::PDELab::OrderingBase< DI, CI > Class Template Reference
dune-pdelab » Grid Function Space » Ordering

#include <dune/pdelab/ordering/orderingbase.hh>

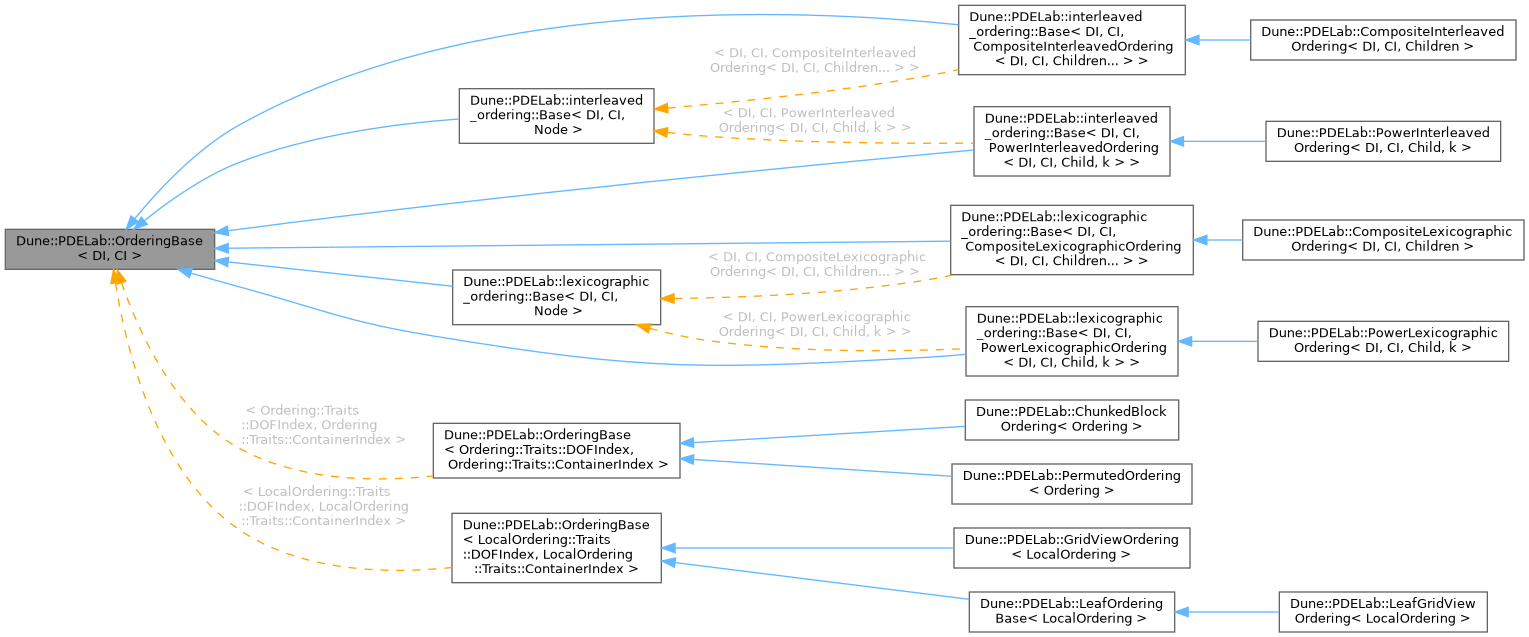

Inheritance diagram for Dune::PDELab::OrderingBase< DI, CI >:
Inheritance graph

Public Types

typedef OrderingTraits< DI, CI, MultiIndexOrder::Inner2Outer > Traits

typedef HierarchicContainerAllocationTag ContainerAllocationTag

typedef DefaultLFSCacheTag CacheTag


Public Member Functions

Traits::ContainerIndex mapIndex (const typename Traits::DOFIndex &di) const

void mapIndex (typename Traits::DOFIndexView di, typename Traits::ContainerIndex &ci) const

Traits::SizeType size () const

Traits::SizeType blockCount () const

Traits::SizeType size (const typename Traits::SizeType child_index) const

Traits::SizeType sizeOffset (const typename Traits::SizeType child_index) const

Traits::SizeType blockOffset (const typename Traits::SizeType child_index) const

Traits::SizeType maxLocalSize () const

MergeMode::type mergeMode () const

void update ()

template<typename Node >
 OrderingBase (Node &node, bool container_blocked, GFSData *gfs_data, VirtualOrderingBase< DI, CI > *delegate=nullptr)

template<typename Node >
 OrderingBase (Node &node, bool container_blocked, const std::vector< std::size_t > &merge_offsets, GFSData *gfs_data, VirtualOrderingBase< DI, CI > *delegate=nullptr)

bool containerBlocked () const

std::size_t childOrderingCount () const

OrderingBase & childOrdering (typename Traits::SizeType i)

const OrderingBase & childOrdering (typename Traits::SizeType i) const

bool contains (typename Traits::SizeType codim) const

bool fixedSize () const

bool fixedSize (typename Traits::SizeType codim) const


Public Attributes

bool _fixed_size

const bool _container_blocked

const MergeMode::type _merge_mode

const std::size_t _child_count

std::vector< OrderingBase * > _children

std::vector< typename Traits::SizeType > _child_size_offsets

std::vector< typename Traits::SizeType > _child_block_offsets

std::vector< typename Traits::SizeType > _child_block_merge_offsets

Traits::CodimFlag _codim_used

Traits::CodimFlag _codim_fixed_size

std::size_t _max_local_size

std::size_t _size

std::size_t _block_count

const VirtualOrderingBase< DI, CI > * _delegate

GFSData * _gfs_data


Static Public Attributes

static const bool has_dynamic_ordering_children = true

static const bool consume_tree_index = true


Protected Types

typedef Dune::PDELab::impl::GridFunctionSpaceOrderingData< typename Traits::SizeType > GFSData


Protected Member Functions

void setDelegate (const VirtualOrderingBase< DI, CI > *delegate)
 Set the delegate called in mapIndex().

void _mapIndex (typename Traits::DOFIndexView di, typename Traits::ContainerIndex &ci) const


Friends

template<typename size_type >
struct ::Dune::PDELab::impl::update_ordering_data


Member Typedef Documentation

◆ CacheTag

template<typename DI , typename CI >
typedef DefaultLFSCacheTag Dune::PDELab::OrderingBase< DI, CI >::CacheTag

◆ ContainerAllocationTag

template<typename DI , typename CI >
typedef HierarchicContainerAllocationTag Dune::PDELab::OrderingBase< DI, CI >::ContainerAllocationTag

◆ GFSData

template<typename DI , typename CI >
typedef Dune::PDELab::impl::GridFunctionSpaceOrderingData<typename Traits::SizeType> Dune::PDELab::OrderingBase< DI, CI >::GFSData
protected

◆ Traits

template<typename DI , typename CI >
typedef OrderingTraits<DI,CI,MultiIndexOrder::Inner2Outer> Dune::PDELab::OrderingBase< DI, CI >::Traits

Constructor & Destructor Documentation

◆ OrderingBase() [1/2]

template<typename DI , typename CI >
template<typename Node >
Dune::PDELab::OrderingBase< DI, CI >::OrderingBase ( Node &  node,
bool  container_blocked,
GFSData *  gfs_data,
VirtualOrderingBase< DI, CI > *  delegate = nullptr
)
inline

◆ OrderingBase() [2/2]

template<typename DI , typename CI >
template<typename Node >
Dune::PDELab::OrderingBase< DI, CI >::OrderingBase ( Node &  node,
bool  container_blocked,
const std::vector< std::size_t > &  merge_offsets,
GFSData *  gfs_data,
VirtualOrderingBase< DI, CI > *  delegate = nullptr
)
inline

Member Function Documentation

◆ _mapIndex()

template<typename DI , typename CI >
void Dune::PDELab::OrderingBase< DI, CI >::_mapIndex ( typename Traits::DOFIndexView  di,
typename Traits::ContainerIndex &  ci
) const
inlineprotected

◆ blockCount()

template<typename DI , typename CI >
Traits::SizeType Dune::PDELab::OrderingBase< DI, CI >::blockCount ( ) const
inline

◆ blockOffset()

template<typename DI , typename CI >
Traits::SizeType Dune::PDELab::OrderingBase< DI, CI >::blockOffset ( const typename Traits::SizeType  child_index) const
inline

◆ childOrdering() [1/2]

template<typename DI , typename CI >
OrderingBase & Dune::PDELab::OrderingBase< DI, CI >::childOrdering ( typename Traits::SizeType  i)
inline

◆ childOrdering() [2/2]

template<typename DI , typename CI >
const OrderingBase & Dune::PDELab::OrderingBase< DI, CI >::childOrdering ( typename Traits::SizeType  i) const
inline

◆ childOrderingCount()

template<typename DI , typename CI >
std::size_t Dune::PDELab::OrderingBase< DI, CI >::childOrderingCount ( ) const
inline

◆ containerBlocked()

template<typename DI , typename CI >
bool Dune::PDELab::OrderingBase< DI, CI >::containerBlocked ( ) const
inline

◆ contains()

template<typename DI , typename CI >
bool Dune::PDELab::OrderingBase< DI, CI >::contains ( typename Traits::SizeType  codim) const
inline

◆ fixedSize() [1/2]

template<typename DI , typename CI >
bool Dune::PDELab::OrderingBase< DI, CI >::fixedSize ( ) const
inline

◆ fixedSize() [2/2]

template<typename DI , typename CI >
bool Dune::PDELab::OrderingBase< DI, CI >::fixedSize ( typename Traits::SizeType  codim) const
inline

◆ mapIndex() [1/2]

template<typename DI , typename CI >
Traits::ContainerIndex Dune::PDELab::OrderingBase< DI, CI >::mapIndex ( const typename Traits::DOFIndex &  di) const
inline

◆ mapIndex() [2/2]

template<typename DI , typename CI >
void Dune::PDELab::OrderingBase< DI, CI >::mapIndex ( typename Traits::DOFIndexView  di,
typename Traits::ContainerIndex &  ci
) const
inline

◆ maxLocalSize()

template<typename DI , typename CI >
Traits::SizeType Dune::PDELab::OrderingBase< DI, CI >::maxLocalSize ( ) const
inline

◆ mergeMode()

template<typename DI , typename CI >
MergeMode::type Dune::PDELab::OrderingBase< DI, CI >::mergeMode ( ) const
inline

◆ setDelegate()

template<typename DI , typename CI >
void Dune::PDELab::OrderingBase< DI, CI >::setDelegate ( const VirtualOrderingBase< DI, CI > *  delegate)
inlineprotected

Set the delegate called in mapIndex().

When copying an Ordering with a delegate, the derived Ordering must call this method with 'this' as its argument in the copy and the move constructors!

◆ size() [1/2]

template<typename DI , typename CI >
Traits::SizeType Dune::PDELab::OrderingBase< DI, CI >::size ( ) const
inline

◆ size() [2/2]

template<typename DI , typename CI >
Traits::SizeType Dune::PDELab::OrderingBase< DI, CI >::size ( const typename Traits::SizeType  child_index) const
inline

◆ sizeOffset()

template<typename DI , typename CI >
Traits::SizeType Dune::PDELab::OrderingBase< DI, CI >::sizeOffset ( const typename Traits::SizeType  child_index) const
inline

◆ update()

template<typename DI , typename CI >
void Dune::PDELab::OrderingBase< DI, CI >::update ( )
inline

Friends And Related Symbol Documentation

◆ ::Dune::PDELab::impl::update_ordering_data

template<typename DI , typename CI >
template<typename size_type >
friend struct ::Dune::PDELab::impl::update_ordering_data
friend

Member Data Documentation

◆ _block_count

template<typename DI , typename CI >
std::size_t Dune::PDELab::OrderingBase< DI, CI >::_block_count

◆ _child_block_merge_offsets

template<typename DI , typename CI >
std::vector<typename Traits::SizeType> Dune::PDELab::OrderingBase< DI, CI >::_child_block_merge_offsets

◆ _child_block_offsets

template<typename DI , typename CI >
std::vector<typename Traits::SizeType> Dune::PDELab::OrderingBase< DI, CI >::_child_block_offsets

◆ _child_count

template<typename DI , typename CI >
const std::size_t Dune::PDELab::OrderingBase< DI, CI >::_child_count

◆ _child_size_offsets

template<typename DI , typename CI >
std::vector<typename Traits::SizeType> Dune::PDELab::OrderingBase< DI, CI >::_child_size_offsets

◆ _children

template<typename DI , typename CI >
std::vector<OrderingBase*> Dune::PDELab::OrderingBase< DI, CI >::_children

◆ _codim_fixed_size

template<typename DI , typename CI >
Traits::CodimFlag Dune::PDELab::OrderingBase< DI, CI >::_codim_fixed_size

◆ _codim_used

template<typename DI , typename CI >
Traits::CodimFlag Dune::PDELab::OrderingBase< DI, CI >::_codim_used

◆ _container_blocked

template<typename DI , typename CI >
const bool Dune::PDELab::OrderingBase< DI, CI >::_container_blocked

◆ _delegate

template<typename DI , typename CI >
const VirtualOrderingBase<DI,CI>* Dune::PDELab::OrderingBase< DI, CI >::_delegate

◆ _fixed_size

template<typename DI , typename CI >
bool Dune::PDELab::OrderingBase< DI, CI >::_fixed_size

◆ _gfs_data

template<typename DI , typename CI >
GFSData* Dune::PDELab::OrderingBase< DI, CI >::_gfs_data

◆ _max_local_size

template<typename DI , typename CI >
std::size_t Dune::PDELab::OrderingBase< DI, CI >::_max_local_size

◆ _merge_mode

template<typename DI , typename CI >
const MergeMode::type Dune::PDELab::OrderingBase< DI, CI >::_merge_mode

◆ _size

template<typename DI , typename CI >
std::size_t Dune::PDELab::OrderingBase< DI, CI >::_size

◆ consume_tree_index

template<typename DI , typename CI >
const bool Dune::PDELab::OrderingBase< DI, CI >::consume_tree_index = true
static

◆ has_dynamic_ordering_children

template<typename DI , typename CI >
const bool Dune::PDELab::OrderingBase< DI, CI >::has_dynamic_ordering_children = true
static
The documentation for this class was generated from the following file:
