#include <dune/pdelab/localoperator/stokesparameter.hh>

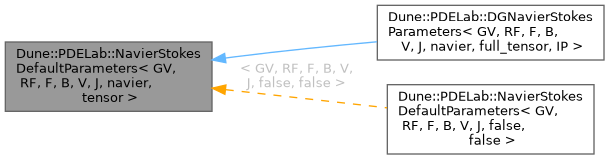

Inheritance diagram for Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >:

Inheritance graph

Public Types
typedef NavierStokesParameterTraits< GV, RF >	Traits
	Type traits.

Public Member Functions
	NavierStokesDefaultParameters (const Dune::ParameterTree &config, F &f, B &b, V &v, J &j)
	Constructor.

	NavierStokesDefaultParameters (const RF &mu, const RF &rho, F &f, B &b, V &v, J &j)

template<typename EG >
Traits::VelocityRange	f (const EG &e, const typename Traits::Domain &x) const
	source term

template<typename IG >
Traits::BoundaryCondition::Type	bctype (const IG &is, const typename Traits::IntersectionDomain &x) const
	boundary condition type from local intersection coordinate

template<typename EG >
Traits::RangeField	mu (const EG &e, const typename Traits::Domain &x) const
	Dynamic viscosity value from local cell coordinate.

template<typename IG >
Traits::RangeField	mu (const IG &ig, const typename Traits::IntersectionDomain &x) const
	Dynamic viscosity value from local intersection coordinate.

template<typename EG >
Traits::RangeField	rho (const EG &eg, const typename Traits::Domain &x) const
	Density value from local cell coordinate.

template<typename IG >
Traits::RangeField	rho (const IG &ig, const typename Traits::IntersectionDomain &x) const
	Density value from local intersection coordinate.

template<typename EG >
Traits::VelocityRange	g (const EG &e, const typename Traits::Domain &x) const
	Dirichlet boundary condition value from local cell coordinate.

template<typename EG >
Traits::RangeField	g2 (const EG &e, const typename Traits::Domain &x) const
	pressure source term

template<typename IG >
Traits::VelocityRange	j (const IG &ig, const typename Traits::IntersectionDomain &x, const typename Traits::Domain &normal) const
	Neumann boundary condition (stress)

void	setTime (RF time)

Static Public Attributes
static const bool	assemble_navier = navier

static const bool	assemble_full_tensor = tensor

Detailed Description

template<typename GV, typename RF, typename F, typename B, typename V, typename J, bool navier = false, bool tensor = false>
class Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >

Default implementation for the parameter class to be used with the Taylor-Hood Navier-Stokes local operator.

This is designed to work with the TaylorHoodNavierStokes, TaylorHoodNavierStokesJacobian and NavierStokesMass local operator classes.

Template Parameters

GV	GridView.
RF	The range field type of the Navier-Stokes solution.
F	External force term function (vector-valued).
B	Boundary type function returning an element of StokesBoundaryCondition.
V	Dirichlet velocity function.
J	Neumann stress boundary function (vector- or scalar-valued). Scalar values will be interpreted as the magnitude of a vector oriented in outer normal direction.

Member Typedef Documentation

◆ Traits

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

typedef NavierStokesParameterTraits<GV,RF> Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::Traits

Type traits.

Constructor & Destructor Documentation

◆ NavierStokesDefaultParameters() [1/2]

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::NavierStokesDefaultParameters	(	const Dune::ParameterTree &	config,
		F &	f,
		B &	b,
		V &	v,
		J &	j
	)

inline

Constructor.

◆ NavierStokesDefaultParameters() [2/2]

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::NavierStokesDefaultParameters	(	const RF &	mu,
		const RF &	rho,
		F &	f,
		B &	b,
		V &	v,
		J &	j
	)

inline

Member Function Documentation

◆ bctype()

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

template<typename IG >

Traits::BoundaryCondition::Type Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::bctype	(	const IG &	is,
		const typename Traits::IntersectionDomain &	x
	)		const

inline

boundary condition type from local intersection coordinate

◆ f()

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

template<typename EG >

Traits::VelocityRange Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::f	(	const EG &	e,
		const typename Traits::Domain &	x
	)		const

inline

source term

◆ g()

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

template<typename EG >

Traits::VelocityRange Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::g	(	const EG &	e,
		const typename Traits::Domain &	x
	)		const

inline

Dirichlet boundary condition value from local cell coordinate.

◆ g2()

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

template<typename EG >

Traits::RangeField Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::g2	(	const EG &	e,
		const typename Traits::Domain &	x
	)		const

inline

pressure source term

◆ j()

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

template<typename IG >

Traits::VelocityRange Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::j	(	const IG &	ig,
		const typename Traits::IntersectionDomain &	x,
		const typename Traits::Domain &	normal
	)		const

Neumann boundary condition (stress)

◆ mu() [1/2]

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

template<typename EG >

Traits::RangeField Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::mu	(	const EG &	e,
		const typename Traits::Domain &	x
	)		const

inline

Dynamic viscosity value from local cell coordinate.

◆ mu() [2/2]

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

template<typename IG >

Traits::RangeField Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::mu	(	const IG &	ig,
		const typename Traits::IntersectionDomain &	x
	)		const

inline

Dynamic viscosity value from local intersection coordinate.

◆ rho() [1/2]

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

template<typename EG >

Traits::RangeField Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::rho	(	const EG &	eg,
		const typename Traits::Domain &	x
	)		const

inline

Density value from local cell coordinate.

◆ rho() [2/2]

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

template<typename IG >

Traits::RangeField Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::rho	(	const IG &	ig,
		const typename Traits::IntersectionDomain &	x
	)		const

inline

Density value from local intersection coordinate.

◆ setTime()

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

void Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::setTime ( RF time )

inline

Member Data Documentation

◆ assemble_full_tensor

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

const bool Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::assemble_full_tensor = tensor

static

◆ assemble_navier

template<typename GV , typename RF , typename F , typename B , typename V , typename J , bool navier = false, bool tensor = false>

const bool Dune::PDELab::NavierStokesDefaultParameters< GV, RF, F, B, V, J, navier, tensor >::assemble_navier = navier

static

The documentation for this class was generated from the following file:

stokesparameter.hh
