Non-nesting implementation of GridFunctionSubSpace. More...

#include <dune/pdelab/gridfunctionspace/subspace.hh>

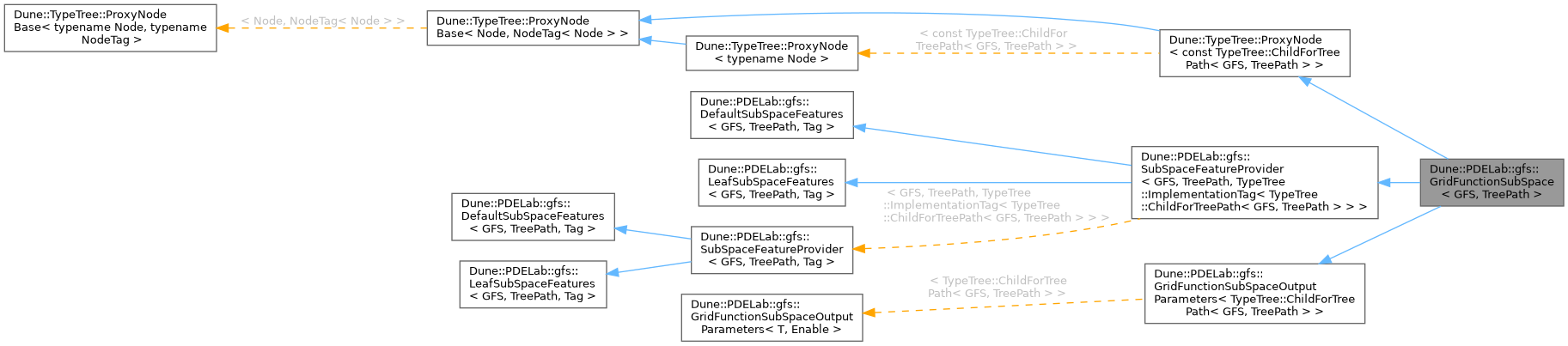

Inheritance diagram for Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >:

Public Types
typedef GFS	BaseGridFunctionSpace
	The base GridFunctionSpace that this GridFunctionSubSpace is based on.

using	ChildGridFunctionSpace = TypeTree::ChildForTreePath< GFS, TreePath >
	The type of the original GridFunctionSpace that is the root of this GridFunctionSpace.

typedef ChildGridFunctionSpace::Traits	Traits
	Re-exported Traits from the original GridFunctionSpace.

typedef GridFunctionSubSpaceTag< TypeTree::ImplementationTag< ChildGridFunctionSpace > >	ImplementationTag
	Our ImplementationTag is derived from the tag of the original GridFunctionSpace.

typedef Node	ProxiedNode

typedef Dune::TypeTree::NodeTag< Node >	NodeTag

Public Member Functions
	GridFunctionSubSpace (std::shared_ptr< const GFS > gfs_storage, TreePath tree_path)
	Construct a GridFunctionSubSpace from the storage object of a root space.

	GridFunctionSubSpace (std::shared_ptr< const GFS > gfs_storage)
	Construct a GridFunctionSubSpace from the storage object of a root space.

	GridFunctionSubSpace (const GFS &gfs, TreePath tree_path)
	Construct a GridFunctionSubSpace from a root space.

	GridFunctionSubSpace (const GFS &gfs)

template<typename TP >
	GridFunctionSubSpace (std::shared_ptr< const GridFunctionSubSpace< GFS, TP > > gfs_storage, TreePath tree_path, typename std::enable_if<!std::is_same< TP, TreePath >::value, void * >::type=nullptr)
	Construct a GridFunctionSubSpace from the storage of another GridFunctionSubSpace.

template<typename TP >
	GridFunctionSubSpace (std::shared_ptr< const GridFunctionSubSpace< GFS, TP > > gfs_storage, typename std::enable_if<!std::is_same< TP, TreePath >::value, void * >::type=nullptr)

template<typename TP >
	GridFunctionSubSpace (const GridFunctionSubSpace< GFS, TP > &gfs, TreePath tree_path, typename std::enable_if<!std::is_same< TP, TreePath >::value, void * >::type=nullptr)
	Construct a GridFunctionSubSpace from another GridFunctionSubSpace.

template<typename TP >
	GridFunctionSubSpace (const GridFunctionSubSpace< GFS, TP > &gfs, typename std::enable_if<!std::is_same< TP, TreePath >::value, void * >::type=nullptr)

const BaseGridFunctionSpace &	baseGridFunctionSpace () const
	Returns the root GridFunctionSpace that this subspace view is based on.

std::shared_ptr< const BaseGridFunctionSpace >	baseGridFunctionSpaceStorage () const
	Returns the storage object of the root GridFunctionSpace that this subspace view is based on.

const ChildGridFunctionSpace &	childGridFunctionSpace () const
	Returns the original GridFunctionSpace that we provide a view for.

std::shared_ptr< const ChildGridFunctionSpace >	childGridFunctionSpaceStorage () const
	Returns the storage object of the original GridFunctionSpace that we provide a view for.

std::string	name () const

void	name (const std::string &name)

auto	degree () const

void	inheritDataSetType (const TypeTree::ChildForTreePath< GFS, TreePath > &t)

Static Public Member Functions
static constexpr auto	degree ()

Static Public Attributes
static const bool	isLeaf

static const bool	isPower

static const bool	isComposite

Protected Member Functions
std::enable_if< enabled, Node & >::type	proxiedNode ()

const Node &	proxiedNode () const

std::enable_if< enabled, Node & >::type	proxiedNode ()

const Node &	proxiedNode () const

std::enable_if< enabled, std::shared_ptr< Node > >::type	proxiedNodeStorage ()

std::shared_ptr< const Node >	proxiedNodeStorage () const

std::enable_if< enabled, std::shared_ptr< Node > >::type	proxiedNodeStorage ()

std::shared_ptr< const Node >	proxiedNodeStorage () const

Default Functionality for all GridFunctionSpaces
typedef TreePath	SubSpacePath
	The TreePath from the root of the space hierarchy to this subspace.

typedef ChildGridFunctionSpace::OrderingTag	OrderingTag
	Re-exported OrderingTag from the original GridFunctionSpace.

template<typename E >
using	Constraintscontainer = typename GFS::template ConstraintsContainer< E >
	Re-exported constraints container from the original GridFunctionSpace.

typedef SubOrdering< typename GFS::Ordering, typename find_ordering_treepath_for_sub_gfs< typename GFS::Ordering, GFS, TreePath >::type >	Ordering
	The ordering used by this GridFunctionSubSpace.

std::size_t	subSpaceDepth () const

const Ordering &	ordering () const
	Returns the ordering associated with this GridFunctionSubSpace.

const Traits::EntitySet &	entitySet () const
	Returns the underlying EntitySet.

const Traits::GridViewType &	gridView () const
	Returns the underlying GridView.

Traits::SizeType	globalSize () const
	Returns the global size of the root space.

Traits::SizeType	size () const
	Returns the global size of the root space.

Traits::SizeType	maxLocalSize () const
	Returns the maximum number of DOFs per cells in this subspace.

Additional Functionality for Leaf Spaces
const Traits::FiniteElementMap &	finiteElementMap () const
	Returns the finite element map of this space.

std::shared_ptr< const typename Traits::FiniteElementMap >	finiteElementMapStorage () const
	Returns the storage object for the finite element map of this space.

const Traits::ConstraintsType &	constraints () const
	Returns the constraints engine of this space.

Detailed Description

template<typename GFS, typename TreePath>
class Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >

Non-nesting implementation of GridFunctionSubSpace.

This is the actual implementation of GridFunctionSubSpace. It is based around the idea of performing the mapping from the subspace to the rootspace in a single step using a SubOrdering. As SubOrderings cannot be nested, this class needs some helper functionality that constructs a new GridFunctionSubSpace directly on top of the underlying root GridFunctionSpace if the user attempts to nest GridFunctionSubSpaces. On the other hand, this implementation should render such usage mostly unnecessary, as it is now possible to directly construct a subspace for a given leaf space. If the compiler has support for template aliases, the de-nesting infrastructure will be able to completely remove all traces of nesting, letting the type obtained by nesting two GridFunctionSubSpaces look exactly like the type obtained by constructing a single GridFunctionSubSpace. Alternatively, without template aliases, it is only possible to have the actual implementation be non-nested. In this case, the Dune::PDELab::GridFunctionSubSpace classes will still nest.

Note: This class should always be used as Dune::PDELab::GridFunctionSubSpace. Never attempt to directly use the class Dune::PDELab::gfs::GridFunctionSubSpace!

Template Parameters

GFS	The root GridFunctionSpace.
TreePath	Path from the root GridFunctionSpace to the represented subspace.

Examples: recipe-operator-splitting.cc.

Member Typedef Documentation

◆ BaseGridFunctionSpace

template<typename GFS , typename TreePath >

typedef GFS Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::BaseGridFunctionSpace

The base GridFunctionSpace that this GridFunctionSubSpace is based on.

◆ ChildGridFunctionSpace

template<typename GFS , typename TreePath >

using Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::ChildGridFunctionSpace = TypeTree::ChildForTreePath<GFS,TreePath>

The type of the original GridFunctionSpace that is the root of this GridFunctionSpace.

◆ Constraintscontainer

template<typename GFS , typename TreePath , typename Tag >

template<typename E >

using Dune::PDELab::gfs::DefaultSubSpaceFeatures< GFS, TreePath, Tag >::Constraintscontainer = typename GFS::template ConstraintsContainer<E>

inherited

Re-exported constraints container from the original GridFunctionSpace.

◆ ImplementationTag

template<typename GFS , typename TreePath >

typedef GridFunctionSubSpaceTag< TypeTree::ImplementationTag<ChildGridFunctionSpace> > Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::ImplementationTag

Our ImplementationTag is derived from the tag of the original GridFunctionSpace.

◆ Ordering

template<typename GFS , typename TreePath , typename Tag >

typedef SubOrdering< typename GFS::Ordering, typename find_ordering_treepath_for_sub_gfs< typename GFS::Ordering, GFS, TreePath >::type > Dune::PDELab::gfs::DefaultSubSpaceFeatures< GFS, TreePath, Tag >::Ordering

inherited

The ordering used by this GridFunctionSubSpace.

◆ OrderingTag

template<typename GFS , typename TreePath , typename Tag >

typedef ChildGridFunctionSpace::OrderingTag Dune::PDELab::gfs::DefaultSubSpaceFeatures< GFS, TreePath, Tag >::OrderingTag

inherited

Re-exported OrderingTag from the original GridFunctionSpace.

◆ SubSpacePath

template<typename GFS , typename TreePath , typename Tag >

typedef TreePath Dune::PDELab::gfs::DefaultSubSpaceFeatures< GFS, TreePath, Tag >::SubSpacePath

inherited

The TreePath from the root of the space hierarchy to this subspace.

◆ Traits

template<typename GFS , typename TreePath >

typedef ChildGridFunctionSpace::Traits Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::Traits

Re-exported Traits from the original GridFunctionSpace.

Constructor & Destructor Documentation

◆ GridFunctionSubSpace() [1/8]

template<typename GFS , typename TreePath >

Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::GridFunctionSubSpace	(	std::shared_ptr< const GFS >	gfs_storage,
		TreePath	tree_path
	)

inlineexplicit

Construct a GridFunctionSubSpace from the storage object of a root space.

◆ GridFunctionSubSpace() [2/8]

template<typename GFS , typename TreePath >

Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::GridFunctionSubSpace ( std::shared_ptr< const GFS > gfs_storage )

inlineexplicit

Construct a GridFunctionSubSpace from the storage object of a root space.

◆ GridFunctionSubSpace() [3/8]

template<typename GFS , typename TreePath >

Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::GridFunctionSubSpace	(	const GFS &	gfs,
		TreePath	tree_path
	)

inlineexplicit

Construct a GridFunctionSubSpace from a root space.

◆ GridFunctionSubSpace() [4/8]

template<typename GFS , typename TreePath >

Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::GridFunctionSubSpace ( const GFS & gfs )

inlineexplicit

◆ GridFunctionSubSpace() [5/8]

template<typename GFS , typename TreePath >

template<typename TP >

Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::GridFunctionSubSpace	(	std::shared_ptr< const GridFunctionSubSpace< GFS, TP > >	gfs_storage,
		TreePath	tree_path,
		typename std::enable_if<!std::is_same< TP, TreePath >::value, void * >::type	= `nullptr`
	)

inlineexplicit

Construct a GridFunctionSubSpace from the storage of another GridFunctionSubSpace.

This constructor is used to implement the non-nesting behavior by extracting the original root space from the GridFunctionSubSpace and using that space for initialization. In order to work correctly, this relies on a support wrapper that correctly sets up the TreePath for the new space.

Note: The second parameter is a little SFINAE helper that removes the constructor from the overload set if the two spaces are identical to avoid masking the standard copy constructor.

◆ GridFunctionSubSpace() [6/8]

template<typename GFS , typename TreePath >

template<typename TP >

Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::GridFunctionSubSpace	(	std::shared_ptr< const GridFunctionSubSpace< GFS, TP > >	gfs_storage,
		typename std::enable_if<!std::is_same< TP, TreePath >::value, void * >::type	= `nullptr`
	)

inlineexplicit

◆ GridFunctionSubSpace() [7/8]

template<typename GFS , typename TreePath >

template<typename TP >

Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::GridFunctionSubSpace	(	const GridFunctionSubSpace< GFS, TP > &	gfs,
		TreePath	tree_path,
		typename std::enable_if<!std::is_same< TP, TreePath >::value, void * >::type	= `nullptr`
	)

inlineexplicit

Construct a GridFunctionSubSpace from another GridFunctionSubSpace.

This constructor is used to implement the non-nesting behavior by extracting the original root space from the GridFunctionSubSpace and using that space for initialization. In order to work correctly, this relies on a support wrapper that correctly sets up the TreePath for the new space.

Note: The second parameter is a little SFINAE helper that removes the constructor from the overload set if the two spaces are identical to avoid masking the standard copy constructor.

◆ GridFunctionSubSpace() [8/8]

template<typename GFS , typename TreePath >

template<typename TP >

Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::GridFunctionSubSpace	(	const GridFunctionSubSpace< GFS, TP > &	gfs,
		typename std::enable_if<!std::is_same< TP, TreePath >::value, void * >::type	= `nullptr`
	)

inlineexplicit

Member Function Documentation

◆ baseGridFunctionSpace()

template<typename GFS , typename TreePath >

const BaseGridFunctionSpace & Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::baseGridFunctionSpace ( ) const

inline

Returns the root GridFunctionSpace that this subspace view is based on.

◆ baseGridFunctionSpaceStorage()

template<typename GFS , typename TreePath >

std::shared_ptr< const BaseGridFunctionSpace > Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::baseGridFunctionSpaceStorage ( ) const

inline

Returns the storage object of the root GridFunctionSpace that this subspace view is based on.

◆ childGridFunctionSpace()

template<typename GFS , typename TreePath >

const ChildGridFunctionSpace & Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::childGridFunctionSpace ( ) const

inline

Returns the original GridFunctionSpace that we provide a view for.

Warning: Users should think at least twice before using this object in their code, as it will usually not do what they want! Due to the way GridFunctionSpaces are constructed, it is not aware of the overall structure of the space!

◆ childGridFunctionSpaceStorage()

template<typename GFS , typename TreePath >

std::shared_ptr< const ChildGridFunctionSpace > Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::childGridFunctionSpaceStorage ( ) const

inline

Returns the storage object of the original GridFunctionSpace that we provide a view for.

Warning: Users should think at least twice before using this object in their code, as it will usually not do what they want! Due to the way GridFunctionSpaces are constructed, it is not aware of the overall structure of the space!

◆ constraints()

template<typename GFS , typename TreePath , typename Tag >

const Traits::ConstraintsType & Dune::PDELab::gfs::LeafSubSpaceFeatures< GFS, TreePath, Tag >::constraints ( ) const

inlineinherited

Returns the constraints engine of this space.

◆ entitySet()

template<typename GFS , typename TreePath , typename Tag >

const Traits::EntitySet & Dune::PDELab::gfs::DefaultSubSpaceFeatures< GFS, TreePath, Tag >::entitySet ( ) const

inlineinherited

Returns the underlying EntitySet.

◆ finiteElementMap()

template<typename GFS , typename TreePath , typename Tag >

const Traits::FiniteElementMap & Dune::PDELab::gfs::LeafSubSpaceFeatures< GFS, TreePath, Tag >::finiteElementMap ( ) const

inlineinherited

Returns the finite element map of this space.

◆ finiteElementMapStorage()

template<typename GFS , typename TreePath , typename Tag >

std::shared_ptr< const typename Traits::FiniteElementMap > Dune::PDELab::gfs::LeafSubSpaceFeatures< GFS, TreePath, Tag >::finiteElementMapStorage ( ) const

inlineinherited

Returns the storage object for the finite element map of this space.

◆ globalSize()

template<typename GFS , typename TreePath , typename Tag >

Traits::SizeType Dune::PDELab::gfs::DefaultSubSpaceFeatures< GFS, TreePath, Tag >::globalSize ( ) const

inlineinherited

Returns the global size of the root space.

◆ gridView()

template<typename GFS , typename TreePath , typename Tag >

const Traits::GridViewType & Dune::PDELab::gfs::DefaultSubSpaceFeatures< GFS, TreePath, Tag >::gridView ( ) const

inlineinherited

Returns the underlying GridView.

◆ inheritDataSetType()

void Dune::PDELab::gfs::GridFunctionSubSpaceOutputParameters< TypeTree::ChildForTreePath< GFS, TreePath > , std::is_base_of<GridFunctionOutputParameters, TypeTree::ChildForTreePath< GFS, TreePath > >::value >::inheritDataSetType ( const TypeTree::ChildForTreePath< GFS, TreePath > & t )

inlineinherited

◆ maxLocalSize()

template<typename GFS , typename TreePath , typename Tag >

Traits::SizeType Dune::PDELab::gfs::DefaultSubSpaceFeatures< GFS, TreePath, Tag >::maxLocalSize ( ) const

inlineinherited

Returns the maximum number of DOFs per cells in this subspace.

◆ name() [1/2]

template<typename GFS , typename TreePath >

std::string Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::name ( ) const

inline

◆ name() [2/2]

template<typename GFS , typename TreePath >

void Dune::PDELab::gfs::GridFunctionSubSpace< GFS, TreePath >::name ( const std::string & name )

inline

◆ ordering()

template<typename GFS , typename TreePath , typename Tag >

const Ordering & Dune::PDELab::gfs::DefaultSubSpaceFeatures< GFS, TreePath, Tag >::ordering ( ) const

inlineinherited

Returns the ordering associated with this GridFunctionSubSpace.

◆ size()

template<typename GFS , typename TreePath , typename Tag >

Traits::SizeType Dune::PDELab::gfs::DefaultSubSpaceFeatures< GFS, TreePath, Tag >::size ( ) const

inlineinherited

Returns the global size of the root space.

Warning: The semantics of this methods have changed with the introduction of Orderings: While this method used to return the size of the subspace only, it now behaves like globalSize() and returns the overall size of the root space! Calculating the size of the subspace might be a very expensive operation depending on the underlying orderings.

◆ subSpaceDepth()

template<typename GFS , typename TreePath , typename Tag >

std::size_t Dune::PDELab::gfs::DefaultSubSpaceFeatures< GFS, TreePath, Tag >::subSpaceDepth ( ) const

inlineinherited

The documentation for this class was generated from the following file:

subspace.hh

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Default Functionality for all GridFunctionSpaces

Additional Functionality for Leaf Spaces

Detailed Description

Member Typedef Documentation

◆ BaseGridFunctionSpace

◆ ChildGridFunctionSpace

◆ Constraintscontainer

◆ ImplementationTag

◆ Ordering

◆ OrderingTag

◆ SubSpacePath

◆ Traits

Constructor & Destructor Documentation

◆ GridFunctionSubSpace() [1/8]

◆ GridFunctionSubSpace() [2/8]

◆ GridFunctionSubSpace() [3/8]

◆ GridFunctionSubSpace() [4/8]

◆ GridFunctionSubSpace() [5/8]

◆ GridFunctionSubSpace() [6/8]

◆ GridFunctionSubSpace() [7/8]

◆ GridFunctionSubSpace() [8/8]

Member Function Documentation

◆ baseGridFunctionSpace()

◆ baseGridFunctionSpaceStorage()

◆ childGridFunctionSpace()

◆ childGridFunctionSpaceStorage()

◆ constraints()

◆ entitySet()

◆ finiteElementMap()

◆ finiteElementMapStorage()

◆ globalSize()

◆ gridView()

◆ inheritDataSetType()

◆ maxLocalSize()

◆ name() [1/2]

◆ name() [2/2]

◆ ordering()

◆ size()

◆ subSpaceDepth()
