Public Types | Public Member Functions | Static Public Member Functions | Public Attributes | Static Public Attributes | Protected Member Functions | Friends | List of all members
Dune::PDELab::PowerLocalFunctionSpaceNode< GFS, DOFIndex, ChildLFS, k > Class Template Reference
dune-pdelab » Grid Function Space

#include <dune/pdelab/gridfunctionspace/localfunctionspace.hh>

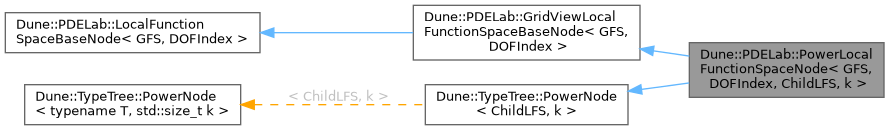

Inheritance diagram for Dune::PDELab::PowerLocalFunctionSpaceNode< GFS, DOFIndex, ChildLFS, k >:
Inheritance graph

Public Types

typedef PowerCompositeLocalFunctionSpaceTraits< GFS, DOFIndex, PowerLocalFunctionSpaceNode > Traits

typedef PowerLocalFunctionSpaceTag ImplementationTag

typedef PowerNodeTag NodeTag

typedef T ChildType

typedef std::array< std::shared_ptr< T >, k > NodeStorage


Public Member Functions

template<typename Transformation >
 PowerLocalFunctionSpaceNode (std::shared_ptr< const GFS > gfs, const Transformation &t, const std::array< std::shared_ptr< ChildLFS >, k > &children)
 initialize with grid function space

template<typename Transformation >
 PowerLocalFunctionSpaceNode (const GFS &gfs, const Transformation &t, const std::array< std::shared_ptr< ChildLFS >, k > &children)

template<bool fast = false>
void bind (const typename Traits::Element &e, std::integral_constant< bool, fast > fast_=std::integral_constant< bool, fast >{})
 bind local function space to entity

template<typename NodeType , bool fast>
void bind (NodeType &node, const typename GridViewLocalFunctionSpaceBaseNode< GFS, DOFIndex >::Traits::Element &e, std::integral_constant< bool, fast >)

Traits::IndexContainer::size_type size () const
 number of degrees of freedom contained in this lfs node

std::size_t subSpaceDepth () const

Traits::IndexContainer::size_type maxSize () const
 get maximum possible size (which is maxLocalSize from grid function space)

Traits::IndexContainer::size_type localVectorSize () const
 get size of an appropriate local vector object

Traits::IndexContainer::size_type localIndex (typename Traits::IndexContainer::size_type index) const
 map index in this local function space to root local function space

const Traits::DOFIndex & dofIndex (typename Traits::IndexContainer::size_type index) const
 Maps given index in this local function space to its corresponding global MultiIndex.

void debug () const
 print debug information about this local function space

const GFS & gridFunctionSpace () const
 Returns the GridFunctionSpace underlying this LocalFunctionSpace.

template<typename NodeType >
void setup (NodeType &node)

T & child (index_constant< i >={})

const T & child (index_constant< i >={}) const

T & child (std::size_t i)

const T & child (std::size_t i) const

ImplementationDefined & child (Indices... indices)

const ImplementationDefined & child (Indices... indices)

T & child (index_constant< i >={})

const T & child (index_constant< i >={}) const

T & child (std::size_t i)

const T & child (std::size_t i) const

ImplementationDefined & child (Indices... indices)

const ImplementationDefined & child (Indices... indices)

std::shared_ptr< T > childStorage (index_constant< i >={})

std::shared_ptr< const T > childStorage (index_constant< i >={}) const

std::shared_ptr< T > childStorage (std::size_t i)

std::shared_ptr< const T > childStorage (std::size_t i) const

std::shared_ptr< T > childStorage (index_constant< i >={})

std::shared_ptr< const T > childStorage (index_constant< i >={}) const

std::shared_ptr< T > childStorage (std::size_t i)

std::shared_ptr< const T > childStorage (std::size_t i) const

void setChild (T &t, index_constant< i >={})

void setChild (T &&t, index_constant< i >={})

void setChild (std::shared_ptr< T > st, index_constant< i >={})

void setChild (std::size_t i, T &t)

void setChild (std::size_t i, T &&t)

void setChild (std::size_t i, std::shared_ptr< T > st)

void setChild (T &t, index_constant< i >={})

void setChild (T &&t, index_constant< i >={})

void setChild (std::shared_ptr< T > st, index_constant< i >={})

void setChild (std::size_t i, T &t)

void setChild (std::size_t i, T &&t)

void setChild (std::size_t i, std::shared_ptr< T > st)

const NodeStorage & nodeStorage () const

const NodeStorage & nodeStorage () const


Static Public Member Functions

static constexpr auto degree ()


Public Attributes

std::shared_ptr< GFS const > pgfs

Traits::DOFIndexContainer _dof_index_storage

Traits::DOFIndexContainer * _dof_indices

Traits::IndexContainer::size_type n

Traits::IndexContainer::size_type offset


Static Public Attributes

static const bool isLeaf

static const bool isPower

static const bool isComposite


Protected Member Functions

template<typename NodeType , bool fast = false>
void bind (NodeType &node, const typename Traits::Element &e, std::integral_constant< bool, fast >=std::integral_constant< bool, fast >{})
 bind local function space to entity


Friends

template<typename >
struct PropagateGlobalStorageVisitor

template<typename >
struct ClearSizeVisitor

template<typename , bool >
struct ComputeSizeVisitor

template<typename , bool >
struct FillIndicesVisitor


Member Typedef Documentation

◆ ImplementationTag

template<typename GFS , typename DOFIndex , typename ChildLFS , std::size_t k>
typedef PowerLocalFunctionSpaceTag Dune::PDELab::PowerLocalFunctionSpaceNode< GFS, DOFIndex, ChildLFS, k >::ImplementationTag

◆ Traits

template<typename GFS , typename DOFIndex , typename ChildLFS , std::size_t k>
typedef PowerCompositeLocalFunctionSpaceTraits<GFS,DOFIndex,PowerLocalFunctionSpaceNode> Dune::PDELab::PowerLocalFunctionSpaceNode< GFS, DOFIndex, ChildLFS, k >::Traits

Constructor & Destructor Documentation

◆ PowerLocalFunctionSpaceNode() [1/2]

template<typename GFS , typename DOFIndex , typename ChildLFS , std::size_t k>
template<typename Transformation >
Dune::PDELab::PowerLocalFunctionSpaceNode< GFS, DOFIndex, ChildLFS, k >::PowerLocalFunctionSpaceNode ( std::shared_ptr< const GFS >  gfs,
const Transformation &  t,
const std::array< std::shared_ptr< ChildLFS >, k > &  children
)
inline

initialize with grid function space

◆ PowerLocalFunctionSpaceNode() [2/2]

template<typename GFS , typename DOFIndex , typename ChildLFS , std::size_t k>
template<typename Transformation >
Dune::PDELab::PowerLocalFunctionSpaceNode< GFS, DOFIndex, ChildLFS, k >::PowerLocalFunctionSpaceNode ( const GFS &  gfs,
const Transformation &  t,
const std::array< std::shared_ptr< ChildLFS >, k > &  children
)
inline

Member Function Documentation

◆ bind() [1/2]

template<typename GFS , typename DOFIndex , typename ChildLFS , std::size_t k>
template<bool fast = false>
void Dune::PDELab::PowerLocalFunctionSpaceNode< GFS, DOFIndex, ChildLFS, k >::bind ( const typename Traits::Element &  e,
std::integral_constant< bool, fast >  fast_ = std::integral_constant<bool,fast>{}
)
inline

bind local function space to entity

◆ bind() [2/2]

template<typename GFS , typename DOFIndex >
template<typename NodeType , bool fast = false>
void Dune::PDELab::GridViewLocalFunctionSpaceBaseNode< GFS, DOFIndex >::bind ( NodeType &  node,
const typename Traits::Element &  e,
std::integral_constant< bool, fast >  = std::integral_constant< bool, fast >{}
)
protectedinherited

bind local function space to entity

This is a generic implementation of the bind function. It is parametrized with the NodeType, which the type of the derived LocalFunctionSpaceNode. Handing the NodeType as a parammeter avoid the need for the CRTP construct, but all derived classes have to add a method bind, which forward to this method.

Parameters
nodereference to the derived node, the address must be the same as this
eentity to bind to

◆ debug()

template<typename GFS , typename DOFIndex >
void Dune::PDELab::LocalFunctionSpaceBaseNode< GFS, DOFIndex >::debug ( ) const
inlineinherited

print debug information about this local function space

◆ dofIndex()

template<typename GFS , typename DOFIndex >
const Traits::DOFIndex & Dune::PDELab::LocalFunctionSpaceBaseNode< GFS, DOFIndex >::dofIndex ( typename Traits::IndexContainer::size_type  index) const
inlineinherited

Maps given index in this local function space to its corresponding global MultiIndex.

Parameters
indexThe local index value from the range 0,...,size()-1
Returns
A const reference to the associated, globally unique MultiIndex. Note that the returned object may (and must) be copied if it needs to be stored beyond the time of the next call to bind() on this LocalFunctionSpace (e.g. when the MultiIndex is used as a DOF identifier in a constraints container).

◆ gridFunctionSpace()

template<typename GFS , typename DOFIndex >
const GFS & Dune::PDELab::LocalFunctionSpaceBaseNode< GFS, DOFIndex >::gridFunctionSpace ( ) const
inlineinherited

Returns the GridFunctionSpace underlying this LocalFunctionSpace.

◆ localIndex()

template<typename GFS , typename DOFIndex >
Traits::IndexContainer::size_type Dune::PDELab::LocalFunctionSpaceBaseNode< GFS, DOFIndex >::localIndex ( typename Traits::IndexContainer::size_type  index) const
inlineinherited

map index in this local function space to root local function space

◆ localVectorSize()

template<typename GFS , typename DOFIndex >
Traits::IndexContainer::size_type Dune::PDELab::LocalFunctionSpaceBaseNode< GFS, DOFIndex >::localVectorSize ( ) const
inlineinherited

get size of an appropriate local vector object

this is the number of dofs of the complete local function space tree, i.e. the size() of the root node. The local vector objects must always have this size and the localIndex method maps into the range [0,localVectorSize()[

◆ maxSize()

template<typename GFS , typename DOFIndex >
Traits::IndexContainer::size_type Dune::PDELab::LocalFunctionSpaceBaseNode< GFS, DOFIndex >::maxSize ( ) const
inlineinherited

get maximum possible size (which is maxLocalSize from grid function space)

◆ setup()

template<typename GFS , typename DOFIndex >
template<typename NodeType >
void Dune::PDELab::LocalFunctionSpaceBaseNode< GFS, DOFIndex >::setup ( NodeType &  node)
inlineinherited

◆ size()

template<typename GFS , typename DOFIndex >
Traits::IndexContainer::size_type Dune::PDELab::LocalFunctionSpaceBaseNode< GFS, DOFIndex >::size ( ) const
inlineinherited

number of degrees of freedom contained in this lfs node

◆ subSpaceDepth()

template<typename GFS , typename DOFIndex >
std::size_t Dune::PDELab::LocalFunctionSpaceBaseNode< GFS, DOFIndex >::subSpaceDepth ( ) const
inlineinherited

Friends And Related Symbol Documentation

◆ ClearSizeVisitor

template<typename GFS , typename DOFIndex , typename ChildLFS , std::size_t k>
template<typename >
friend struct ClearSizeVisitor
friend

◆ ComputeSizeVisitor

template<typename GFS , typename DOFIndex , typename ChildLFS , std::size_t k>
template<typename , bool >
friend struct ComputeSizeVisitor
friend

◆ FillIndicesVisitor

template<typename GFS , typename DOFIndex , typename ChildLFS , std::size_t k>
template<typename , bool >
friend struct FillIndicesVisitor
friend

◆ PropagateGlobalStorageVisitor

template<typename GFS , typename DOFIndex , typename ChildLFS , std::size_t k>
template<typename >
friend struct PropagateGlobalStorageVisitor
friend

Member Data Documentation

◆ _dof_index_storage

template<typename GFS , typename DOFIndex >
Traits::DOFIndexContainer Dune::PDELab::LocalFunctionSpaceBaseNode< GFS, DOFIndex >::_dof_index_storage
inherited

◆ _dof_indices

template<typename GFS , typename DOFIndex >
Traits::DOFIndexContainer* Dune::PDELab::LocalFunctionSpaceBaseNode< GFS, DOFIndex >::_dof_indices
inherited

◆ n

template<typename GFS , typename DOFIndex >
Traits::IndexContainer::size_type Dune::PDELab::LocalFunctionSpaceBaseNode< GFS, DOFIndex >::n
inherited

◆ offset

template<typename GFS , typename DOFIndex >
Traits::IndexContainer::size_type Dune::PDELab::LocalFunctionSpaceBaseNode< GFS, DOFIndex >::offset
inherited

◆ pgfs

template<typename GFS , typename DOFIndex >
std::shared_ptr<GFS const> Dune::PDELab::LocalFunctionSpaceBaseNode< GFS, DOFIndex >::pgfs
inherited
The documentation for this class was generated from the following file:
