Dune::PDELab::fem::PkLocalFiniteElementMapBase< GV, D, R, k, 2 > Class Template Reference

#include <dune/pdelab/finiteelementmap/pkfem.hh>

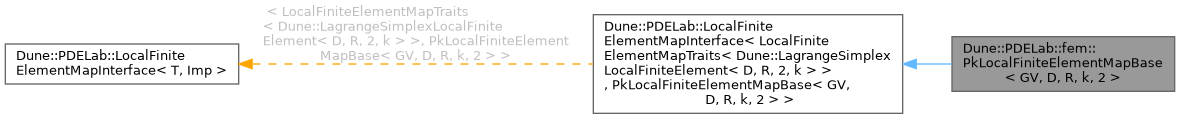

Inheritance diagram for Dune::PDELab::fem::PkLocalFiniteElementMapBase< GV, D, R, k, 2 >:

Public Types
typedef LocalFiniteElementMapTraits< FE >	Traits
	export type of the signature

Public Member Functions
	PkLocalFiniteElementMapBase (const GV &gv)
template<typename Entity >
const Traits::FiniteElementType &	find (const Entity &e) const
	get local basis functions for entity
const Traits::FiniteElementType &	find (const EntityType &e) const=delete
	Return local basis for the given entity.

Static Public Member Functions
static constexpr bool	fixedSize ()
static constexpr bool	hasDOFs (int codim)
static constexpr std::size_t	size (GeometryType gt)
static constexpr std::size_t	maxLocalSize ()

Static Public Attributes
Size calculation
The FiniteElementMap provides different methods to compute the size of the GridFunctionSpace (if possible) without iterating the grid. The approach is as follows (pseudo code): computeNumberOfDofs(GridView, FEM): if(FEM.fixedSize()): sum(FEM.size(gt)*GridView.size(gt) for gt in GeometryTypes) else sum(FEM.find(E).basis().size() for E in GridView.entities<0>())
static constexpr int	dimension
	dimension of the domain this FEM is defined on.

Member Typedef Documentation

Traits

template<typename GV , typename D , typename R , unsigned int k>

typedef LocalFiniteElementMapTraits<FE> Dune::PDELab::fem::PkLocalFiniteElementMapBase< GV, D, R, k, 2 >::Traits

export type of the signature

Constructor & Destructor Documentation

PkLocalFiniteElementMapBase()

template<typename GV , typename D , typename R , unsigned int k>

Dune::PDELab::fem::PkLocalFiniteElementMapBase< GV, D, R, k, 2 >::PkLocalFiniteElementMapBase ( const GV &  gv )

inline

Member Function Documentation

find() [1/2]

template<typename GV , typename D , typename R , unsigned int k>

template<typename Entity >

const Traits::FiniteElementType & Dune::PDELab::fem::PkLocalFiniteElementMapBase< GV, D, R, k, 2 >::find ( const Entity &  e ) const

inline

get local basis functions for entity

find() [2/2]

const Traits::FiniteElementType & Dune::PDELab::LocalFiniteElementMapInterface< LocalFiniteElementMapTraits< Dune::LagrangeSimplexLocalFiniteElement< D, R, 2, k > > , PkLocalFiniteElementMapBase< GV, D, R, k, 2 > >::find ( const EntityType &  e ) const

deleteinherited

Return local basis for the given entity.

The return value is a reference to Traits::LocalBasisType. If there is a different local basis for two elements then this type must be polymorphic.

fixedSize()

template<typename GV , typename D , typename R , unsigned int k>

static constexpr bool Dune::PDELab::fem::PkLocalFiniteElementMapBase< GV, D, R, k, 2 >::fixedSize ( )

inlinestaticconstexpr

hasDOFs()

template<typename GV , typename D , typename R , unsigned int k>

static constexpr bool Dune::PDELab::fem::PkLocalFiniteElementMapBase< GV, D, R, k, 2 >::hasDOFs ( int  codim )

inlinestaticconstexpr

maxLocalSize()

template<typename GV , typename D , typename R , unsigned int k>

static constexpr std::size_t Dune::PDELab::fem::PkLocalFiniteElementMapBase< GV, D, R, k, 2 >::maxLocalSize ( )

inlinestaticconstexpr

size()

template<typename GV , typename D , typename R , unsigned int k>

static constexpr std::size_t Dune::PDELab::fem::PkLocalFiniteElementMapBase< GV, D, R, k, 2 >::size ( GeometryType  gt )

inlinestaticconstexpr

Member Data Documentation

dimension

constexpr int Dune::PDELab::LocalFiniteElementMapInterface< LocalFiniteElementMapTraits< Dune::LagrangeSimplexLocalFiniteElement< D, R, 2, k > > , PkLocalFiniteElementMapBase< GV, D, R, k, 2 > >::dimension

staticconstexprinherited

dimension of the domain this FEM is defined on.

---

The documentation for this class was generated from the following file:

• pkfem.hh
