Dune::PDELab::EntitySetPartition::IteratorSplit< EntitySet > Struct Template Reference

Partition set with entities evenly split on several patches. More...

#include <dune/pdelab/common/partition/iteratorsplit.hh>

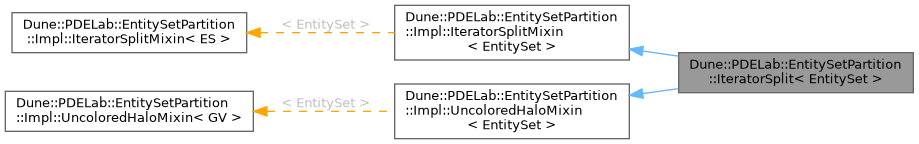

Inheritance diagram for Dune::PDELab::EntitySetPartition::IteratorSplit< EntitySet >:

Public Member Functions
	IteratorSplit (const EntitySet &entity_set, std::size_t patches=0, std::size_t halo_distance=all_interior_halo_region)
	Construct a IteratorSplit uncolored entity set partition.
void	update (const EntitySet &entity_set)
	Update the partition with a new entity set.

Detailed Description

template<Dune::Concept::GridView EntitySet>
struct Dune::PDELab::EntitySetPartition::IteratorSplit< EntitySet >

Partition set with entities evenly split on several patches.

This is a naive partition on an entity set where iterators of the grid view are evenly split and assigned to different patches of one label set. The patches are neighboring each other, thus, inducing a halo overlap in some entities of the partition.

Template Parameters

EntitySet

Grid view to partition

Constructor & Destructor Documentation

IteratorSplit()

template<Dune::Concept::GridView EntitySet>

Dune::PDELab::EntitySetPartition::IteratorSplit< EntitySet >::IteratorSplit ( const EntitySet &  entity_set, std::size_t  patches = 0, std::size_t  halo_distance = all_interior_halo_region  )

inlineexplicit

Construct a IteratorSplit uncolored entity set partition.

Parameters

entity_set	The entity set to operate on
patches	Number of patches to have in total (0 means automatic choice)
halo_distance	Neighbor distance where another entity in the same label set is considered connected

Member Function Documentation

update()

template<Dune::Concept::GridView EntitySet>

void Dune::PDELab::EntitySetPartition::IteratorSplit< EntitySet >::update ( const EntitySet &  entity_set )

inline

Update the partition with a new entity set.

---

The documentation for this struct was generated from the following file:

• iteratorsplit.hh
