Dune::PDELab::GridFunctionBaseAdapter< Imp > Class Template Reference

Turn an ordinary GridFunction into a GridFunctionTree leaf. More...

#include <dune/pdelab/common/function.hh>

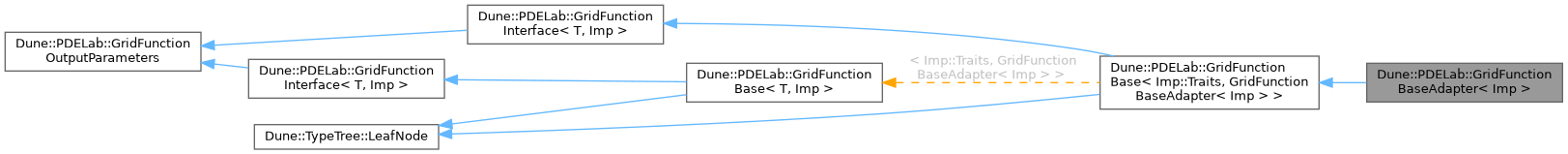

Inheritance diagram for Dune::PDELab::GridFunctionBaseAdapter< Imp >:

Public Types
typedef T	Traits
	Export type traits.
typedef LeafNodeTag	NodeTag

Public Member Functions
	GridFunctionBaseAdapter (const Imp &imp_)
	construct a GridFunctionBaseAdapter
void	evaluate (const typename Imp::Traits::ElementType &e, const typename Imp::Traits::DomainType &x, typename Imp::Traits::RangeType &y) const
	Evaluate the GridFunction at given position.
const Imp::Traits::GridViewType &	getGridView () const
	get a reference to the GridView
void	evaluate (const typename Traits::ElementType &e, const typename Traits::DomainType &x, typename Traits::RangeType &y) const
	Evaluate the GridFunction at given position.
Output::DataSetType	dataSetType () const
	Return the data set type of this function.
void	setDataSetType (Output::DataSetType dataSetType)
	Set the data set type of this function.

Static Public Member Functions
static constexpr auto	degree ()

Static Public Attributes
static const bool	isLeaf
static const bool	isPower
static const bool	isComposite

Detailed Description

template<class Imp>
class Dune::PDELab::GridFunctionBaseAdapter< Imp >

Turn an ordinary GridFunction into a GridFunctionTree leaf.

Template Parameters

Imp	Class implementing the function.

Member Typedef Documentation

Traits

template<class T , class Imp >

typedef T Dune::PDELab::GridFunctionInterface< T, Imp >::Traits

inherited

Export type traits.

Constructor & Destructor Documentation

GridFunctionBaseAdapter()

template<class Imp >

Dune::PDELab::GridFunctionBaseAdapter< Imp >::GridFunctionBaseAdapter ( const Imp &  imp_ )

inline

construct a GridFunctionBaseAdapter

Parameters

imp_	The underlying ordinary GridFunction. A reference to this Object is stored, so the object must be valid for as long as this GridFunctionBaseAdapter is used.

Member Function Documentation

dataSetType()

Output::DataSetType Dune::PDELab::GridFunctionOutputParameters::dataSetType ( ) const

inlineinherited

Return the data set type of this function.

evaluate() [1/2]

template<class Imp >

void Dune::PDELab::GridFunctionBaseAdapter< Imp >::evaluate ( const typename Imp::Traits::ElementType &  e, const typename Imp::Traits::DomainType &  x, typename Imp::Traits::RangeType &  y  ) const

inline

Evaluate the GridFunction at given position.

Evaluates components of the grid function at the given position and returns these values in a vector.

Parameters

[in]	e	The entity to evaluate on
[in]	x	The position in entity-local coordinates
[out]	y	The result of the evaluation

evaluate() [2/2]

template<class T , class Imp >

void Dune::PDELab::GridFunctionInterface< T, Imp >::evaluate ( const typename Traits::ElementType &  e, const typename Traits::DomainType &  x, typename Traits::RangeType &  y  ) const

inlineinherited

Evaluate the GridFunction at given position.

Evaluates components of the grid function at the given position and returns these values in a vector.

Parameters

[in]	e	The entity to evaluate on
[in]	x	The position in entity-local coordinates
[out]	y	The result of the evaluation

getGridView()

template<class Imp >

const Imp::Traits::GridViewType & Dune::PDELab::GridFunctionBaseAdapter< Imp >::getGridView ( ) const

inline

get a reference to the GridView

setDataSetType()

void Dune::PDELab::GridFunctionOutputParameters::setDataSetType ( Output::DataSetType  dataSetType )

inlineinherited

Set the data set type of this function.

---

The documentation for this class was generated from the following file:

• function.hh
