Dune::PDELab::GridFunctionTraits< GV, RF, m, R > Struct Template Reference

traits class holding the function signature, same as in local function More...

#include <dune/pdelab/common/function.hh>

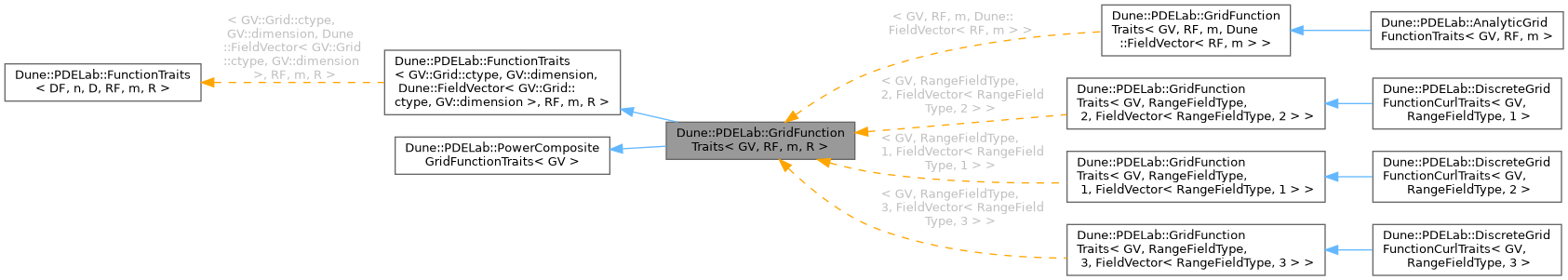

Inheritance diagram for Dune::PDELab::GridFunctionTraits< GV, RF, m, R >:

Public Types
enum
	Enum for domain dimension. More...
enum
	Enum for range dimension. More...
typedef GV::Grid::ctype	DomainFieldType
	Export type for domain field.
typedef Dune::FieldVector< GV::Grid::ctype, GV::dimension >	DomainType
	domain type in dim-size coordinates
typedef RF	RangeFieldType
	Export type for range field.
typedef R	RangeType
	range type
typedef GV	GridViewType
	The type of the grid view the function lives on.
typedef GV::Traits::template Codim< 0 >::Entity	ElementType
	codim 0 entity

Detailed Description

template<class GV, class RF, int m, class R>
struct Dune::PDELab::GridFunctionTraits< GV, RF, m, R >

traits class holding the function signature, same as in local function

GV The type of the grid view the function lives on.

RF The numeric type used in the range of the function.

m The dimension of the range.

Template Parameters

R	The numeric type of the field representing the range.

Member Typedef Documentation

DomainFieldType

typedef GV::Grid::ctype Dune::PDELab::FunctionTraits< GV::Grid::ctype , n, Dune::FieldVector< GV::Grid::ctype, GV::dimension > , RF, m, R >::DomainFieldType

inherited

Export type for domain field.

DomainType

typedef Dune::FieldVector< GV::Grid::ctype, GV::dimension > Dune::PDELab::FunctionTraits< GV::Grid::ctype , n, Dune::FieldVector< GV::Grid::ctype, GV::dimension > , RF, m, R >::DomainType

inherited

domain type in dim-size coordinates

ElementType

template<typename GV >

typedef GV::Traits::template Codim<0>::Entity Dune::PDELab::PowerCompositeGridFunctionTraits< GV >::ElementType

inherited

codim 0 entity

GridViewType

template<typename GV >

typedef GV Dune::PDELab::PowerCompositeGridFunctionTraits< GV >::GridViewType

inherited

The type of the grid view the function lives on.

RangeFieldType

typedef RF Dune::PDELab::FunctionTraits< GV::Grid::ctype , n, Dune::FieldVector< GV::Grid::ctype, GV::dimension > , RF, m, R >::RangeFieldType

inherited

Export type for range field.

RangeType

typedef R Dune::PDELab::FunctionTraits< GV::Grid::ctype , n, Dune::FieldVector< GV::Grid::ctype, GV::dimension > , RF, m, R >::RangeType

inherited

range type

Member Enumeration Documentation

anonymous enum

anonymous enum

inherited

Enum for domain dimension.

anonymous enum

anonymous enum

inherited

Enum for range dimension.

---

The documentation for this struct was generated from the following file:

• function.hh
