Dune::MMeshGlobalIdSet< GridImp > Class Template Reference

#include <dune/mmesh/grid/indexsets.hh>

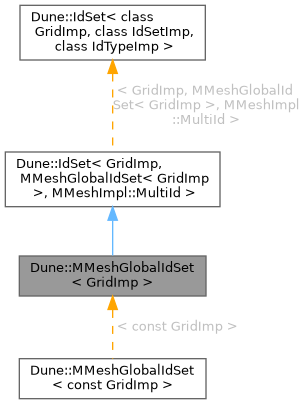

Inheritance diagram for Dune::MMeshGlobalIdSet< GridImp >:

Public Types
using	IdType = MMeshImpl::MultiId
	define the type used for persistent indices

Public Member Functions
	MMeshGlobalIdSet (const GridImp *g)
	constructor stores reference to a grid
void	init ()
	store element and vertex id count
template<int cd>
std::enable_if_t< cd==dim, IdType >	id (const typename std::remove_const< GridImp >::type::Traits::template Codim< cd >::Entity &e) const
	get id of an entity
template<int cd>
std::enable_if_t< cd !=dim, IdType >	id (const typename std::remove_const< GridImp >::type::Traits::template Codim< cd >::Entity &e) const
template<int d = dim>
std::enable_if_t< d==2, IdType >	subId (const typename std::remove_const< GridImp >::type::Traits::template Codim< 0 >::Entity &e, int i, int codim) const
	get id of subEntity
template<int d = dim>
std::enable_if_t< d==3, IdType >	subId (const typename std::remove_const< GridImp >::type::Traits::template Codim< 0 >::Entity &e, int i, int codim) const
template<int d = dim>
std::enable_if_t< d==2, void >	update (const GridImp *grid)
	update id set in 2d
template<int d = dim>
std::enable_if_t< d==3, void >	update (const GridImp *grid)
	update id set in 3d
std::size_t	setNextId (HostGridEntity< dim > vh) const
	advanced method to set the id of a vertex manually
IdType	id (const Entity &e) const
IdType	id (const typename Codim< cc >::Entity &e) const
IdType	subId (const typename Codim< 0 >::Entity &e, int i, unsigned int codim) const

Public Attributes
GridImp *	grid_
std::size_t	nextVertexId_

Static Public Attributes
static constexpr auto	dimension

Member Typedef Documentation

IdType

template<class GridImp >

using Dune::MMeshGlobalIdSet< GridImp >::IdType = MMeshImpl::MultiId

define the type used for persistent indices

Constructor & Destructor Documentation

MMeshGlobalIdSet()

template<class GridImp >

Dune::MMeshGlobalIdSet< GridImp >::MMeshGlobalIdSet ( const GridImp *  g )

inline

constructor stores reference to a grid

Member Function Documentation

id() [1/2]

template<class GridImp >

template<int cd>

std::enable_if_t< cd==dim, IdType > Dune::MMeshGlobalIdSet< GridImp >::id ( const typename std::remove_const< GridImp >::type::Traits::template Codim< cd >::Entity &  e ) const

inline

get id of an entity

id() [2/2]

template<class GridImp >

template<int cd>

std::enable_if_t< cd !=dim, IdType > Dune::MMeshGlobalIdSet< GridImp >::id ( const typename std::remove_const< GridImp >::type::Traits::template Codim< cd >::Entity &  e ) const

inline

init()

template<class GridImp >

void Dune::MMeshGlobalIdSet< GridImp >::init ( )

inline

store element and vertex id count

setNextId()

template<class GridImp >

std::size_t Dune::MMeshGlobalIdSet< GridImp >::setNextId ( HostGridEntity< dim >  vh ) const

inline

advanced method to set the id of a vertex manually

subId() [1/2]

template<class GridImp >

template<int d = dim>

std::enable_if_t< d==2, IdType > Dune::MMeshGlobalIdSet< GridImp >::subId ( const typename std::remove_const< GridImp >::type::Traits::template Codim< 0 >::Entity &  e, int  i, int  codim  ) const

inline

get id of subEntity

subId() [2/2]

template<class GridImp >

template<int d = dim>

std::enable_if_t< d==3, IdType > Dune::MMeshGlobalIdSet< GridImp >::subId ( const typename std::remove_const< GridImp >::type::Traits::template Codim< 0 >::Entity &  e, int  i, int  codim  ) const

inline

update() [1/2]

template<class GridImp >

template<int d = dim>

std::enable_if_t< d==2, void > Dune::MMeshGlobalIdSet< GridImp >::update ( const GridImp *  grid )

inline

update id set in 2d

update() [2/2]

template<class GridImp >

template<int d = dim>

std::enable_if_t< d==3, void > Dune::MMeshGlobalIdSet< GridImp >::update ( const GridImp *  grid )

inline

update id set in 3d

Member Data Documentation

grid_

template<class GridImp >

GridImp* Dune::MMeshGlobalIdSet< GridImp >::grid_

nextVertexId_

template<class GridImp >

std::size_t Dune::MMeshGlobalIdSet< GridImp >::nextVertexId_

mutable

---

The documentation for this class was generated from the following file:

• grid/indexsets.hh
