Dune::Amg::AMG< M, X, S, PI, A > Class Template Reference

Parallel algebraic multigrid based on agglomeration. More...

#include <dune/istl/paamg/amg.hh>

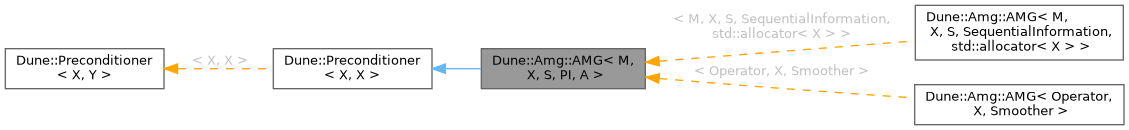

Inheritance diagram for Dune::Amg::AMG< M, X, S, PI, A >:

Public Types
typedef M	Operator
	The matrix operator type.
typedef PI	ParallelInformation
	The type of the parallel information. Either OwnerOverlapCommunication or another type describing the parallel data distribution and providing communication methods.
typedef MatrixHierarchy< M, ParallelInformation, A >	OperatorHierarchy
	The operator hierarchy type.
typedef OperatorHierarchy::ParallelInformationHierarchy	ParallelInformationHierarchy
	The parallal data distribution hierarchy type.
typedef X	Domain
	The domain type.
typedef X	Range
	The range type.
typedef InverseOperator< X, X >	CoarseSolver
	the type of the coarse solver.
typedef S	Smoother
	The type of the smoother.
typedef SmootherTraits< Smoother >::Arguments	SmootherArgs
	The argument type for the construction of the smoother.
typedef X	domain_type
	The domain type of the preconditioner.
typedef X	range_type
	The range type of the preconditioner.
typedef X::field_type	field_type
	The field type of the preconditioner.

Public Member Functions
	AMG (OperatorHierarchy &matrices, CoarseSolver &coarseSolver, const SmootherArgs &smootherArgs, const Parameters &parms)
	Construct a new amg with a specific coarse solver.
template<class C >
	AMG (const Operator &fineOperator, const C &criterion, const SmootherArgs &smootherArgs=SmootherArgs(), const ParallelInformation &pinfo=ParallelInformation())
	Construct an AMG with an inexact coarse solver based on the smoother.
	AMG (std::shared_ptr< const Operator > fineOperator, const ParameterTree &configuration, const ParallelInformation &pinfo=ParallelInformation())
	Constructor an AMG via ParameterTree.
	AMG (const AMG &amg)
	Copy constructor.
void	pre (Domain &x, Range &b)
	Prepare the preconditioner.
void	apply (Domain &v, const Range &d)
	Apply one step of the preconditioner to the system A(v)=d.
virtual SolverCategory::Category	category () const
	Category of the preconditioner (see SolverCategory::Category)
void	post (Domain &x)
	Clean up.
template<class A1 >
void	getCoarsestAggregateNumbers (std::vector< std::size_t, A1 > &cont)
	Get the aggregate number of each unknown on the coarsest level.
std::size_t	levels ()
std::size_t	maxlevels ()
void	recalculateHierarchy ()
	Recalculate the matrix hierarchy.
bool	usesDirectCoarseLevelSolver () const
	Check whether the coarse solver used is a direct solver.

Friends
template<class M1 , class X1 , class S1 , class P1 , class K1 , class A1 >
class	KAMG
class	KAmgTwoGrid< AMG >

Detailed Description

template<class M, class X, class S, class PI = SequentialInformation, class A = std::allocator<X>>
class Dune::Amg::AMG< M, X, S, PI, A >

Parallel algebraic multigrid based on agglomeration.

Template Parameters

M	The LinearOperator type which represents the matrix
X	The vector type
S	The smoother type
A	An allocator for X

Todo:

drop the smoother template parameter and replace with dynamic construction

Member Typedef Documentation

domain_type

typedef X Dune::Preconditioner< X, X >::domain_type

inherited

The domain type of the preconditioner.

field_type

typedef X::field_type Dune::Preconditioner< X, X >::field_type

inherited

The field type of the preconditioner.

range_type

typedef X Dune::Preconditioner< X, X >::range_type

inherited

The range type of the preconditioner.

---

The documentation for this class was generated from the following file:

• amg.hh
