Dune::VTK::CornerIterator< CellIterator > Class Template Reference

iterate over the corners of some cell range More...

#include <dune/grid/io/file/vtk/corneriterator.hh>

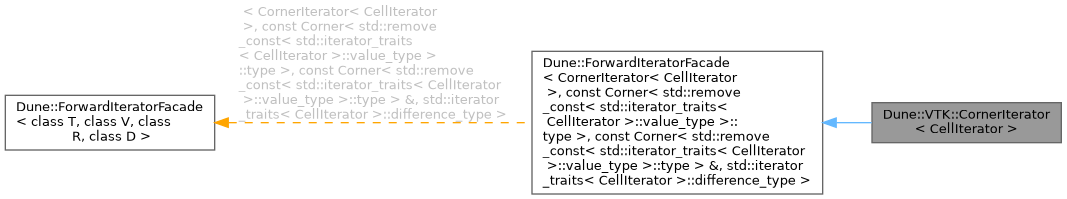

Inheritance diagram for Dune::VTK::CornerIterator< CellIterator >:

Public Types
typedef CornerIterator< CellIterator >	DerivedType
typedef VTK::Corner< typename std::remove_const< typename std::iterator_traits< CellIterator >::value_type >::type >	Corner
typedef const Corner	Value
typedef Value &	Reference
typedef std::iterator_traits< CellIterator >::difference_type	DifferenceType
typedef std::iterator_traits< CellIterator >::value_type::Geometry::ctype	ctype
typedef ReferenceElements< ctype, dim >	Refelems
typedef std::forward_iterator_tag	iterator_category
typedef typename std::remove_const< V >::type	value_type
typedef D	difference_type
typedef V *	pointer
typedef R	reference
typedef V *	Pointer

Public Member Functions
Reference	dereference () const
bool	isDereferencable () const
bool	equals (const DerivedType &other) const
void	increment ()
	CornerIterator (const CellIterator &cellit_, const CellIterator &cellend_, unsigned vtkIndex=0)
	construct a CornerIterator
	CornerIterator (const CellIterator &cellend_)
	construct a CornerIterator
constexpr Reference	operator* () const
constexpr Pointer	operator-> () const
constexpr DerivedType &	operator++ ()
constexpr DerivedType	operator++ (int)

Static Public Attributes
static const unsigned	dim

Detailed Description

template<typename CellIterator>
class Dune::VTK::CornerIterator< CellIterator >

iterate over the corners of some cell range

This will visit all the corners of all elements visited by CellIterator.

Member Typedef Documentation

Corner

template<typename CellIterator >

typedef VTK::Corner<typename std::remove_const<typename std::iterator_traits< CellIterator>::value_type>::type> Dune::VTK::CornerIterator< CellIterator >::Corner

ctype

template<typename CellIterator >

typedef std::iterator_traits<CellIterator>::value_type::Geometry::ctype Dune::VTK::CornerIterator< CellIterator >::ctype

DerivedType

template<typename CellIterator >

typedef CornerIterator<CellIterator> Dune::VTK::CornerIterator< CellIterator >::DerivedType

DifferenceType

template<typename CellIterator >

typedef std::iterator_traits<CellIterator>::difference_type Dune::VTK::CornerIterator< CellIterator >::DifferenceType

Refelems

template<typename CellIterator >

typedef ReferenceElements<ctype, dim> Dune::VTK::CornerIterator< CellIterator >::Refelems

Reference

template<typename CellIterator >

typedef Value& Dune::VTK::CornerIterator< CellIterator >::Reference

Value

template<typename CellIterator >

typedef const Corner Dune::VTK::CornerIterator< CellIterator >::Value

Constructor & Destructor Documentation

CornerIterator() [1/2]

template<typename CellIterator >

Dune::VTK::CornerIterator< CellIterator >::CornerIterator ( const CellIterator &  cellit_, const CellIterator &  cellend_, unsigned  vtkIndex = 0  )

inline

construct a CornerIterator

Parameters

cellit_	The begin iterator of the underlying range.
cellend_	The end iterator of the underlying range.
vtkIndex	VTKIndex of the currently pointed to corner.

CornerIterator() [2/2]

template<typename CellIterator >

Dune::VTK::CornerIterator< CellIterator >::CornerIterator ( const CellIterator &  cellend_ )

inline

construct a CornerIterator

This constructs a passed-the-end iterator value.

Member Function Documentation

dereference()

template<typename CellIterator >

Reference Dune::VTK::CornerIterator< CellIterator >::dereference ( ) const

inline

equals()

template<typename CellIterator >

bool Dune::VTK::CornerIterator< CellIterator >::equals ( const DerivedType &  other ) const

inline

increment()

template<typename CellIterator >

void Dune::VTK::CornerIterator< CellIterator >::increment ( )

inline

isDereferencable()

template<typename CellIterator >

bool Dune::VTK::CornerIterator< CellIterator >::isDereferencable ( ) const

inline

Member Data Documentation

dim

template<typename CellIterator >

const unsigned Dune::VTK::CornerIterator< CellIterator >::dim

static

Initial value:

= std::iterator_traits<CellIterator>::
                                  value_type::mydimension

---

The documentation for this class was generated from the following file:

• corneriterator.hh
