Public Types | Public Member Functions | Static Public Attributes | Protected Attributes | List of all members
Dune::Functions::ArgyrisPreBasis< GV, R > Class Template Reference
Function space bases » Function space basis implementations

A pre-basis for a Argyrisbasis. More...

#include <dune/functions/functionspacebases/argyrisbasis.hh>

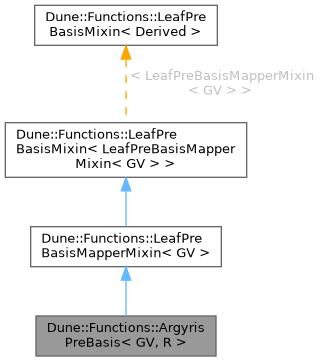

Inheritance diagram for Dune::Functions::ArgyrisPreBasis< GV, R >:
Inheritance graph

Public Types

using GridView = GV
 The grid view that the FE basis is defined on.

using size_type = std::size_t
 Type used for indices and size information.

using Node = ArgyrisNode< GridView, R >
 Template mapping root tree path to type of created tree node.


Public Member Functions

 ArgyrisPreBasis (const GV &gv)
 Constructor for a given grid view object.

void update (GridView const &gv)
 Update the stored grid view, to be called if the grid has changed.

Node makeNode () const
 Create tree node.

void initializeIndices ()
 Initialize the global index information.

const GridView & gridView () const
 Export the stored GridView.

size_type dimension () const
 Return total number of basis functions.

size_type maxNodeSize () const
 Return maximal number of basis functions per element.

template<class Node , class It >
It indices (const Node &node, It it) const
 Fill cache with global indices of DOFs associated to the given bound node.

size_type size (const SizePrefix &prefix) const
 Return number of possible values for next position in multi index.

size_type size () const
 Get the total dimension of the space spanned by this basis.

auto containerDescriptor () const
 Return a flat container-descriptor.


Static Public Attributes

static constexpr size_type maxMultiIndexSize
 Maximal length of global multi-indices.

static constexpr size_type minMultiIndexSize
 Minimal length of global multi-indices.

static constexpr size_type multiIndexBufferSize
 Size required temporarily when constructing global multi-indices.


Protected Attributes

SubEntityMapper vertexMapper_

std::vector< D > averageVertexMeshSize_

SubEntityMapper elementMapper_

std::vector< std::bitset< 3 > > edgeOrientations_

GridView gridView_

Dune::MultipleCodimMultipleGeomTypeMapper< GridView > mapper_

std::size_t maxNodeSize_


Detailed Description

template<class GV, class R>
class Dune::Functions::ArgyrisPreBasis< GV, R >

A pre-basis for a Argyrisbasis.

Template Parameters
GVThe grid view that the FE basis is defined on
RRange type used for shape function values
Note
This only works for simplex grids

Member Typedef Documentation

◆ GridView

template<class GV , class R >
using Dune::Functions::ArgyrisPreBasis< GV, R >::GridView = GV

The grid view that the FE basis is defined on.

◆ Node

template<class GV , class R >
using Dune::Functions::ArgyrisPreBasis< GV, R >::Node = ArgyrisNode<GridView, R>

Template mapping root tree path to type of created tree node.

◆ size_type

template<class GV , class R >
using Dune::Functions::ArgyrisPreBasis< GV, R >::size_type = std::size_t

Type used for indices and size information.

Constructor & Destructor Documentation

◆ ArgyrisPreBasis()

template<class GV , class R >
Dune::Functions::ArgyrisPreBasis< GV, R >::ArgyrisPreBasis ( const GV &  gv)
inline

Constructor for a given grid view object.

Member Function Documentation

◆ containerDescriptor()

auto Dune::Functions::LeafPreBasisMixin< LeafPreBasisMapperMixin< GV > >::containerDescriptor ( ) const
inlineinherited

Return a flat container-descriptor.

◆ dimension()

template<typename GV >
size_type Dune::Functions::LeafPreBasisMapperMixin< GV >::dimension ( ) const
inlineinherited

Return total number of basis functions.

◆ gridView()

template<typename GV >
const GridView & Dune::Functions::LeafPreBasisMapperMixin< GV >::gridView ( ) const
inlineinherited

Export the stored GridView.

◆ indices()

template<typename GV >
template<class Node , class It >
It Dune::Functions::LeafPreBasisMapperMixin< GV >::indices ( const Node &  node,
It  it
) const
inlineinherited

Fill cache with global indices of DOFs associated to the given bound node.

◆ initializeIndices()

template<typename GV >
void Dune::Functions::LeafPreBasisMapperMixin< GV >::initializeIndices ( )
inlineinherited

Initialize the global index information.

◆ makeNode()

template<class GV , class R >
Node Dune::Functions::ArgyrisPreBasis< GV, R >::makeNode ( ) const
inline

Create tree node.

◆ maxNodeSize()

template<typename GV >
size_type Dune::Functions::LeafPreBasisMapperMixin< GV >::maxNodeSize ( ) const
inlineinherited

Return maximal number of basis functions per element.

◆ size() [1/2]

size_type Dune::Functions::LeafPreBasisMixin< LeafPreBasisMapperMixin< GV > >::size ( ) const
inlineinherited

Get the total dimension of the space spanned by this basis.

◆ size() [2/2]

size_type Dune::Functions::LeafPreBasisMixin< LeafPreBasisMapperMixin< GV > >::size ( const SizePrefix &  prefix) const
inlineinherited

Return number of possible values for next position in multi index.

◆ update()

template<class GV , class R >
void Dune::Functions::ArgyrisPreBasis< GV, R >::update ( GridView const &  gv)
inline

Update the stored grid view, to be called if the grid has changed.

Member Data Documentation

◆ averageVertexMeshSize_

template<class GV , class R >
std::vector<D> Dune::Functions::ArgyrisPreBasis< GV, R >::averageVertexMeshSize_
protected

◆ edgeOrientations_

template<class GV , class R >
std::vector<std::bitset<3> > Dune::Functions::ArgyrisPreBasis< GV, R >::edgeOrientations_
protected

◆ elementMapper_

template<class GV , class R >
SubEntityMapper Dune::Functions::ArgyrisPreBasis< GV, R >::elementMapper_
protected

◆ gridView_

template<typename GV >
GridView Dune::Functions::LeafPreBasisMapperMixin< GV >::gridView_
protectedinherited

◆ mapper_

template<typename GV >
Dune::MultipleCodimMultipleGeomTypeMapper<GridView> Dune::Functions::LeafPreBasisMapperMixin< GV >::mapper_
protectedinherited

◆ maxMultiIndexSize

constexpr size_type Dune::Functions::LeafPreBasisMixin< LeafPreBasisMapperMixin< GV > >::maxMultiIndexSize
staticconstexprinherited

Maximal length of global multi-indices.

◆ maxNodeSize_

template<typename GV >
std::size_t Dune::Functions::LeafPreBasisMapperMixin< GV >::maxNodeSize_
protectedinherited

◆ minMultiIndexSize

constexpr size_type Dune::Functions::LeafPreBasisMixin< LeafPreBasisMapperMixin< GV > >::minMultiIndexSize
staticconstexprinherited

Minimal length of global multi-indices.

◆ multiIndexBufferSize

constexpr size_type Dune::Functions::LeafPreBasisMixin< LeafPreBasisMapperMixin< GV > >::multiIndexBufferSize
staticconstexprinherited

Size required temporarily when constructing global multi-indices.

◆ vertexMapper_

template<class GV , class R >
SubEntityMapper Dune::Functions::ArgyrisPreBasis< GV, R >::vertexMapper_
protected
The documentation for this class was generated from the following file:
