Dune::Fem::ReferenceCounterInterface< RCT > Class Template Reference

interface for objects capable of reference counting More...

#include <dune/fem/storage/referencecounter.hh>

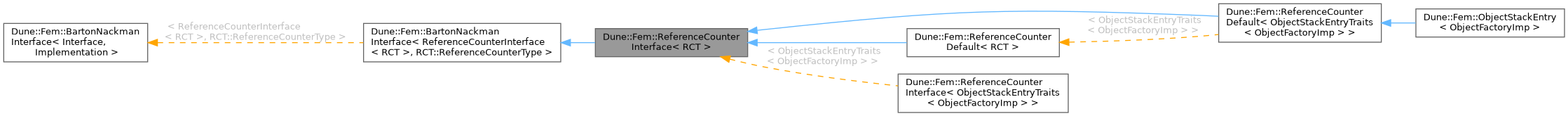

Inheritance diagram for Dune::Fem::ReferenceCounterInterface< RCT >:

Public Types
typedef RCT	Traits
	type of the traits
typedef Traits::ReferenceCounterType	ReferenceCounterType
	type of the implementation (Barton-Nackman)
typedef ThisType	ReferenceCounterInterfaceType
	type of the reference counter interface
typedef Traits::ObjectType	ObjectType
	type of the object, this is a reference counter for

Public Member Functions
void	addReference () const
	add a reference to this object
void	deleteObject ()
	delete to object
const ObjectType &	getObject () const
	access the real object (const version)
ObjectType &	getObject ()
	access the real object (non-const version)
void	removeReference () const
	remove a reference to this object

Protected Member Functions
const Implementation &	asImp () const
Implementation &	asImp ()

Static Protected Member Functions
static const Implementation &	asImp (const ThisType &other)
static Implementation &	asImp (ThisType &other)
static const RCT::ReferenceCounterType &	asImp (const ThisType &other)
static RCT::ReferenceCounterType &	asImp (ThisType &other)

Detailed Description

template<class RCT>
class Dune::Fem::ReferenceCounterInterface< RCT >

interface for objects capable of reference counting

In many situations it has to be decided, whether an object is still required or must be freed. A simple approach to this decision is to count all references to an object. When the last reference is released, the object is freed.

The ReferenceCounterInterface provides methods, an object needs to support reference counting. Classes implementing this interface can be used with ObjectReference and ObjectPointer. Both will implicitly call addReference when they start pointing to an object and removeReference when they stop pointing to it.

Note

Reference counting is not a good mehtod for garbage collection, since it does not detect cycles. So be careful when using reference counters!

Member Typedef Documentation

ObjectType

template<class RCT >

typedef Traits::ObjectType Dune::Fem::ReferenceCounterInterface< RCT >::ObjectType

type of the object, this is a reference counter for

ReferenceCounterInterfaceType

template<class RCT >

typedef ThisType Dune::Fem::ReferenceCounterInterface< RCT >::ReferenceCounterInterfaceType

type of the reference counter interface

ReferenceCounterType

template<class RCT >

typedef Traits::ReferenceCounterType Dune::Fem::ReferenceCounterInterface< RCT >::ReferenceCounterType

type of the implementation (Barton-Nackman)

Traits

template<class RCT >

typedef RCT Dune::Fem::ReferenceCounterInterface< RCT >::Traits

type of the traits

Member Function Documentation

addReference()

template<class RCT >

void Dune::Fem::ReferenceCounterInterface< RCT >::addReference ( ) const

inline

add a reference to this object

This method should be called whenever a permanent reference to this object is established (a pointer counts as a reference, too)

Note

This method is declared const, since we want to be able to add references to const objects, too. Hence, the reference coutner must be declared mutable.

asImp() [1/6]

template<class RCT >

Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( )

inlineprotected

asImp() [2/6]

template<class RCT >

const Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( ) const

inlineprotected

asImp() [3/6]

static const RCT::ReferenceCounterType & Dune::Fem::BartonNackmanInterface< ReferenceCounterInterface< RCT > , RCT::ReferenceCounterType >::asImp ( const ThisType &  other )

inlinestaticprotectedinherited

asImp() [4/6]

template<class RCT >

static const Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( const ThisType &  other )

inlinestaticprotected

asImp() [5/6]

static RCT::ReferenceCounterType & Dune::Fem::BartonNackmanInterface< ReferenceCounterInterface< RCT > , RCT::ReferenceCounterType >::asImp ( ThisType &  other )

inlinestaticprotectedinherited

asImp() [6/6]

template<class RCT >

static Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( ThisType &  other )

inlinestaticprotected

deleteObject()

template<class RCT >

void Dune::Fem::ReferenceCounterInterface< RCT >::deleteObject ( )

inline

delete to object

This method is used by the default implementation to free the object when the reference counter becomes zero.

Note

For the implementor's convenience, this method is not declared const. The caller (usually the default implementation's removeReference method) is responsible for performing a necessary const_cast.

getObject() [1/2]

template<class RCT >

ObjectType & Dune::Fem::ReferenceCounterInterface< RCT >::getObject ( )

inline

access the real object (non-const version)

Sometimes the reference counter just wraps the object for which it counts references. In such cases, this method returns the wrapped object. Otherwise, the object itself may be returned.

Returns

a reference to the real object

getObject() [2/2]

template<class RCT >

const ObjectType & Dune::Fem::ReferenceCounterInterface< RCT >::getObject ( ) const

inline

access the real object (const version)

Sometimes the reference counter just wraps the object for which it counts references. In such cases, this method returns the wrapped object. Otherwise, the object itself may be returned.

Returns

a constant reference to the real object

removeReference()

template<class RCT >

void Dune::Fem::ReferenceCounterInterface< RCT >::removeReference ( ) const

inline

remove a reference to this object

This method should be called whenever a previously added reference to this object is released.

Note

This method is declared const, since we want to be able to remove references to const objects, too. Hence, the reference coutner must be declared mutable.

---

The documentation for this class was generated from the following file:

• referencecounter.hh
