Dune::Fem::RestrictProlongInterfaceDefault< Traits > Class Template Reference

Interface default implementation for derived classes. More...

#include <dune/fem/space/common/restrictprolonginterface.hh>

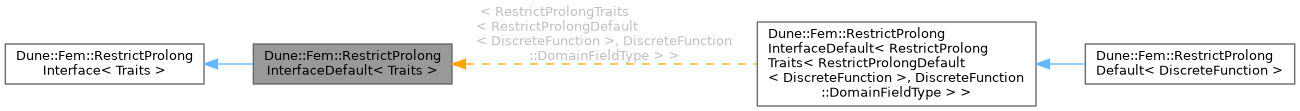

Inheritance diagram for Dune::Fem::RestrictProlongInterfaceDefault< Traits >:

Public Types
typedef BaseType::DomainFieldType	DomainFieldType
typedef Traits::RestProlImp	RestProlImp
	type of restrict-prolong operator implementation

Public Member Functions
void	setFatherChildWeight (const DomainFieldType &weight) const
	explicit set volume ratio of son and father
void	initialize ()
void	finalize ()
template<class Entity >
void	restrictFinalize (const Entity &father) const
	restrictFinalize is for some spaces where a local matrix inversion is carried out after restriction.
template<class Entity >
void	restrictLocal (const Entity &father, const Entity &son, bool initialize) const
	restrict data to father
template<class Entity , class LocalGeometry >
void	restrictLocal (const Entity &father, const Entity &son, const LocalGeometry &geometryInFather, bool initialize) const
	restrict data to father
template<class Entity >
void	prolongLocal (const Entity &father, const Entity &son, bool initialize) const
	prolong data to children
template<class Entity , class LocalGeometry >
void	prolongLocal (const Entity &father, const Entity &son, const LocalGeometry &geometryInFather, bool initialize) const
	prolong data to children
template<class Communicator >
void	addToList (Communicator &comm)
	add discrete function to communicator
template<class LoadBalancer >
void	addToLoadBalancer (LoadBalancer &lb)
	add discrete function to load balancer

Protected Member Functions
template<class IndexSet , class Entity >
bool	entitiesAreCopies (const IndexSet &indexSet, const Entity &father, const Entity &son) const
	return true if father and son have the same index
template<class Entity >
DomainFieldType	calcWeight (const Entity &father, const Entity &son) const
	calculates the weight, i.e. (volume son)/(volume father)
const RestProlImp &	asImp () const
RestProlImp &	asImp ()

Detailed Description

template<class Traits>
class Dune::Fem::RestrictProlongInterfaceDefault< Traits >

Interface default implementation for derived classes.

Member Typedef Documentation

DomainFieldType

template<class Traits >

typedef BaseType::DomainFieldType Dune::Fem::RestrictProlongInterfaceDefault< Traits >::DomainFieldType

RestProlImp

template<class Traits >

typedef Traits::RestProlImp Dune::Fem::RestrictProlongInterface< Traits >::RestProlImp

inherited

type of restrict-prolong operator implementation

Member Function Documentation

addToList()

template<class Traits >

template<class Communicator >

void Dune::Fem::RestrictProlongInterface< Traits >::addToList ( Communicator &  comm )

inlineinherited

add discrete function to communicator

Parameters

[in]

comm

Communicator to add the discrete functions to

addToLoadBalancer()

template<class Traits >

template<class LoadBalancer >

void Dune::Fem::RestrictProlongInterface< Traits >::addToLoadBalancer ( LoadBalancer &  lb )

inlineinherited

add discrete function to load balancer

Parameters

[in]

lb

LoadBalancer to add the discrete functions to

asImp() [1/2]

template<class Traits >

RestProlImp & Dune::Fem::RestrictProlongInterface< Traits >::asImp ( )

inlineprotectedinherited

asImp() [2/2]

template<class Traits >

const RestProlImp & Dune::Fem::RestrictProlongInterface< Traits >::asImp ( ) const

inlineprotectedinherited

calcWeight()

template<class Traits >

template<class Entity >

DomainFieldType Dune::Fem::RestrictProlongInterface< Traits >::calcWeight ( const Entity &  father, const Entity &  son  ) const

inlineprotectedinherited

calculates the weight, i.e. (volume son)/(volume father)

Parameters

[in]	father	Father Entity
[in]	son	Son Entity

Returns

proportion between fahter and son volume

entitiesAreCopies()

template<class Traits >

template<class IndexSet , class Entity >

bool Dune::Fem::RestrictProlongInterfaceDefault< Traits >::entitiesAreCopies ( const IndexSet &  indexSet, const Entity &  father, const Entity &  son  ) const

inlineprotected

return true if father and son have the same index

finalize()

template<class Traits >

void Dune::Fem::RestrictProlongInterfaceDefault< Traits >::finalize ( )

inline

initialize()

template<class Traits >

void Dune::Fem::RestrictProlongInterfaceDefault< Traits >::initialize ( )

inline

prolongLocal() [1/2]

template<class Traits >

template<class Entity >

void Dune::Fem::RestrictProlongInterface< Traits >::prolongLocal ( const Entity &  father, const Entity &  son, bool  initialize  ) const

inlineinherited

prolong data to children

prolongLocal() [2/2]

template<class Traits >

template<class Entity , class LocalGeometry >

void Dune::Fem::RestrictProlongInterface< Traits >::prolongLocal ( const Entity &  father, const Entity &  son, const LocalGeometry &  geometryInFather, bool  initialize  ) const

inlineinherited

prolong data to children

restrictFinalize()

template<class Traits >

template<class Entity >

void Dune::Fem::RestrictProlongInterfaceDefault< Traits >::restrictFinalize ( const Entity &  father ) const

inline

restrictFinalize is for some spaces where a local matrix inversion is carried out after restriction.

restrictLocal() [1/2]

template<class Traits >

template<class Entity >

void Dune::Fem::RestrictProlongInterface< Traits >::restrictLocal ( const Entity &  father, const Entity &  son, bool  initialize  ) const

inlineinherited

restrict data to father

restrictLocal() [2/2]

template<class Traits >

template<class Entity , class LocalGeometry >

void Dune::Fem::RestrictProlongInterface< Traits >::restrictLocal ( const Entity &  father, const Entity &  son, const LocalGeometry &  geometryInFather, bool  initialize  ) const

inlineinherited

restrict data to father

setFatherChildWeight()

template<class Traits >

void Dune::Fem::RestrictProlongInterfaceDefault< Traits >::setFatherChildWeight ( const DomainFieldType &  weight ) const

inline

explicit set volume ratio of son and father

Parameters

[in]

weight

volume of son / volume of father

Note

If this ratio is set, it is assume to be constant.

---

The documentation for this class was generated from the following file:

• restrictprolonginterface.hh
